Transmission Fluid Level Check

Materials

Check

1. 1.

   With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

1. 2.

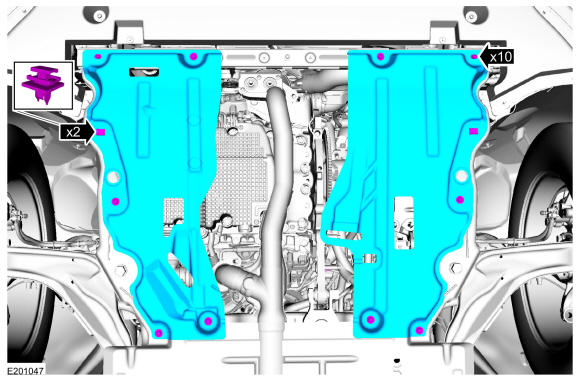

   Remove the bolts, grommets and the engine undershield.

Courtesy of FORD MOTOR COMPANY

1. 3.

   Start the engine and slowly select each gear position, stopping in each position and allowing the transmission to engage.

1. 4.

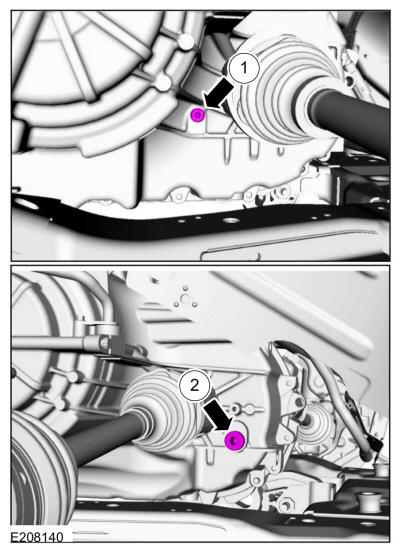

   With the engine running in PARK on a level hoist make sure the transmission is at normal operating temperature 85-93 ° C (185-200 ° F). Check the transmission fluid is even with the oil leveling plug hole.

   1. 1.

      Standard transmission case (M10 plug)

   1. 2.

      Fuel economy transmission case (M20 plug)

Courtesy of FORD MOTOR COMPANY

1. 5.

   If the transmission fluid is not even with the oil leveling plug hole, add clean transmission fluid in increments of 0.25L (0.5 pt) until the transmission fluid is even with the oil leveling plug hole.

   Material

   : Motorcraft ® MERCON ® LV Automatic Transmission Fluid (U.S.) / XT-10-QLVC (U.S.) (MERCON ® LV) (WSS-M2C938-A)

Courtesy of FORD MOTOR COMPANY

1. 6.

   Install the oil leveling plug.

   1. 1.

      Standard transmission case (M10 plug)

      Torque

      : 71 lb.in (8 Nm)

   1. 2.

      Fuel economy transmission case (M20 plug)

      Torque

      : 26 lb.ft (35 Nm)

Courtesy of FORD MOTOR COMPANY

1. 7.

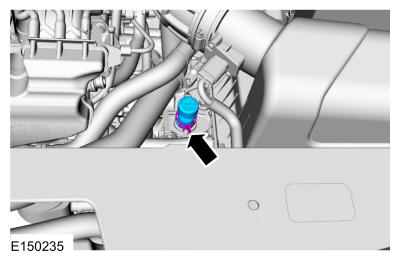

   With the clamp facing the front of the vehicle, compress the constant tension clamp and install the transmission vent on the fill tube.

Courtesy of FORD MOTOR COMPANY

1. 8.

   Install the bolts, grommets and the engine undershield.

   Torque

   : 13 lb.in (1.5 Nm)
