Selector Lever Knob: Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. 1.

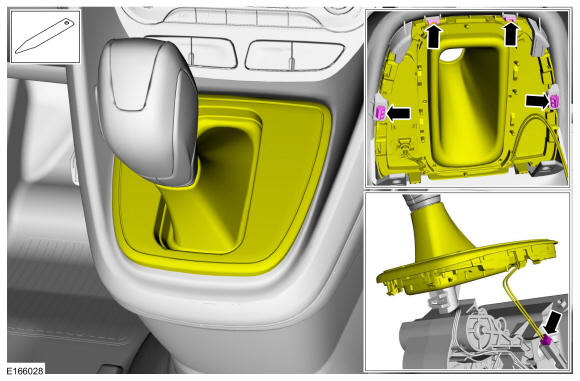

    Disengage the 4 retaining tabs and lift the selector lever bezel up and disconnect the electrical connectors.
GFD150328Courtesy of FORD MOTOR COMPANY

  1. 2.

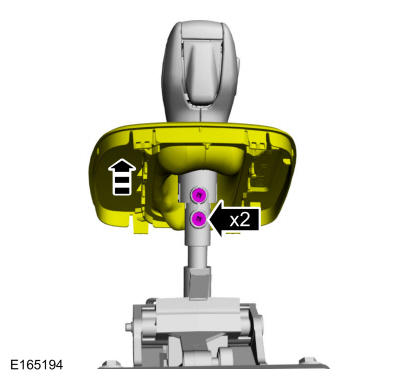

    Lift the selector lever bezel up and remove the retainers.
GFD150343Courtesy of FORD MOTOR COMPANY

  1. 3.

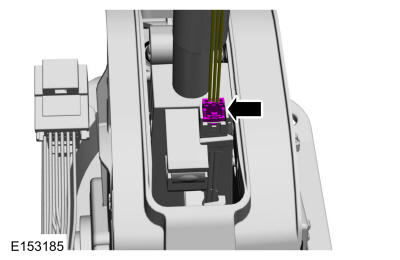

    Disconnect the selectshift switch electrical connector.
GFD150344Courtesy of FORD MOTOR COMPANY

  1. 4.

    1. 1.

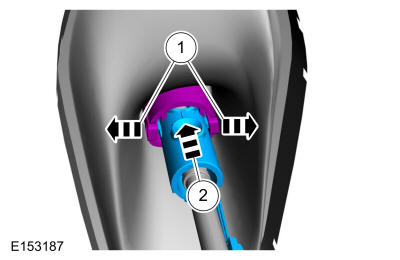

      Disengage the selector lever knob from the retaining tabs.

    1. 2.

      Separate the selector lever knob from the selector lever bezel.
GFD150345Courtesy of FORD MOTOR COMPANY

  1. 5.

    Remove the selector lever knob.
GFD150346Courtesy of FORD MOTOR COMPANY
