OEM Ground Distribution: Grounds

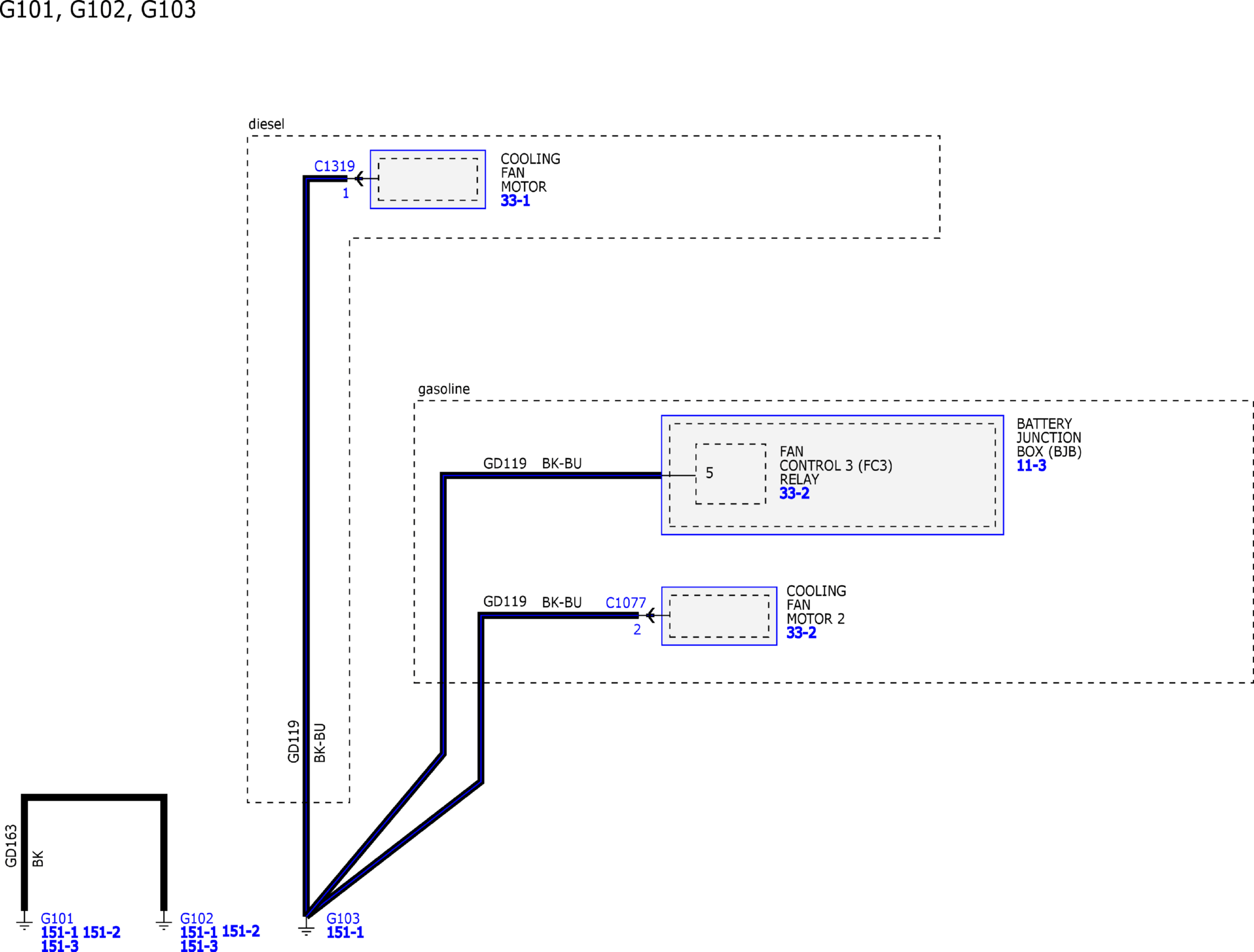

GFDW28889Courtesy of FORD MOTOR COMPANY

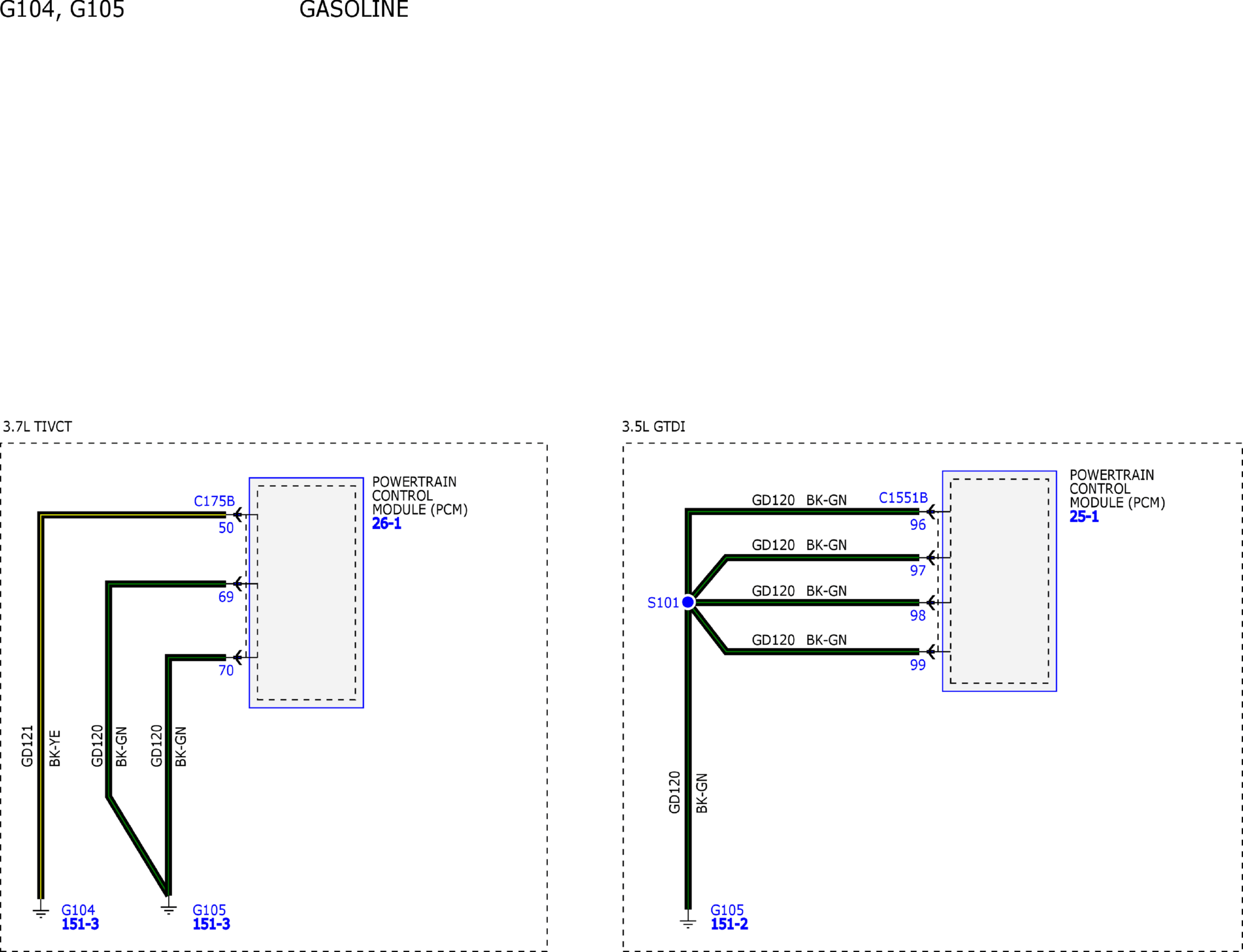

GFDW28890Courtesy of FORD MOTOR COMPANY

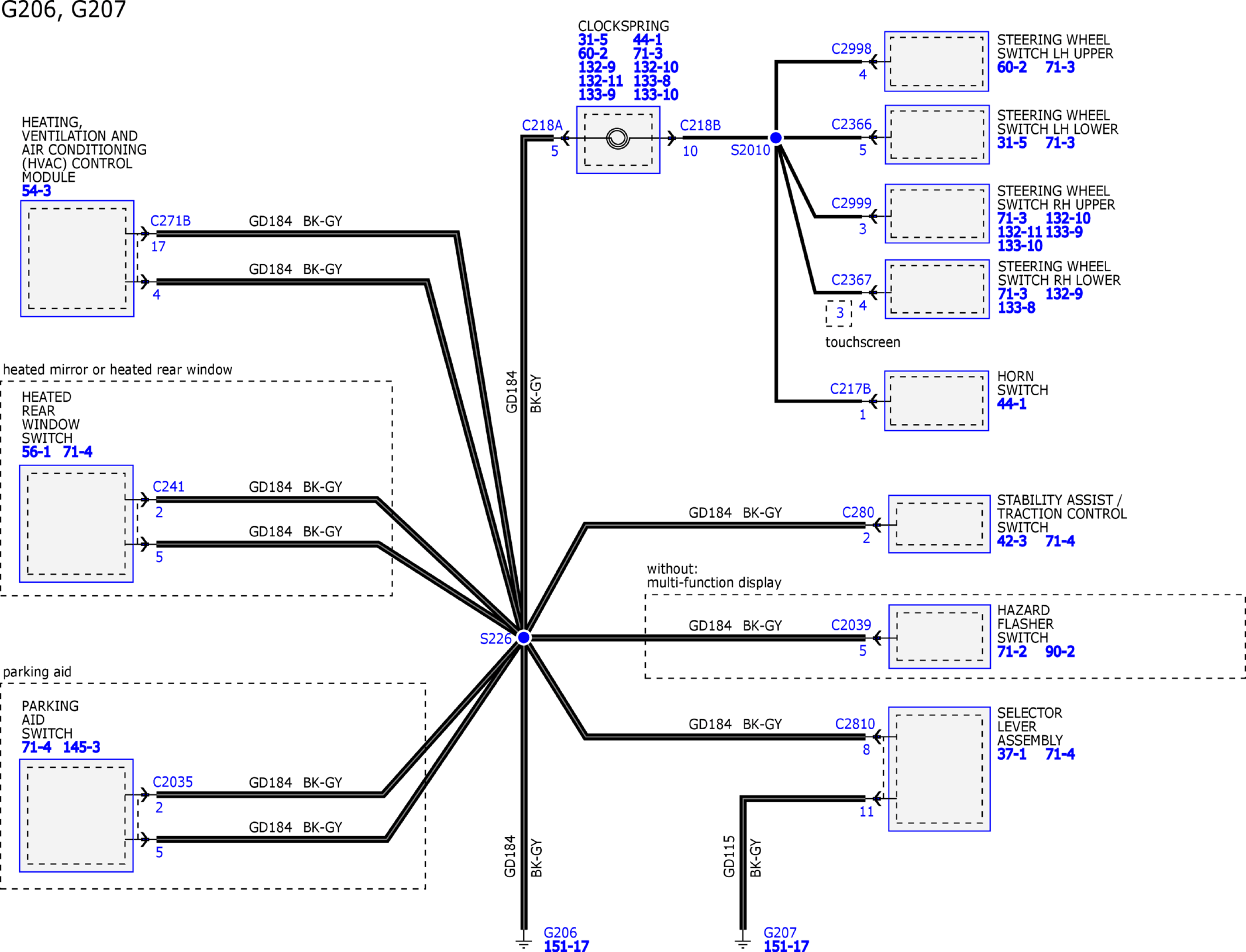

GFDW28891Courtesy of FORD MOTOR COMPANY

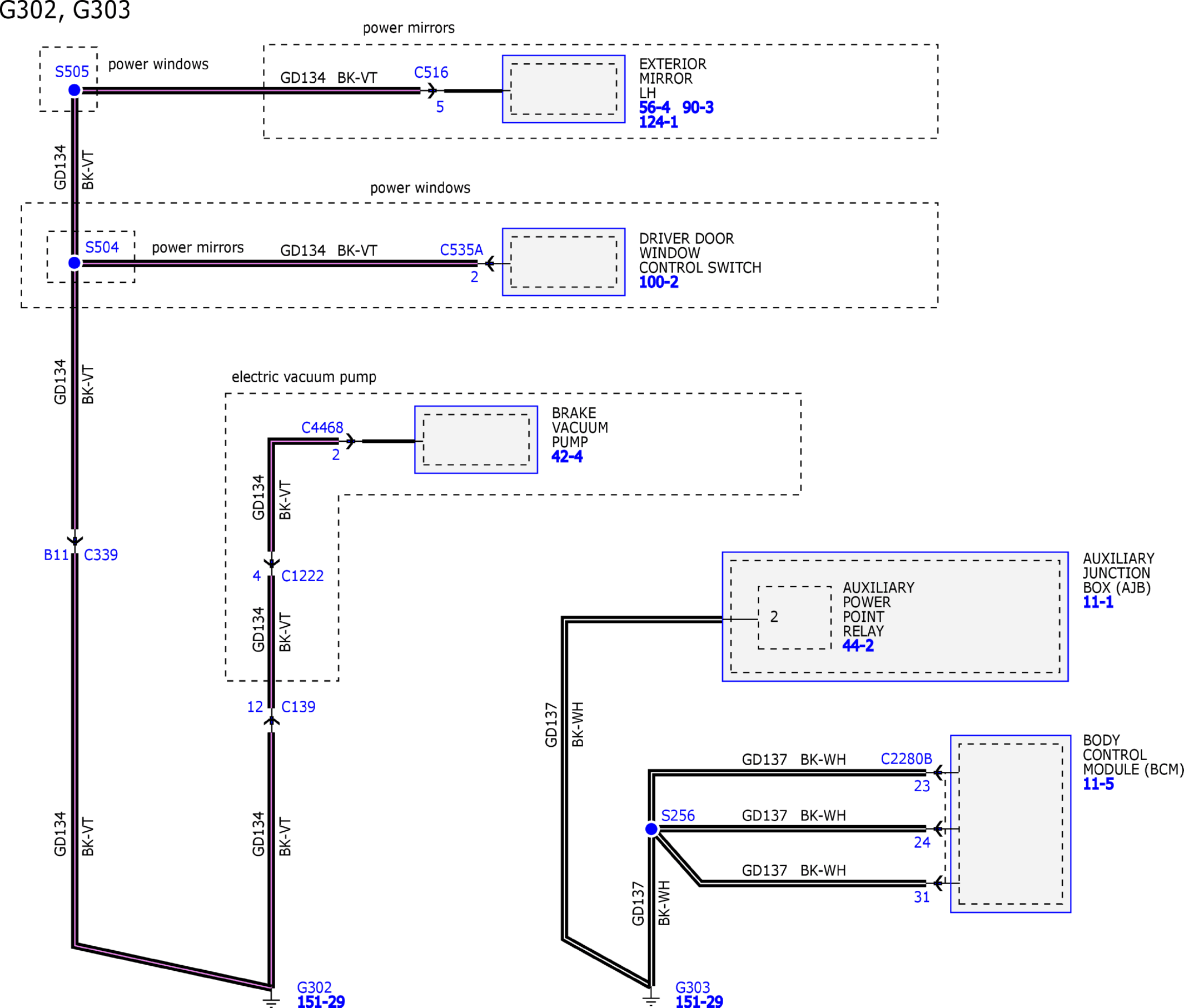

GFDW28892Courtesy of FORD MOTOR COMPANY

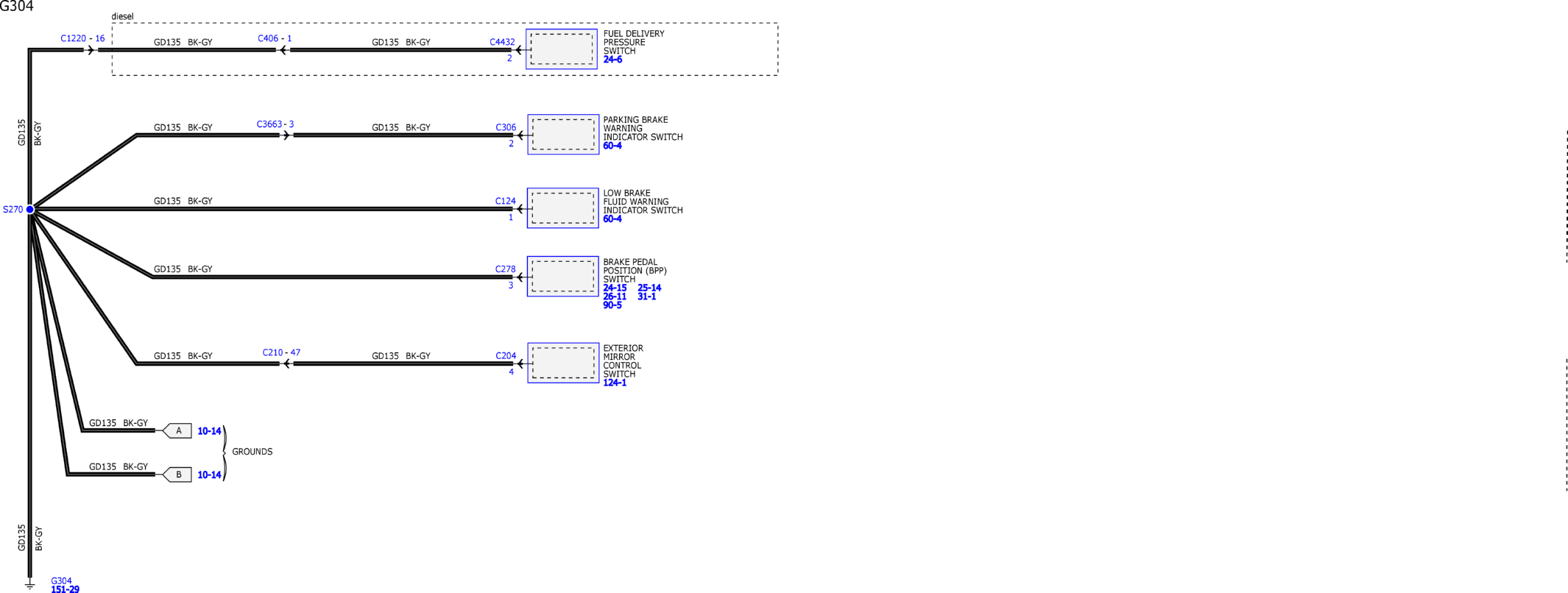

GFDW28893Courtesy of FORD MOTOR COMPANY

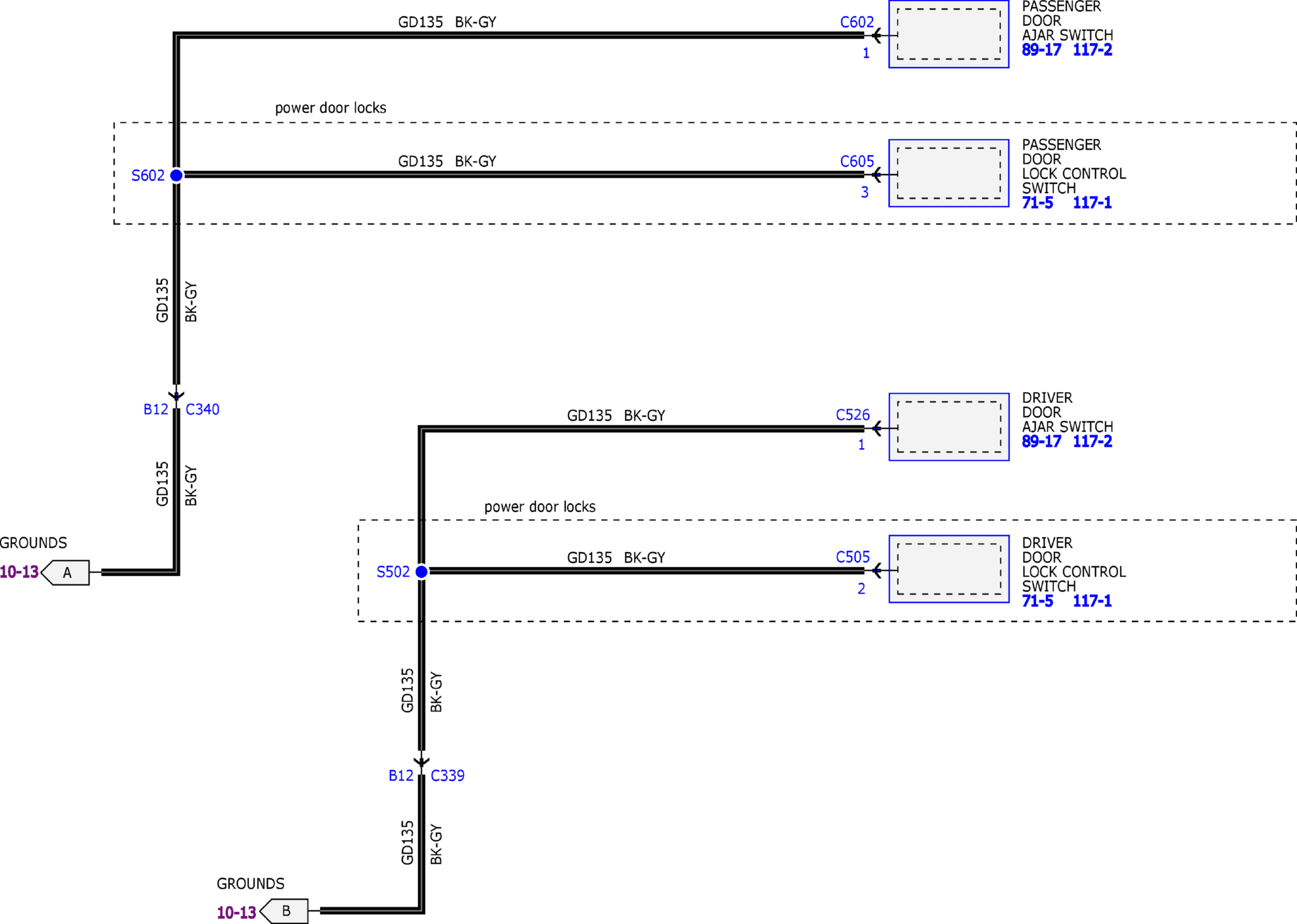

GFDW28894Courtesy of FORD MOTOR COMPANY

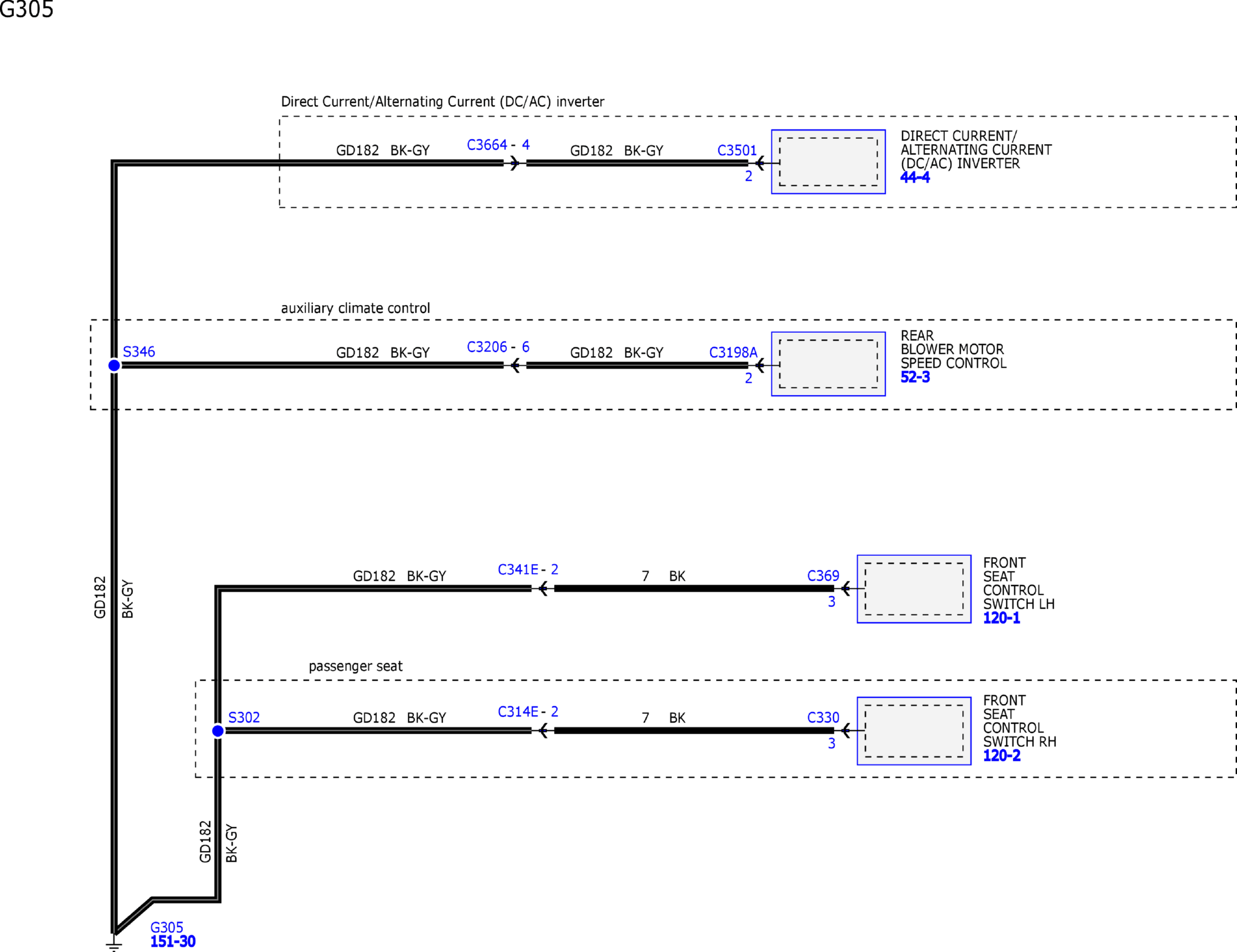

GFDW28895Courtesy of FORD MOTOR COMPANY

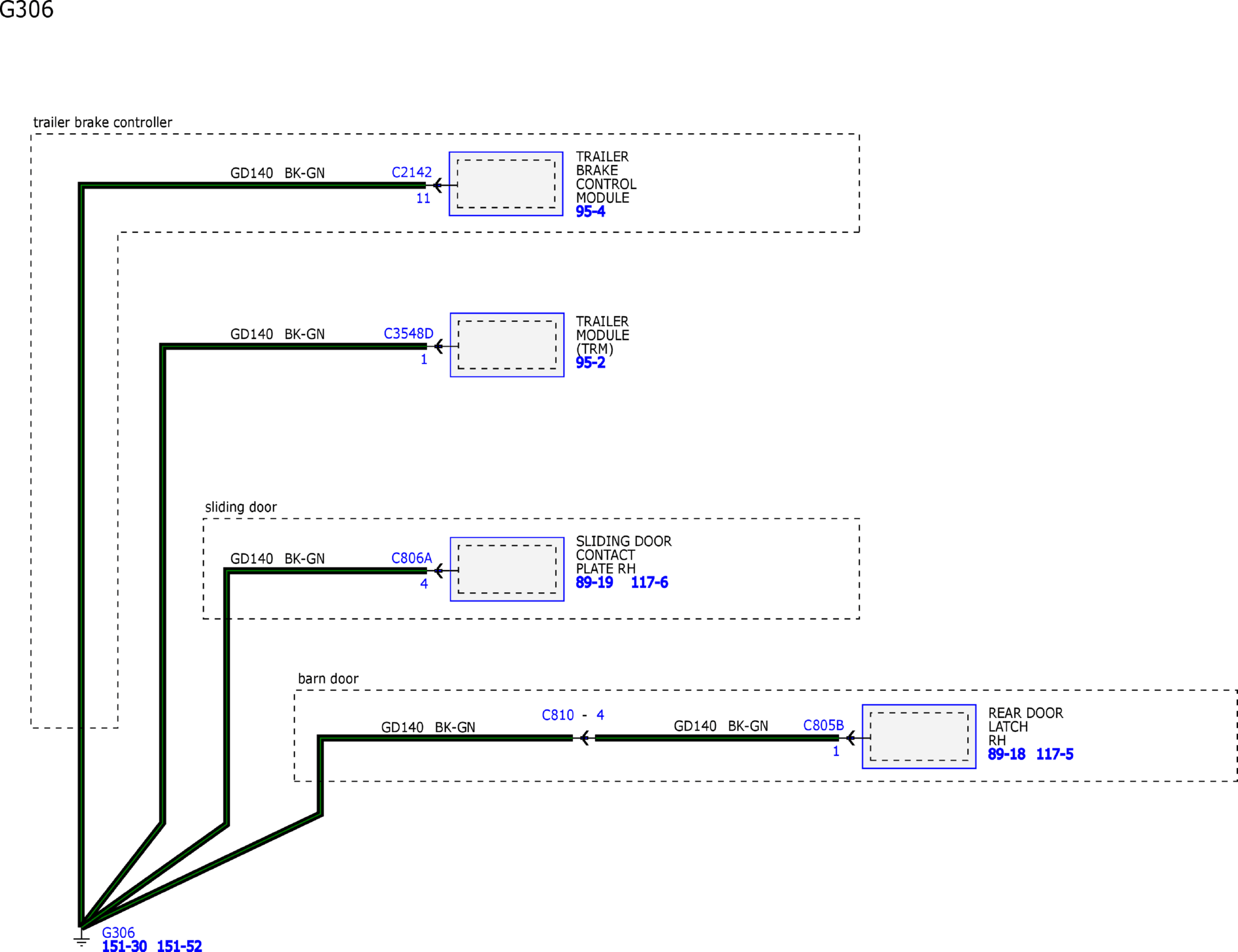

GFDW28896Courtesy of FORD MOTOR COMPANY

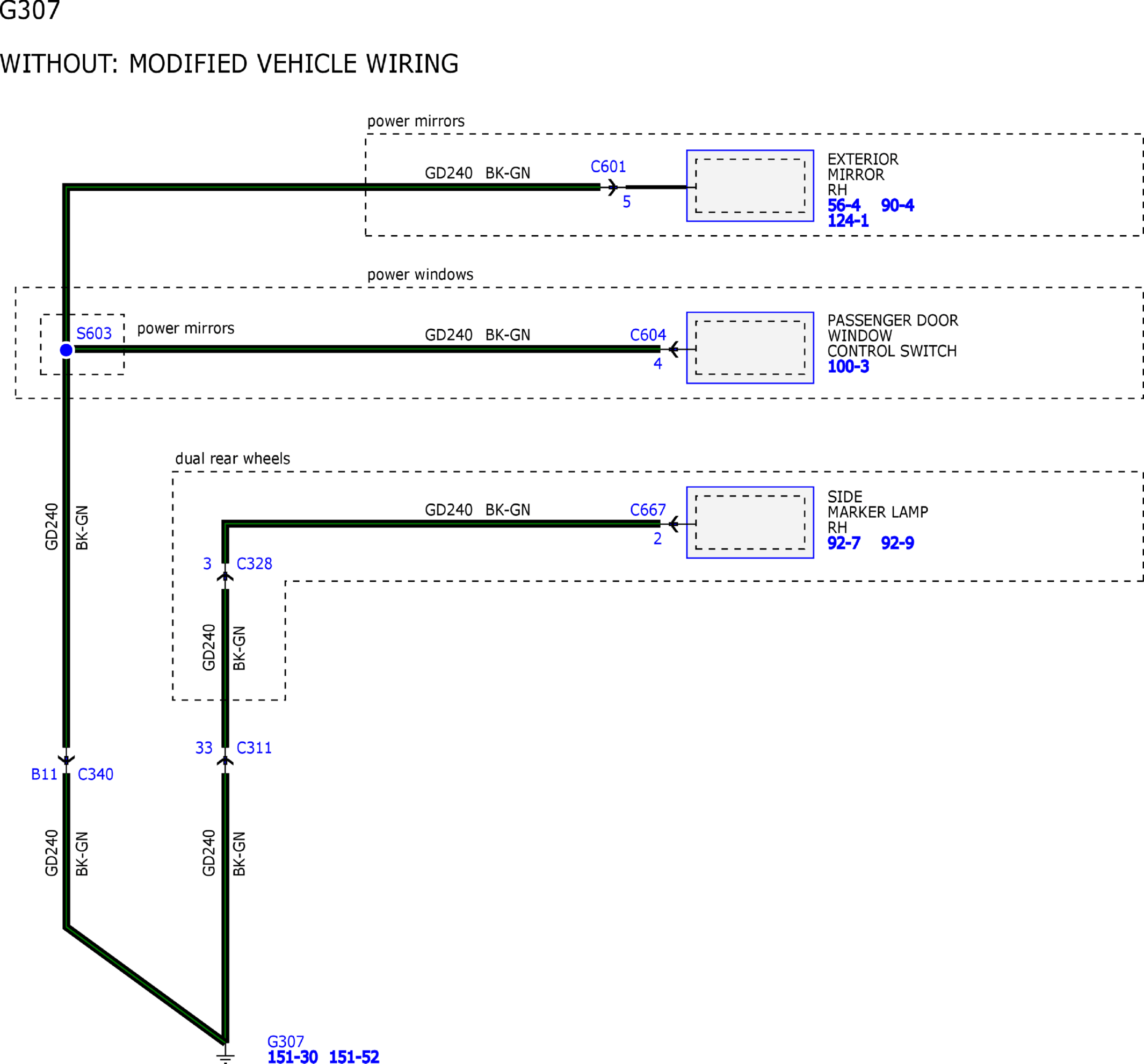

GFDW28897Courtesy of FORD MOTOR COMPANY

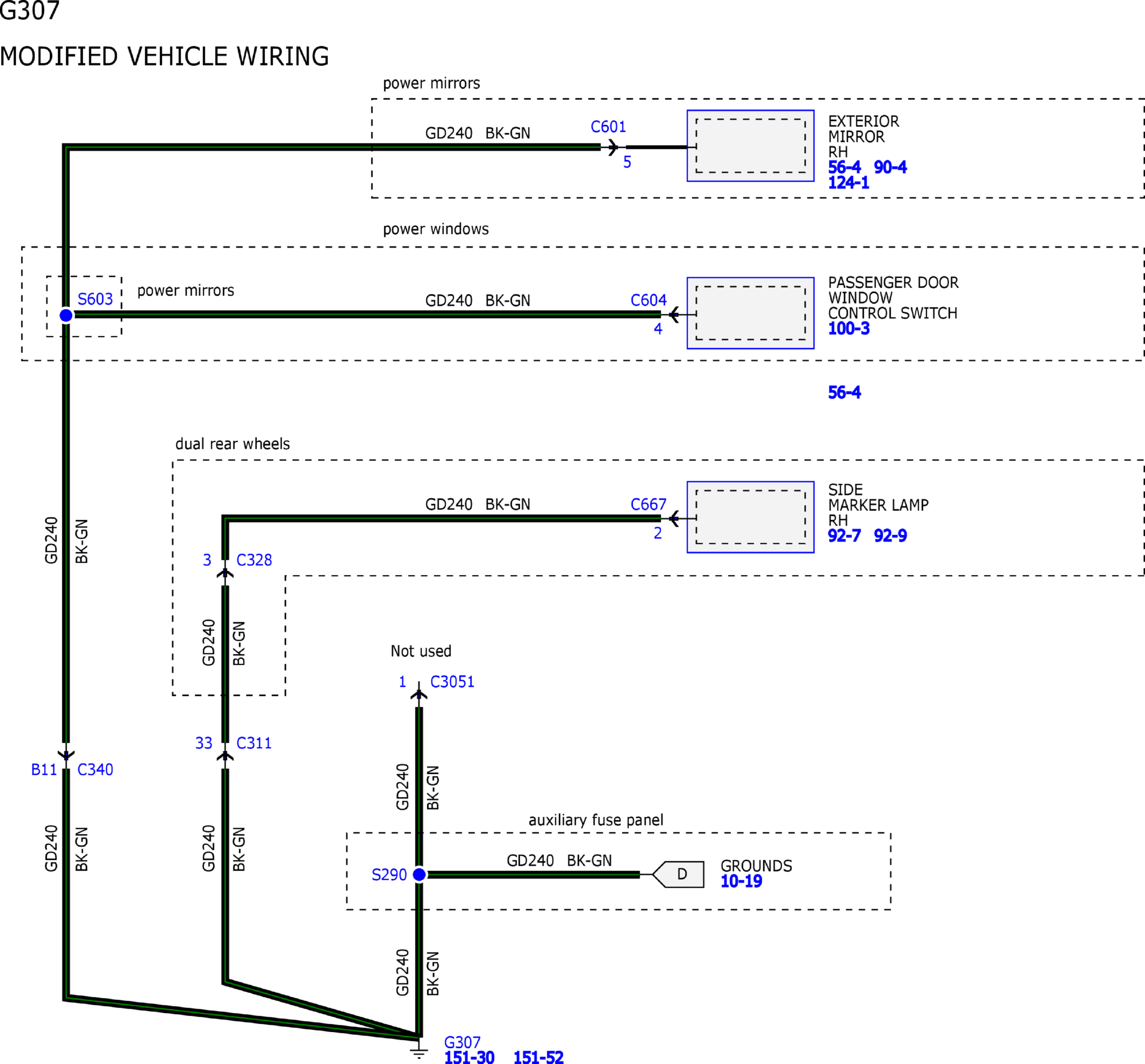

GFDW28898Courtesy of FORD MOTOR COMPANY

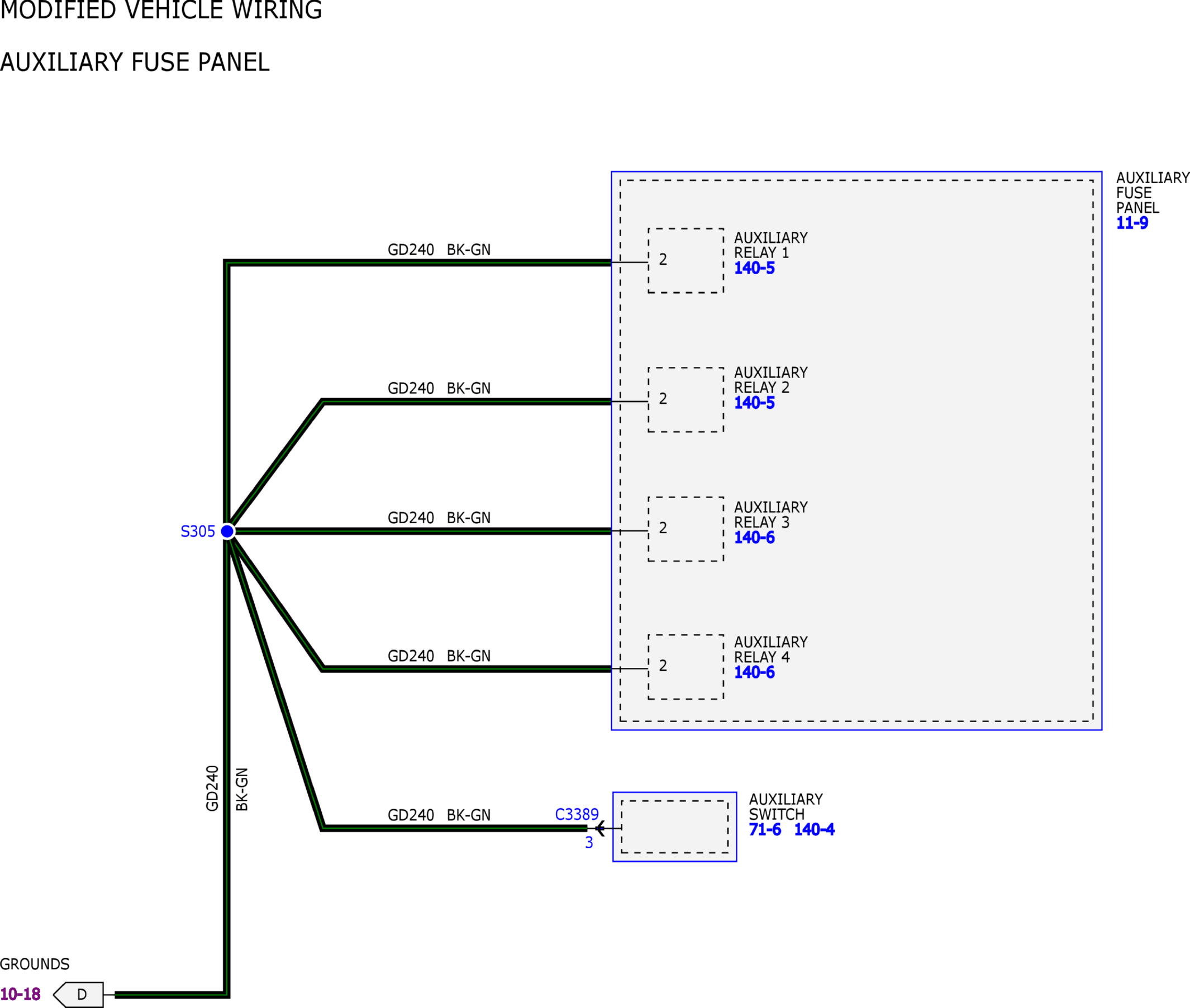

GFDW28899Courtesy of FORD MOTOR COMPANY

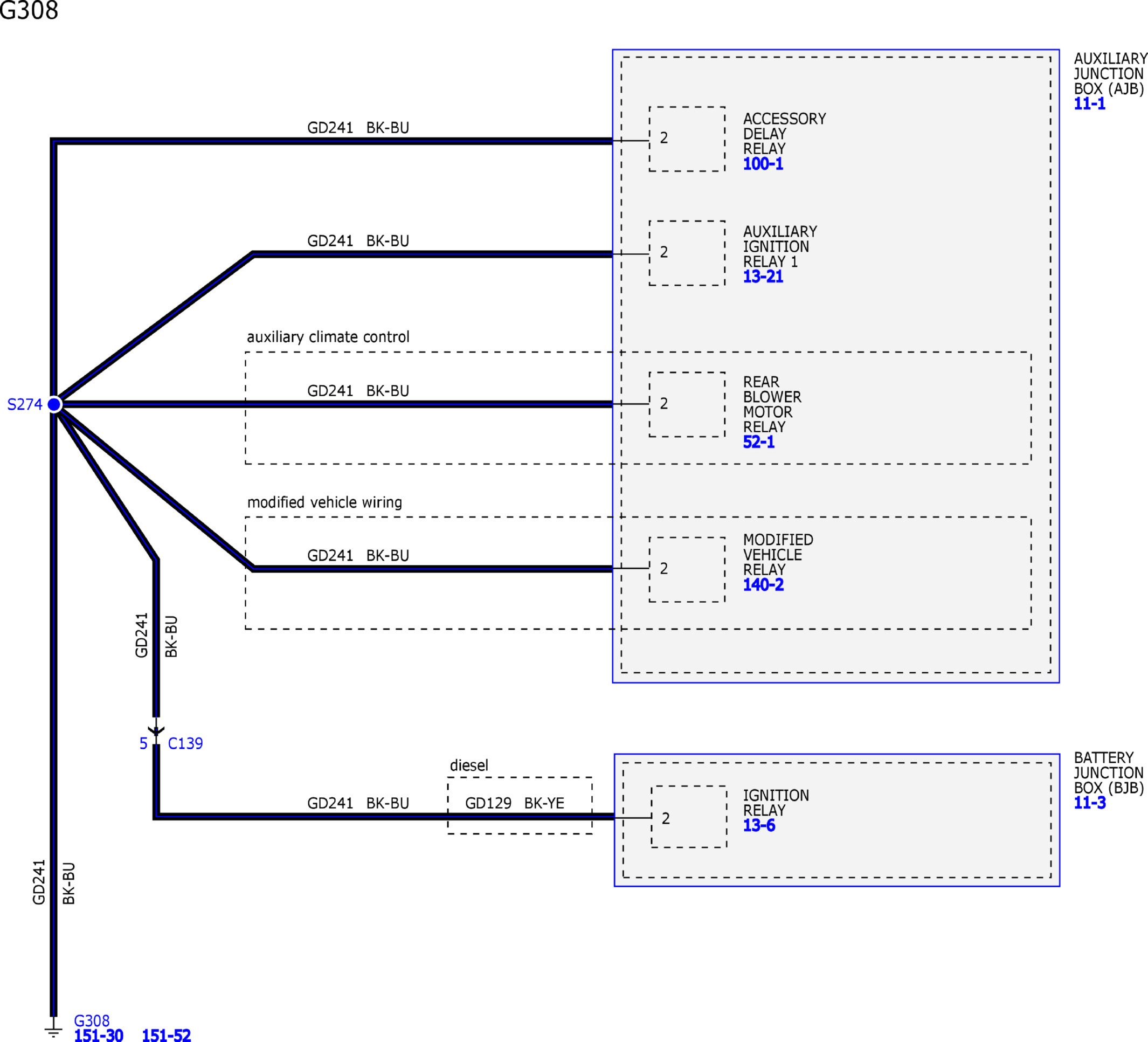

GFDW28900Courtesy of FORD MOTOR COMPANY

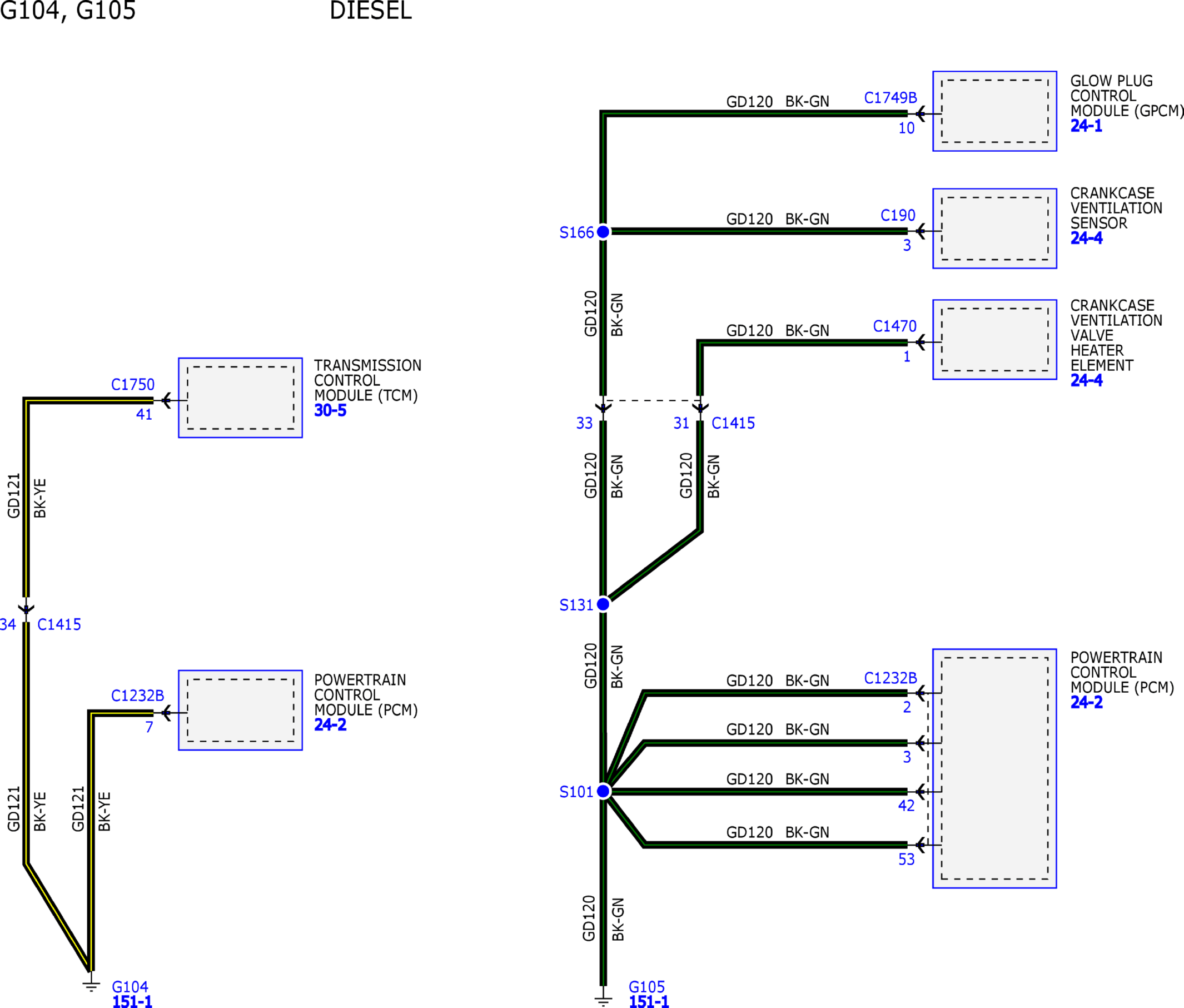

GFDW28901Courtesy of FORD MOTOR COMPANY

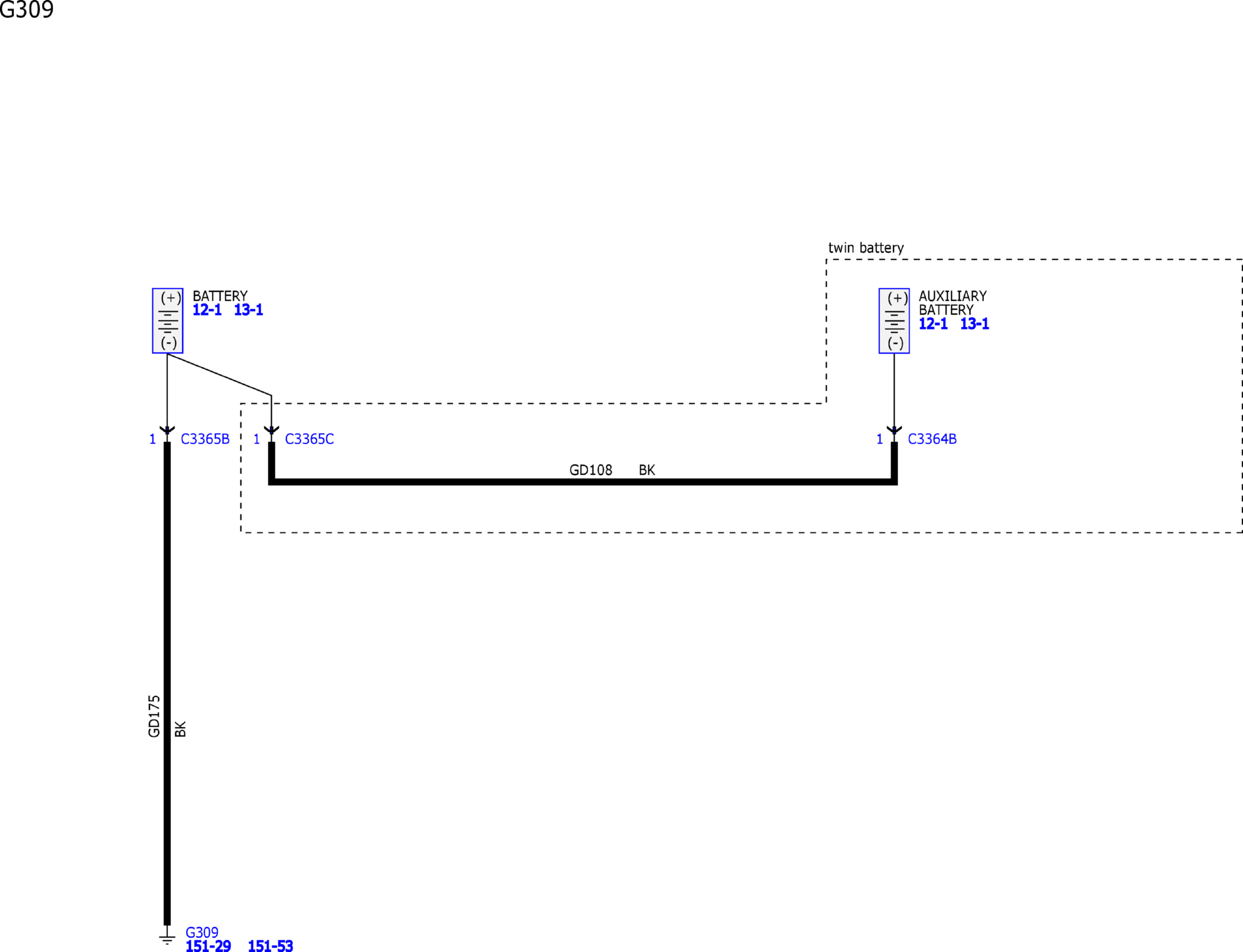

GFDW28902Courtesy of FORD MOTOR COMPANY

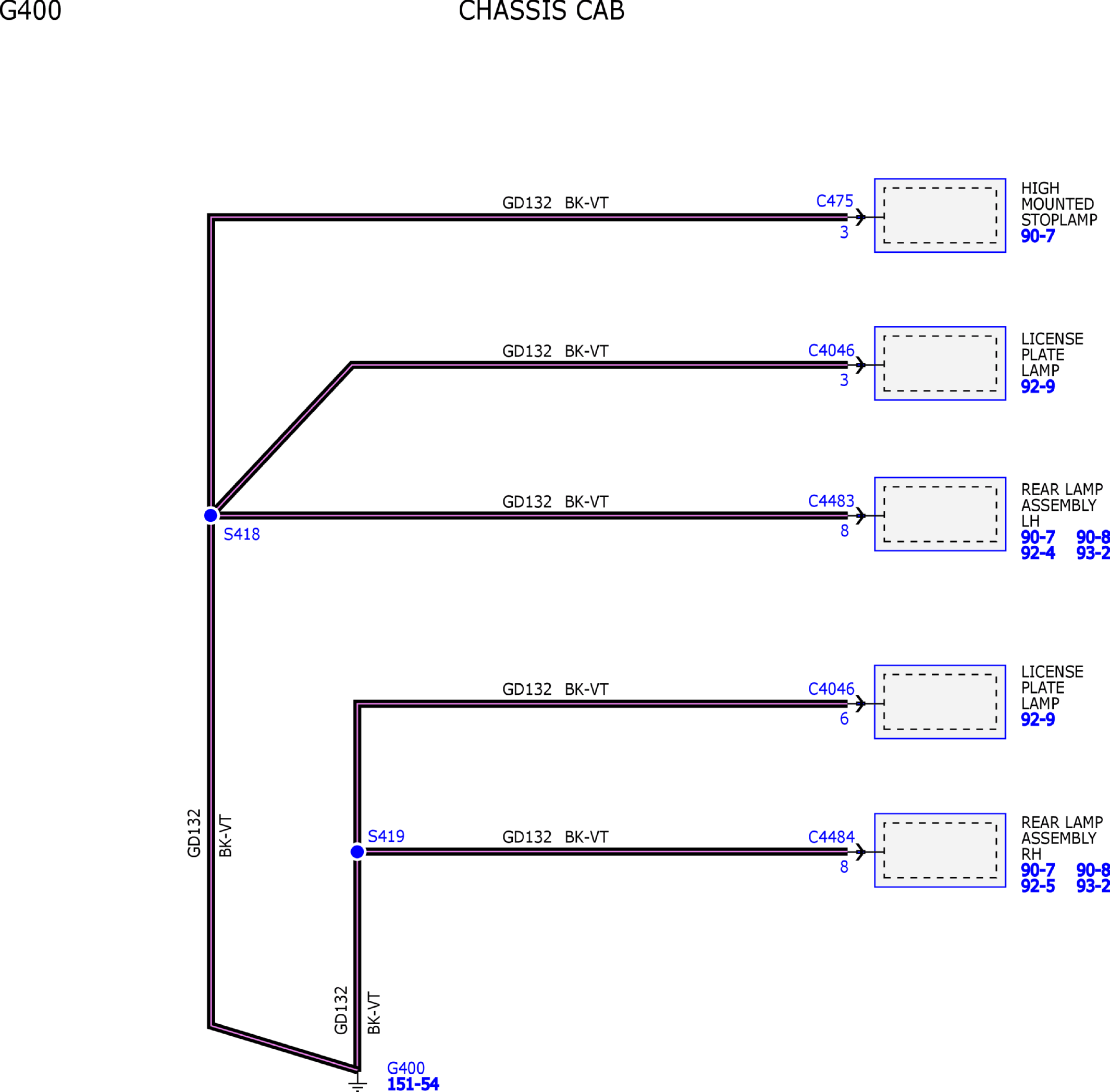

GFDW28903Courtesy of FORD MOTOR COMPANY

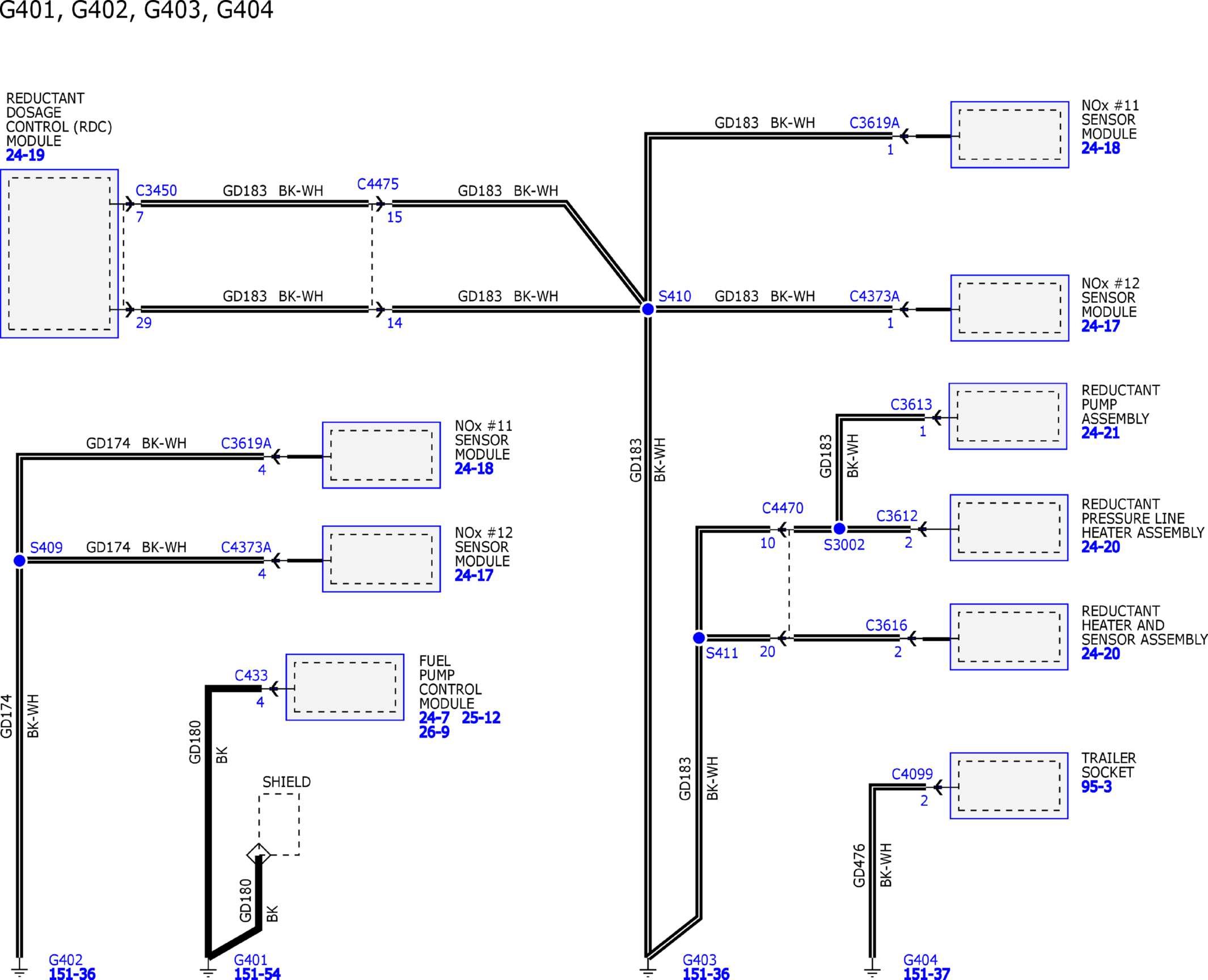

GFDW28904Courtesy of FORD MOTOR COMPANY

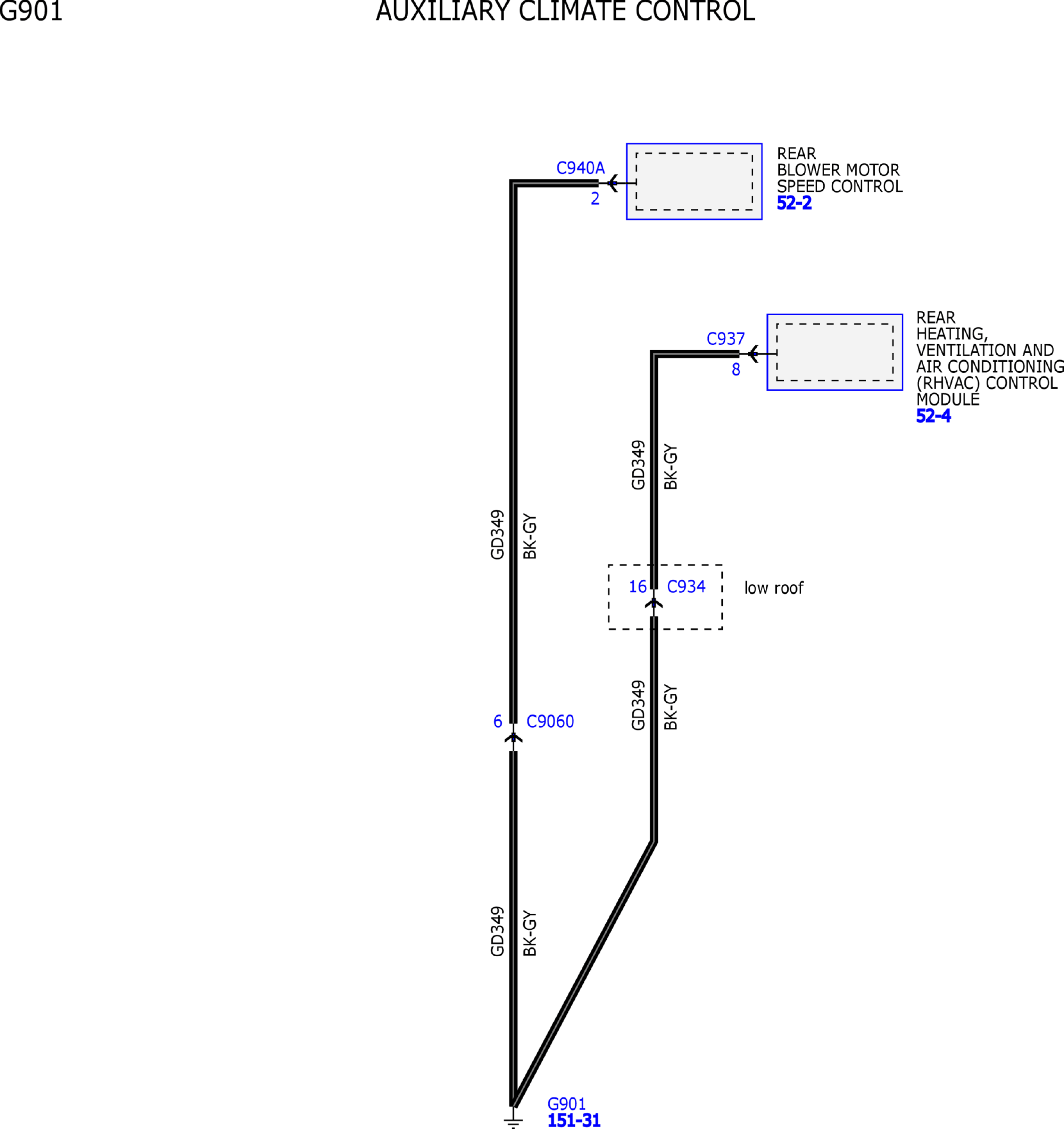

GFDW28905Courtesy of FORD MOTOR COMPANY

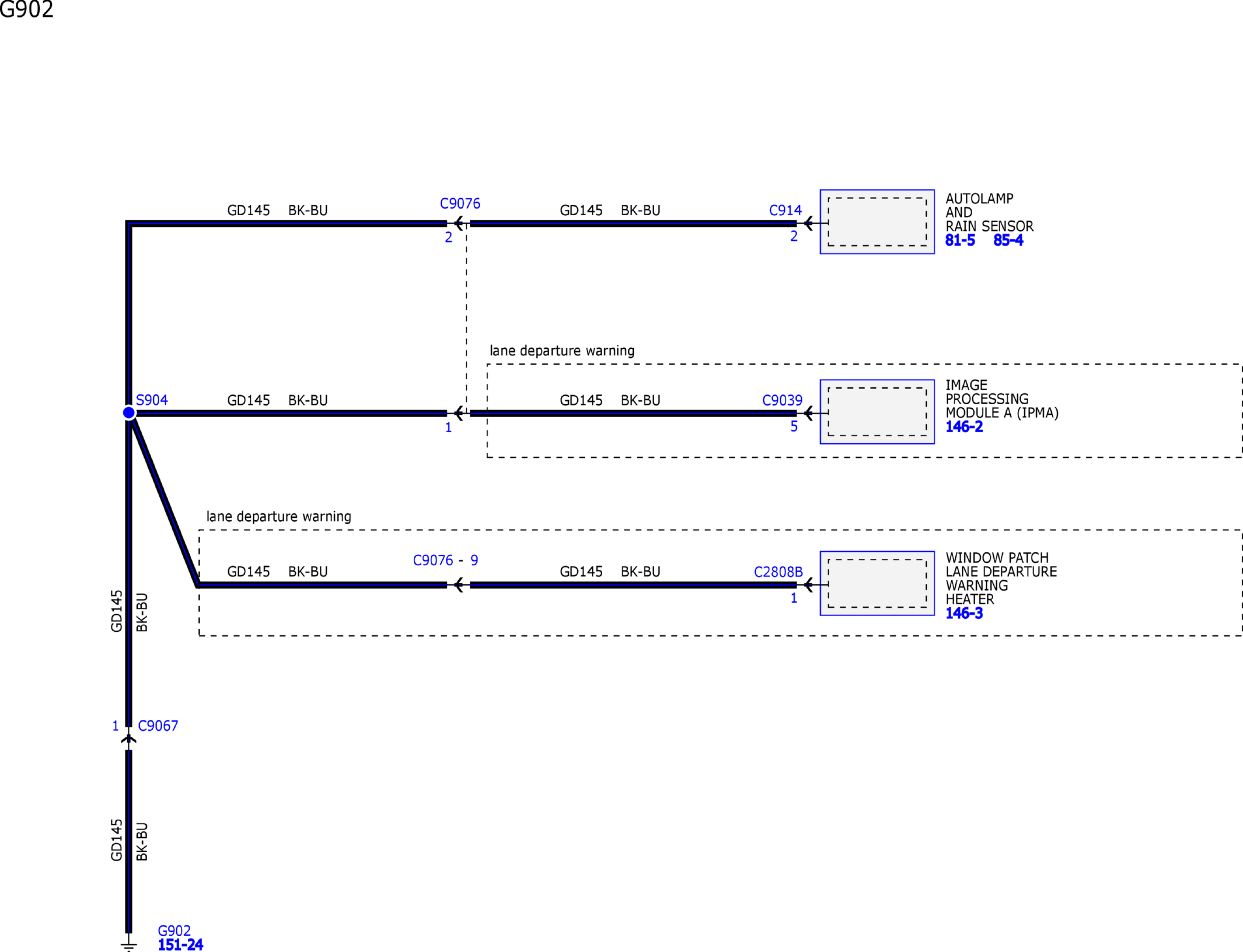

GFDW28906Courtesy of FORD MOTOR COMPANY

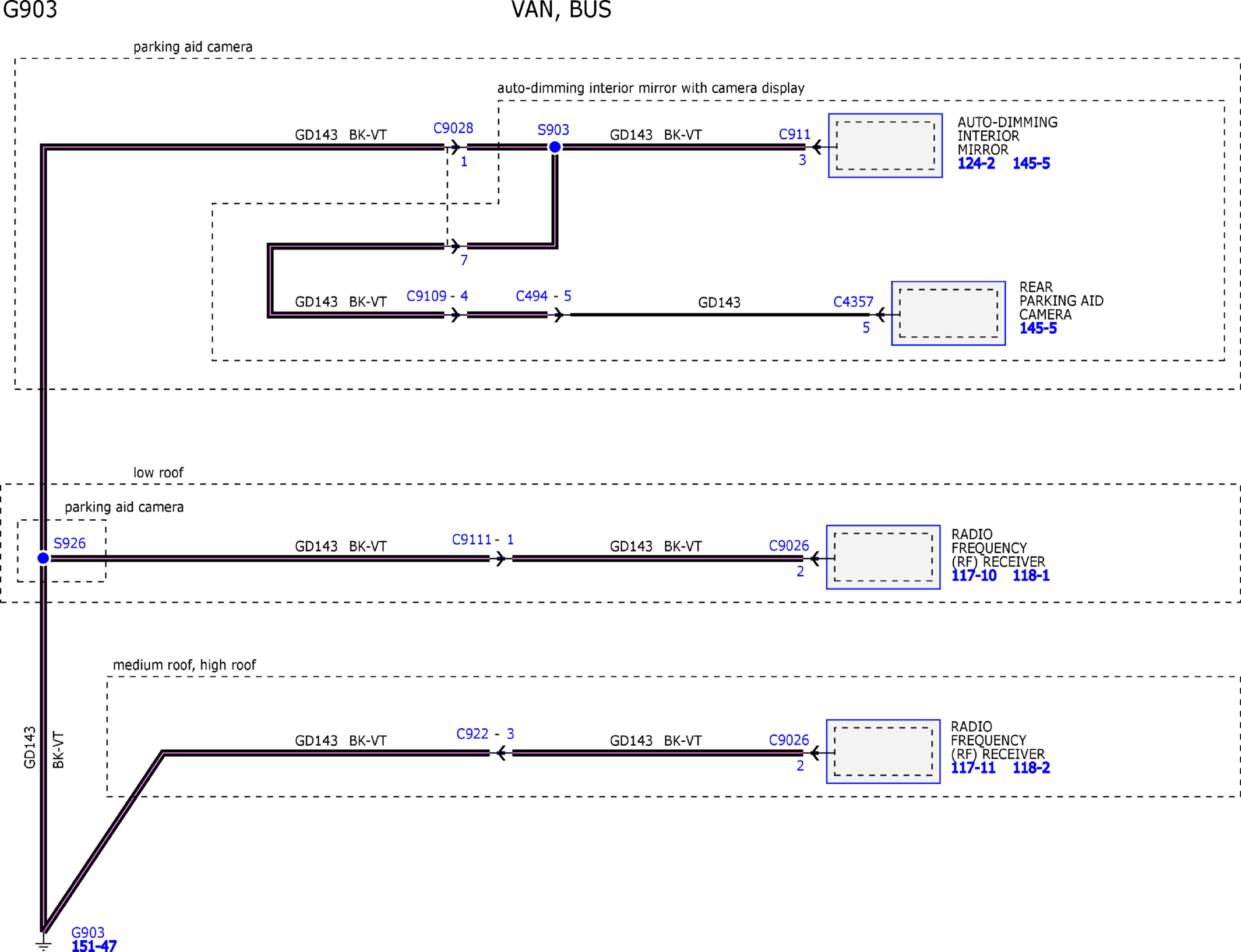

GFDW28907Courtesy of FORD MOTOR COMPANY

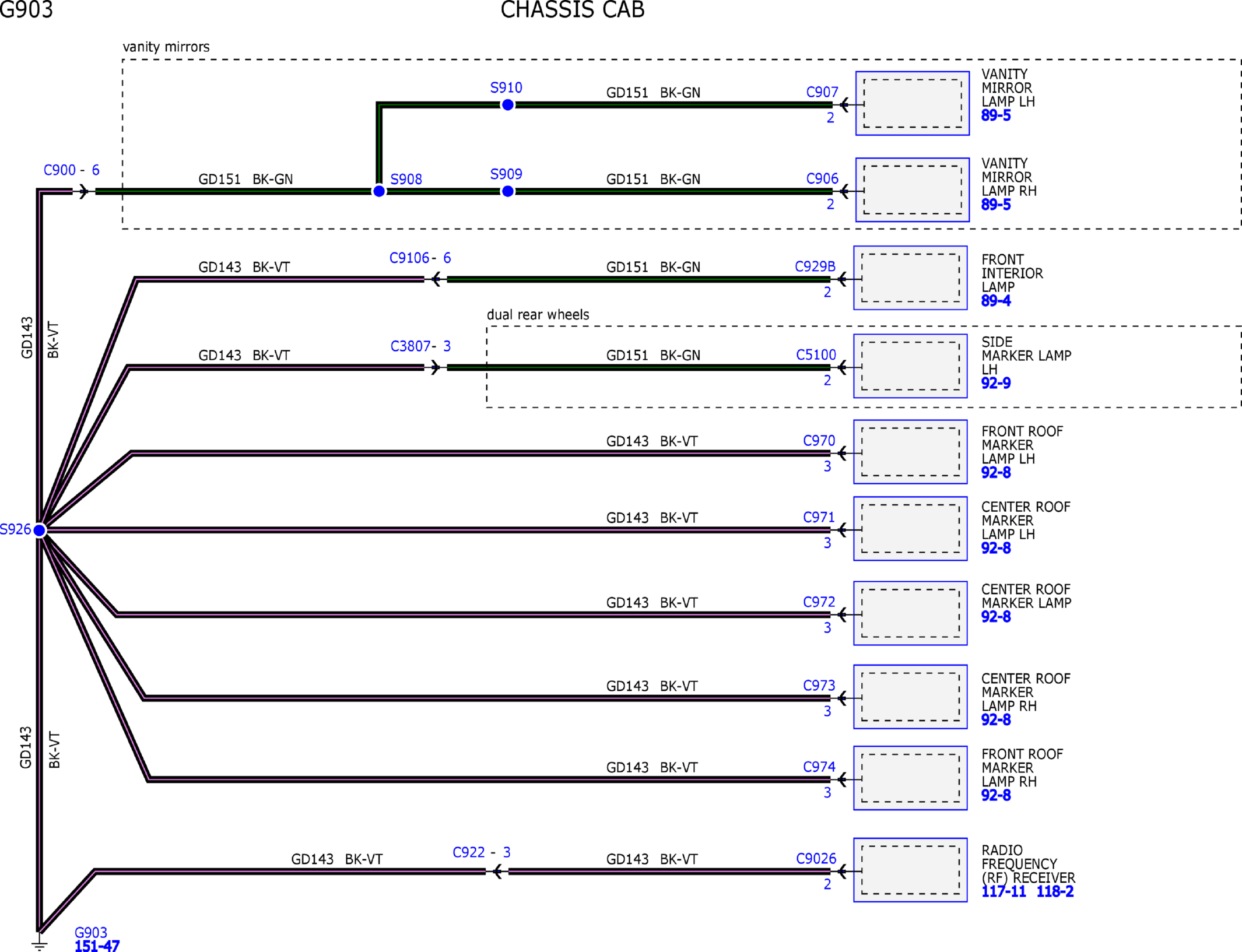

GFDW28908Courtesy of FORD MOTOR COMPANY

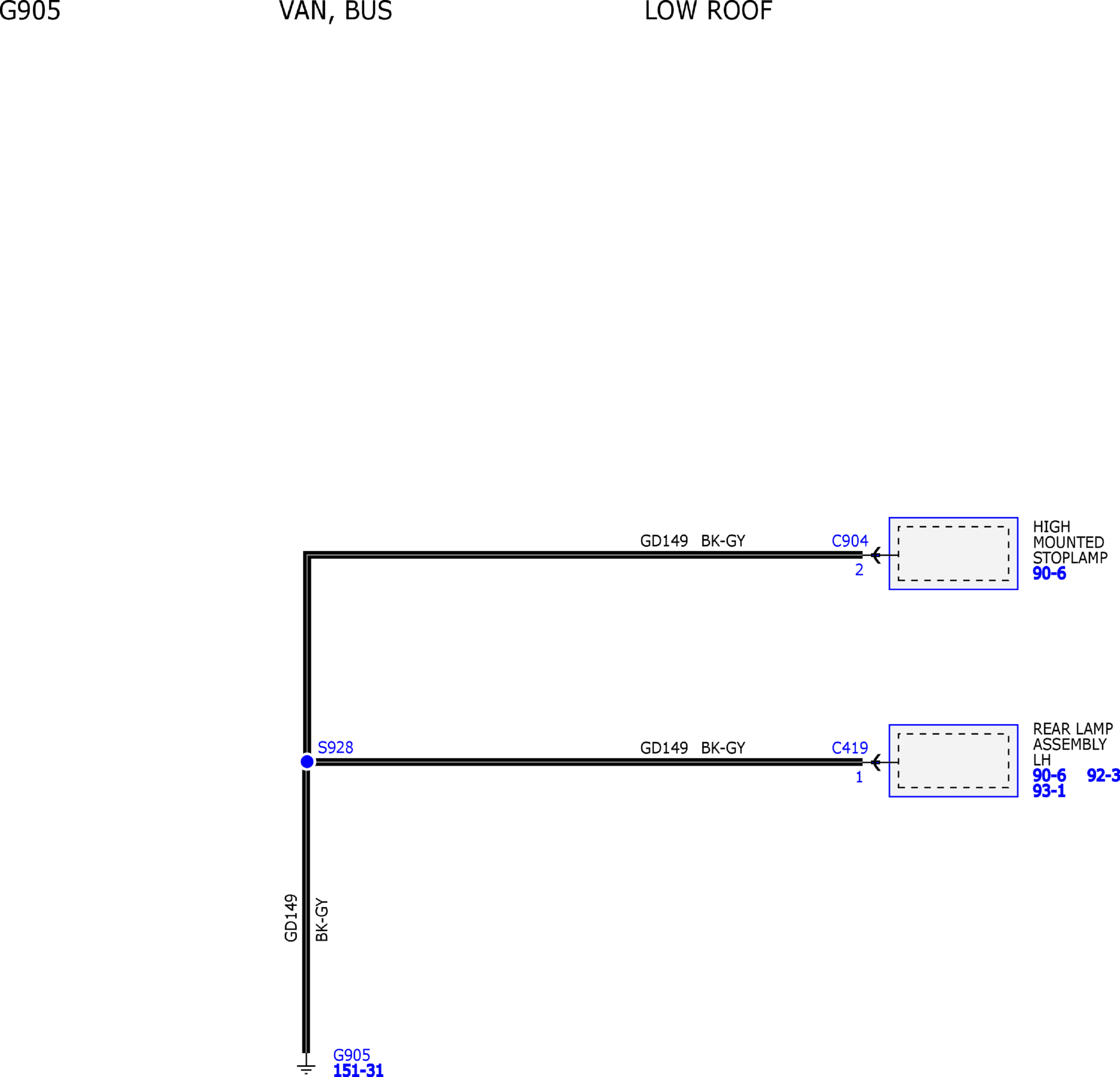

GFDW28909Courtesy of FORD MOTOR COMPANY

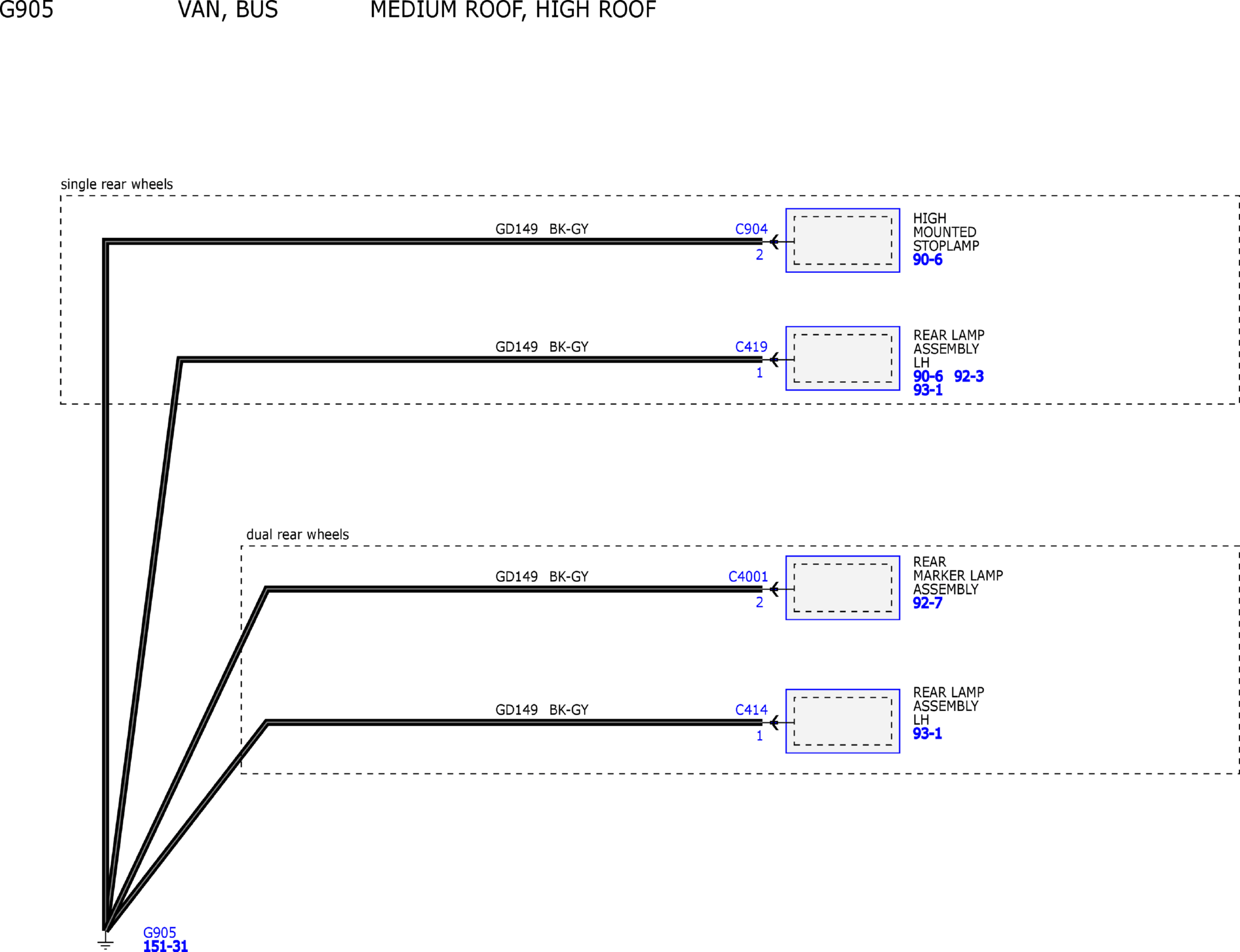

GFDW28910Courtesy of FORD MOTOR COMPANY

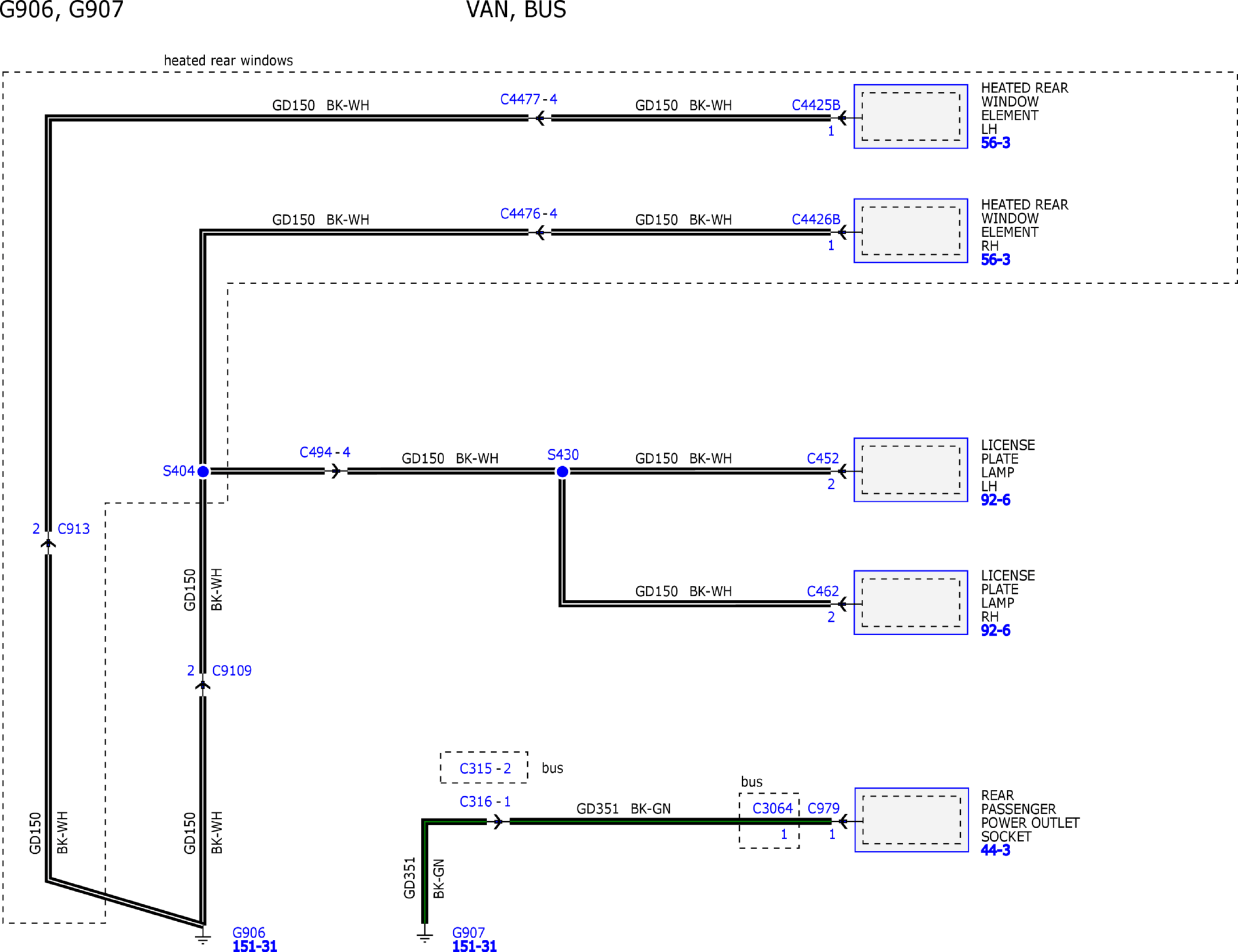

GFDW28911Courtesy of FORD MOTOR COMPANY

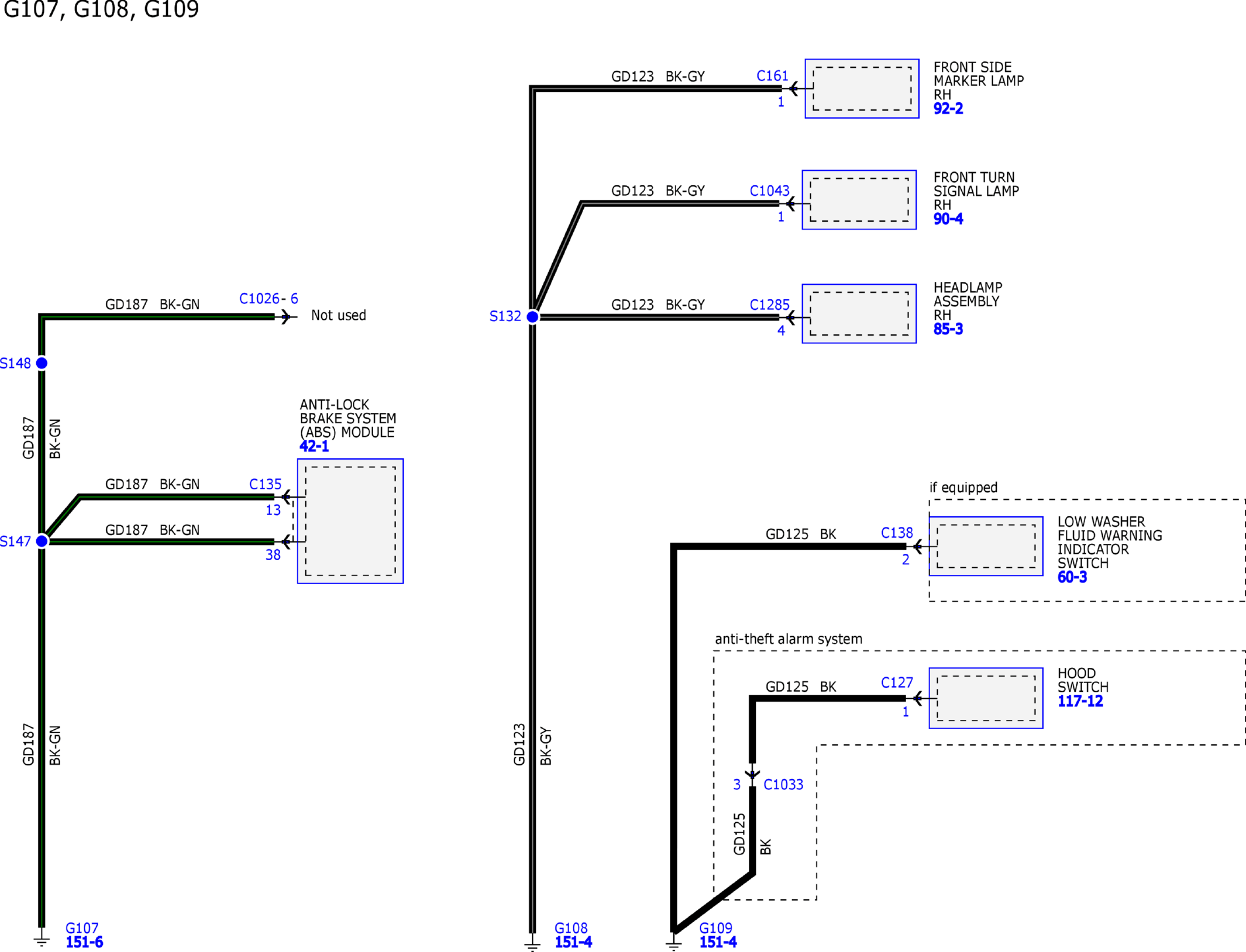

GFDW28912Courtesy of FORD MOTOR COMPANY

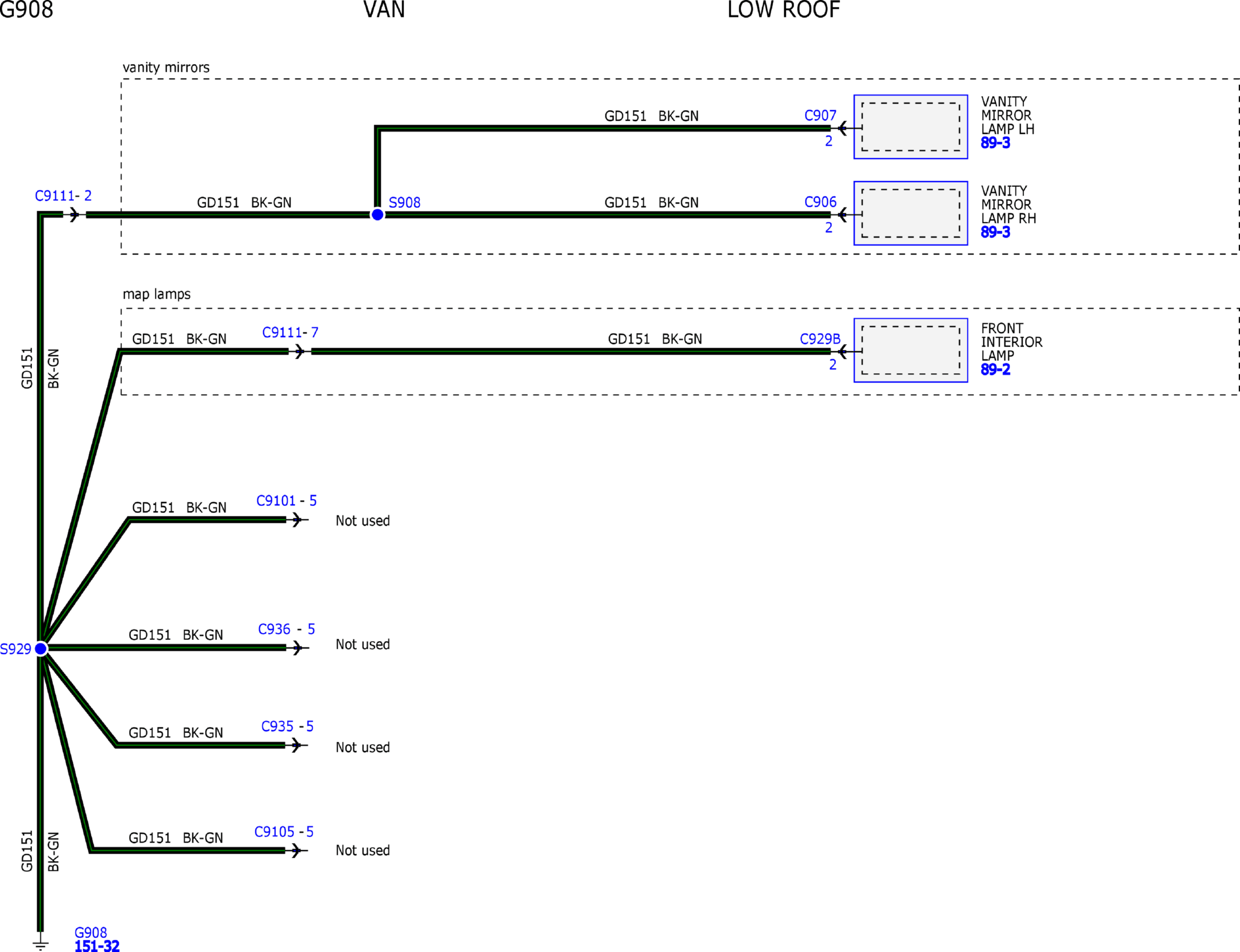

GFDW28913Courtesy of FORD MOTOR COMPANY

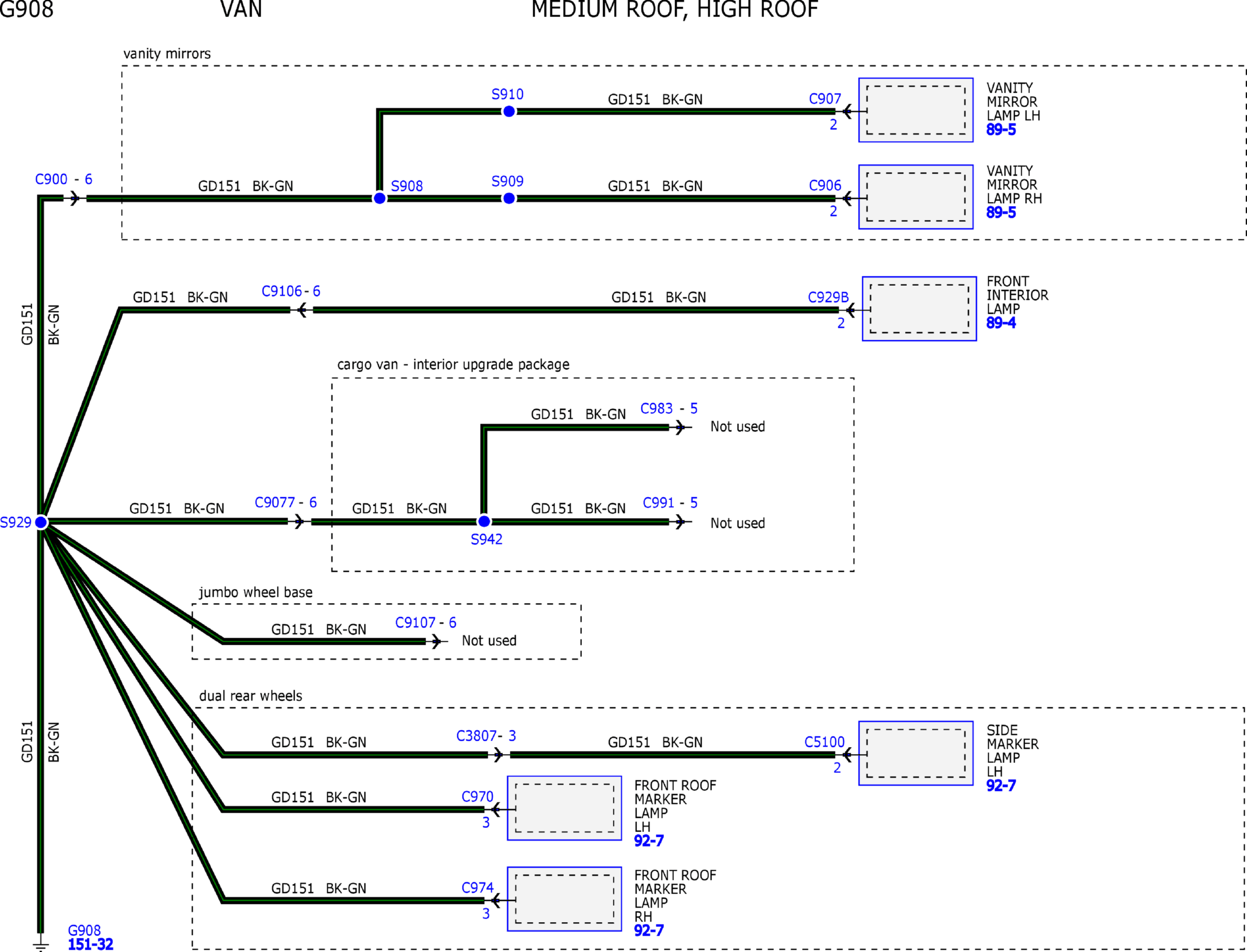

GFDW28914Courtesy of FORD MOTOR COMPANY

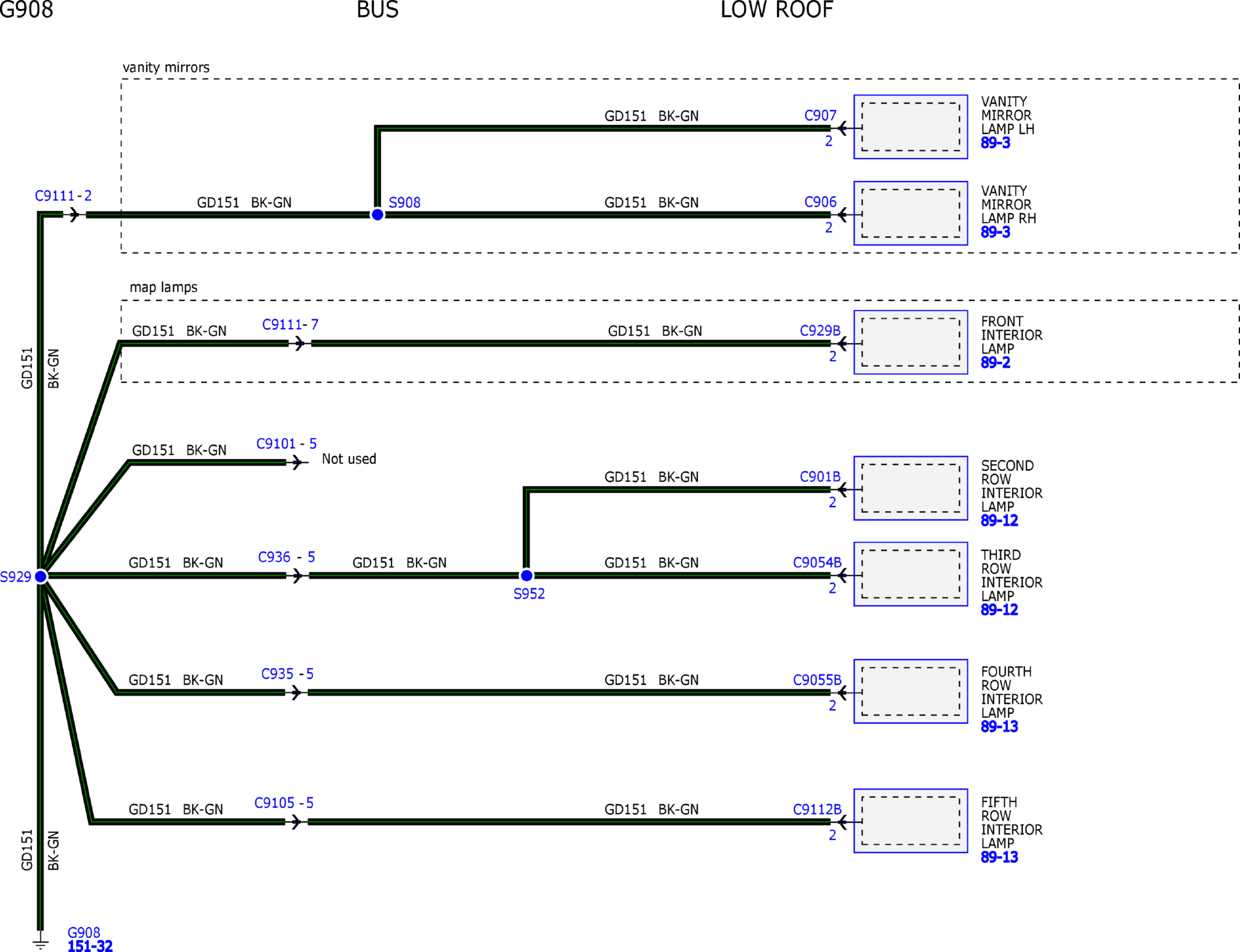

GFDW28915Courtesy of FORD MOTOR COMPANY

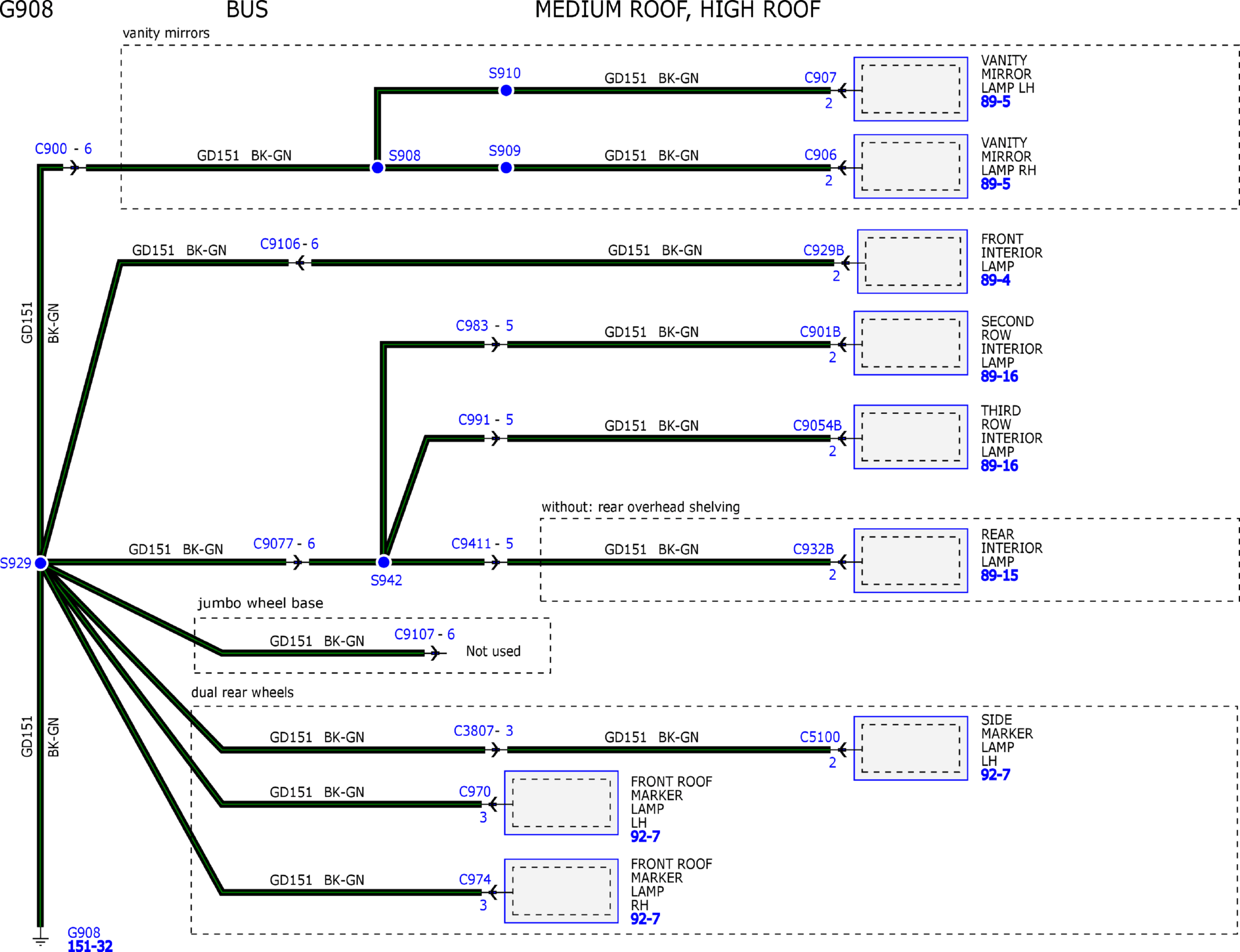

GFDW28916Courtesy of FORD MOTOR COMPANY

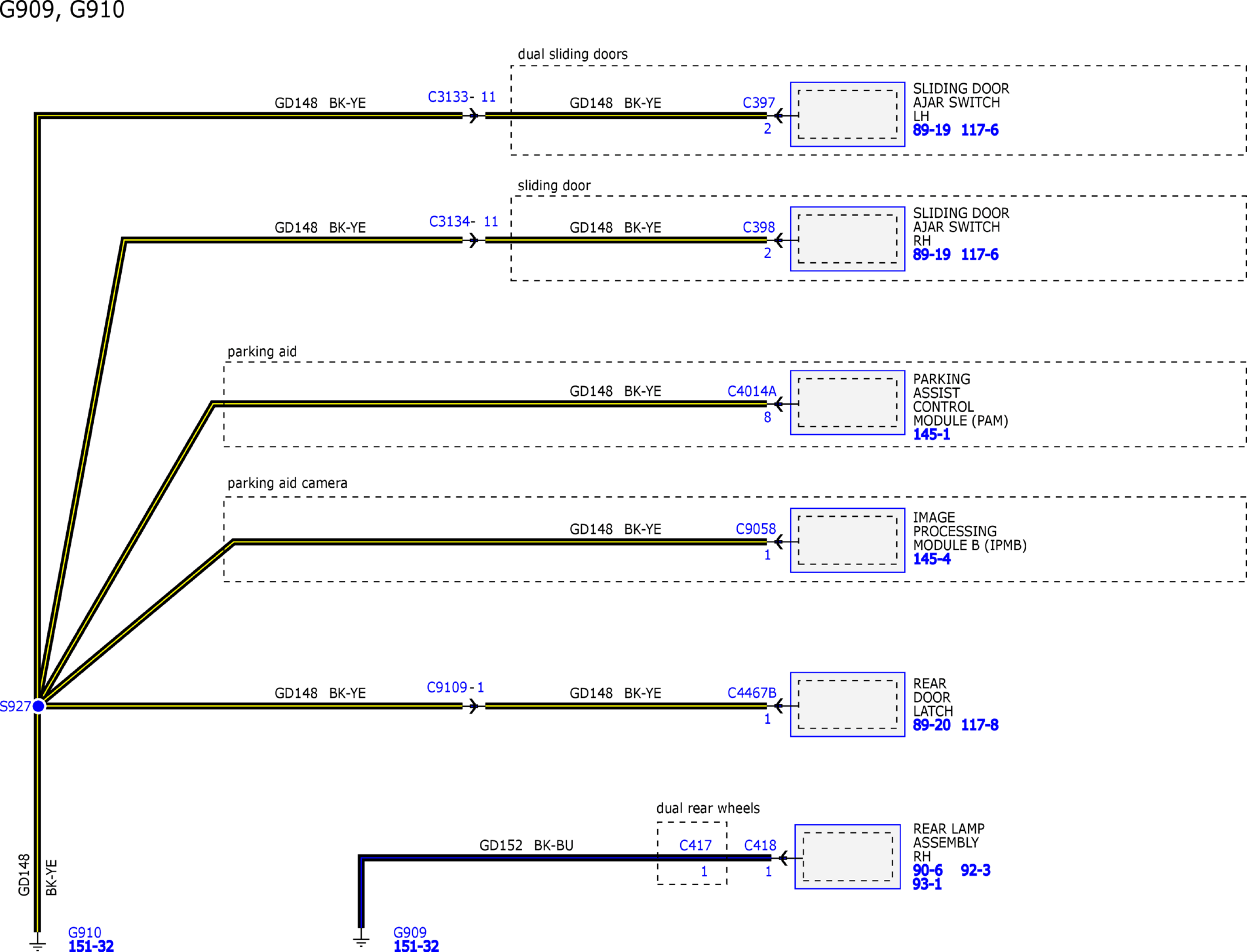

GFDW28917Courtesy of FORD MOTOR COMPANY

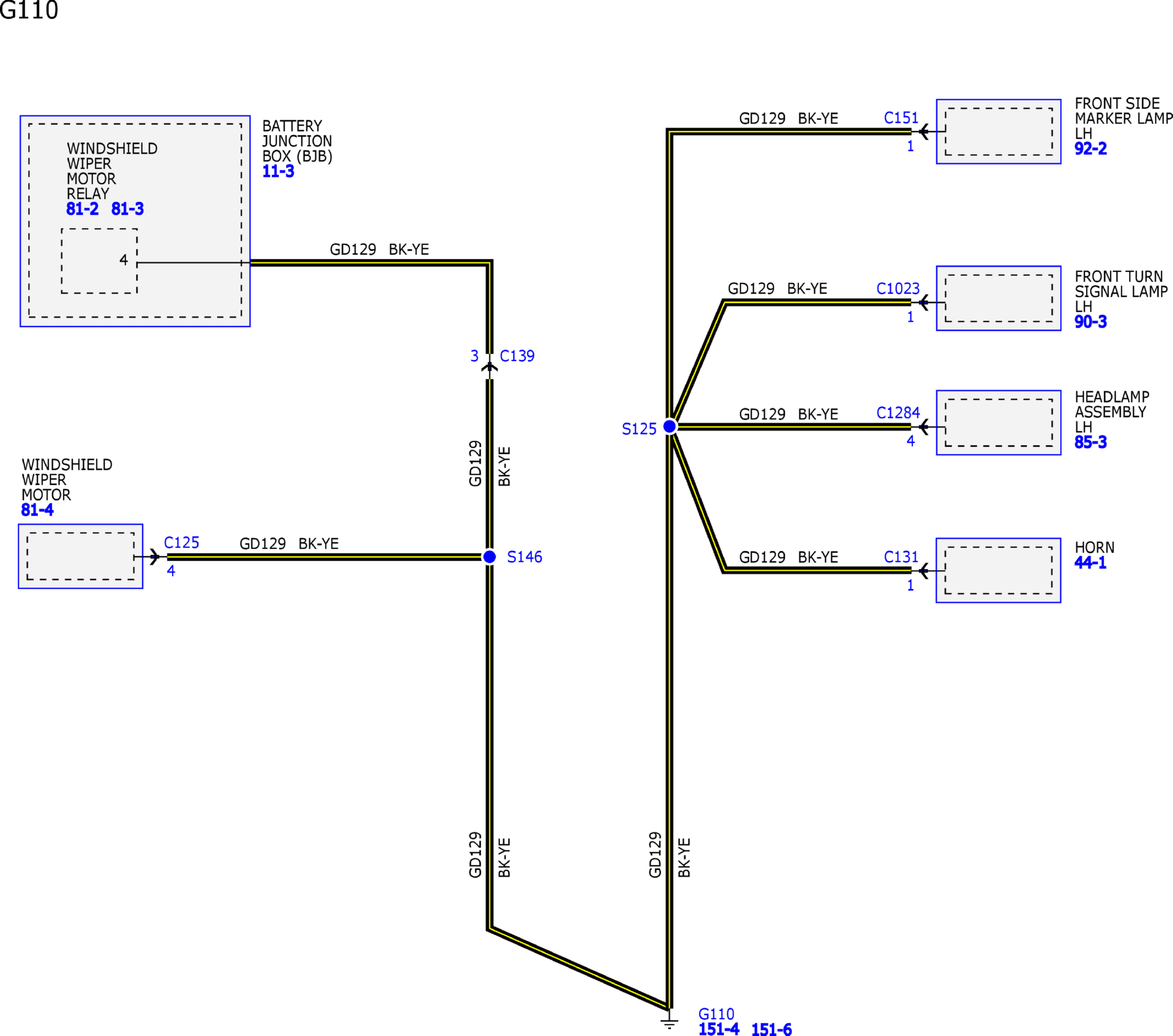

GFDW28918Courtesy of FORD MOTOR COMPANY

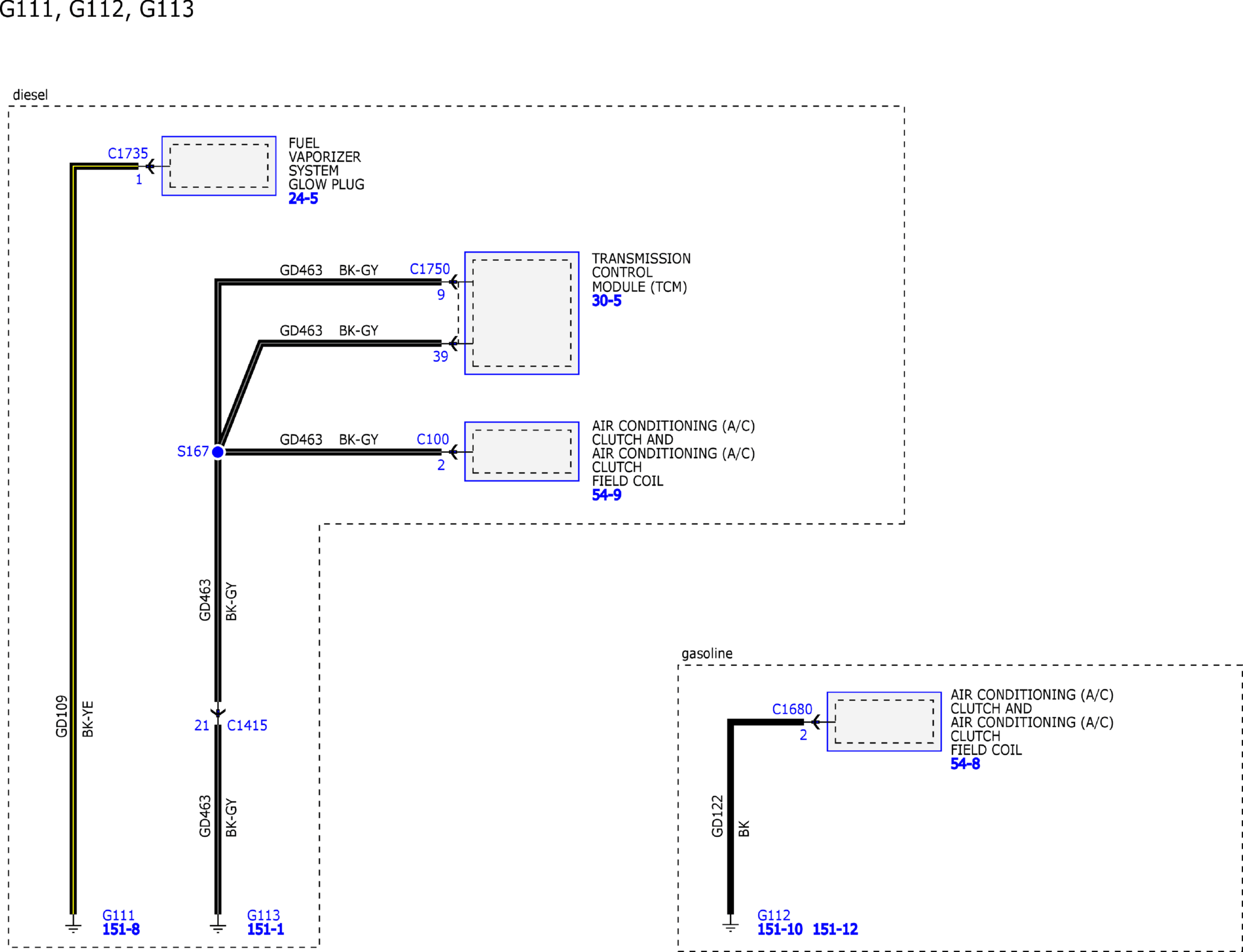

GFDW28919Courtesy of FORD MOTOR COMPANY

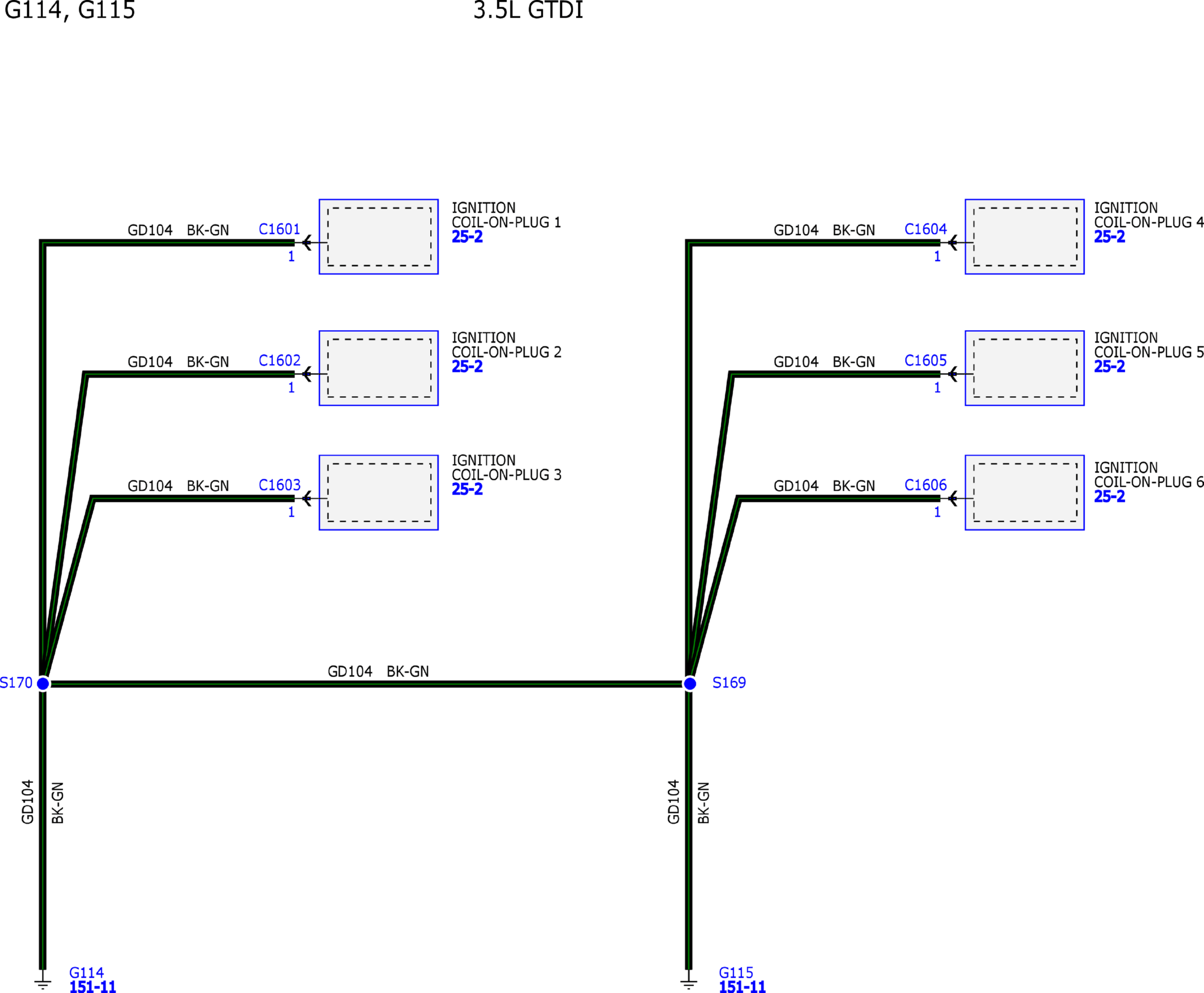

GFDW28920Courtesy of FORD MOTOR COMPANY

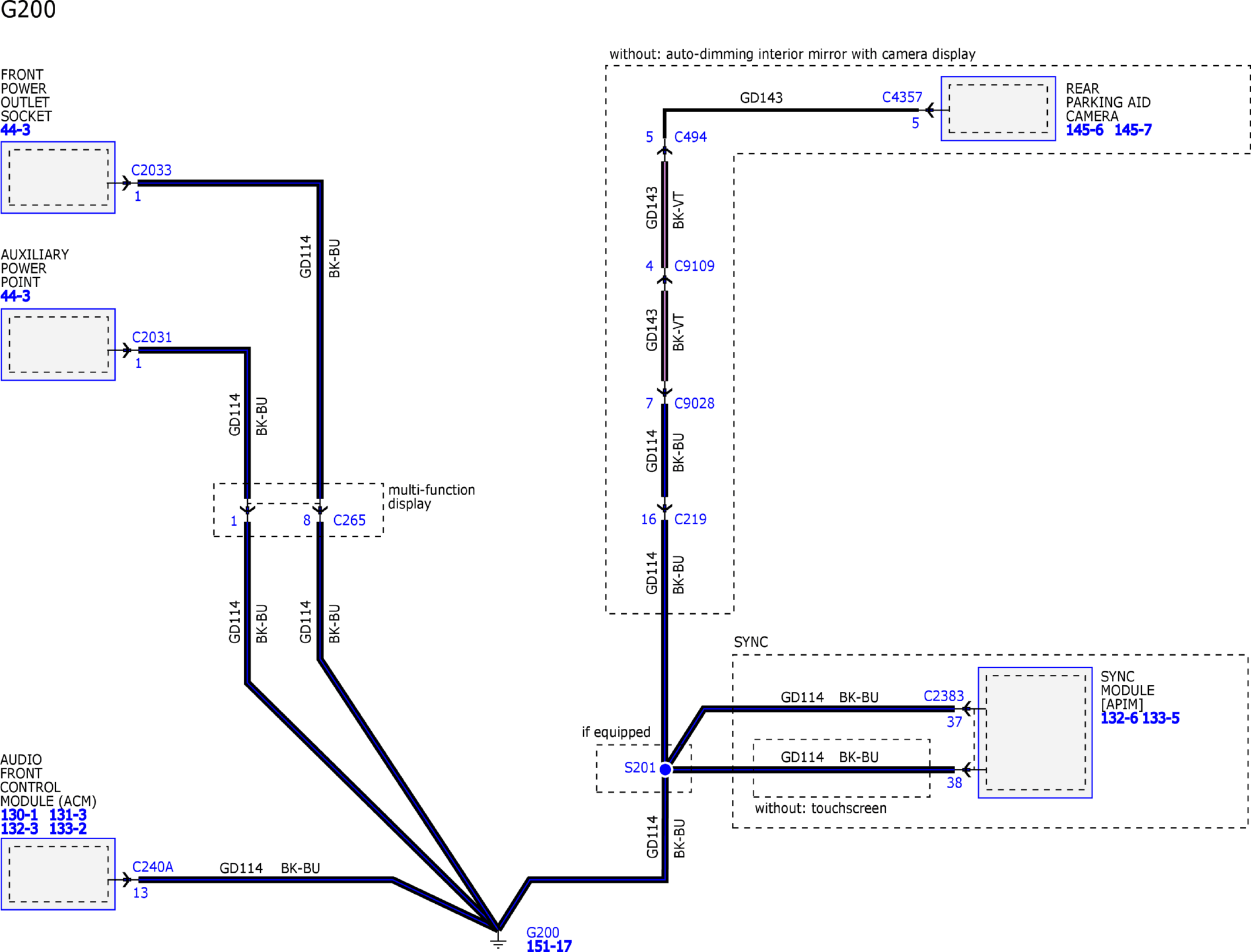

GFDW28921Courtesy of FORD MOTOR COMPANY

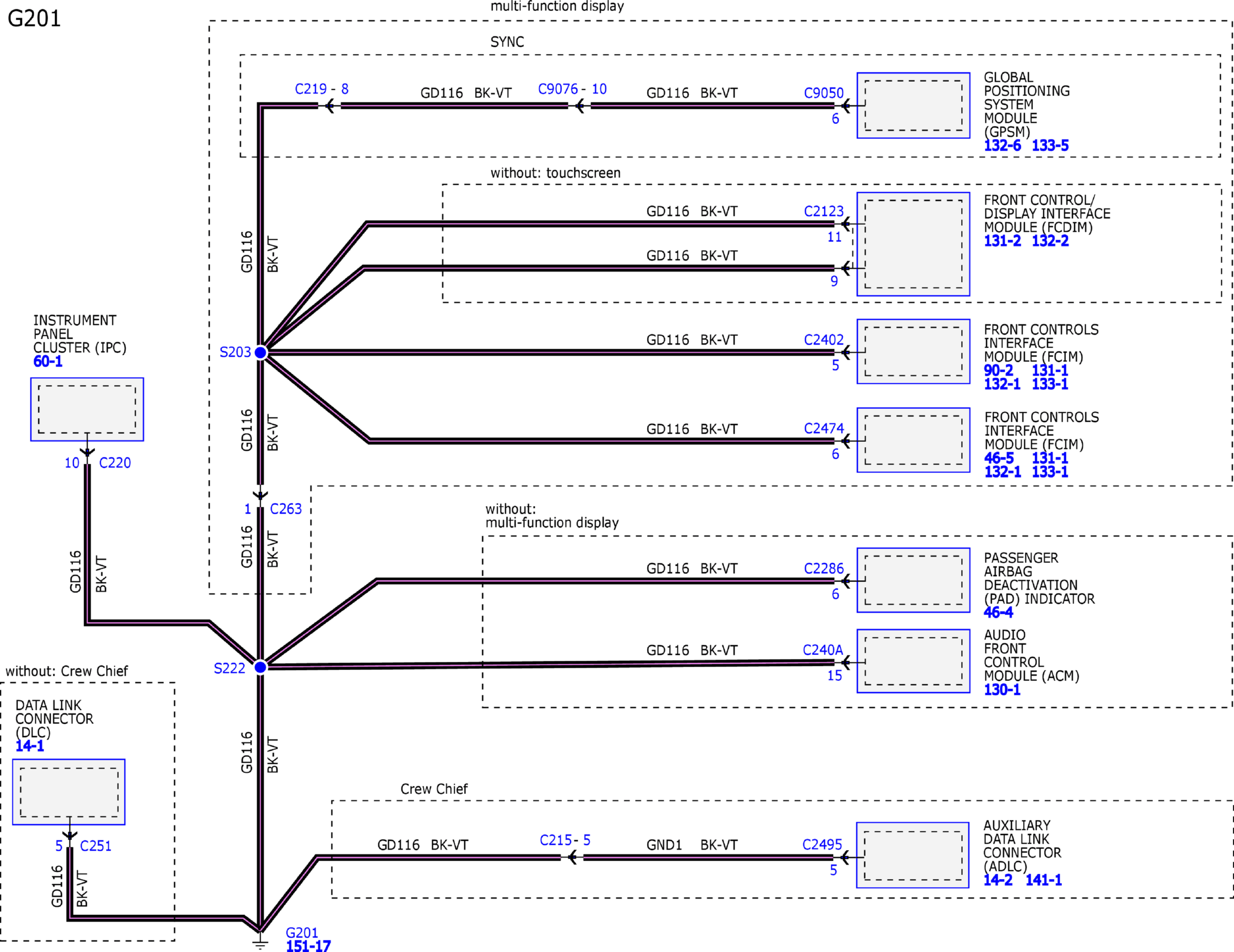

GFDW28922Courtesy of FORD MOTOR COMPANY

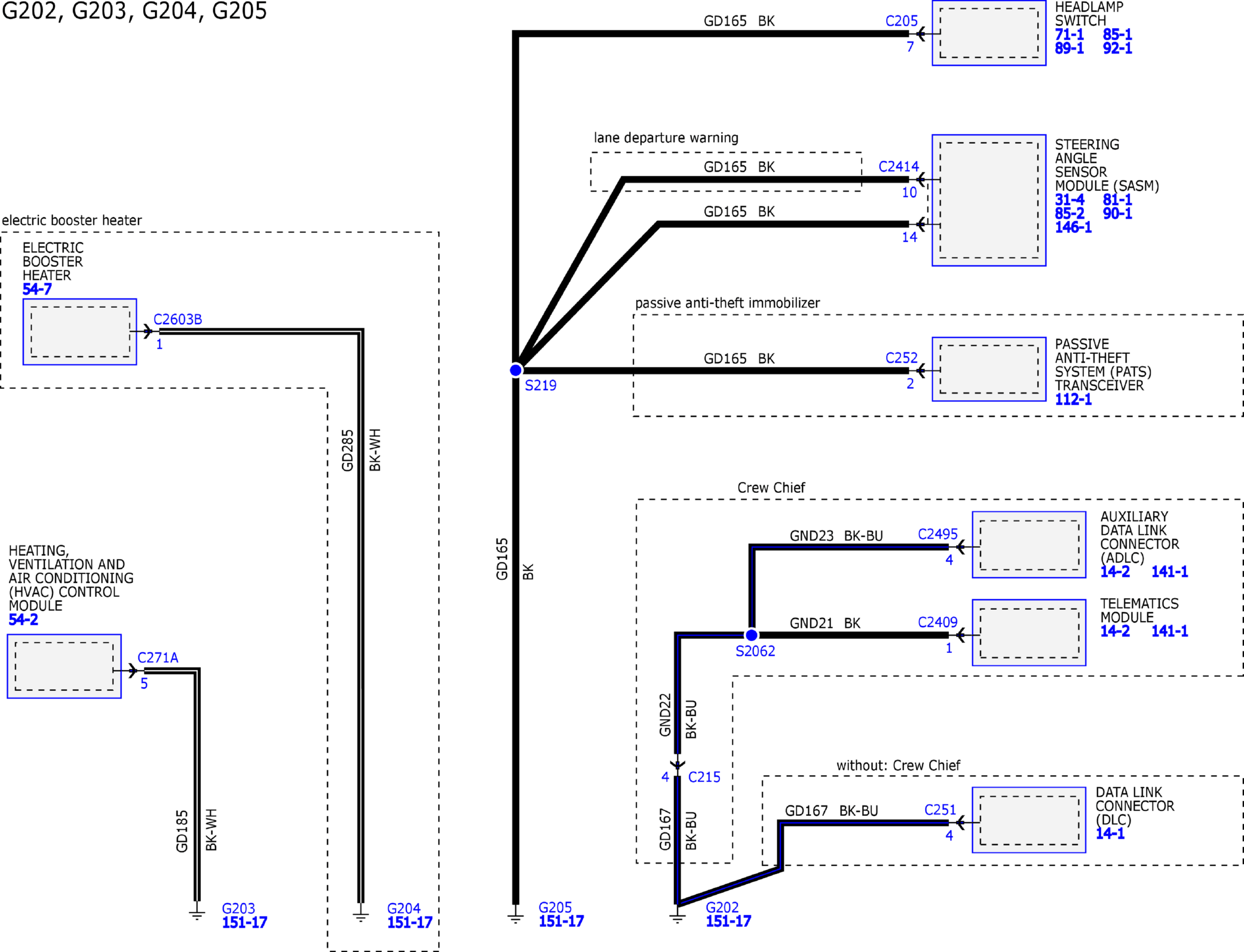

GFDW28923Courtesy of FORD MOTOR COMPANY
