Components and Components Location: Components

WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.

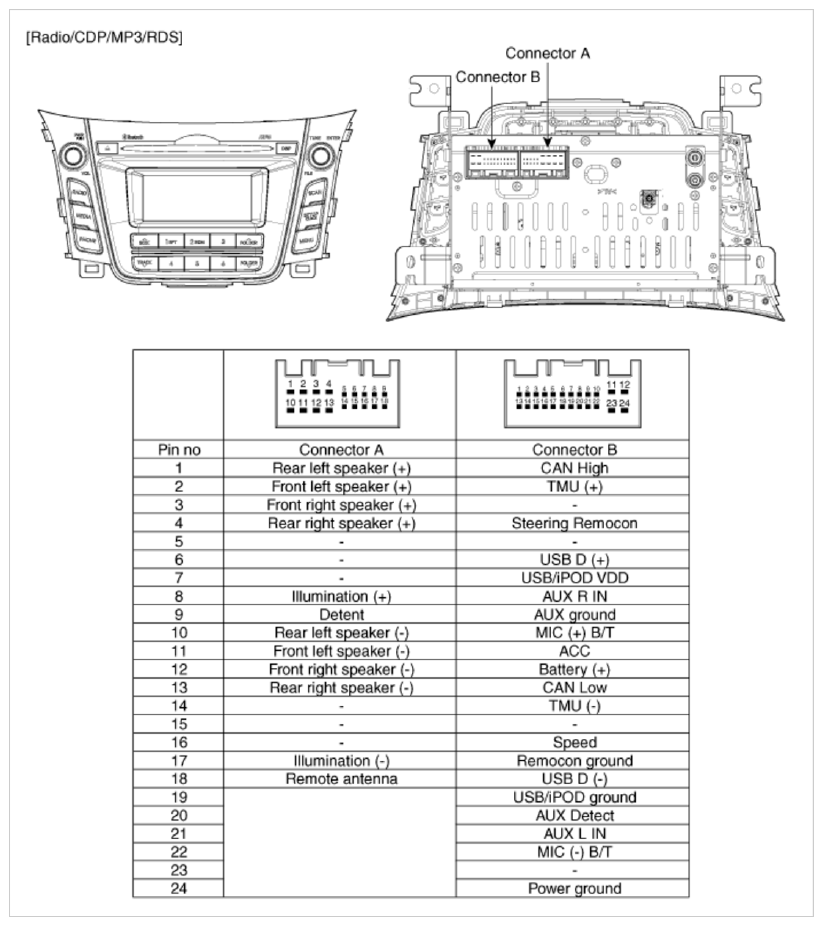

Fig 1: Identifying Audio Unit Connectors Pin
G09887256Courtesy of HYUNDAI MOTOR AMERICA
