Front Bumper

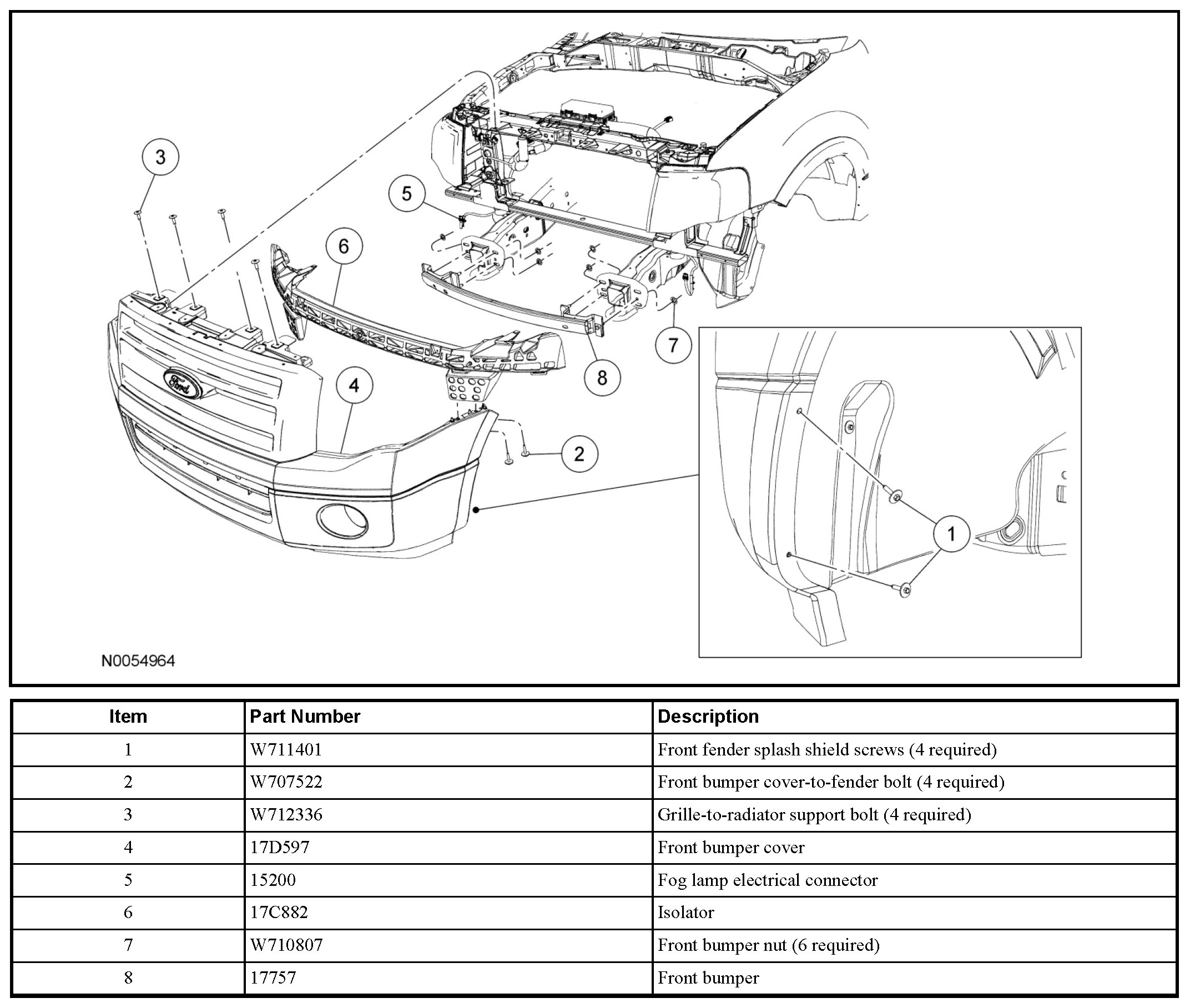

Bumper - Exploded View, Front

NOTE: Expedition shown, Navigator similar.

1. For additional information, refer to the procedures.
