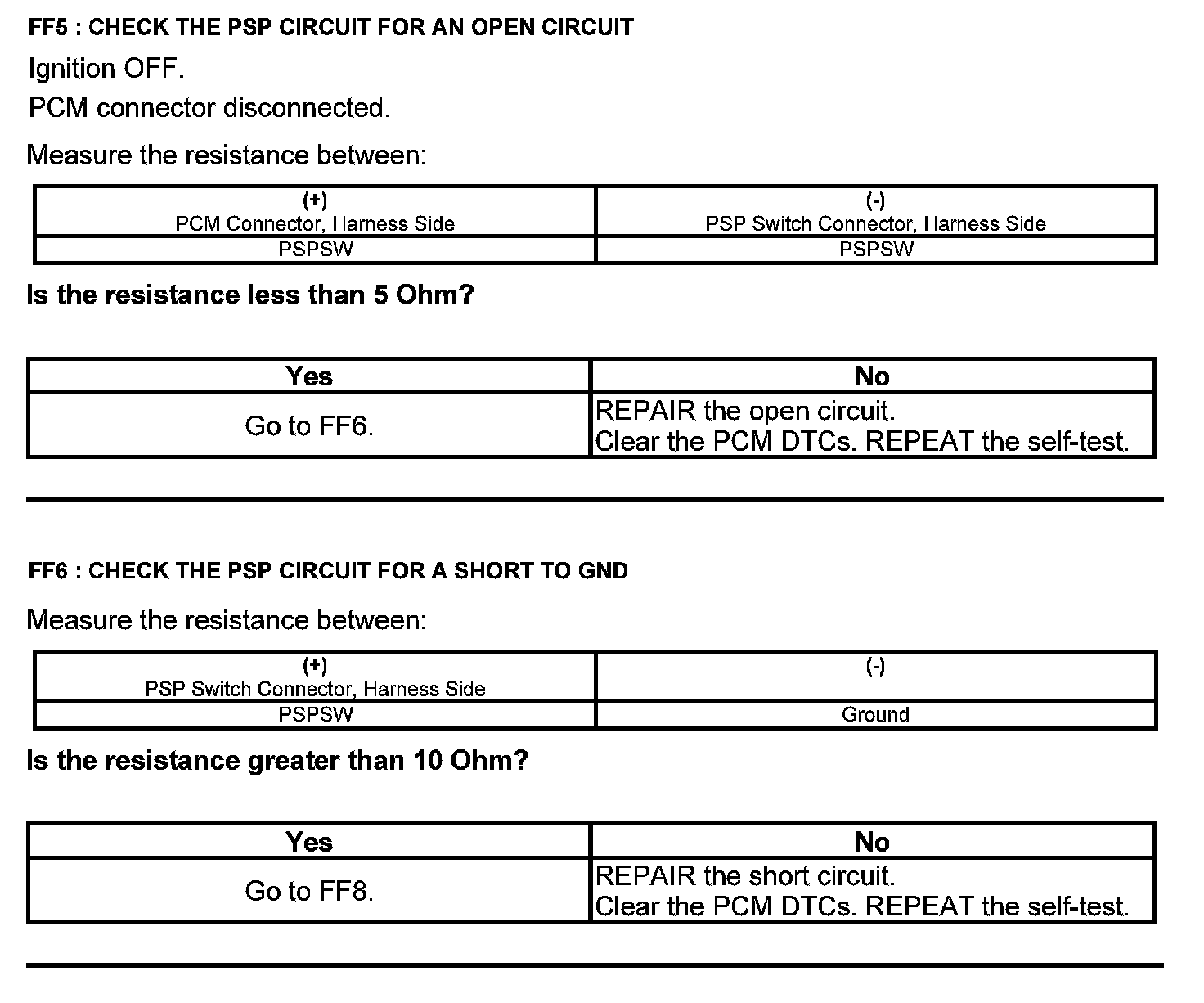

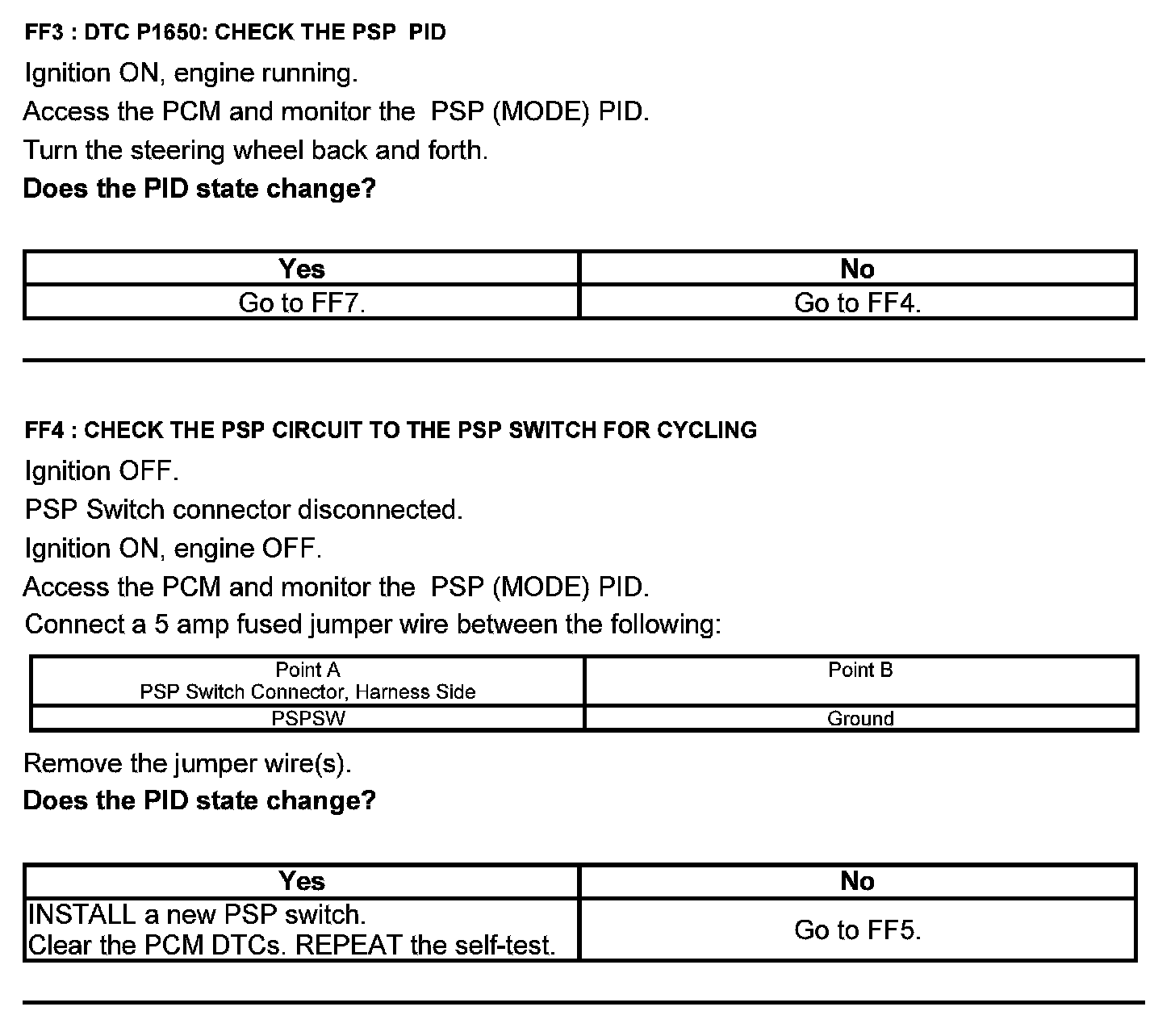

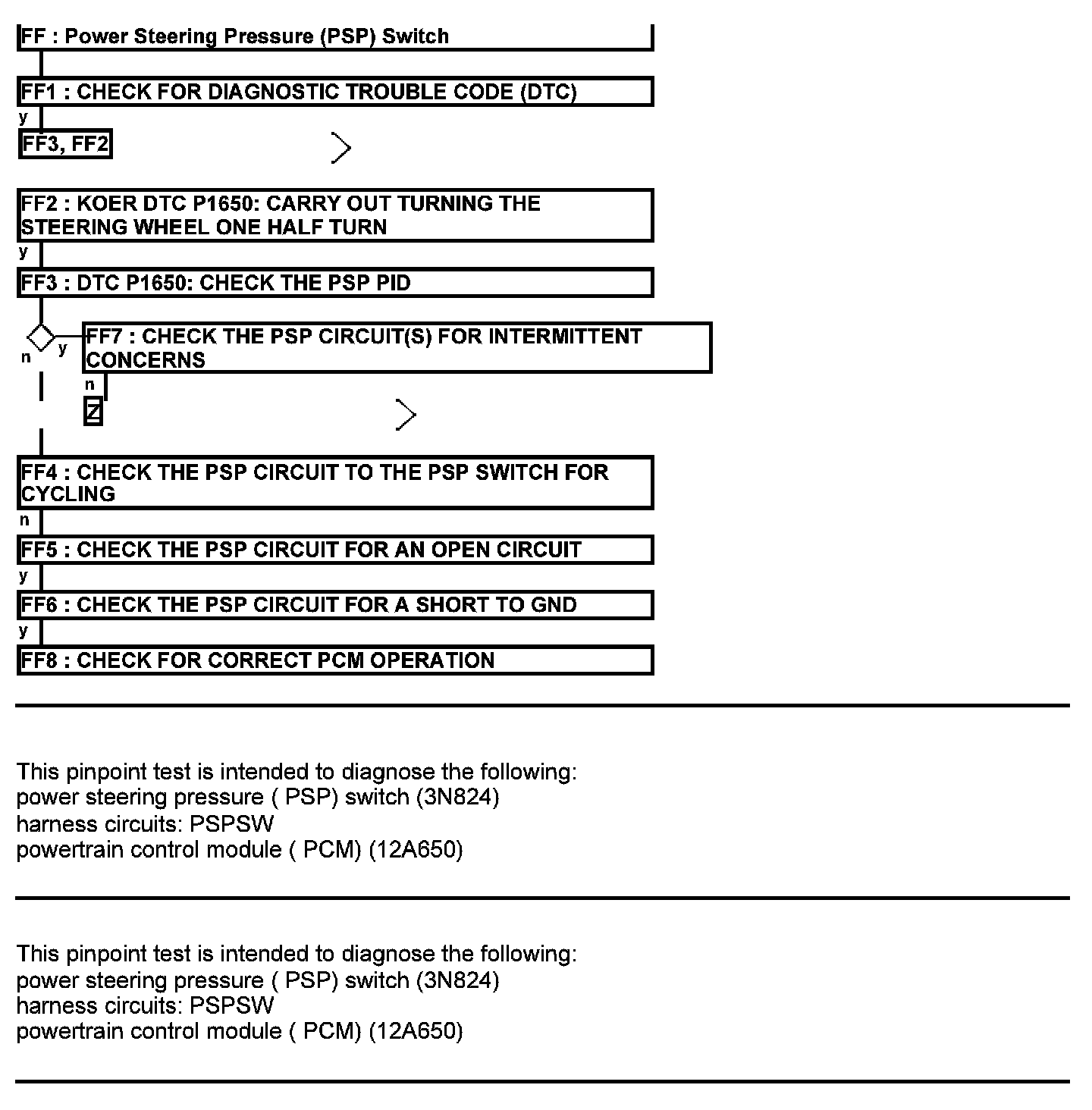

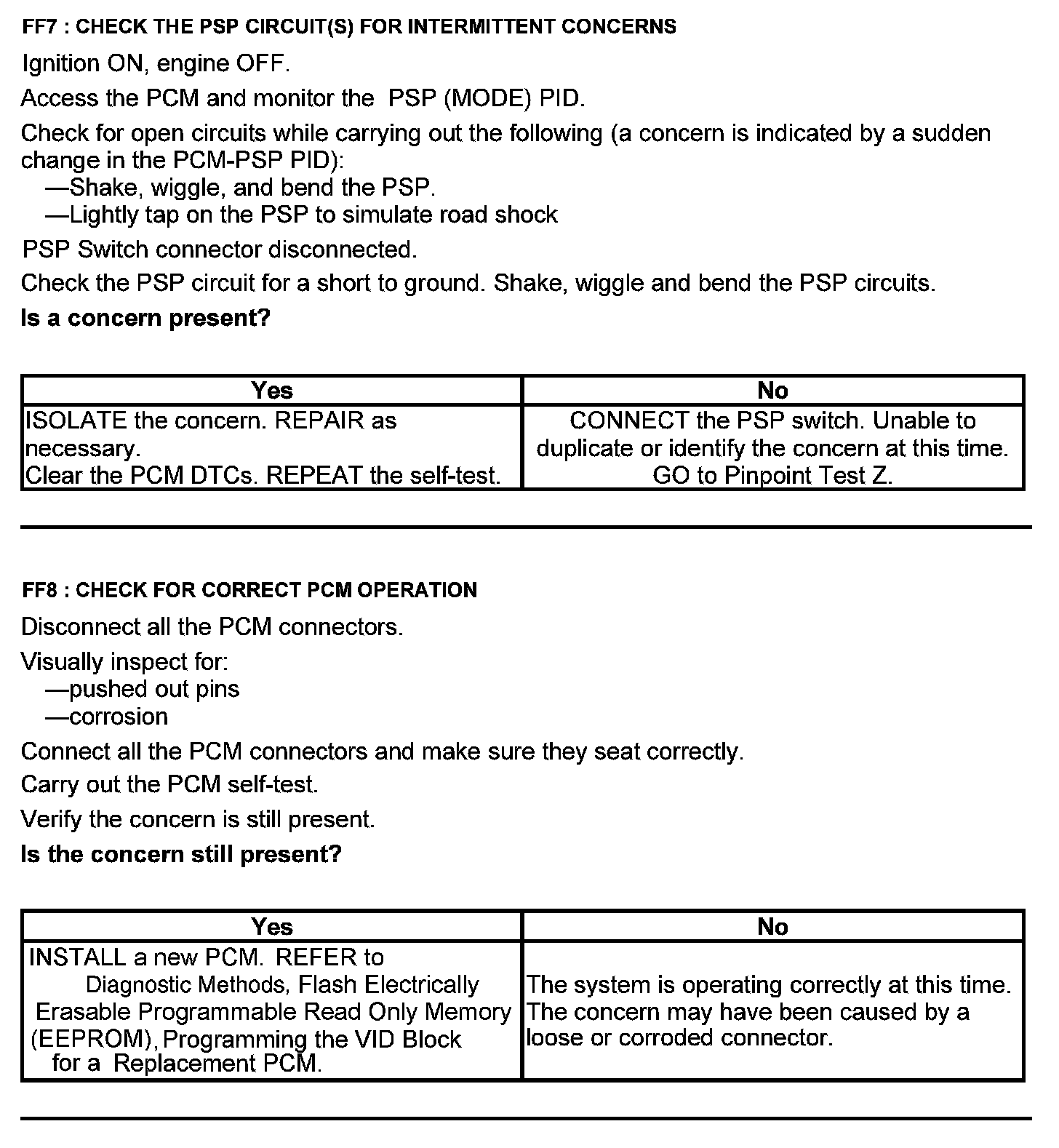

Test FF: Power Steering Pressure (PSP) Switch



Power Steering Pressure (PSP) Switch

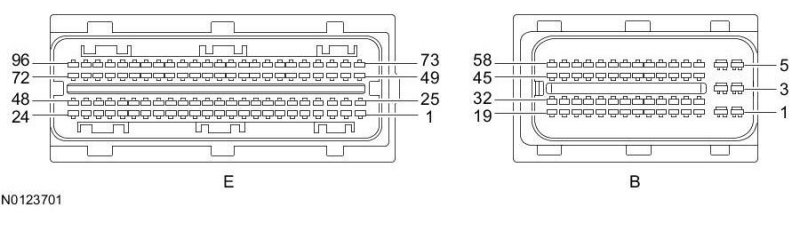

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference values.





Harness Side
