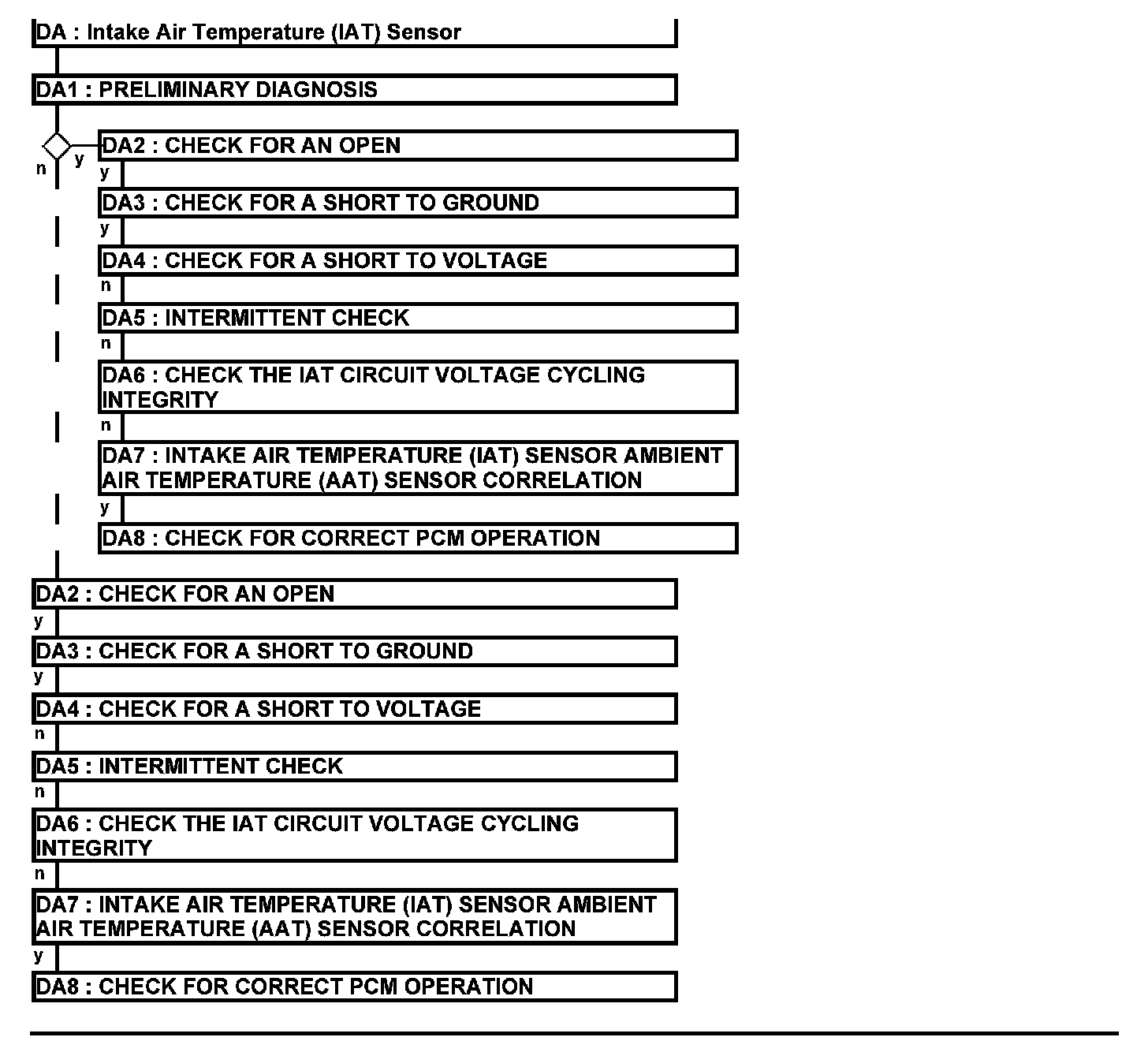

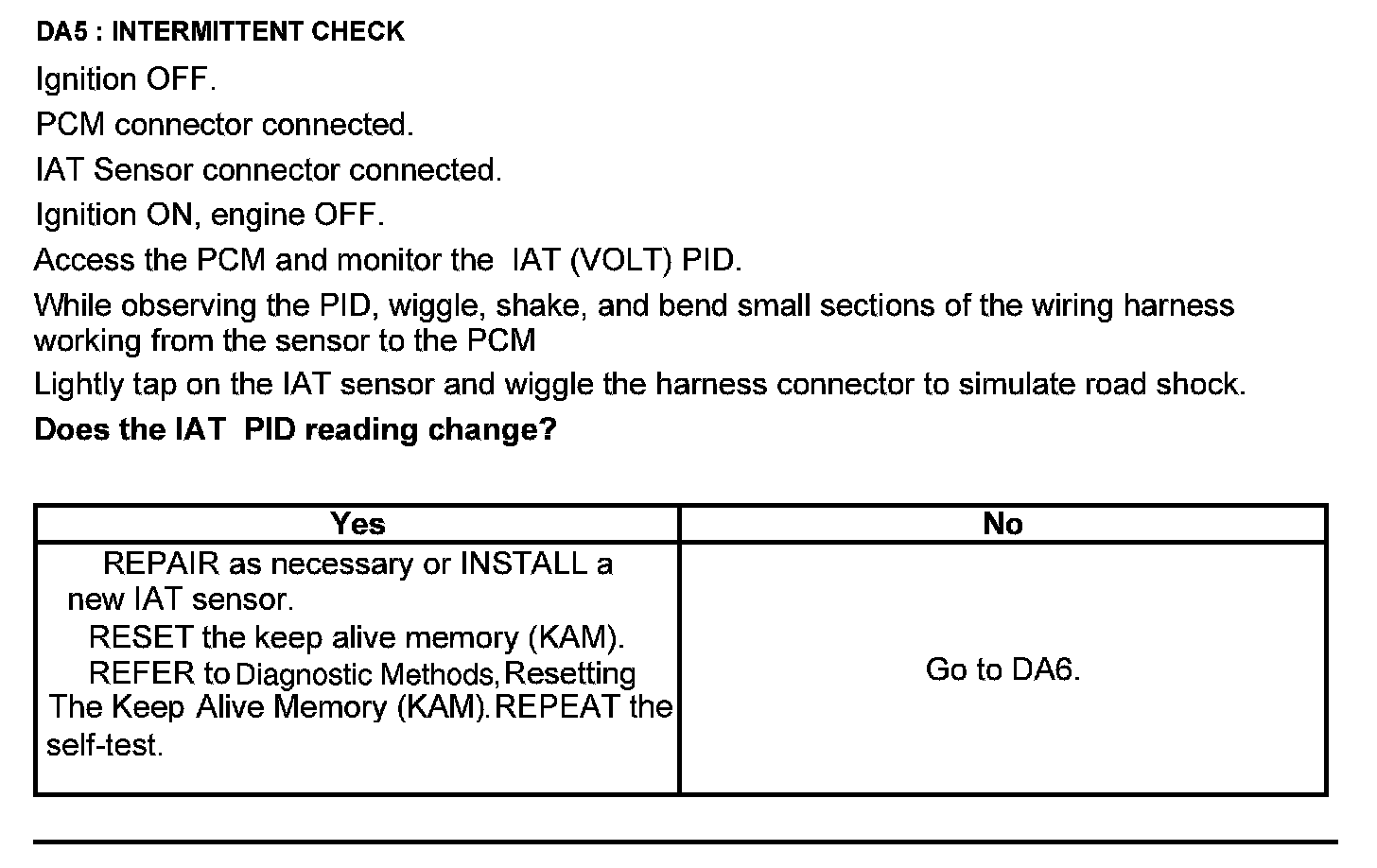

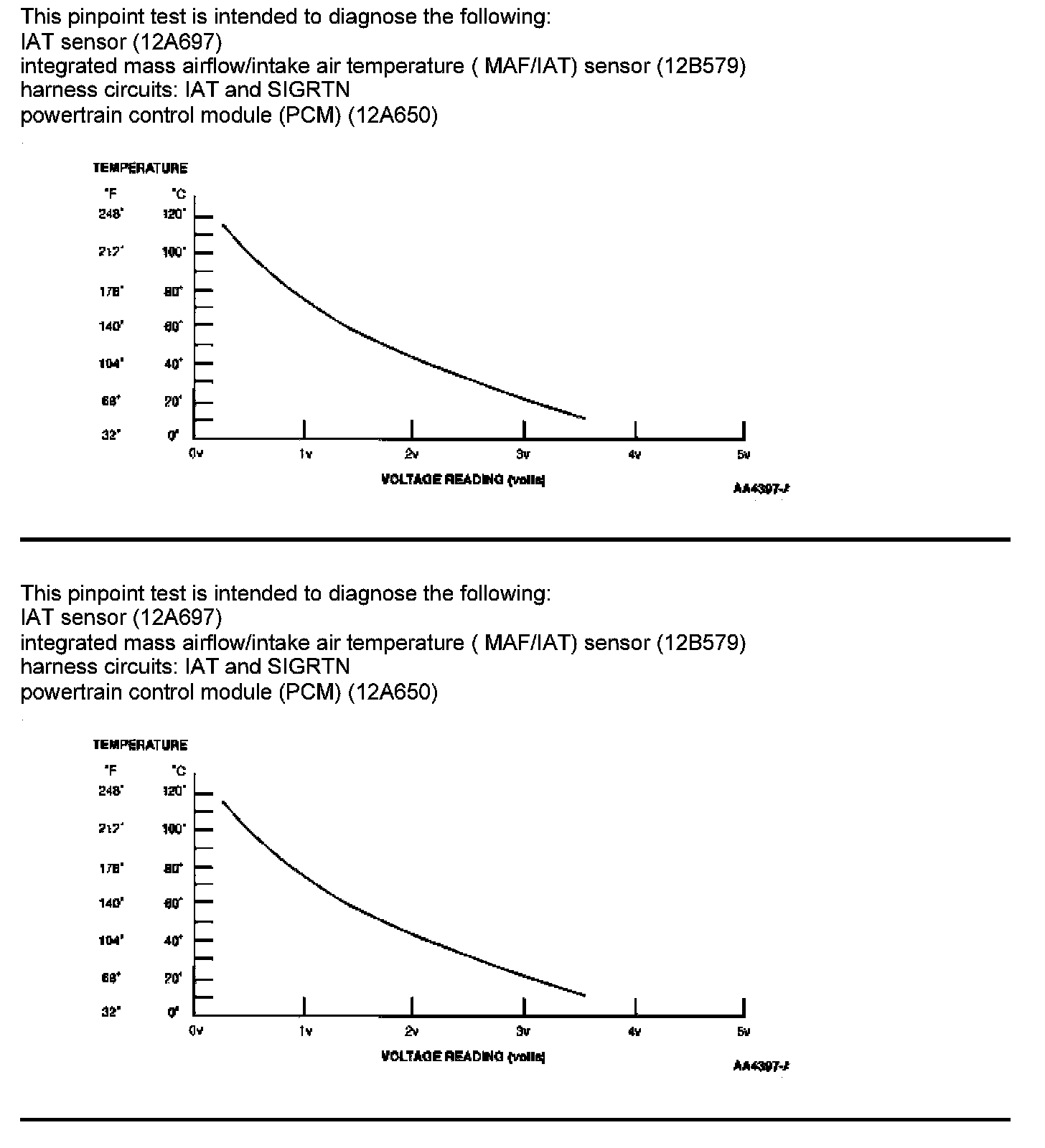

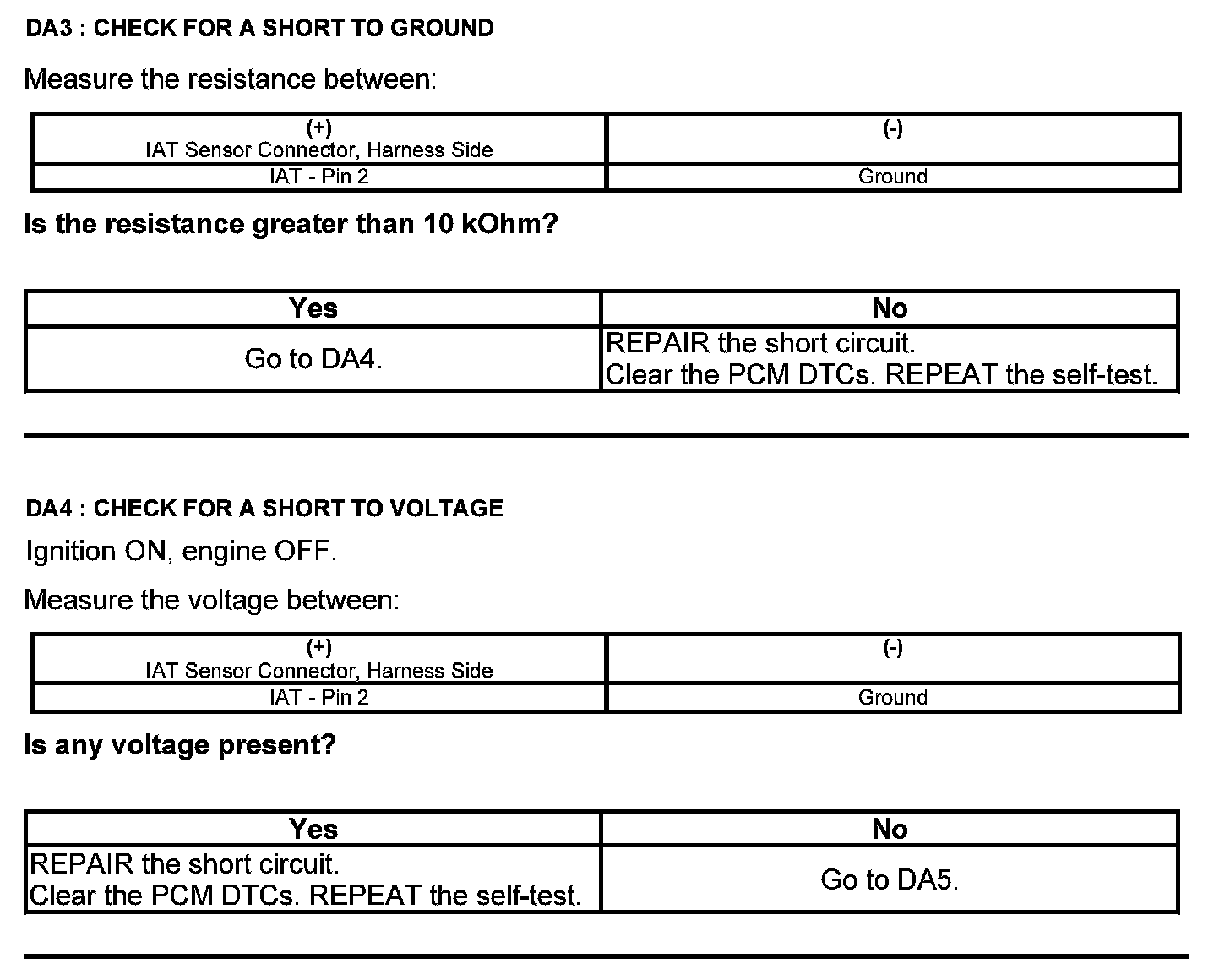

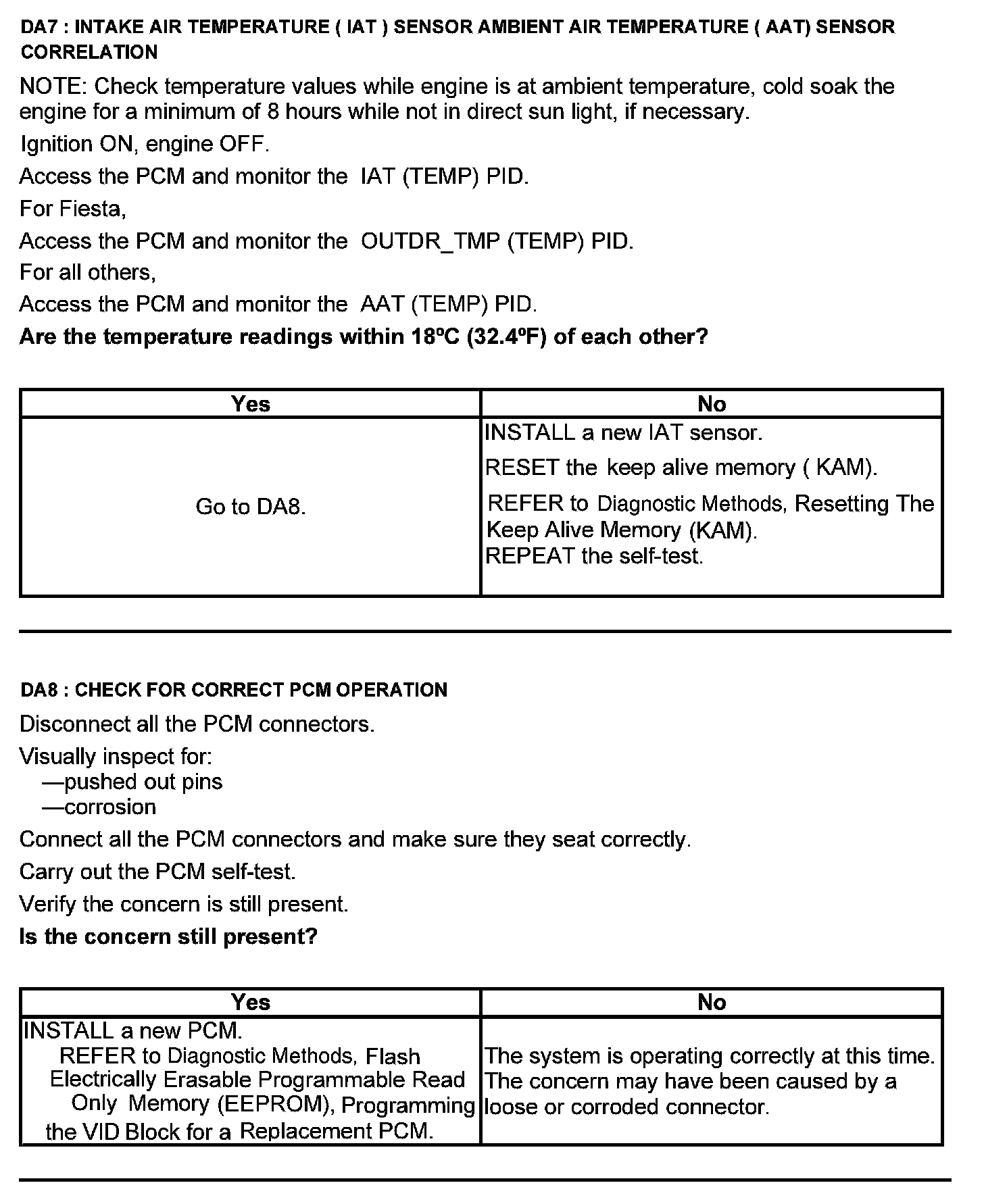

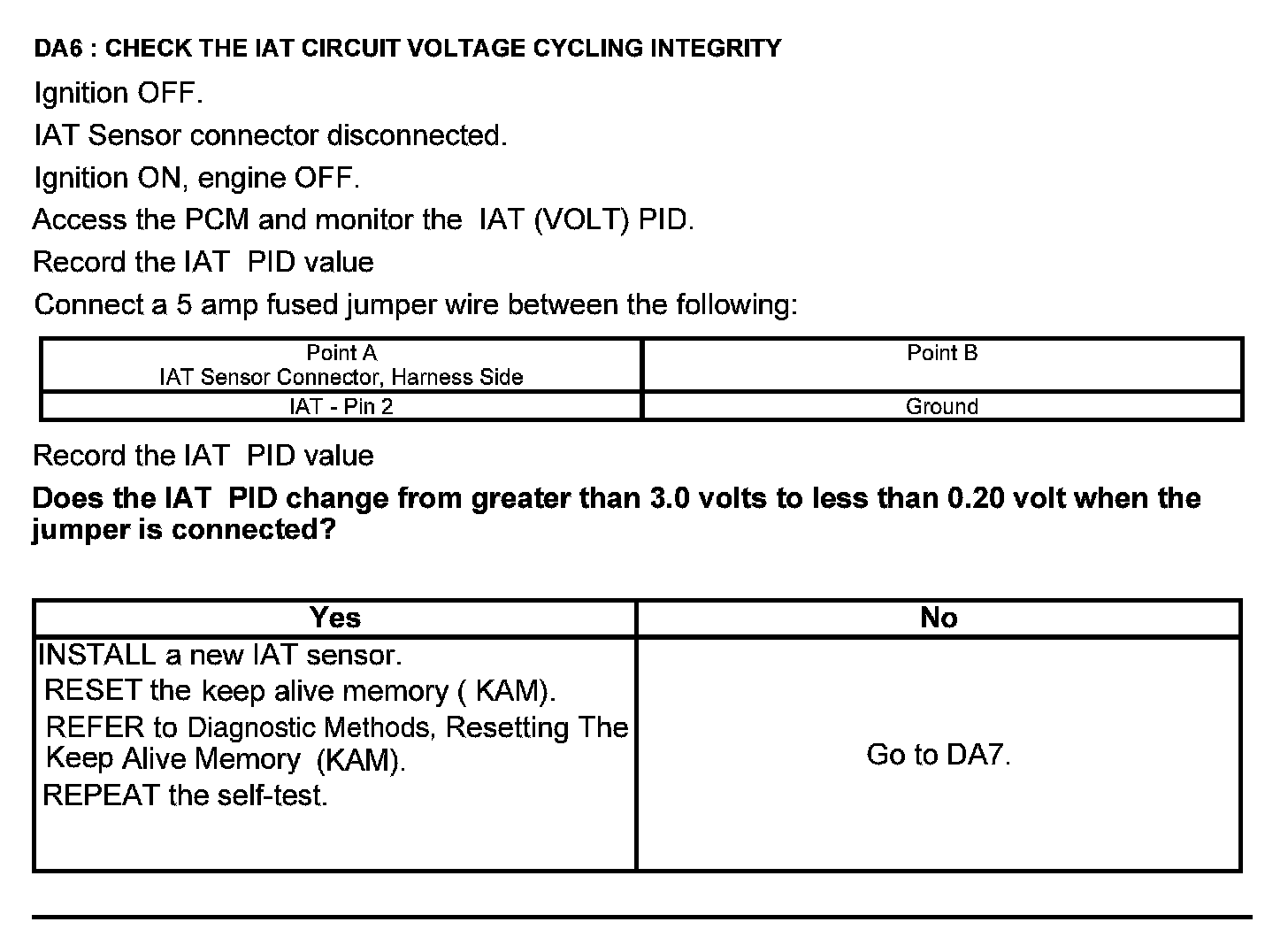

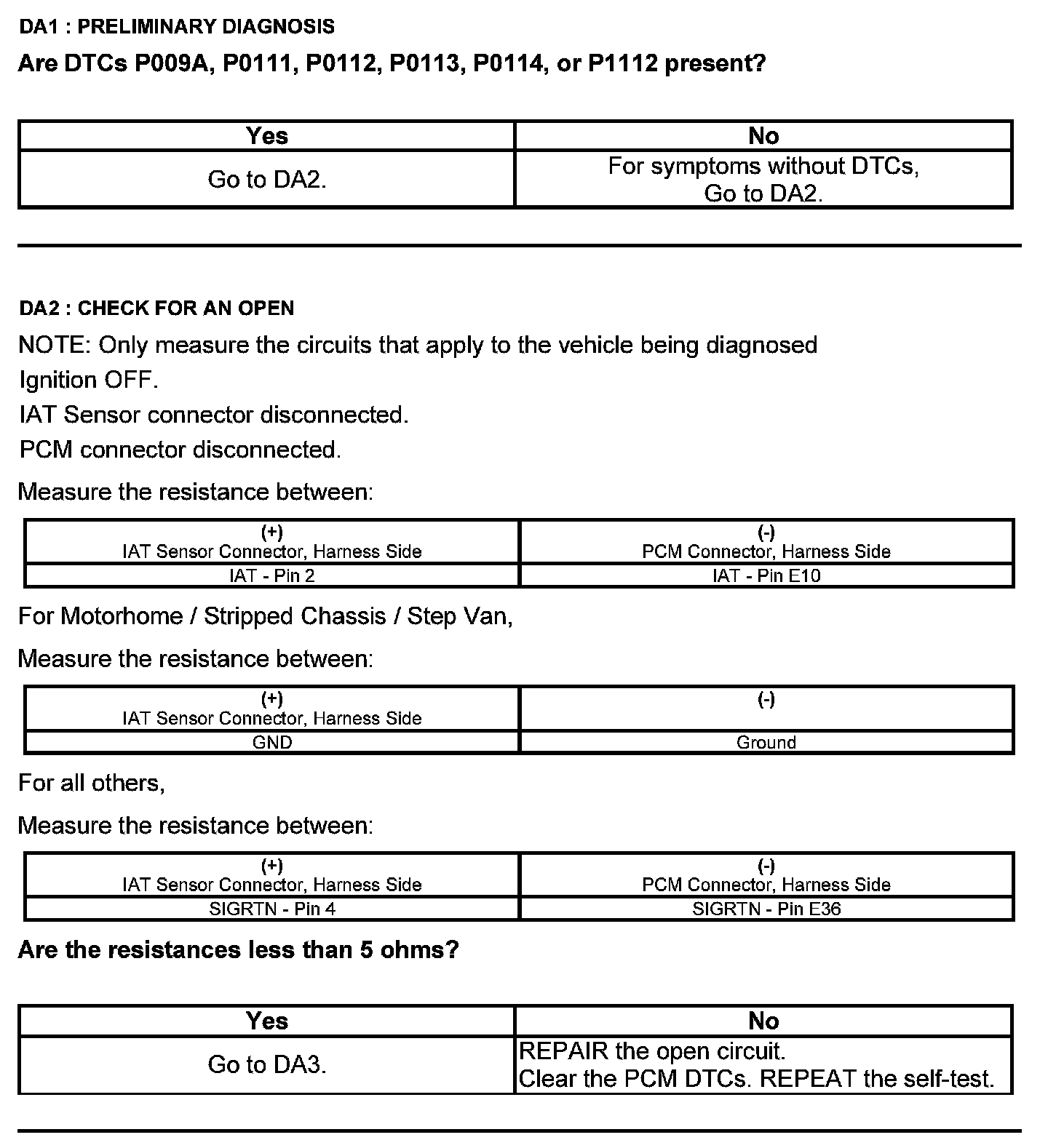

Test DA: Intake Air Temperature (IAT) Sensor



Intake Air Temperature (IAT) Sensor

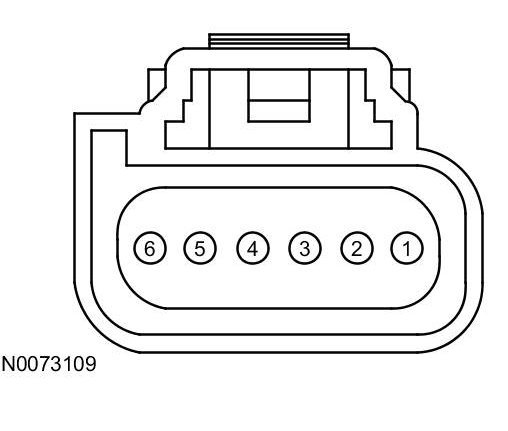

Intake Air Temperature (IAT) Sensor Connector





Harness Side

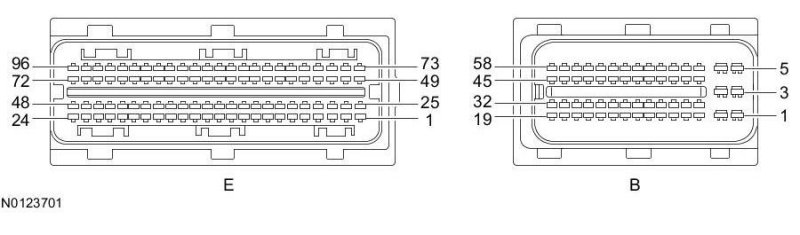

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.





Harness Side
