Transit Connect L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Wheel Speed Sensor
>>

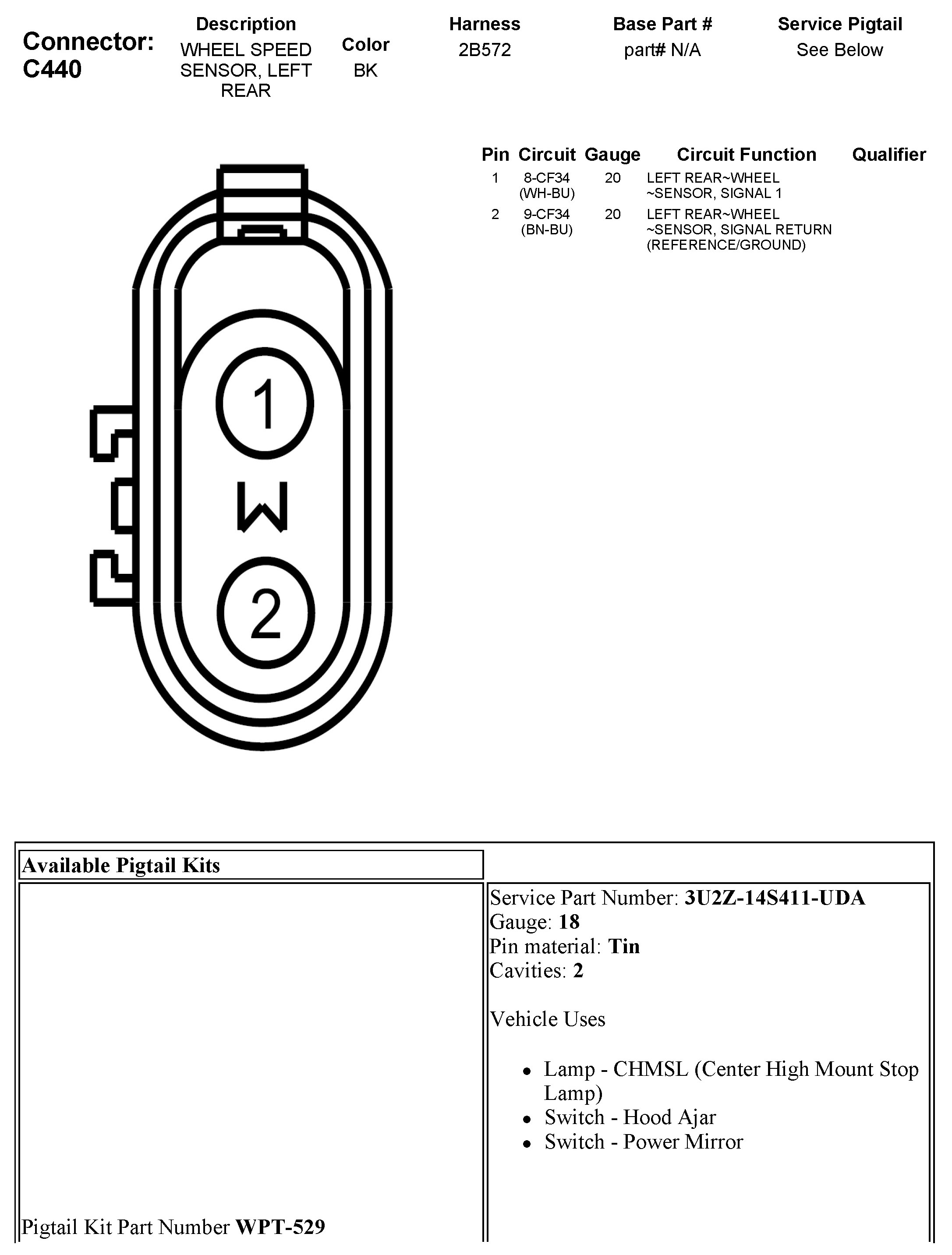

C440 Wheel Speed Sensor, Left Rear
C440 Wheel Speed Sensor, Left Rear
