Home >> Ford >> 2012 >> Transit Connect L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Refrigerant Pressure Sensor / Switch, HVAC >> C1081 A/C Compressor Cycling Switch

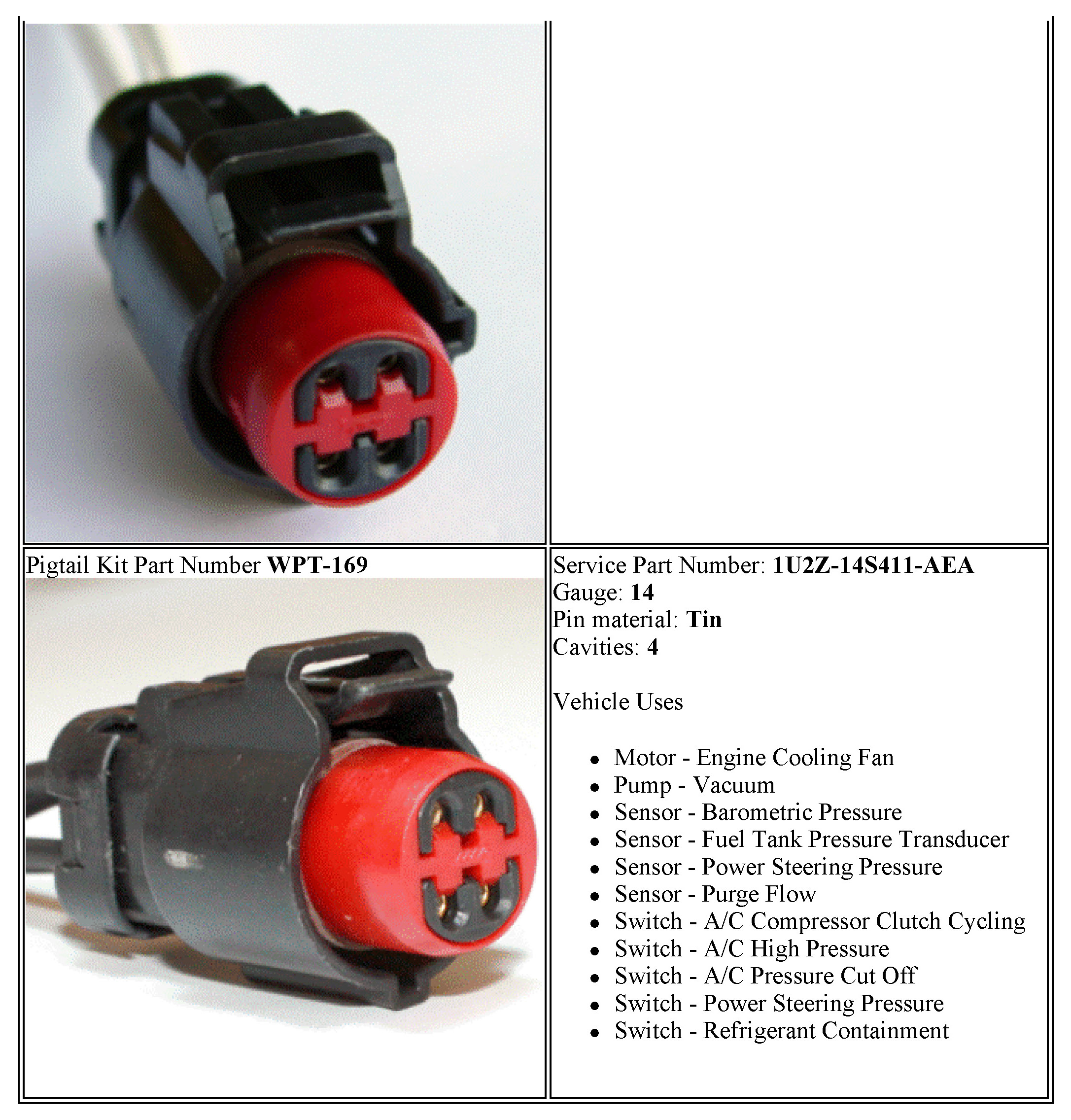

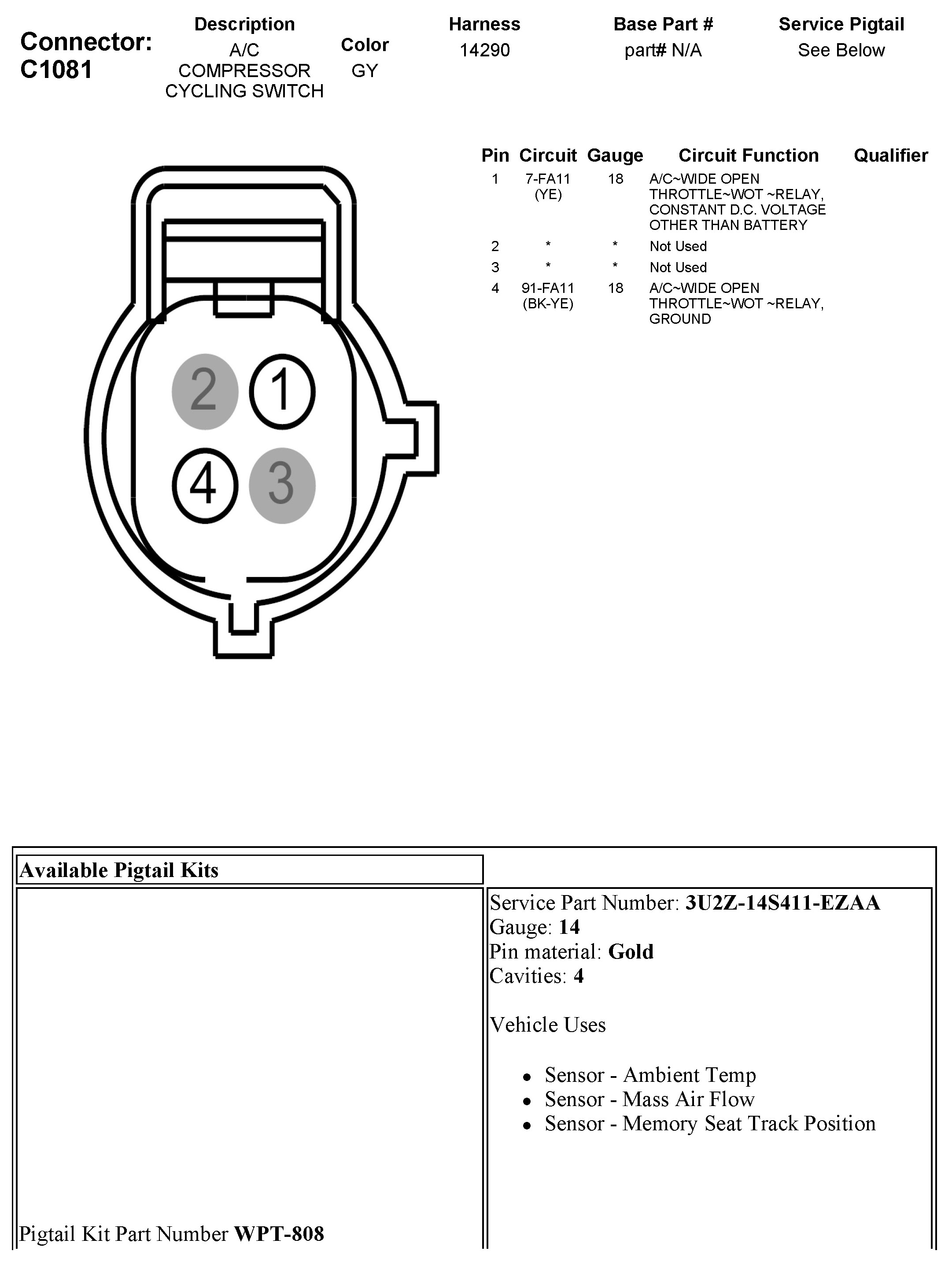

C1081 A/C Compressor Cycling Switch
