Variable Cam Timing System Monitor

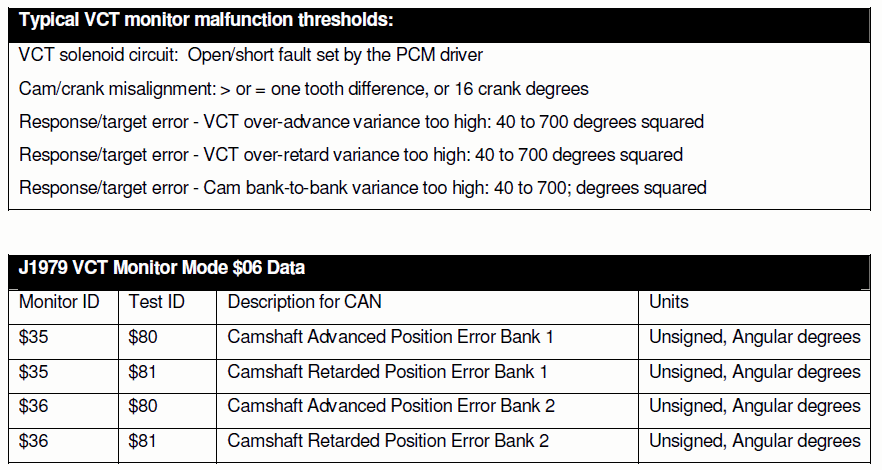

Fig 1: Mode $06 Data For VCT System Monitor

G00502263

Courtesy of FORD MOTOR CO.
