Air Duct: Service and Repair

Air Inlet Duct









Removal and Installation

1. Remove the heater core and evaporator core housing. For additional information, refer to Heater Core And Evaporator Core Housing .

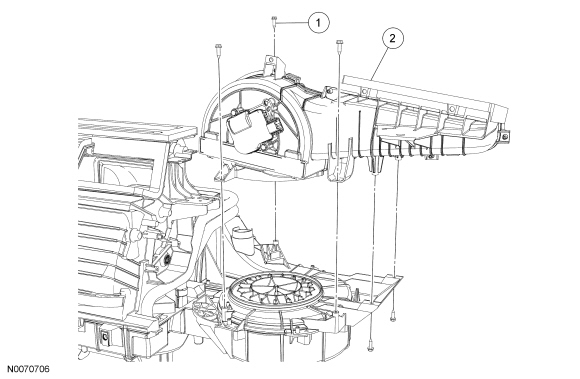

2. Remove the 5 air inlet duct screws.

3. Remove the air inlet duct.

4. To install, reverse the removal procedure.
