Home >> Ford >> 2012 >> Taurus AWD V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Driver/Vehicle Information Display >> C2395 Heads Up Display (HUD) Module

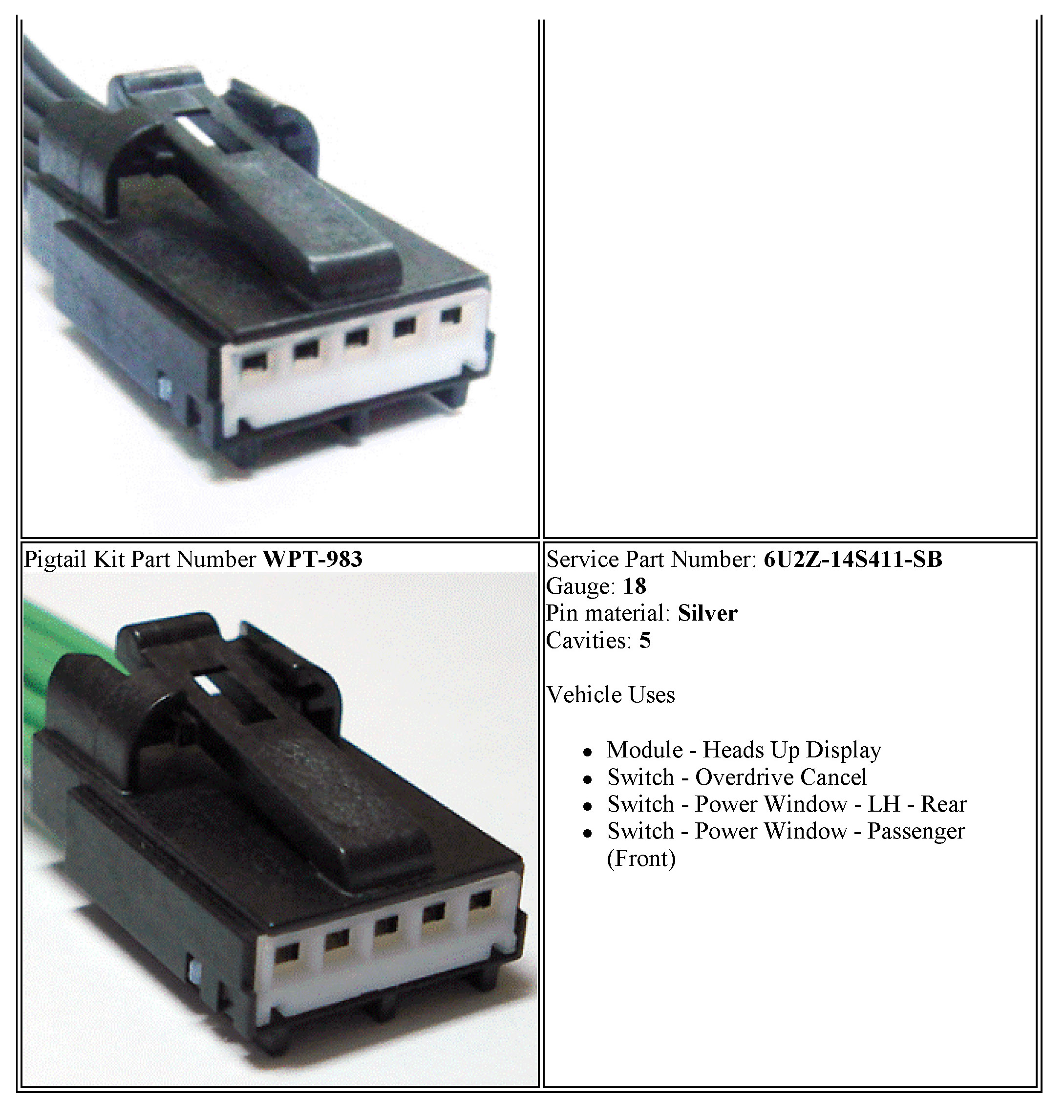

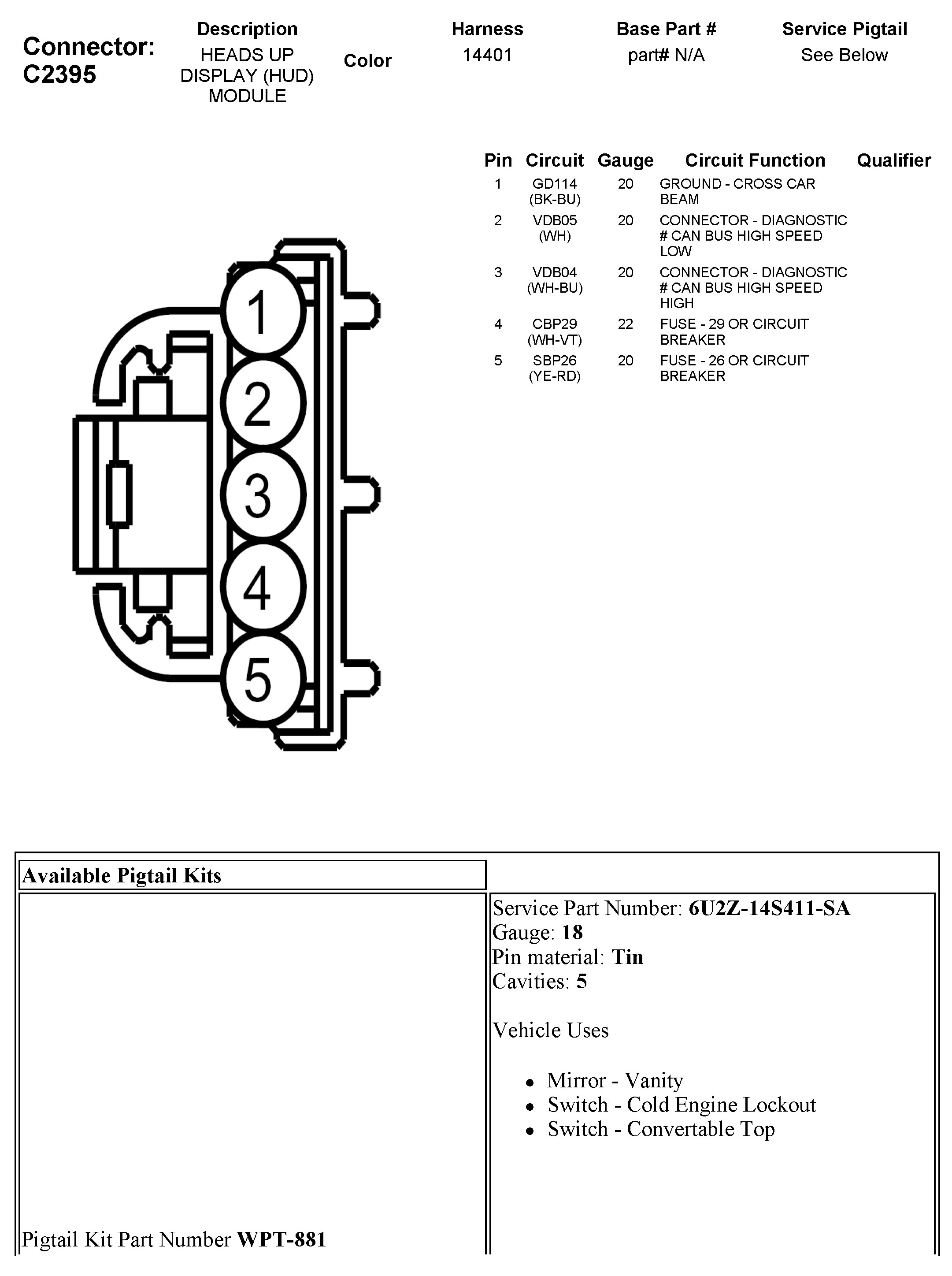

C2395 Heads Up Display (HUD) Module
