LEMON Manuals
: Even more car manuals for everyone
Home
>>
Ford
>>
2012
>>
Taurus AWD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

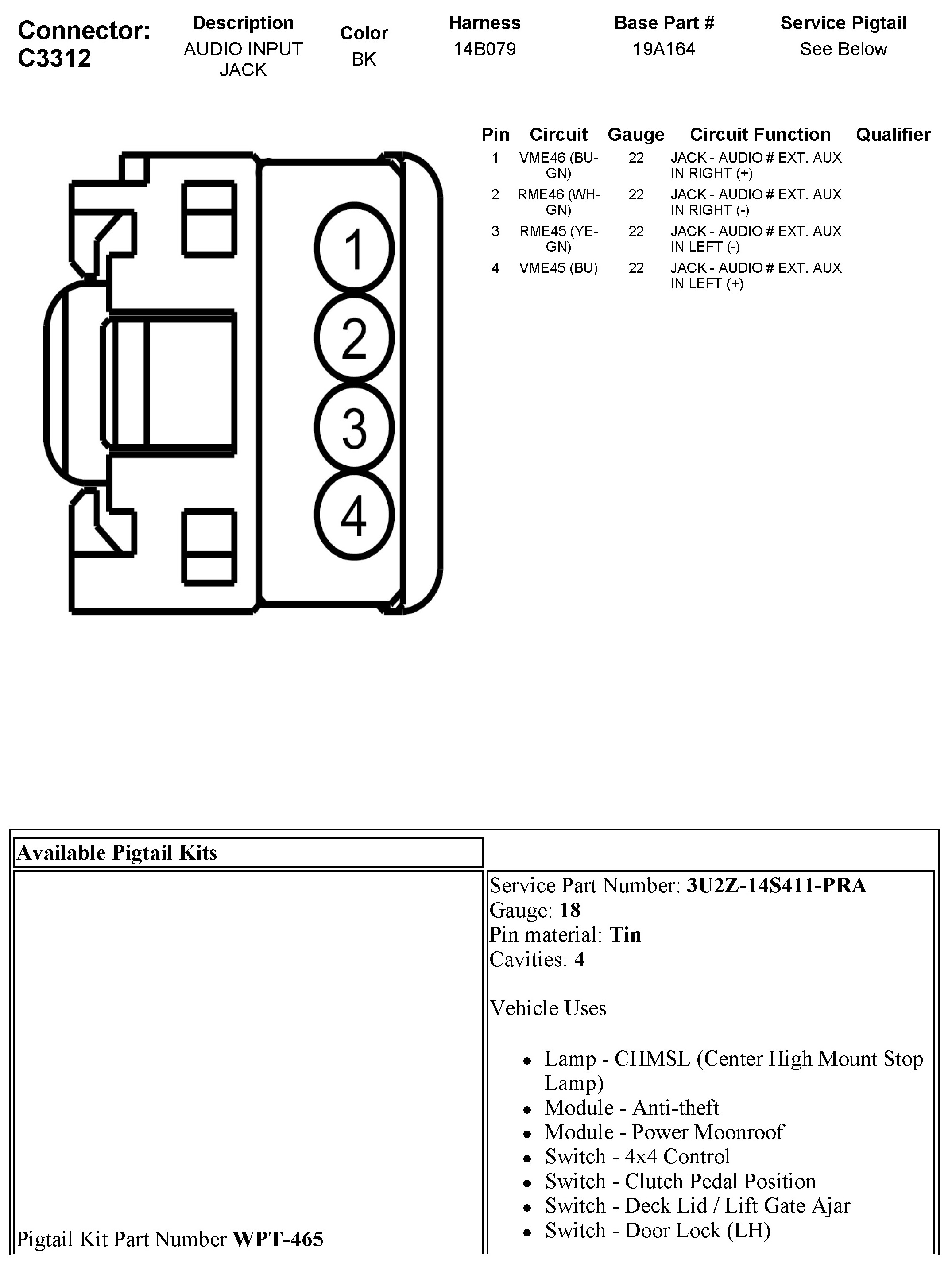

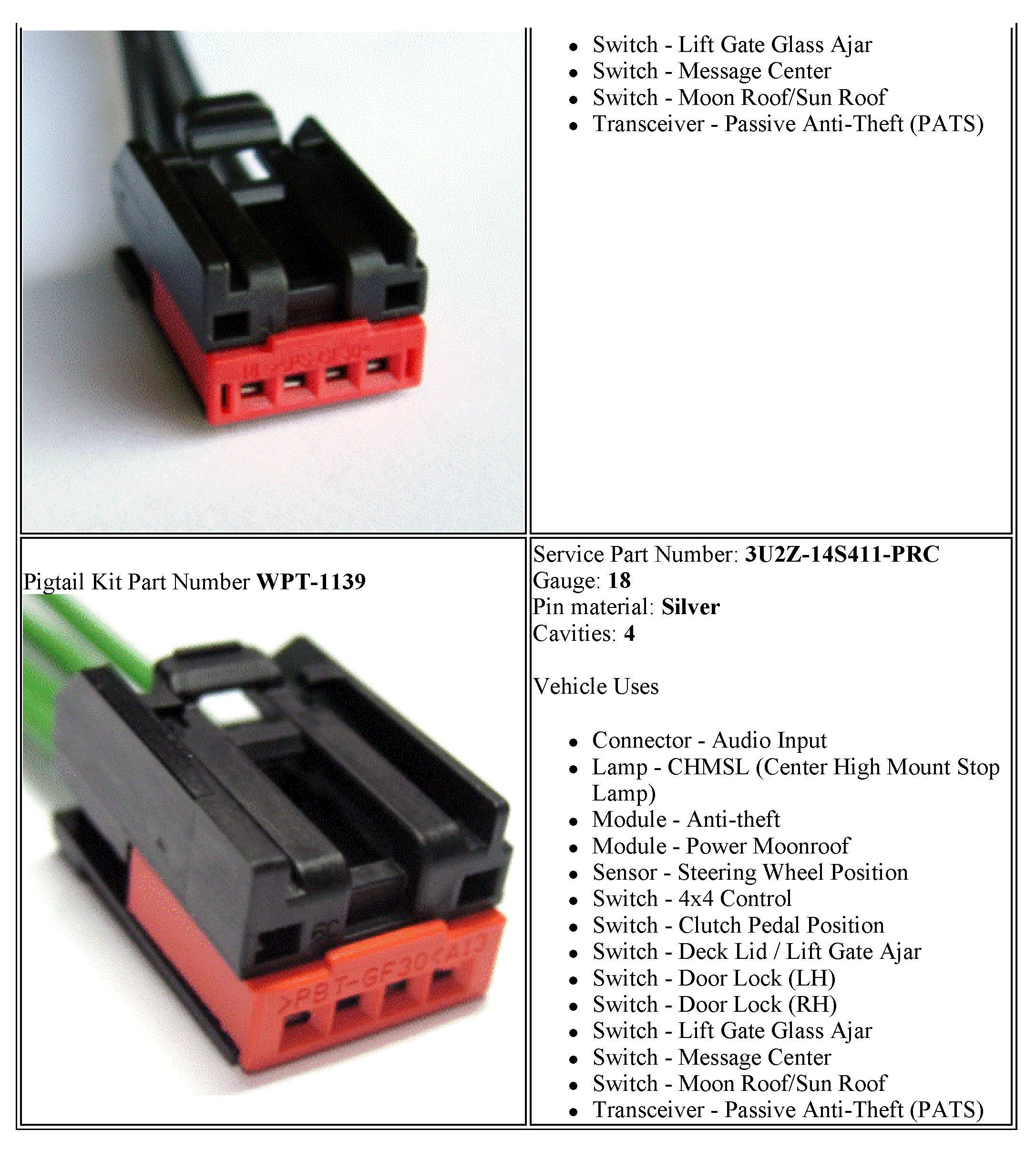

Auxiliary Input / Output Jack, Entertainment System
Auxiliary Input / Output Jack, Entertainment System
