Home
>>
Ford
>>
2012
>>
Mustang V8-5.4L SC
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Locations
>>

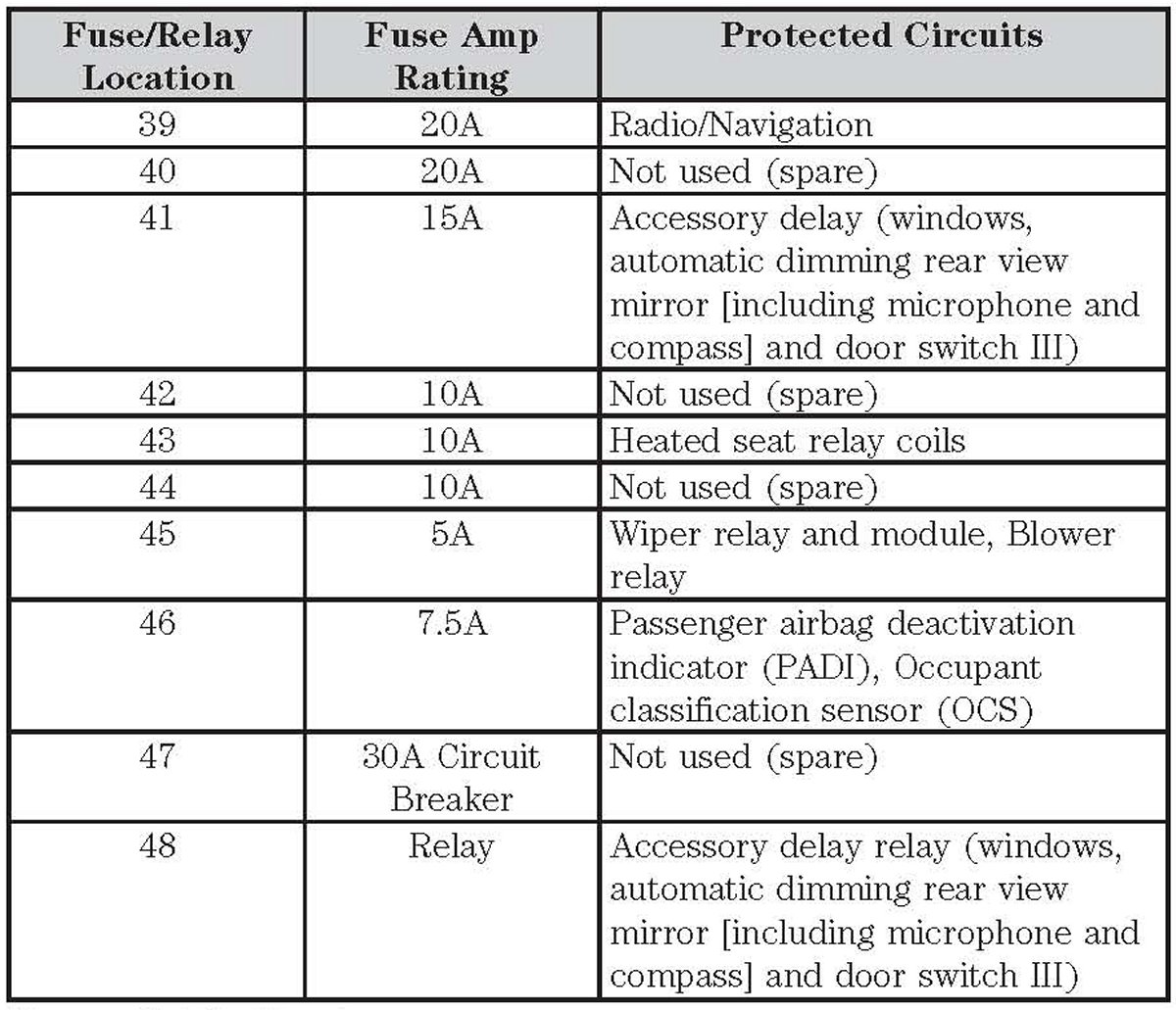

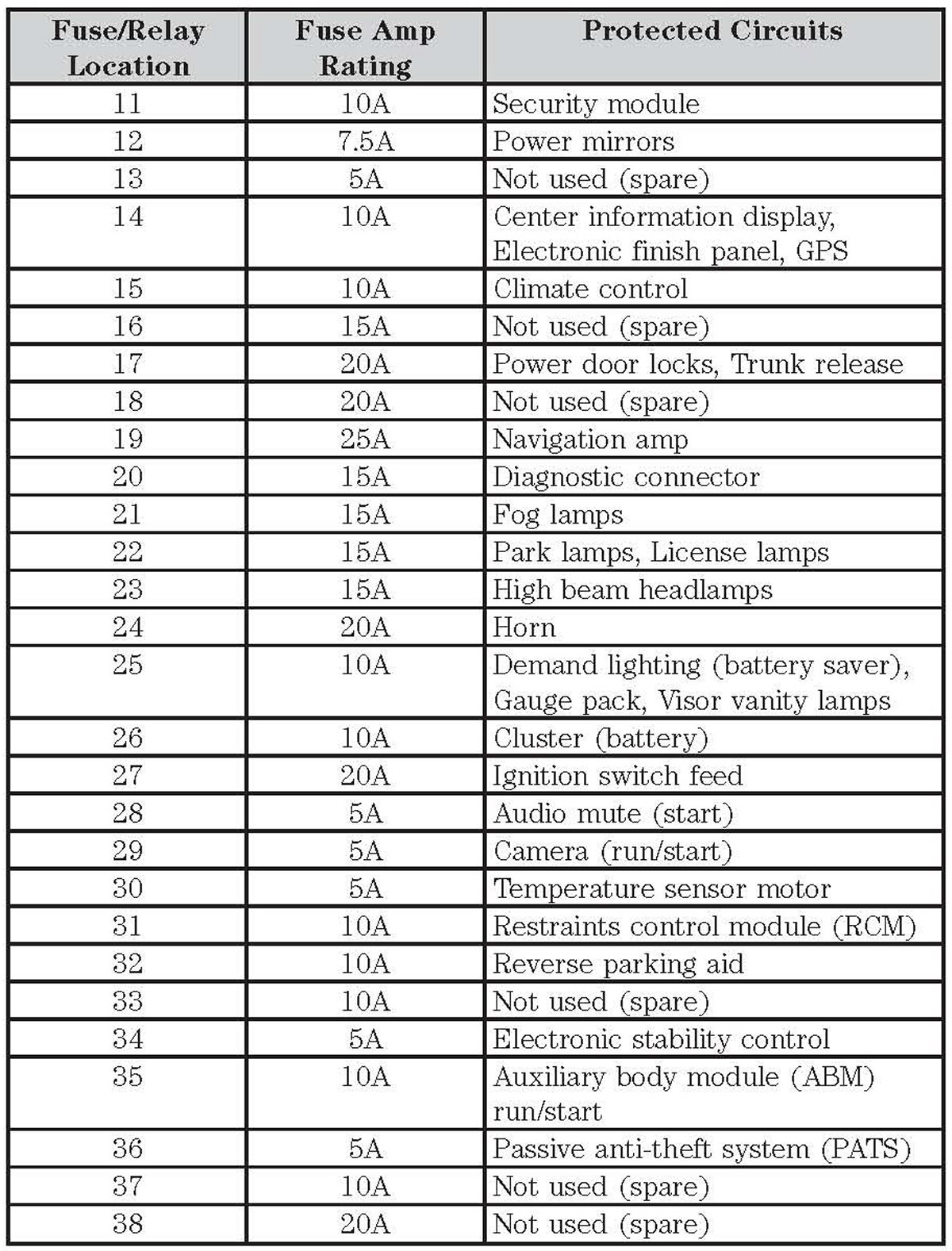

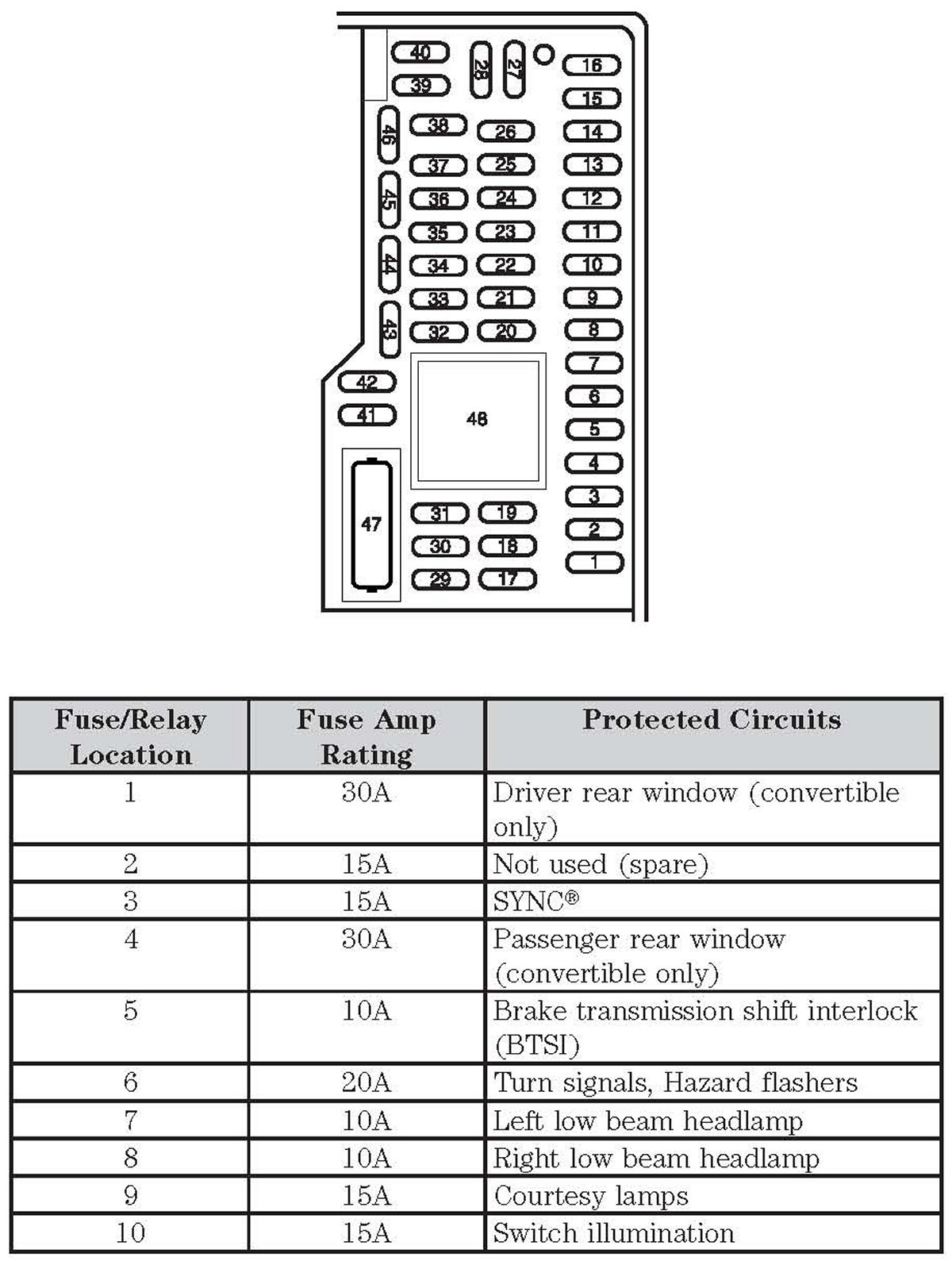

Passenger Compartment Fuse Panel
Passenger Compartment Fuse Panel
The
Passenger Compartment Fuse Panel
is located in the lower passenger side area behind the kick panel.
