Turn Signals: Service and Repair

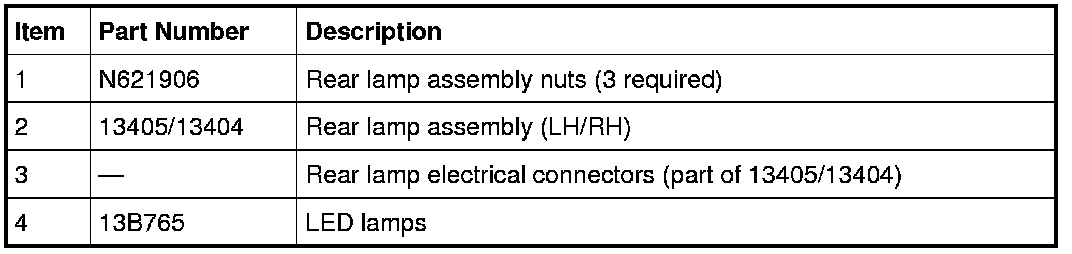

Rear Lamp Assembly









Removal and Installation

1. Remove the rear luggage compartment scuff plate.
1. Remove the 2 pushpins.

2. Remove the 2 plastic nuts.






2. Position the luggage compartment side trim panel aside.

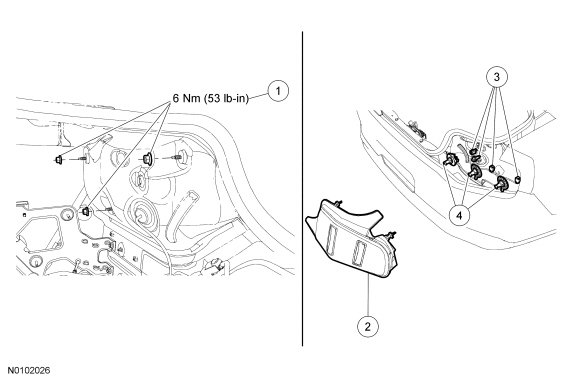

3. Remove the 3 rear lamp assembly nuts.
- To install, tighten to 6 Nm (53 lb-in).


4. Remove the rear lamp assembly.
- Disconnect the electrical connectors and separate the reversing lamp bulb holders from the rear lamp assembly.


5. To install, reverse the removal procedure.
