Seat - Exploded View, Front

Seat - Exploded View, Front

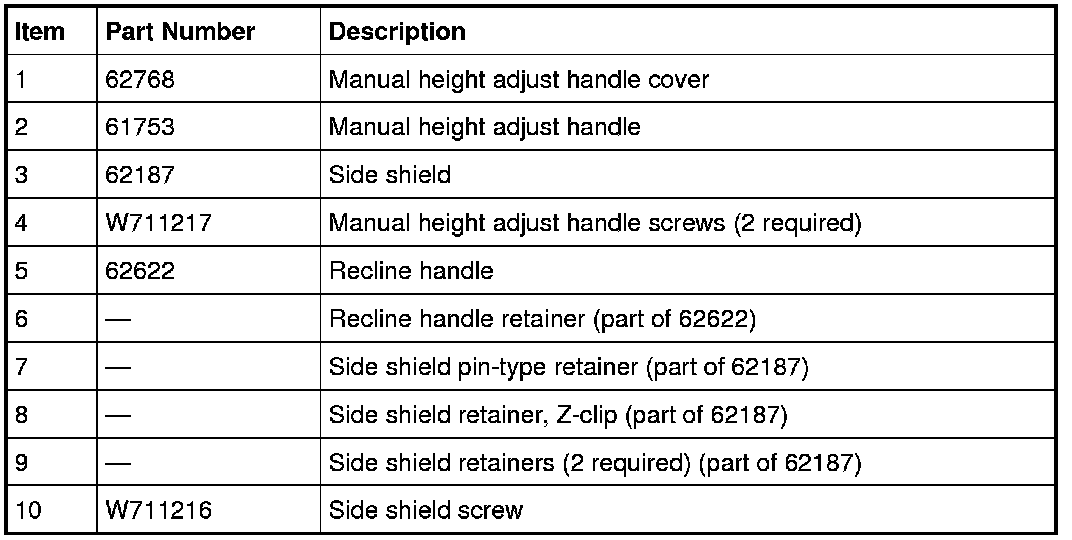

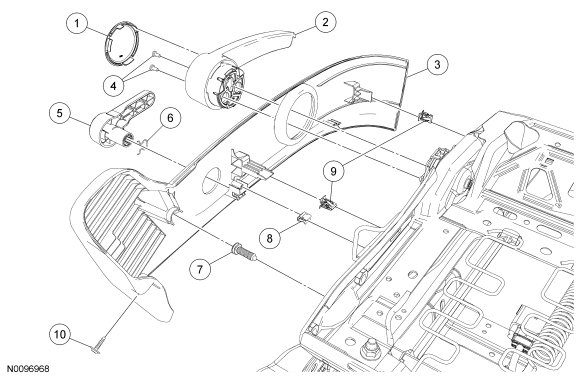

Cushion Side Shield - Manual

NOTE: LH shown, RH similar.

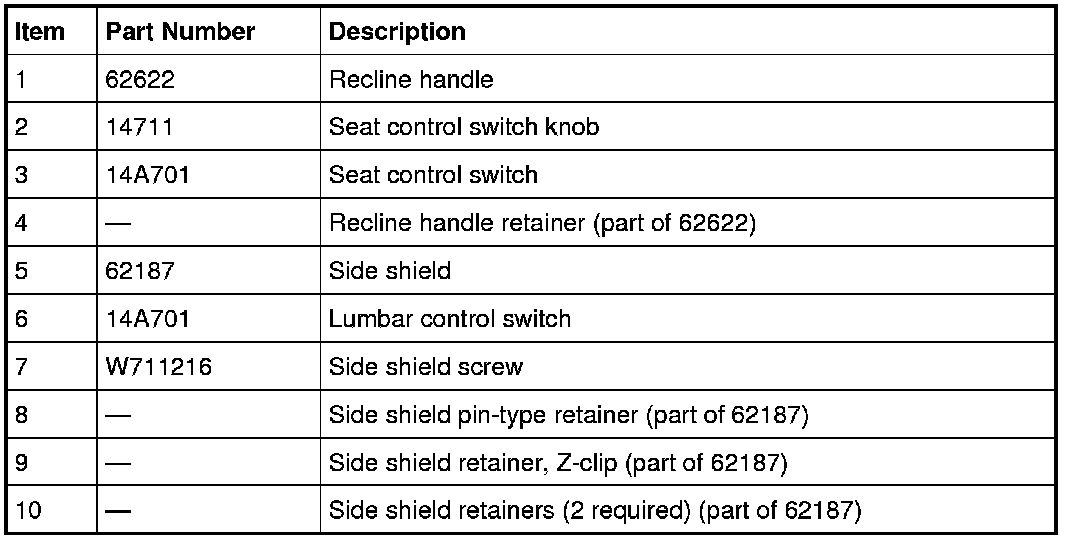

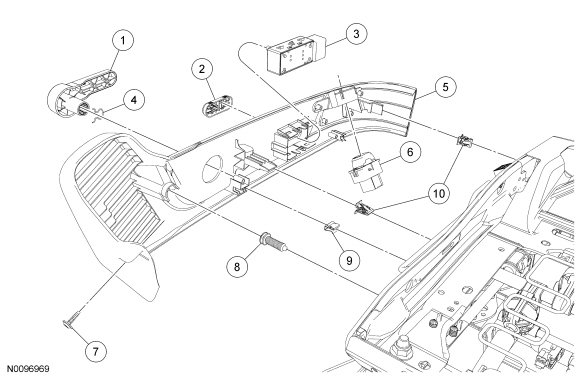

Cushion Side Shield - Power

NOTE: LH shown, RH similar.

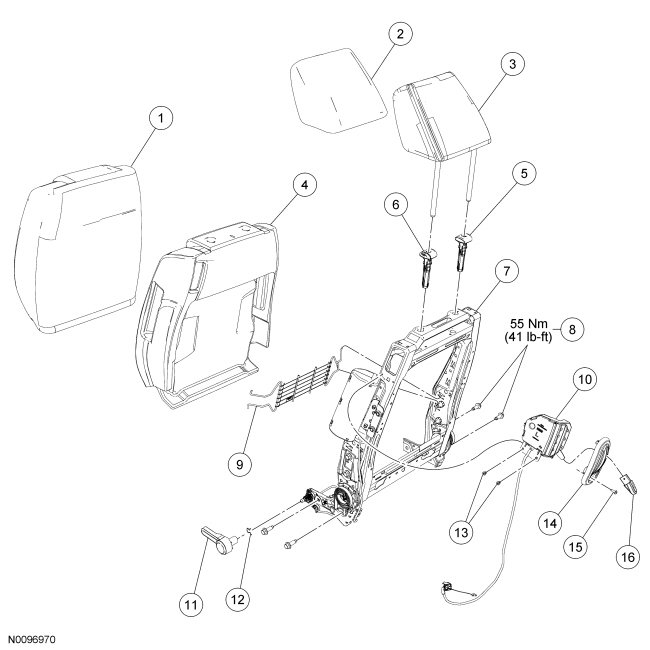

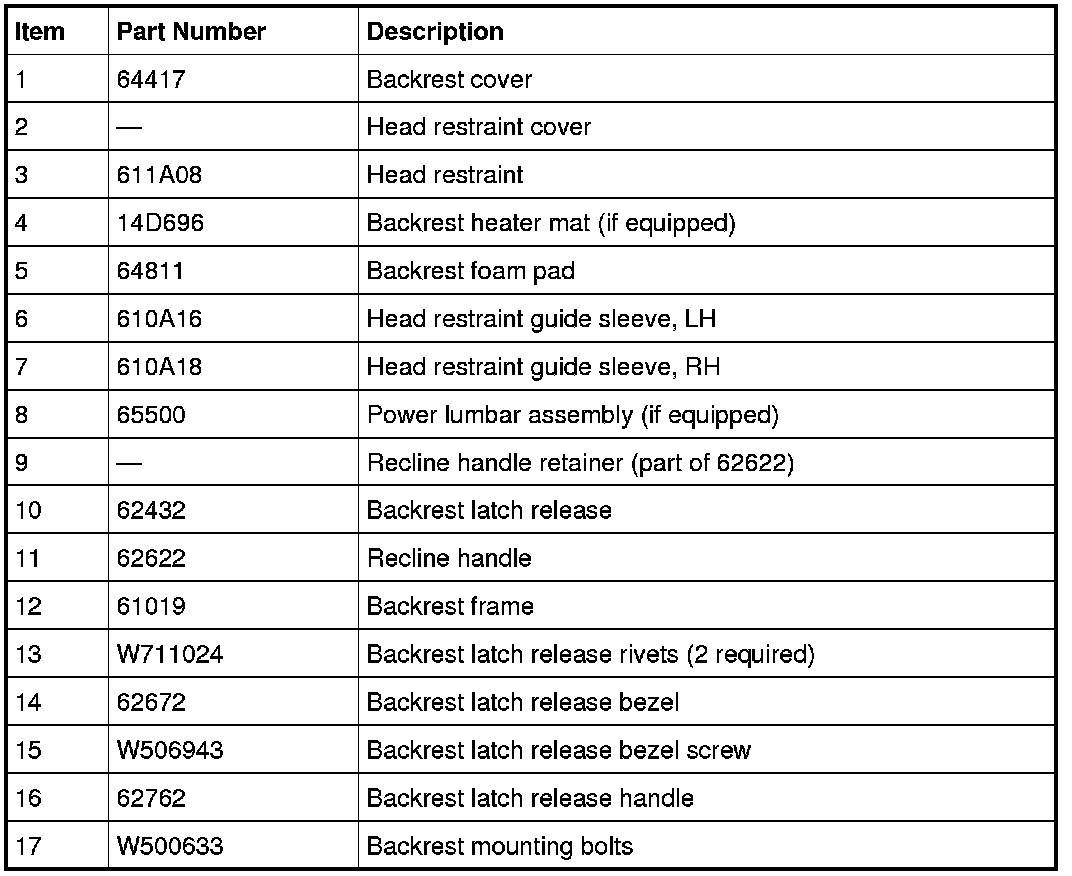

Seat Backrest - Manual

NOTE: Low back seat shown, high back seat similar.

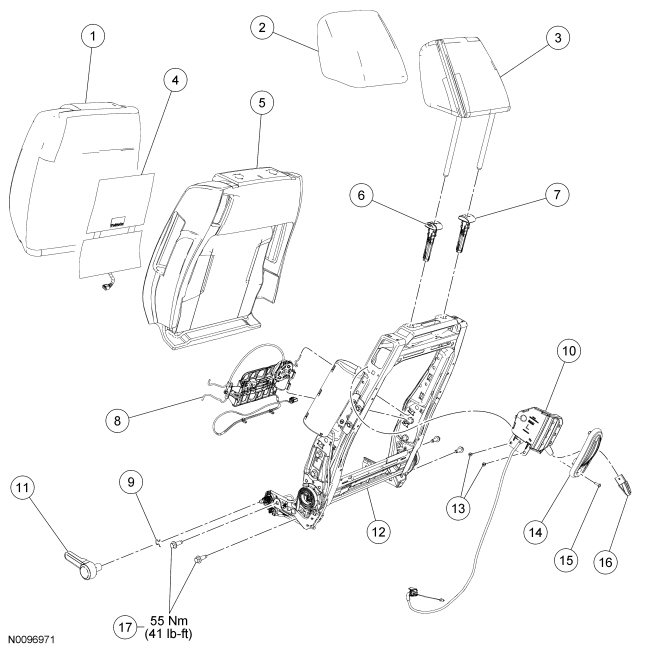

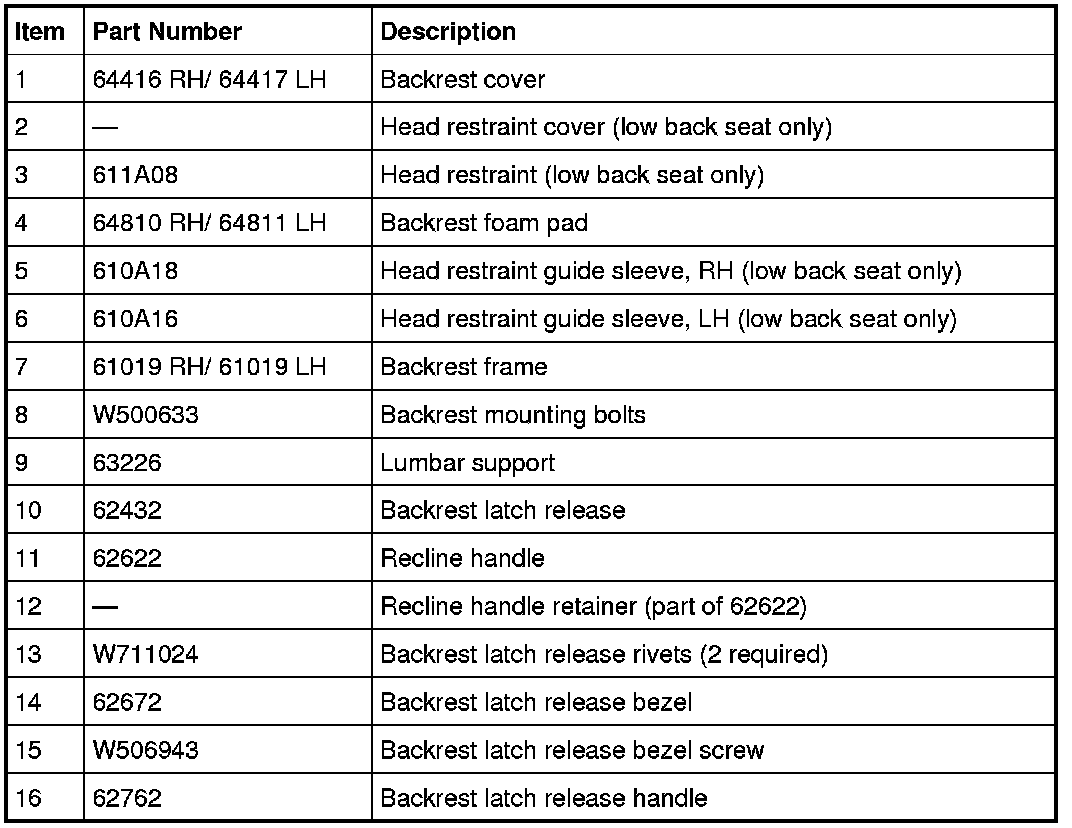

Seat Backrest - Power

NOTE: LH shown, RH similar.

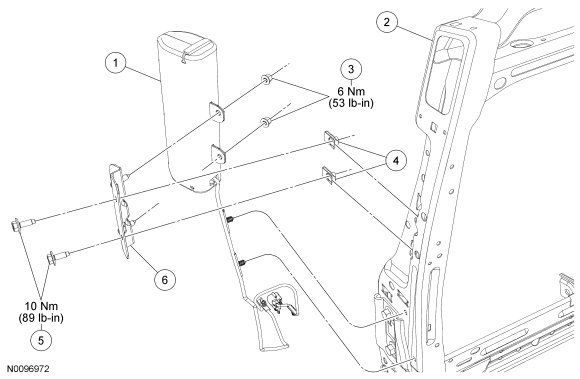

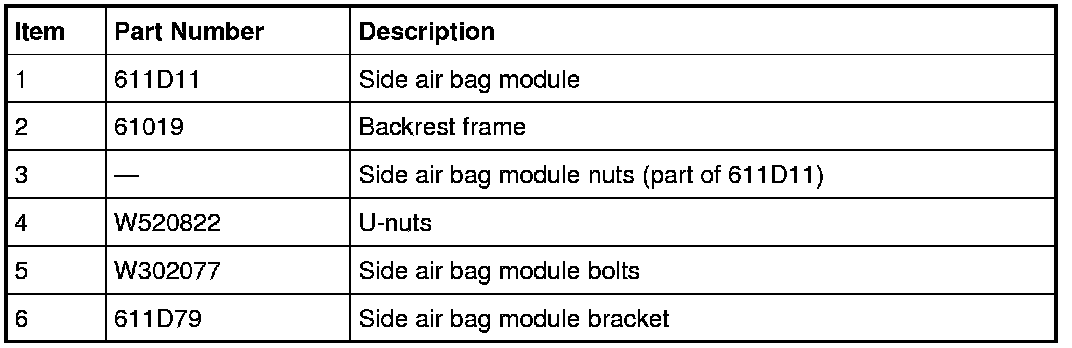

Seat Side Air Bag Module

NOTE: LH shown, RH similar.

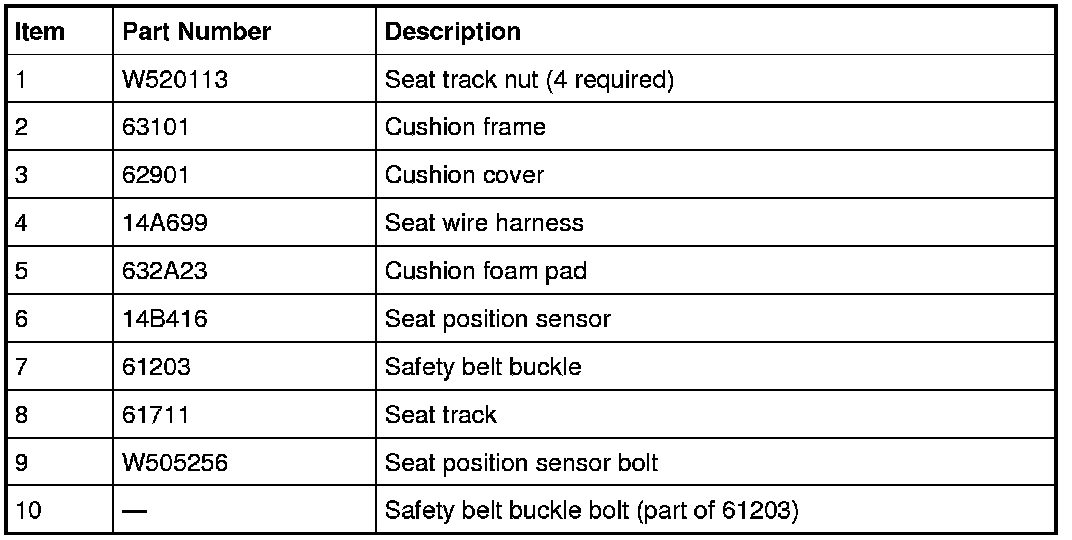

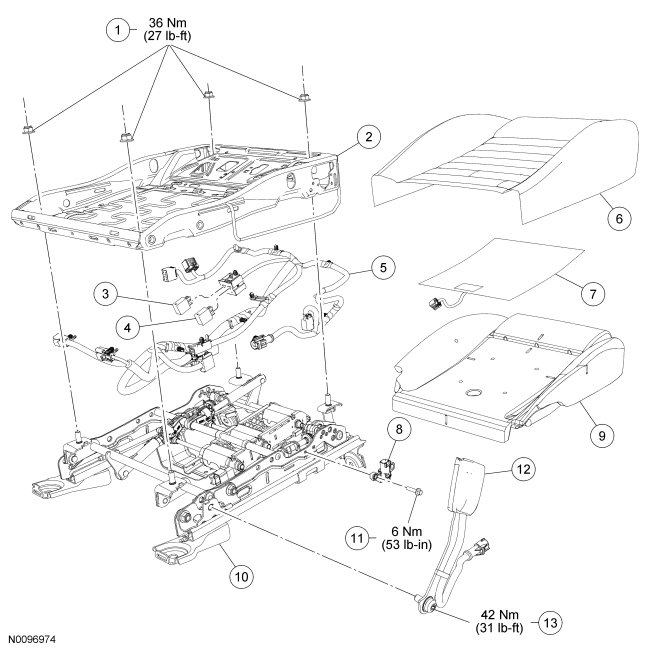

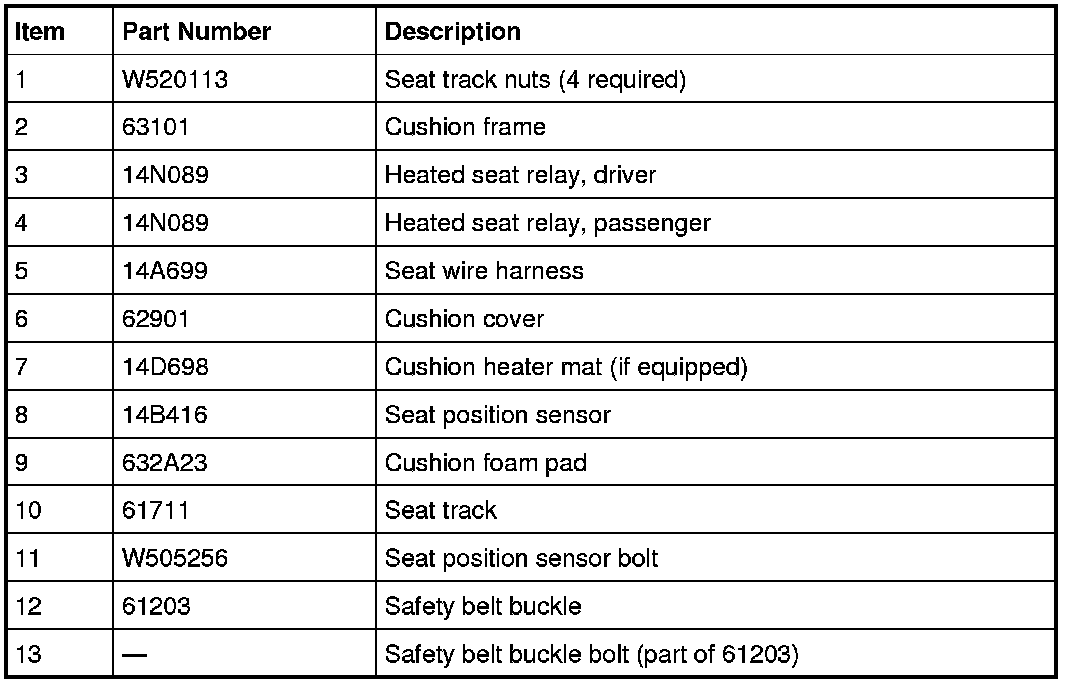

Seat Cushion - Driver, Manual










Seat Cushion - Driver, Power

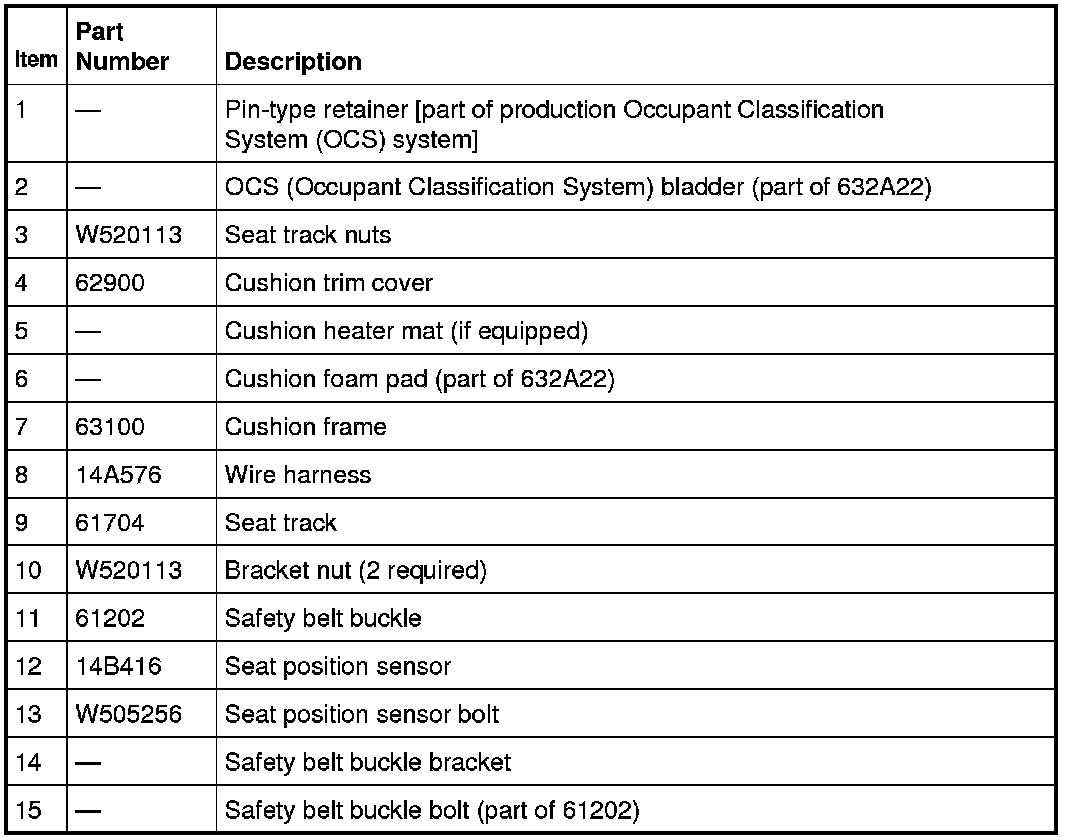

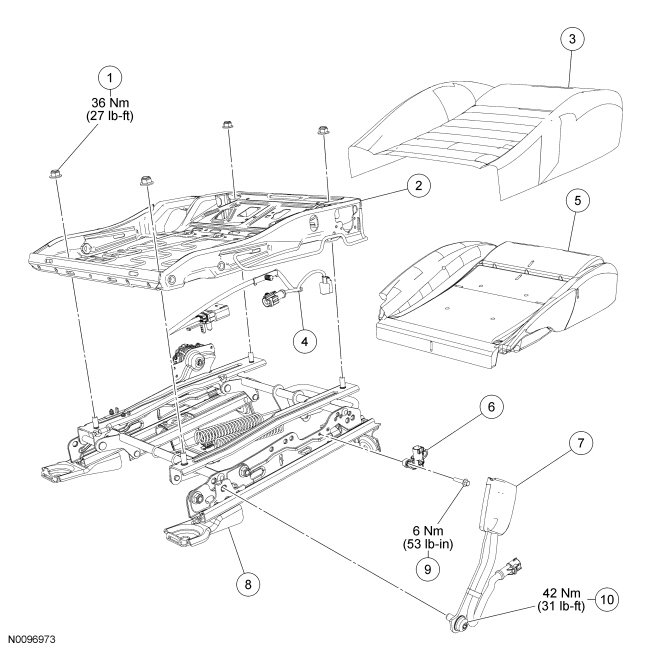

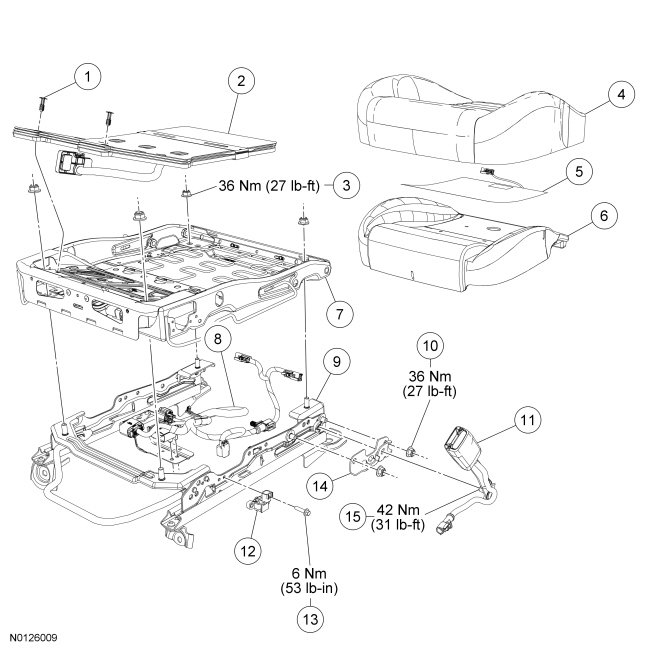

Seat Cushion - Passenger

NOTE: Production Occupant Classification System (OCS) system is shown. For OCS (Occupant Classification System) system service kit, refer to Occupant Classification Sensor procedure in Restraints and Safety Systems &/or Air Bag Systems.

NOTE: Manual seat shown, power similar.
