LEMON Manuals: Even more car manuals for everyone
Home >> Ford >> 2012 >> Fusion FWD V6-3.5L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Electronic Throttle Actuator >> Diagrams >> C1368 Electronic Throttle Control (ETC) Module

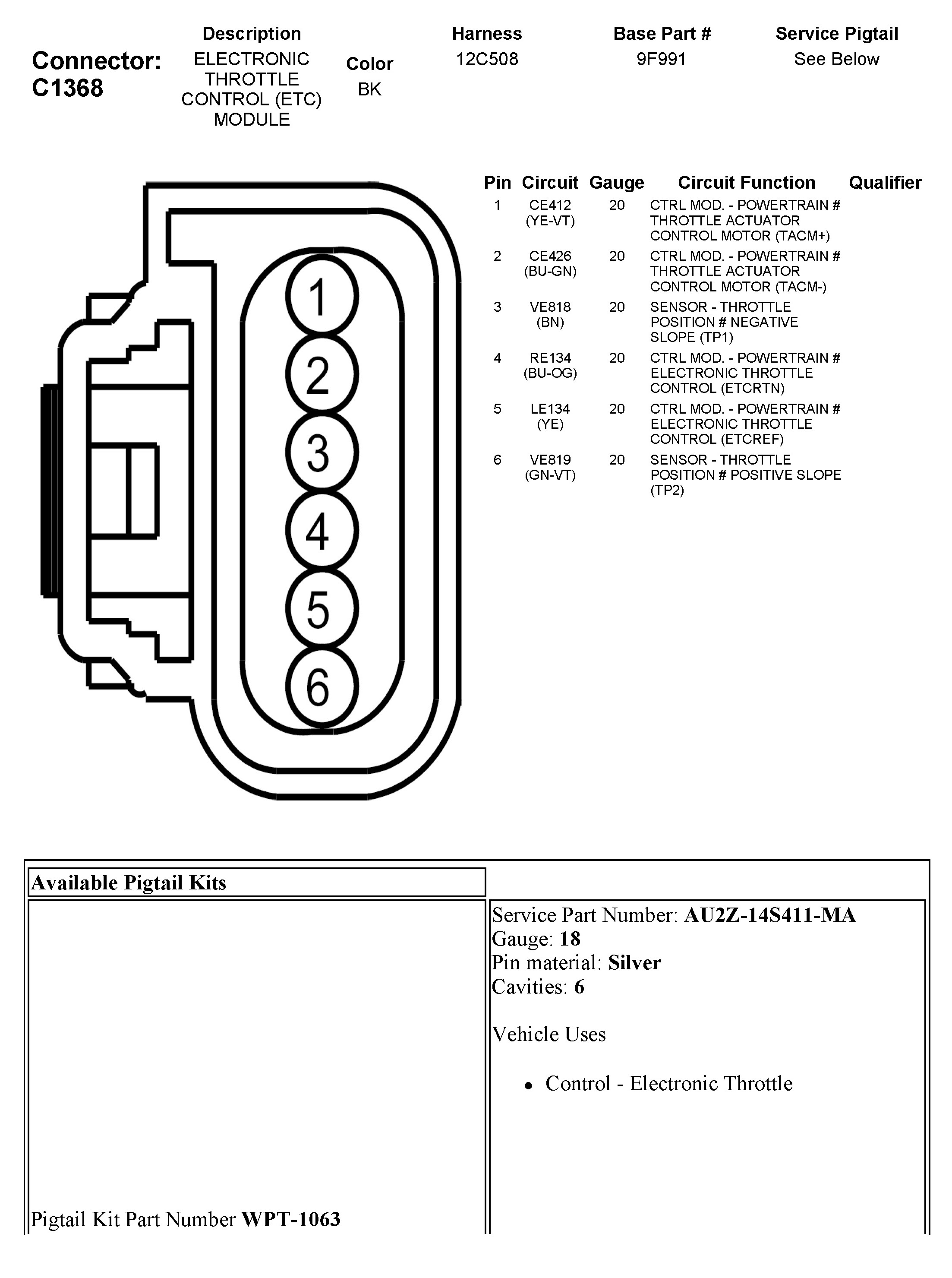

C1368 Electronic Throttle Control (ETC) Module
