LEMON Manuals
: Even more car manuals for everyone
Home
>>
Ford
>>
2012
>>
Fusion FWD L4-2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Dimmer Switch
>>

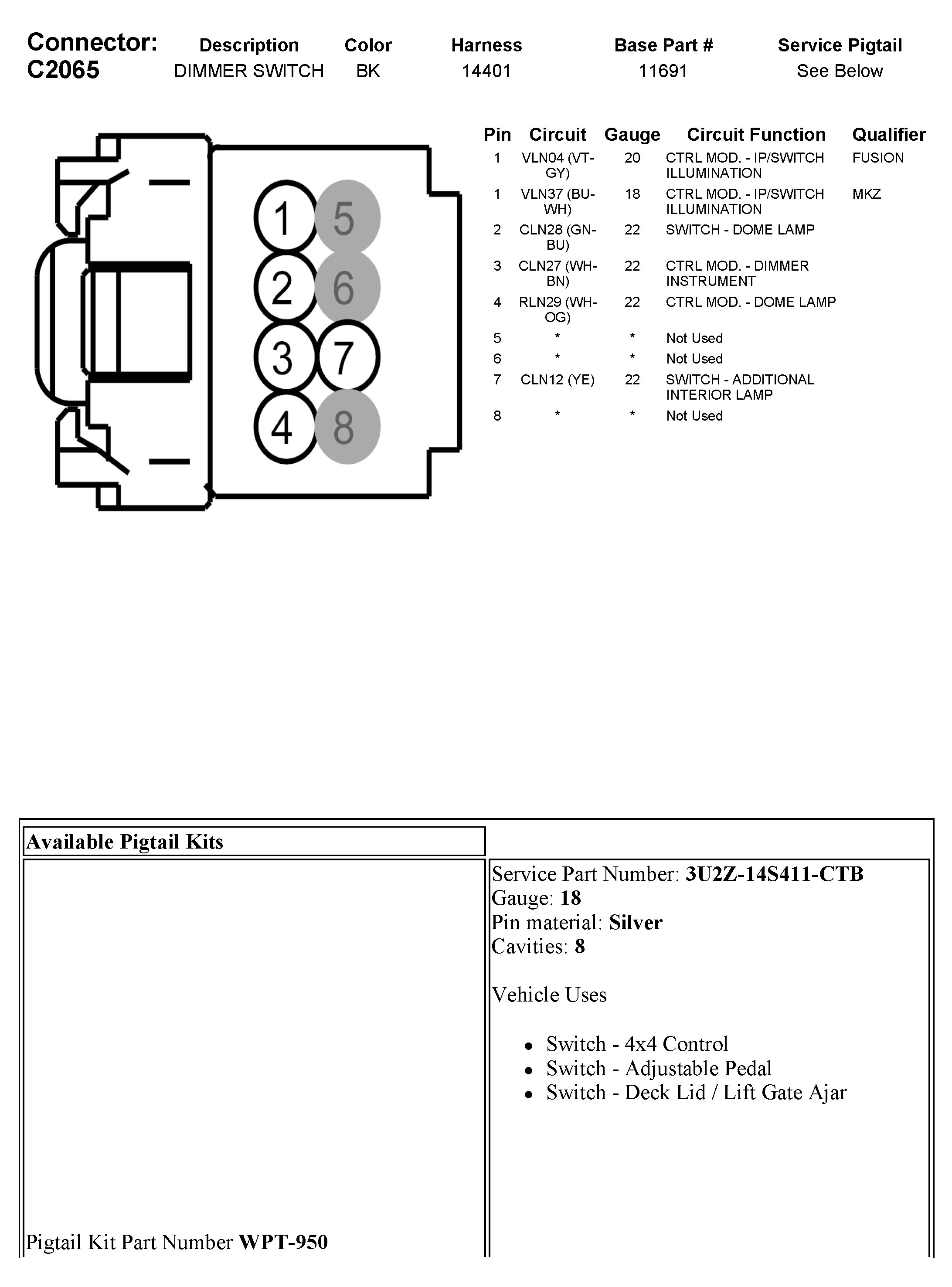

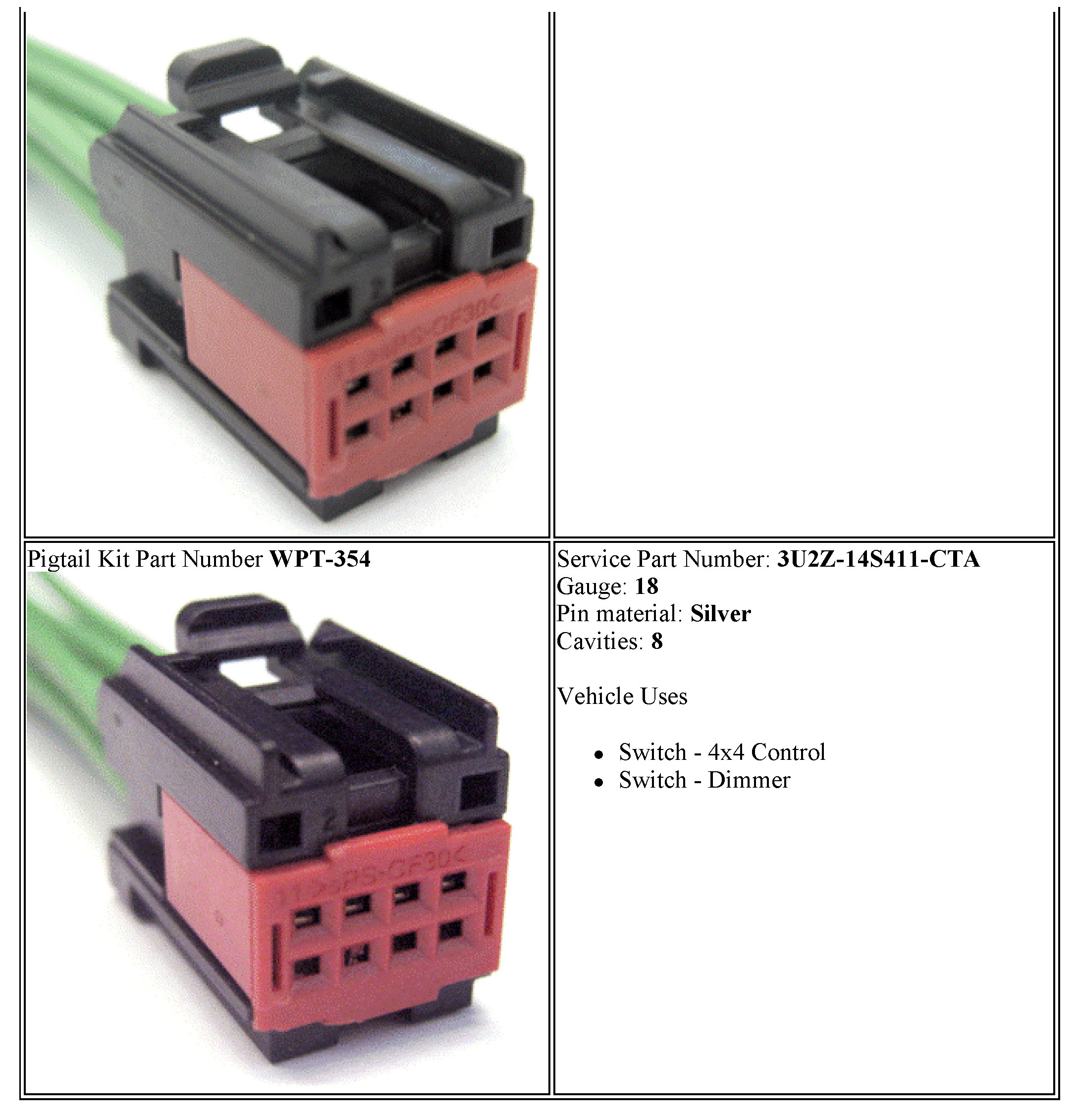

C2065 Dimmer Switch
C2065 Dimmer Switch
