Home
>>
Ford
>>
2012
>>
Fusion FWD L4-2.5L Hybrid
>>
Repair and Diagnosis
>>
Locations
>>
Splice Locations
Splice Locations

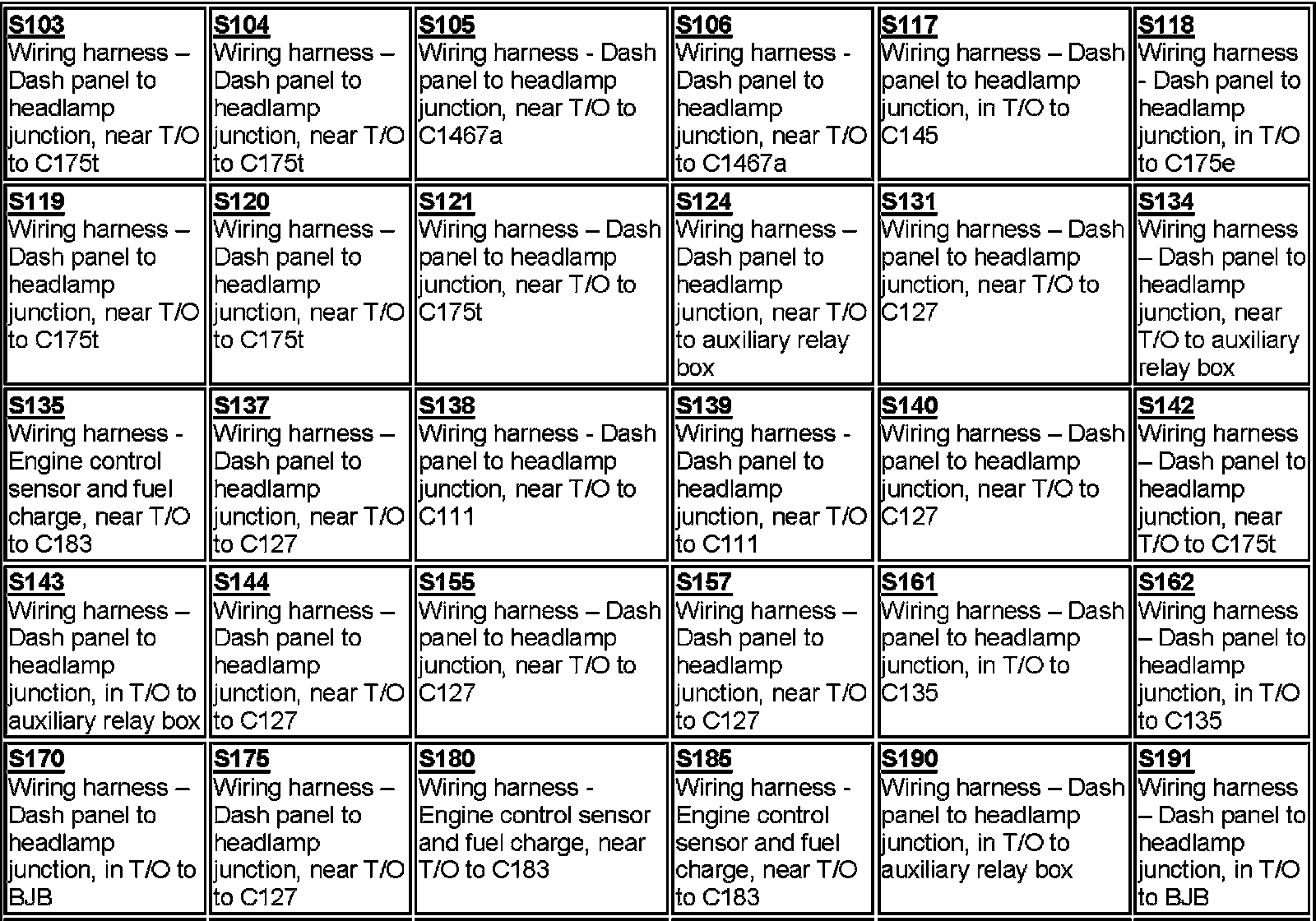

S103-S191:

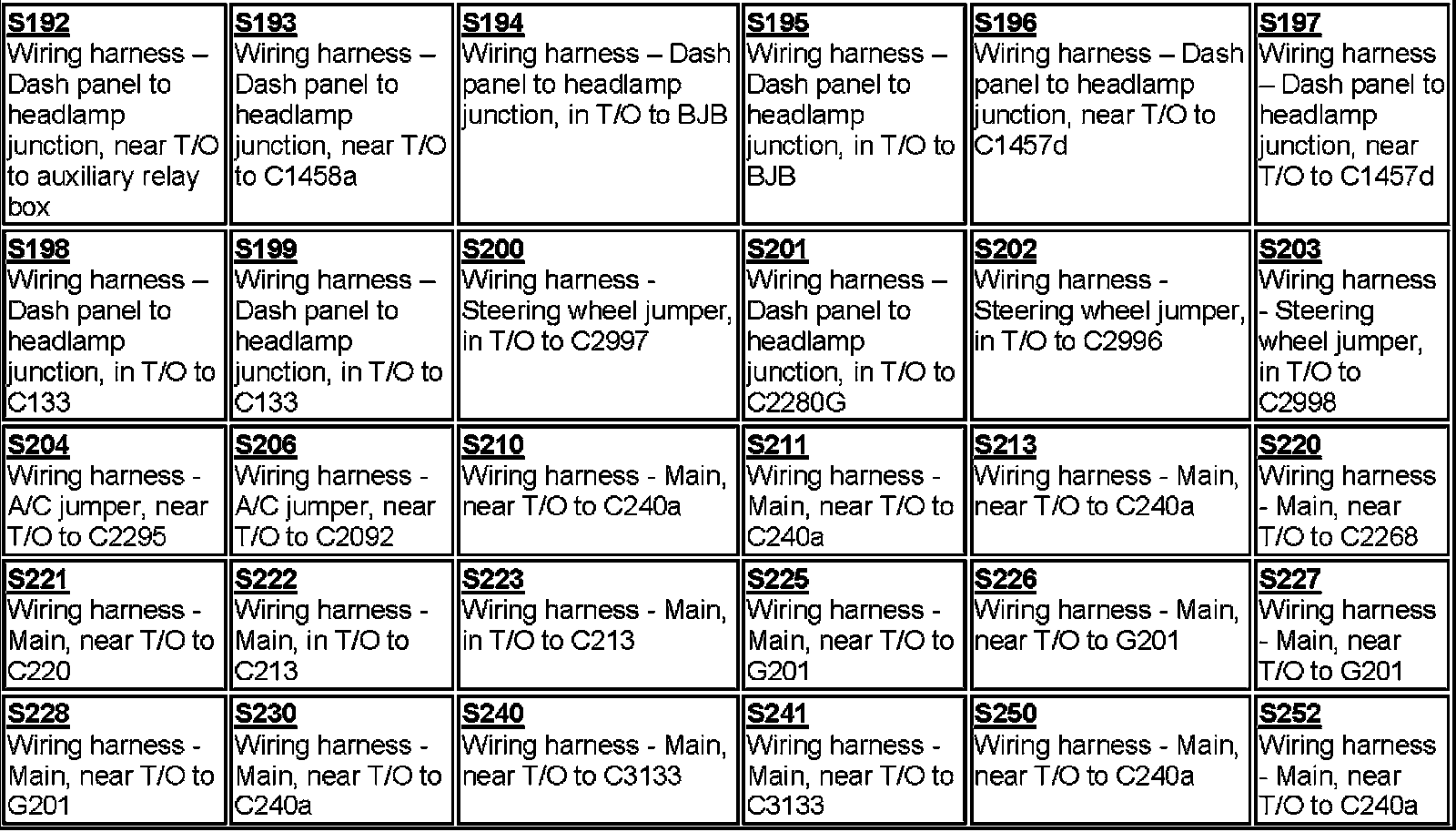

S192-S252:

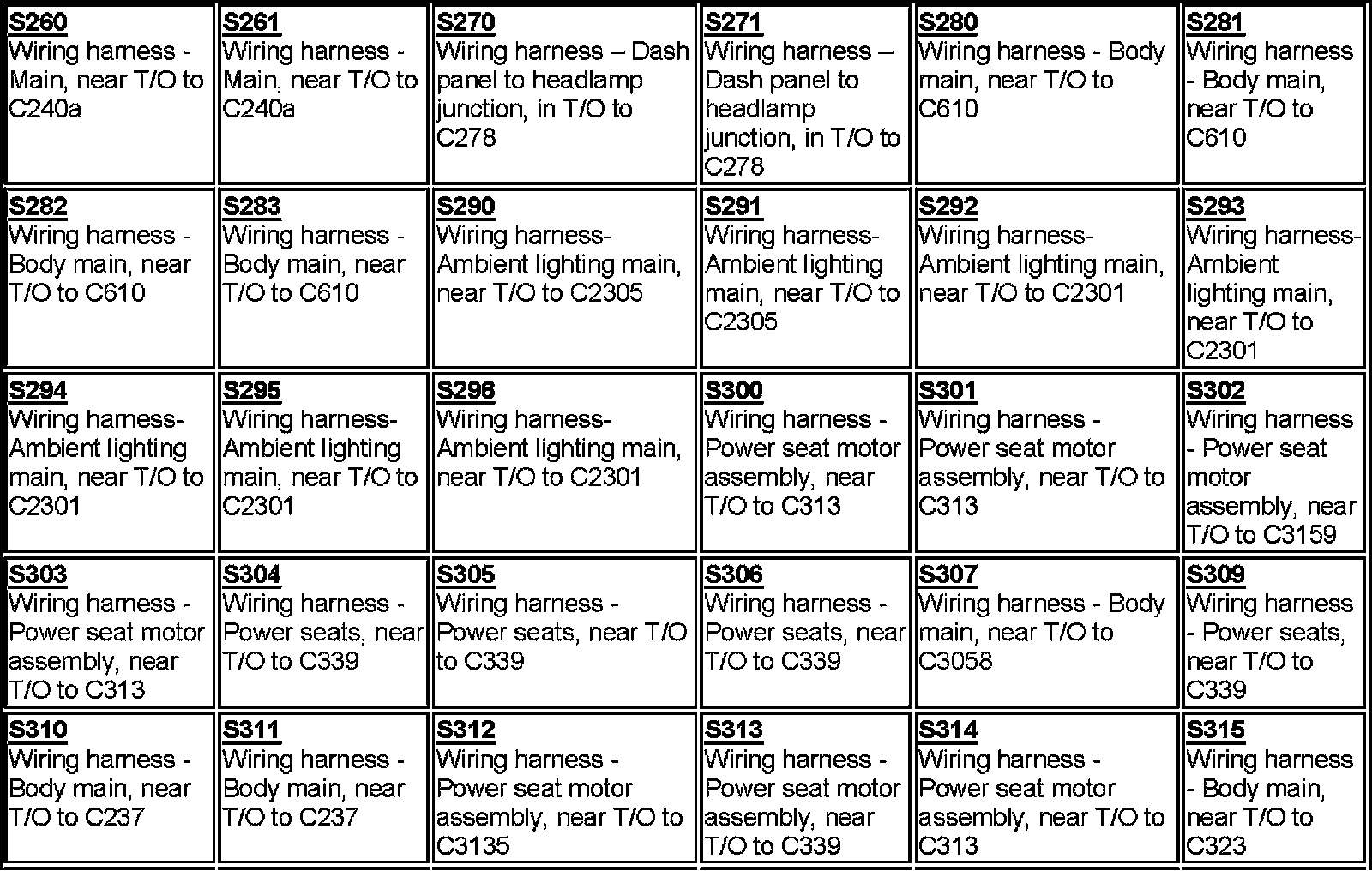

S260-S315:

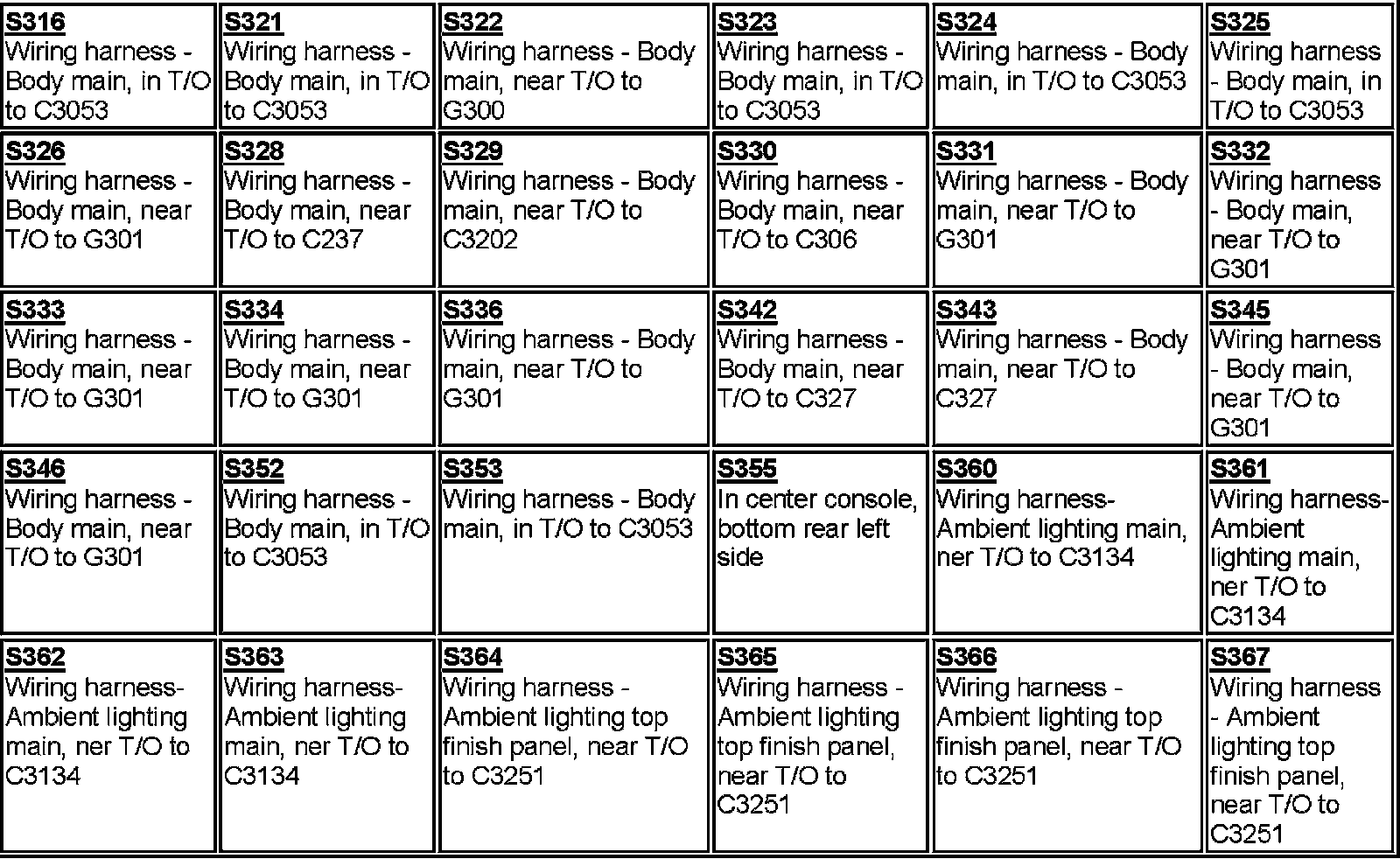

S316-S367:

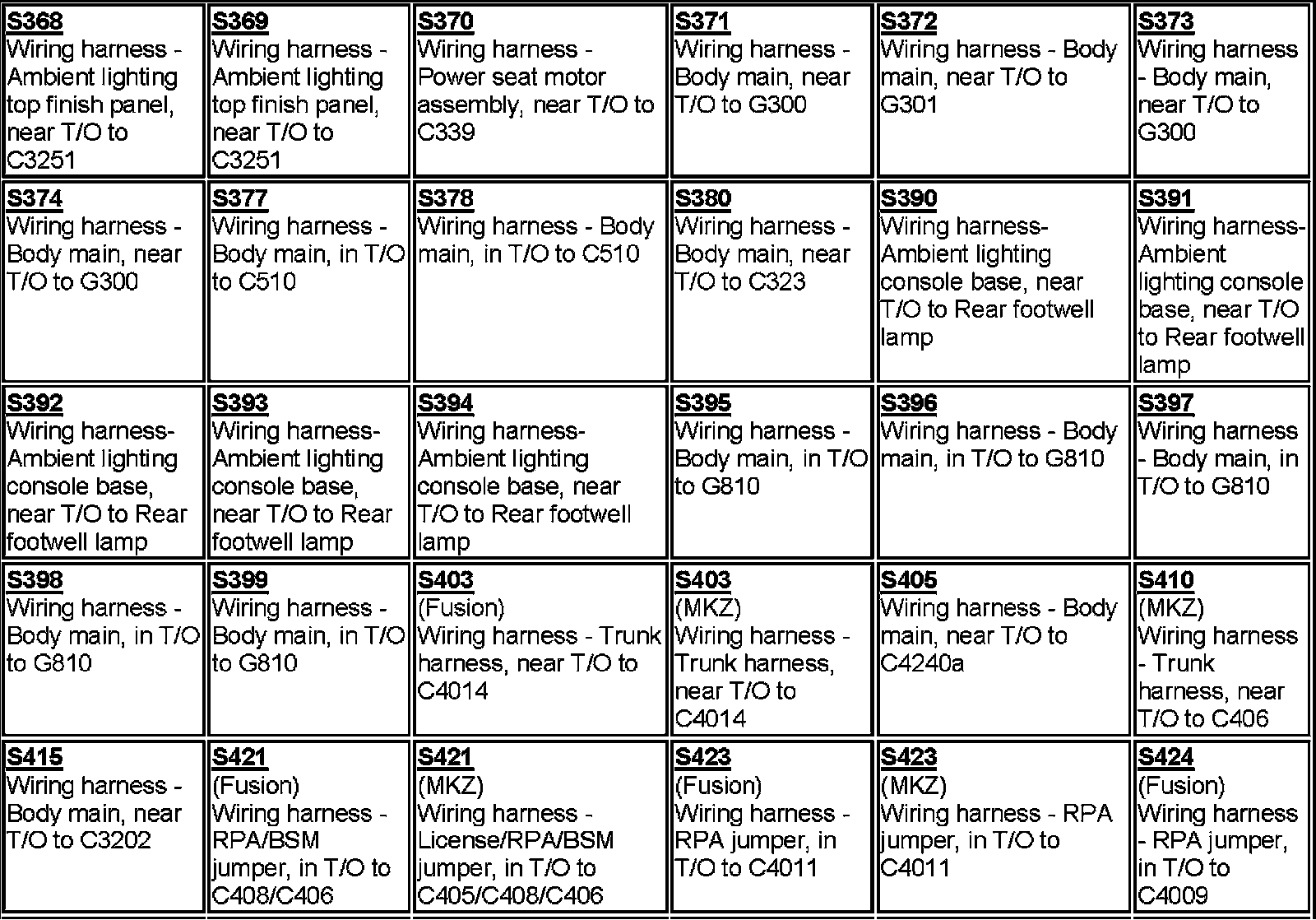

S368-S424:

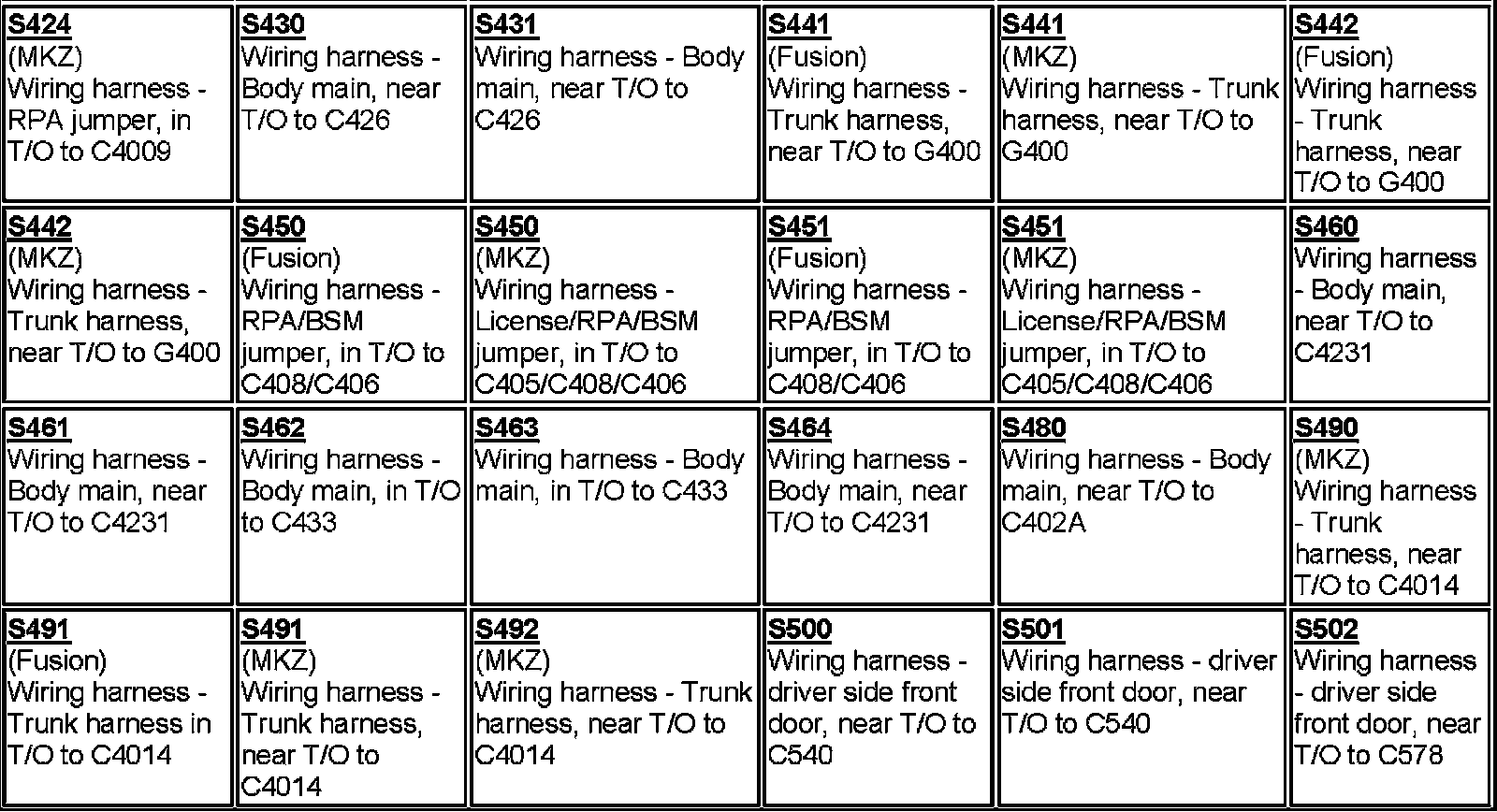

S424-S502:

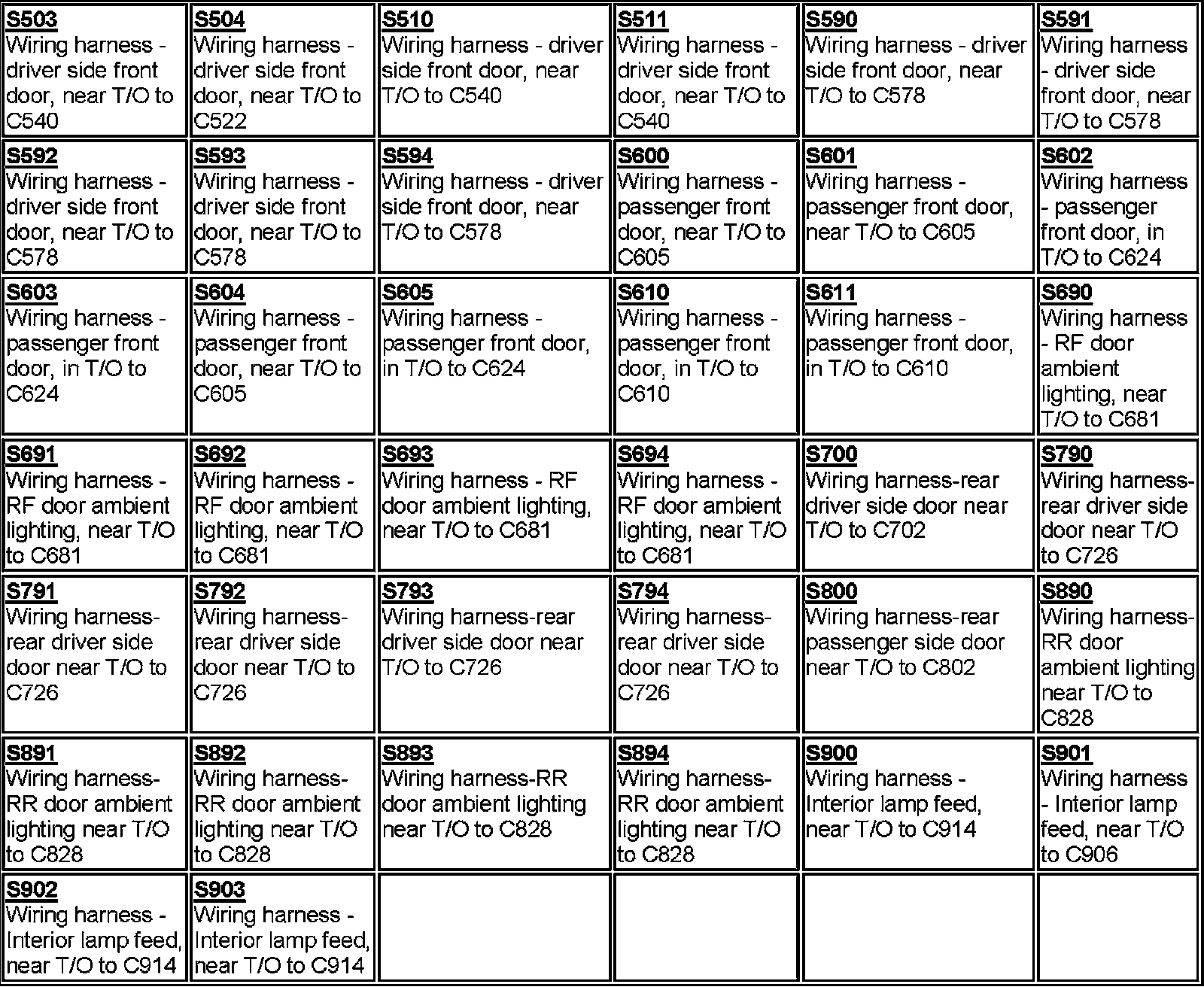

S503-S903:
