LEMON Manuals
: Even more car manuals for everyone
Home
>>
Ford
>>
2012
>>
Fusion FWD L4-2.5L Hybrid
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Compressor HVAC
>>

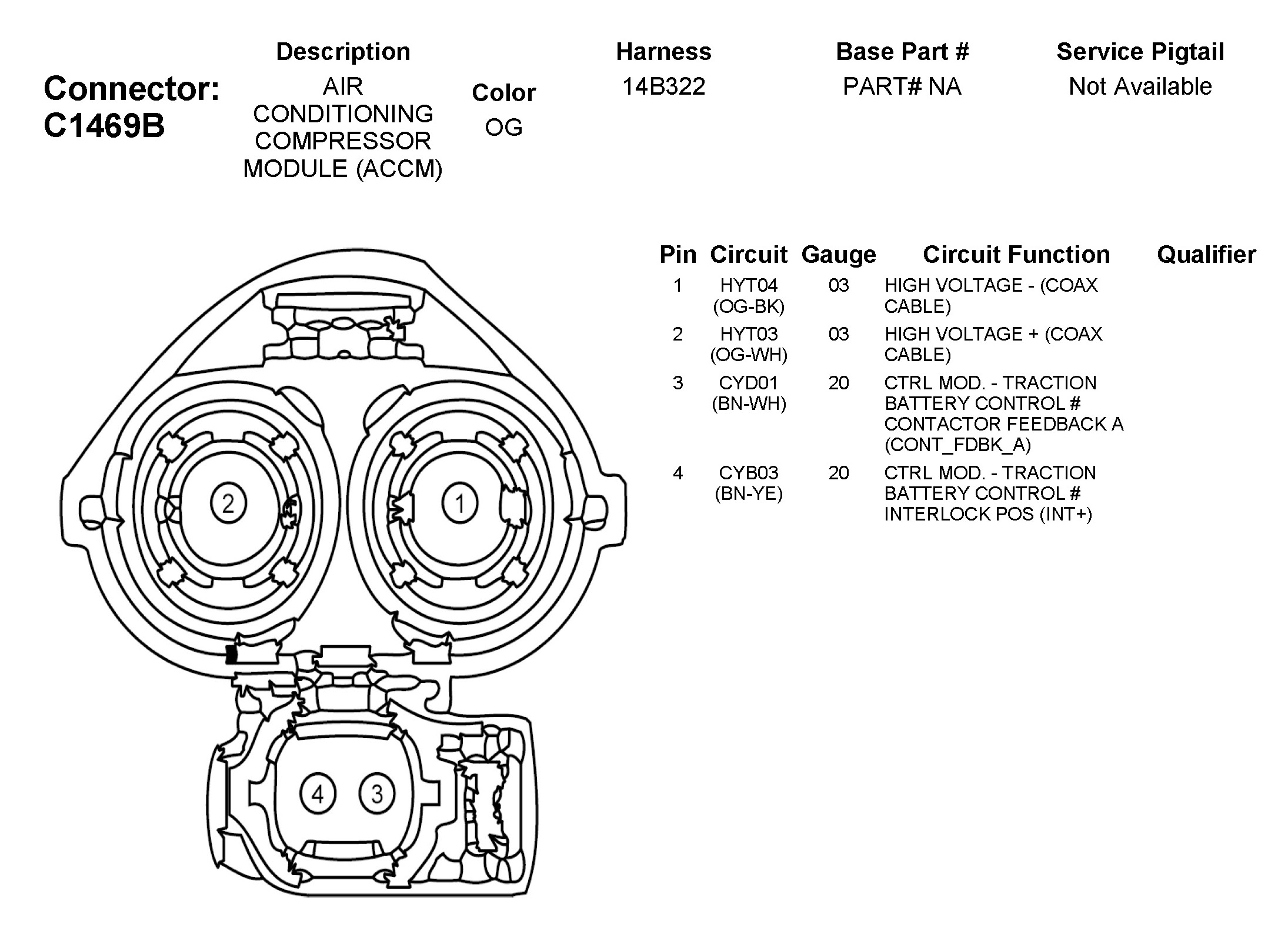

C1469B Air Conditioning Compressor Module (ACCM)
C1469B Air Conditioning Compressor Module (ACCM)
