Home >> Ford >> 2012 >> Focus L4-2.0L >> Repair and Diagnosis >> Lighting and Horns >> Horn >> Service and Repair

Horn: Service and Repair




Horn

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

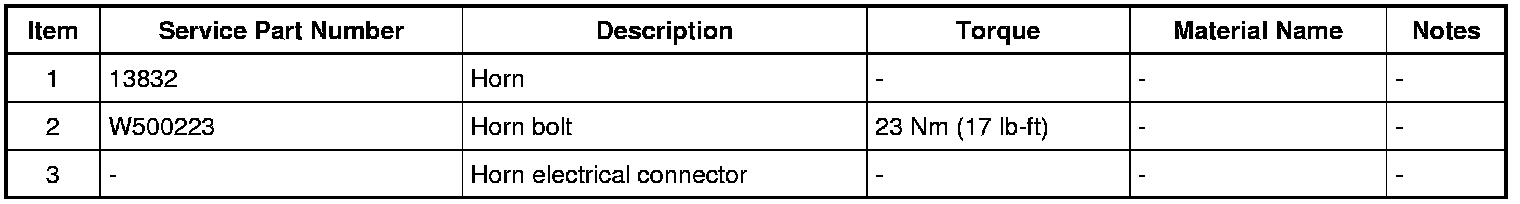

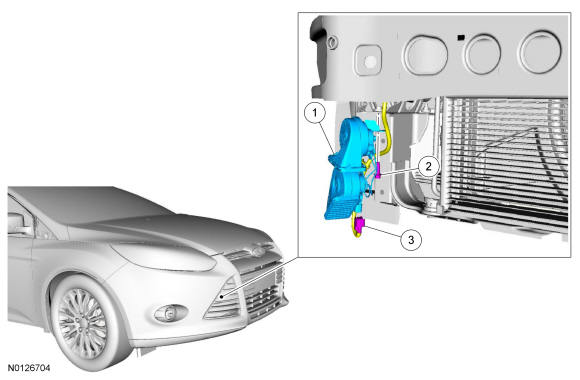

Exploded View
