Dome Lamp: Service and Repair

Interior Lamp

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

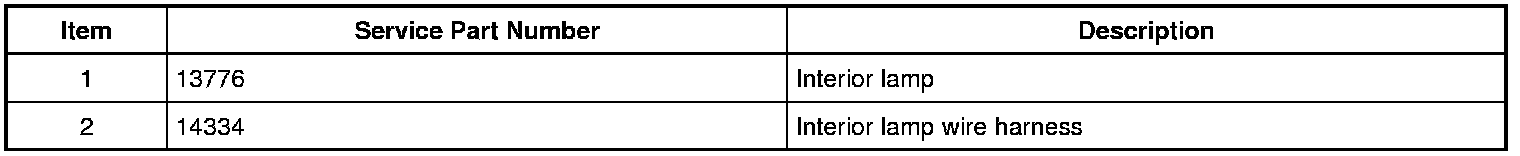

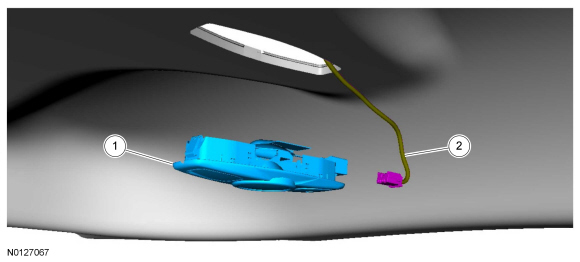

Exploded View

NOTE: Center roof interior lamp is shown, all other interior lamps are similar.
