Ambient Light Sensor: Service and Repair

Light Sensor

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

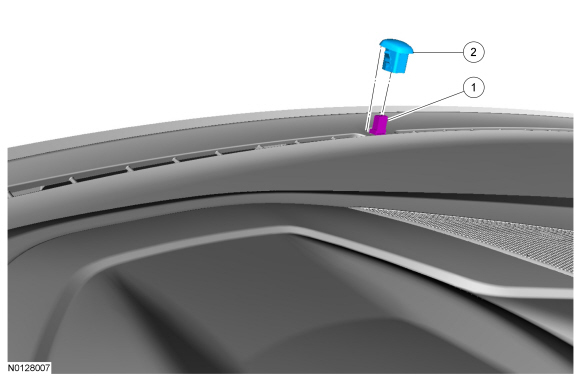

Exploded View










Removal

1. Using a suitable tool, remove the light sensor from the defroster grille.

2. Disconnect the light sensor electrical connector.

Installation

1. Connect the electrical connector.

2. Install the light sensor into the upper portion or the instrument panel.
