Climate Control - EMTC
>>

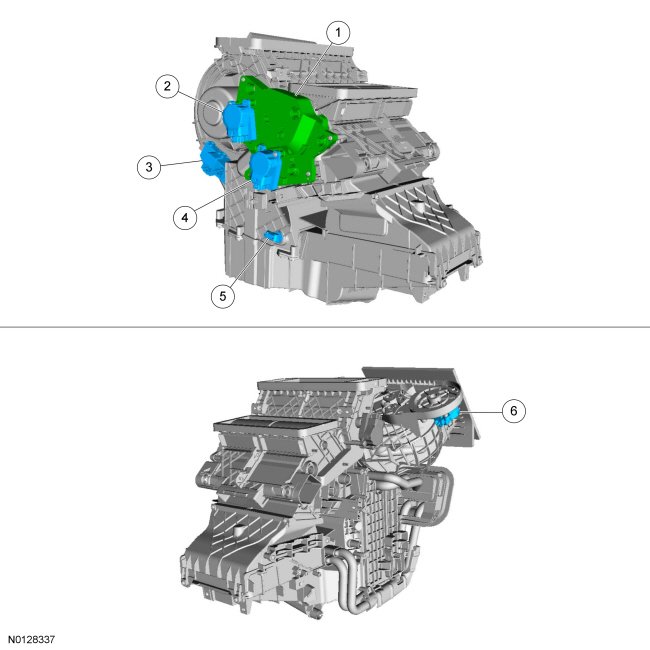

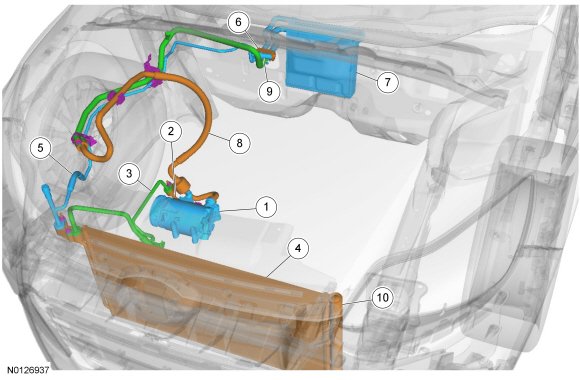

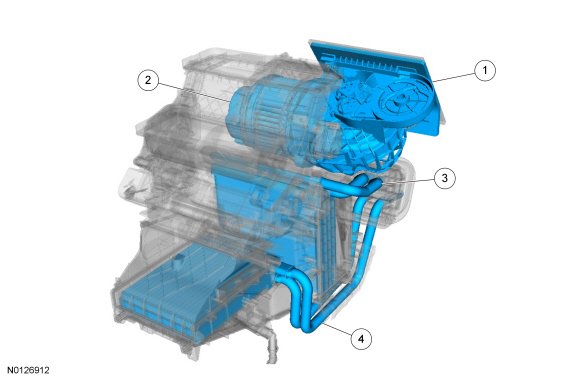

Component Location
Component Location
Climate Control - EMTC
Component Location
