Home >> Ford >> 2012 >> Focus L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Courtesy Lamp >> System Diagram >> C931 Interior/Map Lamps Assembly, Front

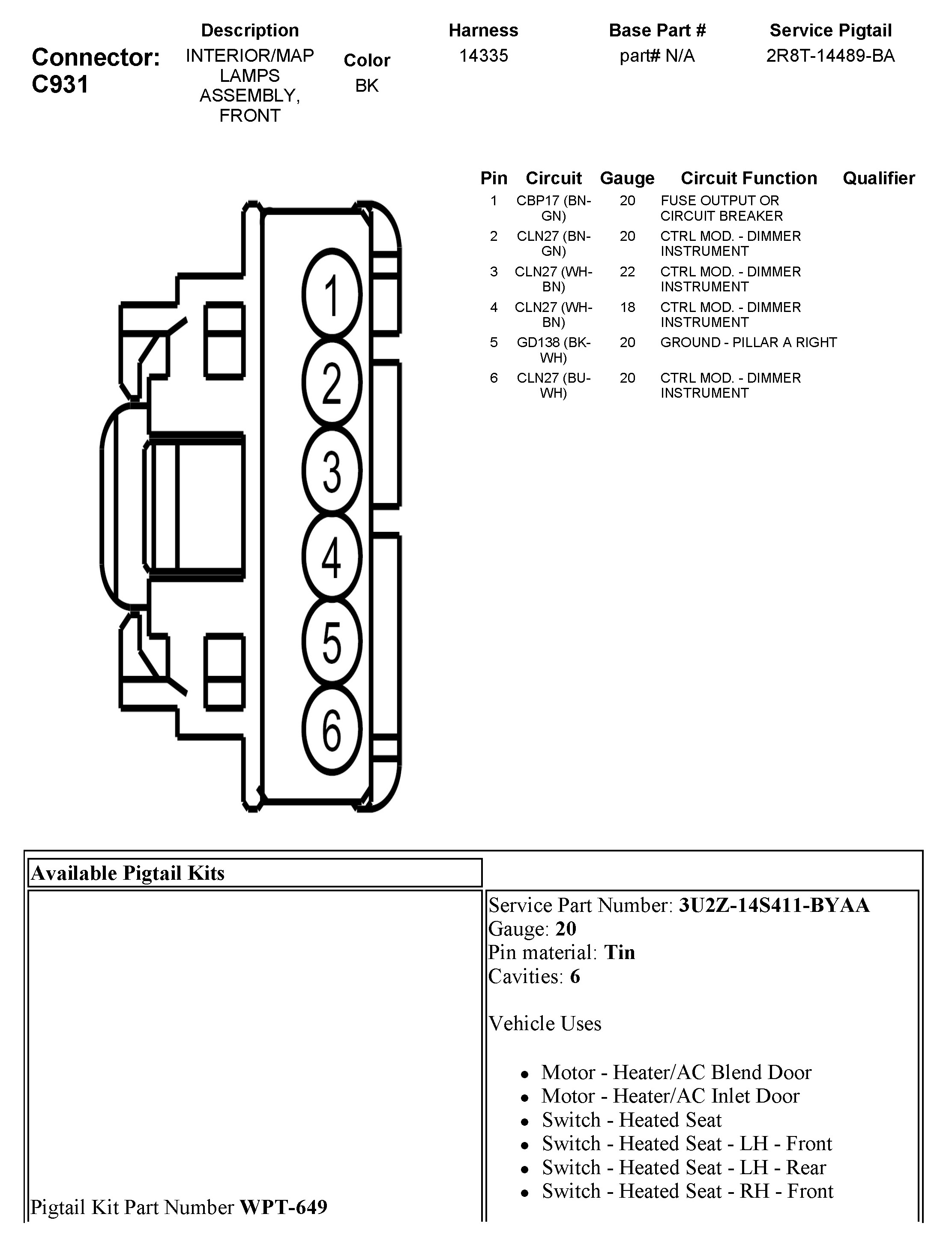

C931 Interior/Map Lamps Assembly, Front
