Cabin Temperature Sensor / Switch
>>

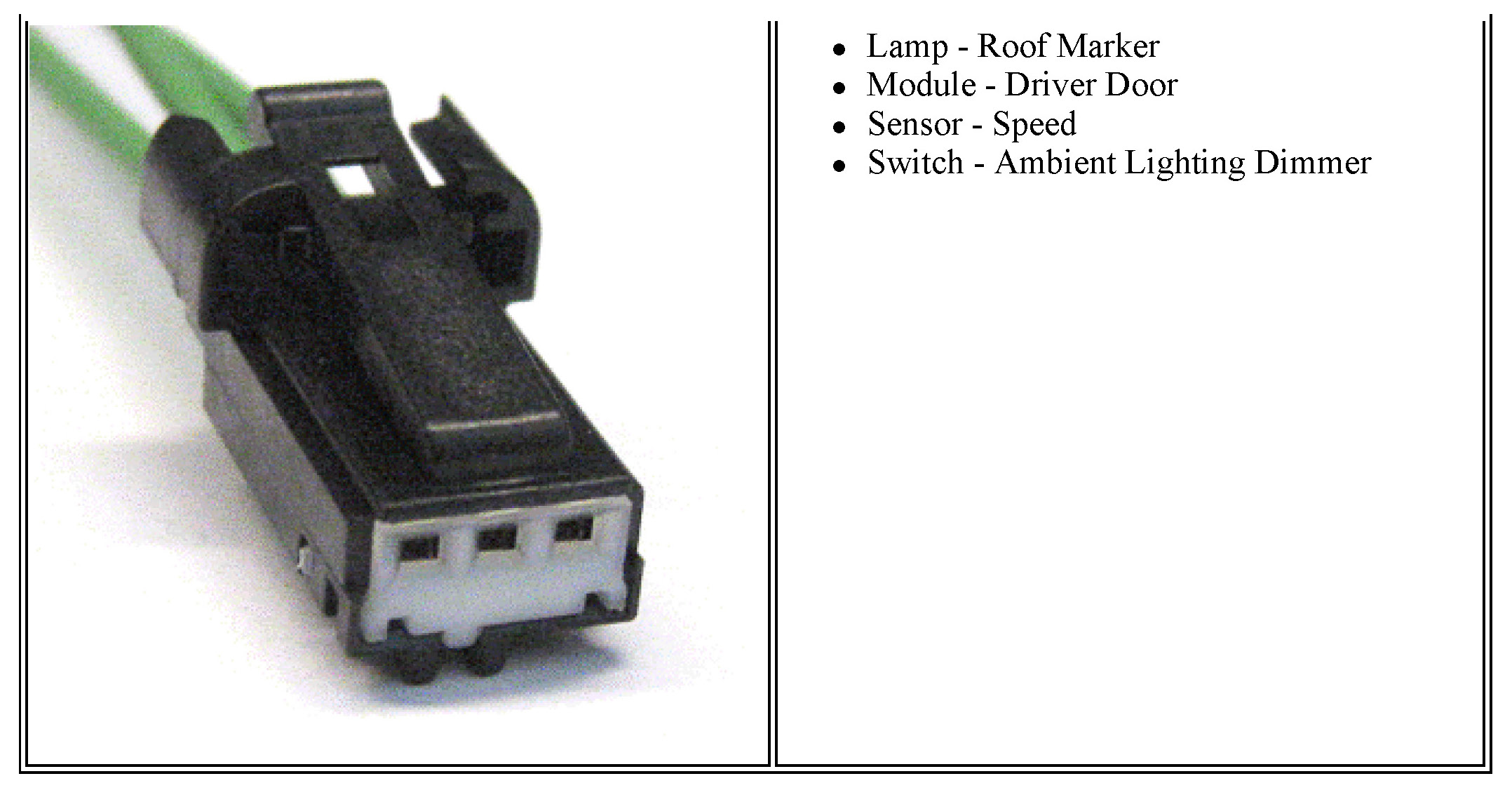

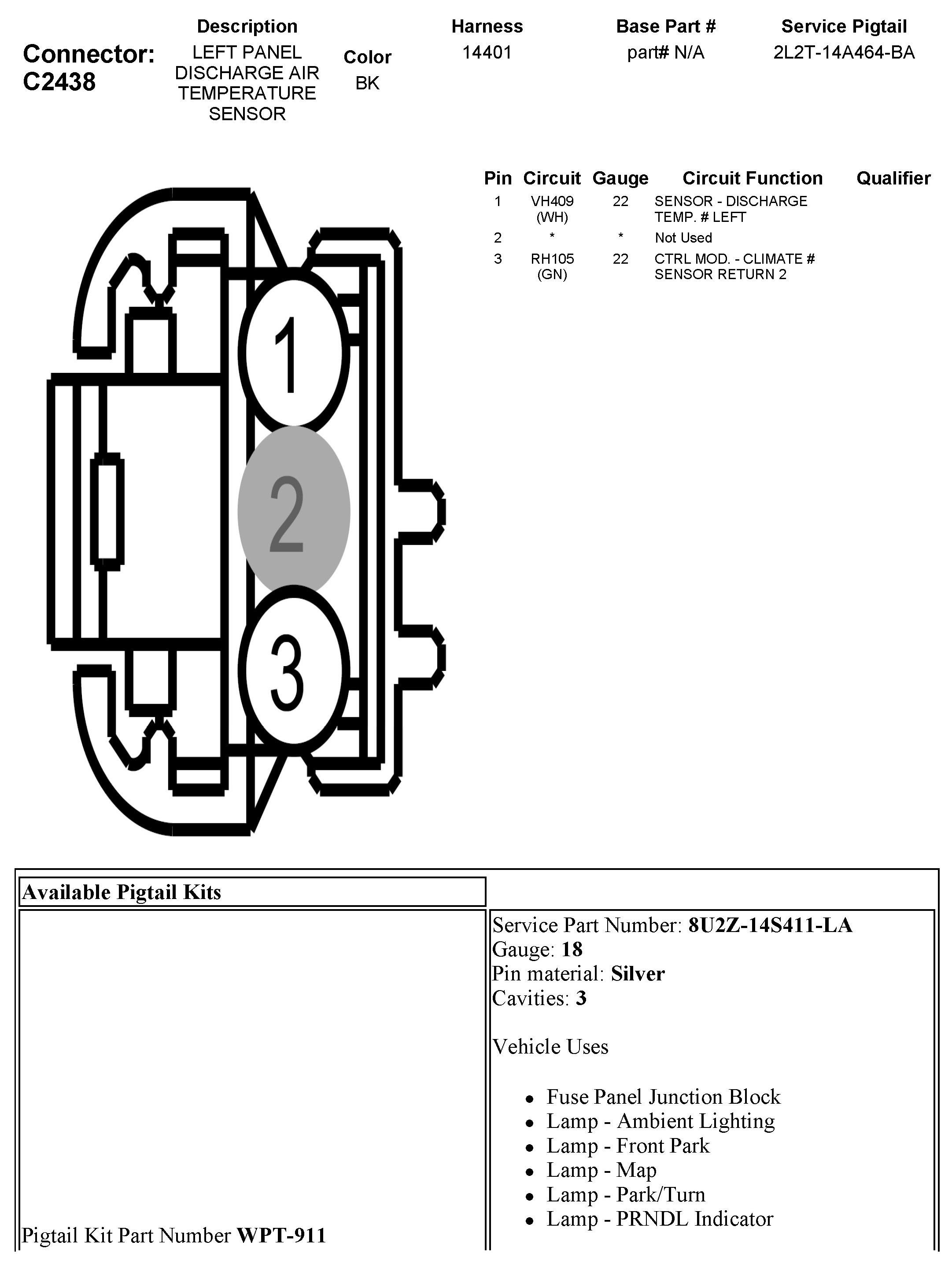

C2438 Left Panel Discharge Air Temperature Sensor
C2438 Left Panel Discharge Air Temperature Sensor
