Connector Views
>>
Blower Motor
>>

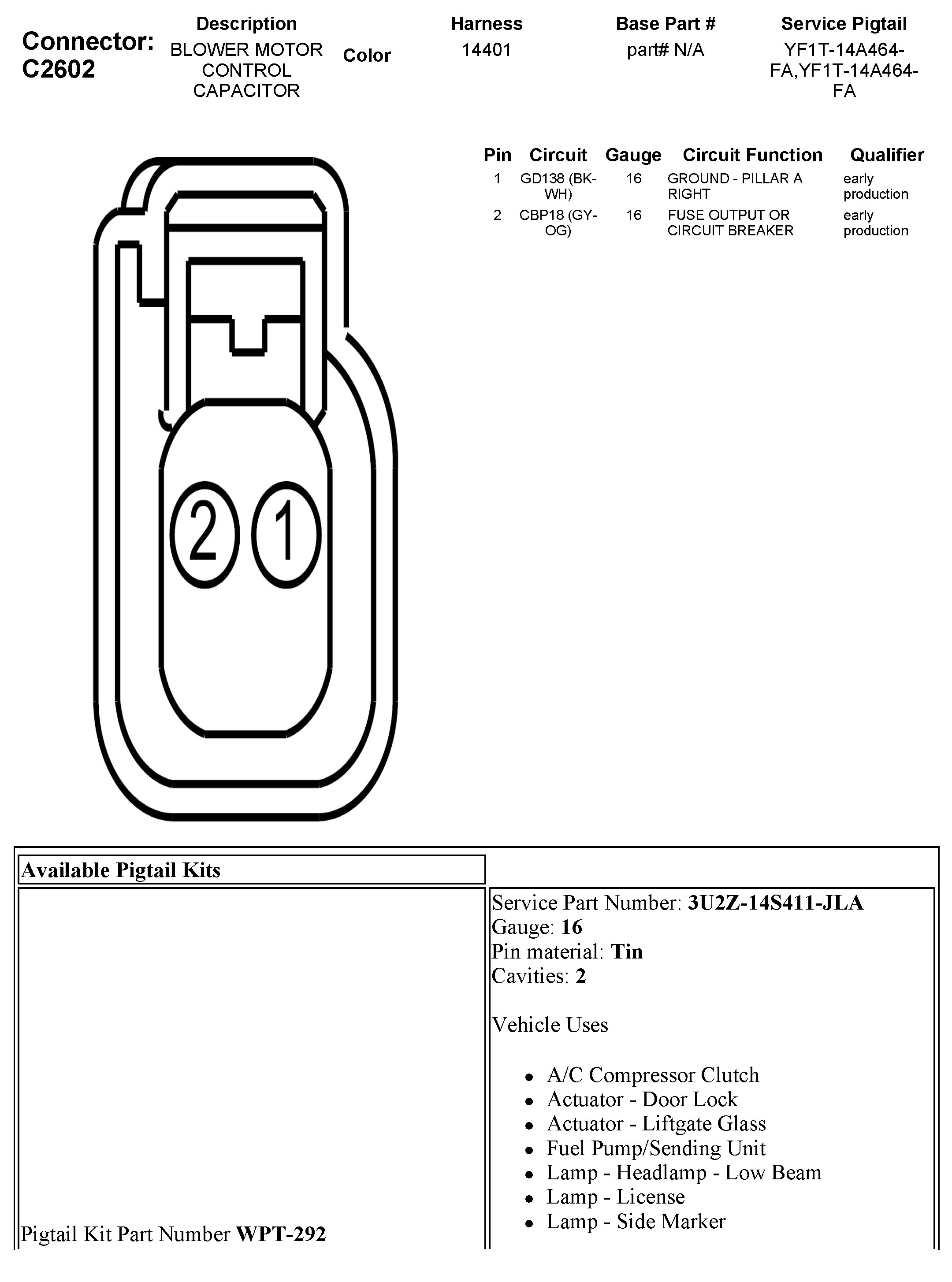

C2602 Blower Motor Control Capacitor
C2602 Blower Motor Control Capacitor
