Front Fender Liner: Service and Repair

Fender Splash Shield

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

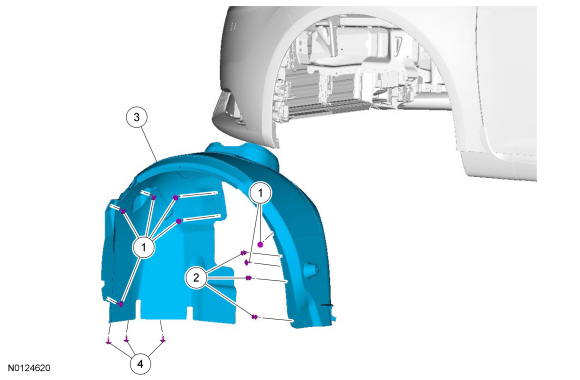

Exploded View

NOTE: LH (Left Hand) shown, RH (Right Hand) similar.










Removal

NOTE: The removal steps in this procedure may include installation details.

1. Remove the tire and wheel. REFER to Wheel and Tire .

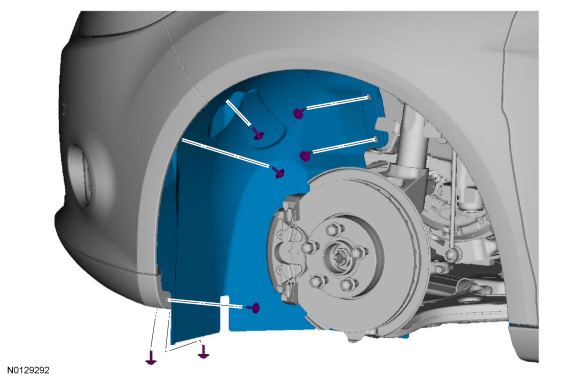

2.
- 2 Nm (18 lb-in)

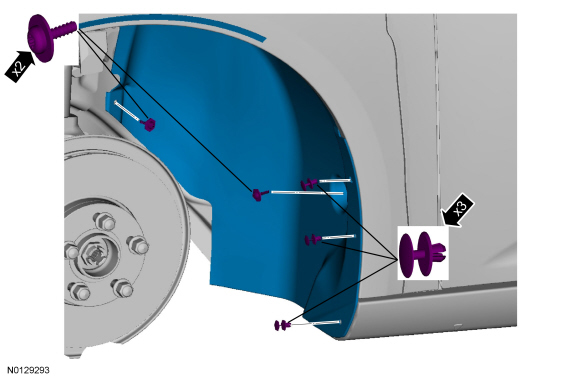

3.
- 2 Nm (18 lb-in)





Installation

1. To install, reverse the removal procedure.
