Home >> Ford >> 2012 >> Focus L4-2.0L >> Repair and Diagnosis >> Accessories and Optional Equipment >> Navigation System >> Diagrams >> Connector Views >> C2402 Front Controls Interface Module (FCIM)

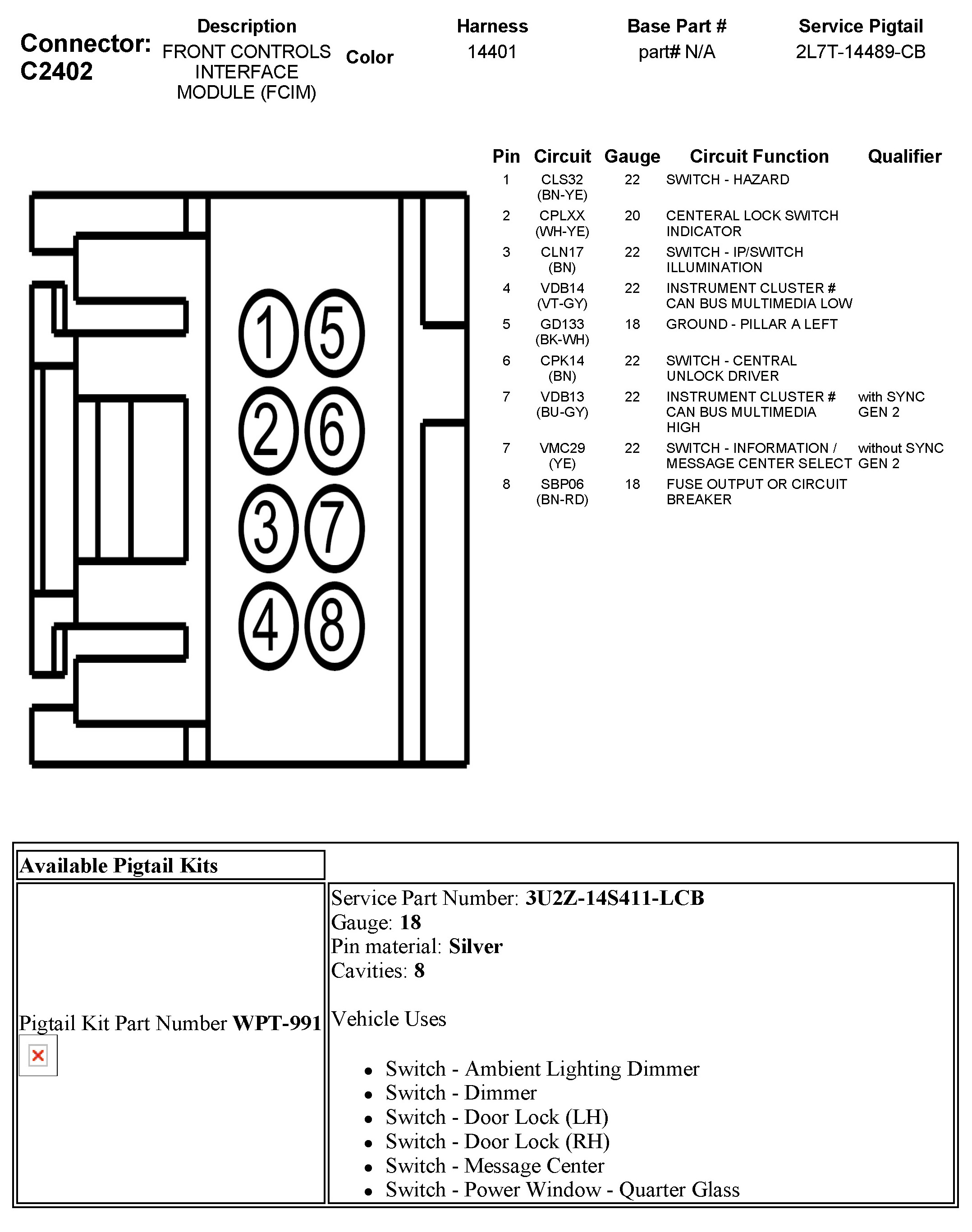

C2402 Front Controls Interface Module (FCIM)
