Home >> Ford >> 2012 >> Focus ELE-Electric Engine >> Repair and Diagnosis >> Diagrams >> Connector Views >> Wheel Speed Sensor >> C426 Wheel Speed Sensor, Right Rear

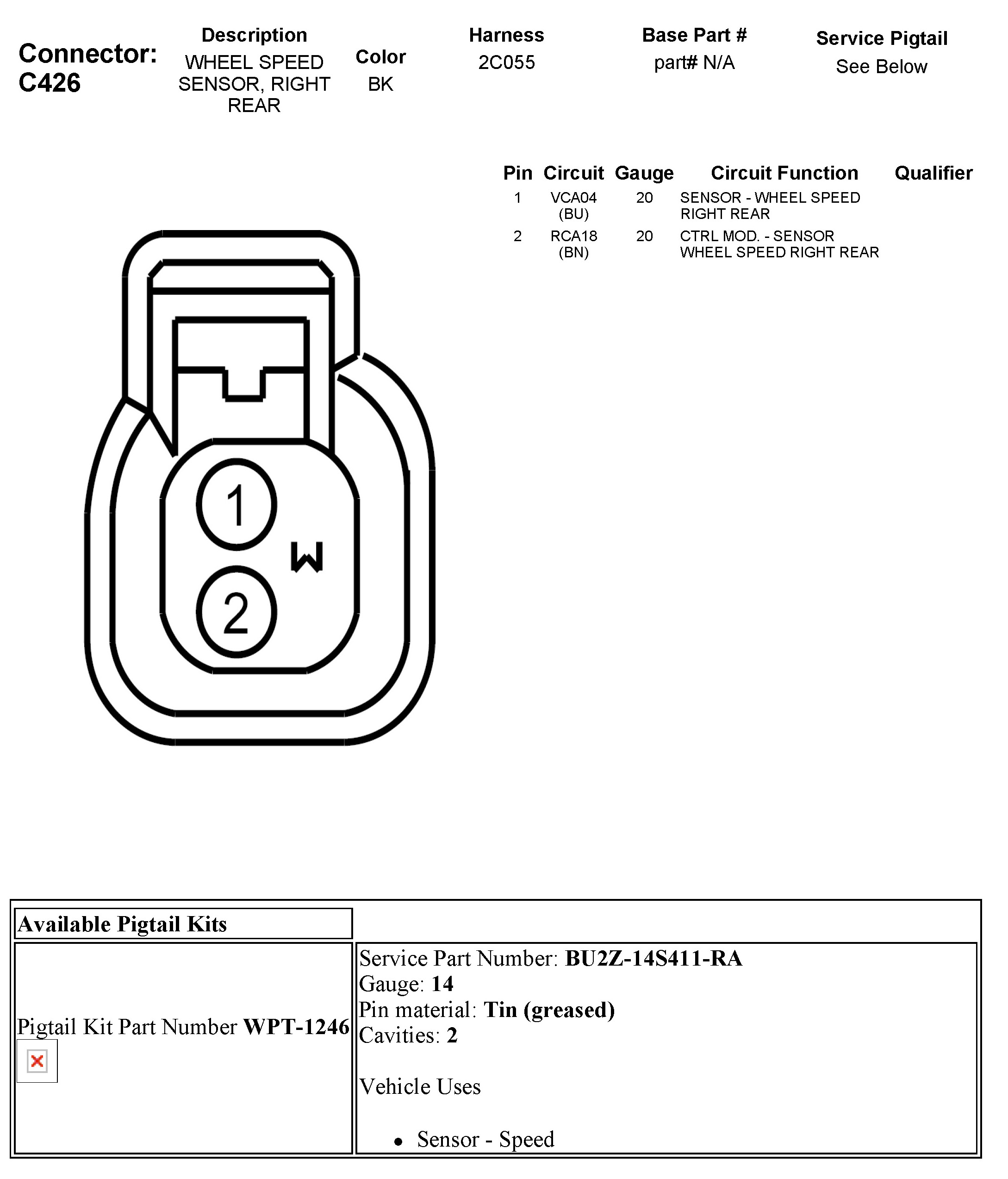

C426 Wheel Speed Sensor, Right Rear
