Home >> Ford >> 2012 >> Focus ELE-Electric Engine >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seat Sensor/Switch >> C3288 Seat Track Position Sensor, Right Front

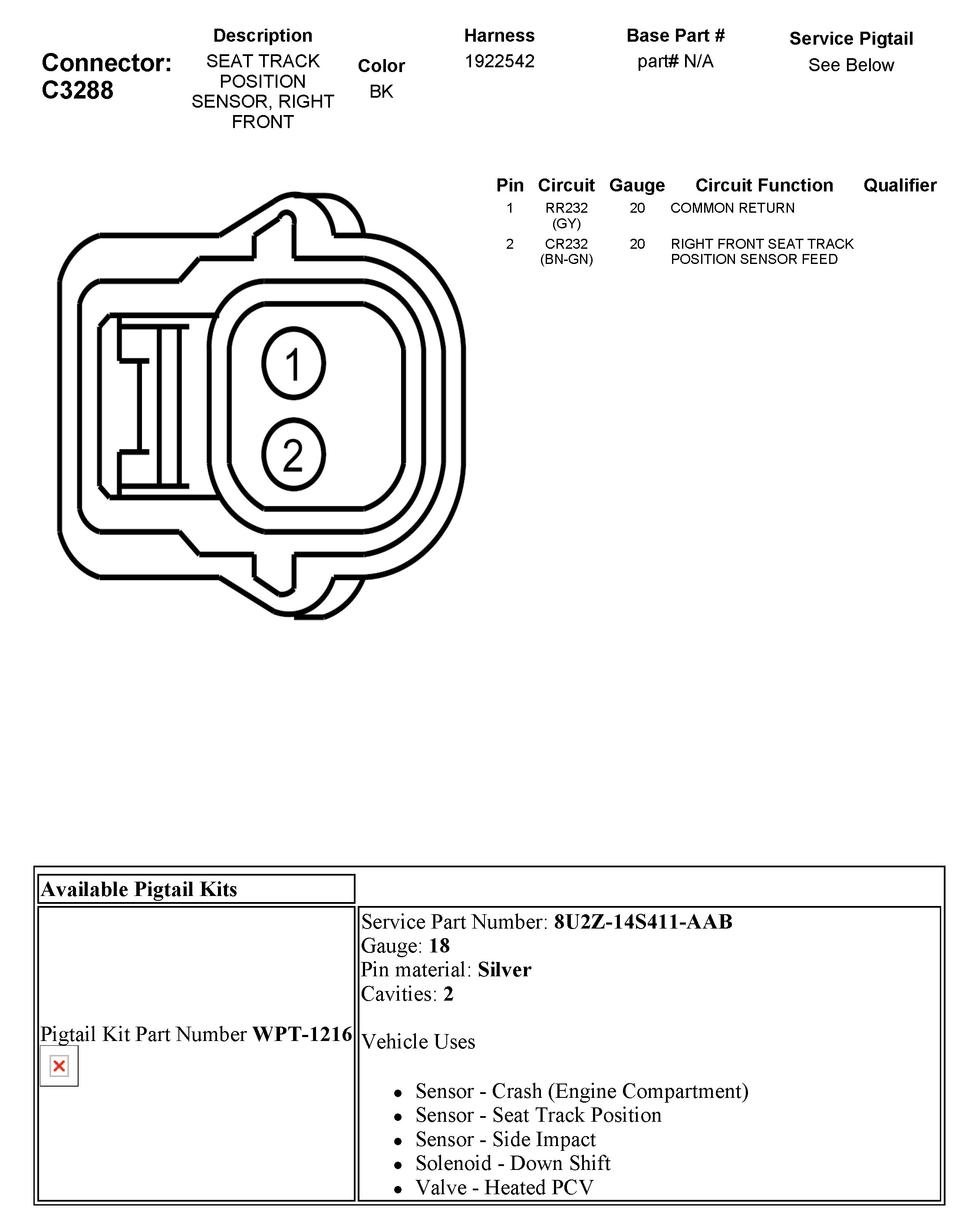

C3288 Seat Track Position Sensor, Right Front
