Home >> Ford >> 2012 >> Focus ELE-Electric Engine >> Repair and Diagnosis >> Diagrams >> Connector Views >> Refrigerant Pressure Sensor / Switch, HVAC >> C1801 A/C Low Pressure Sensor

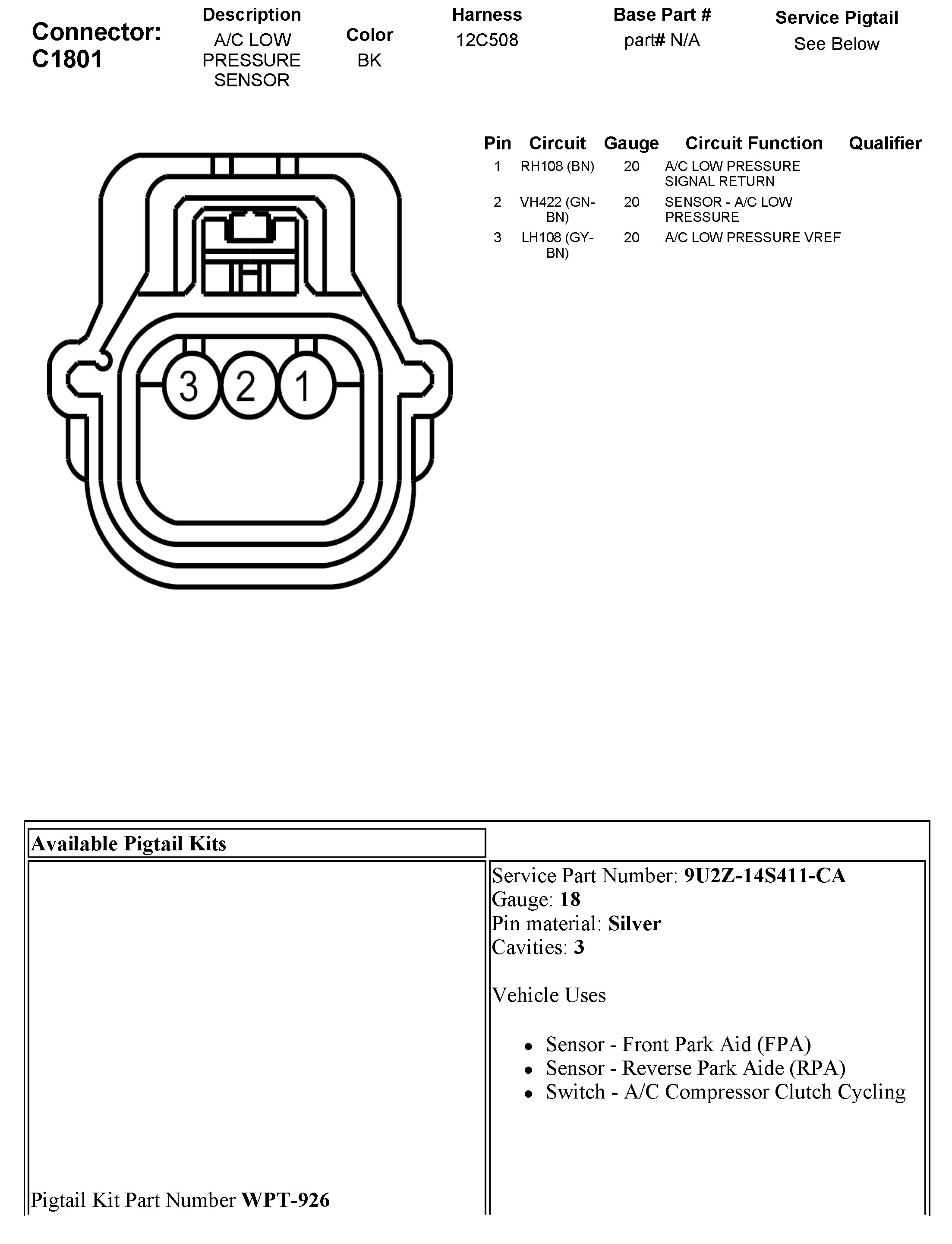

C1801 A/C Low Pressure Sensor
