Home >> Ford >> 2012 >> Focus ELE-Electric Engine >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Motor >> C524 Power Window Motor, Driver Side Front

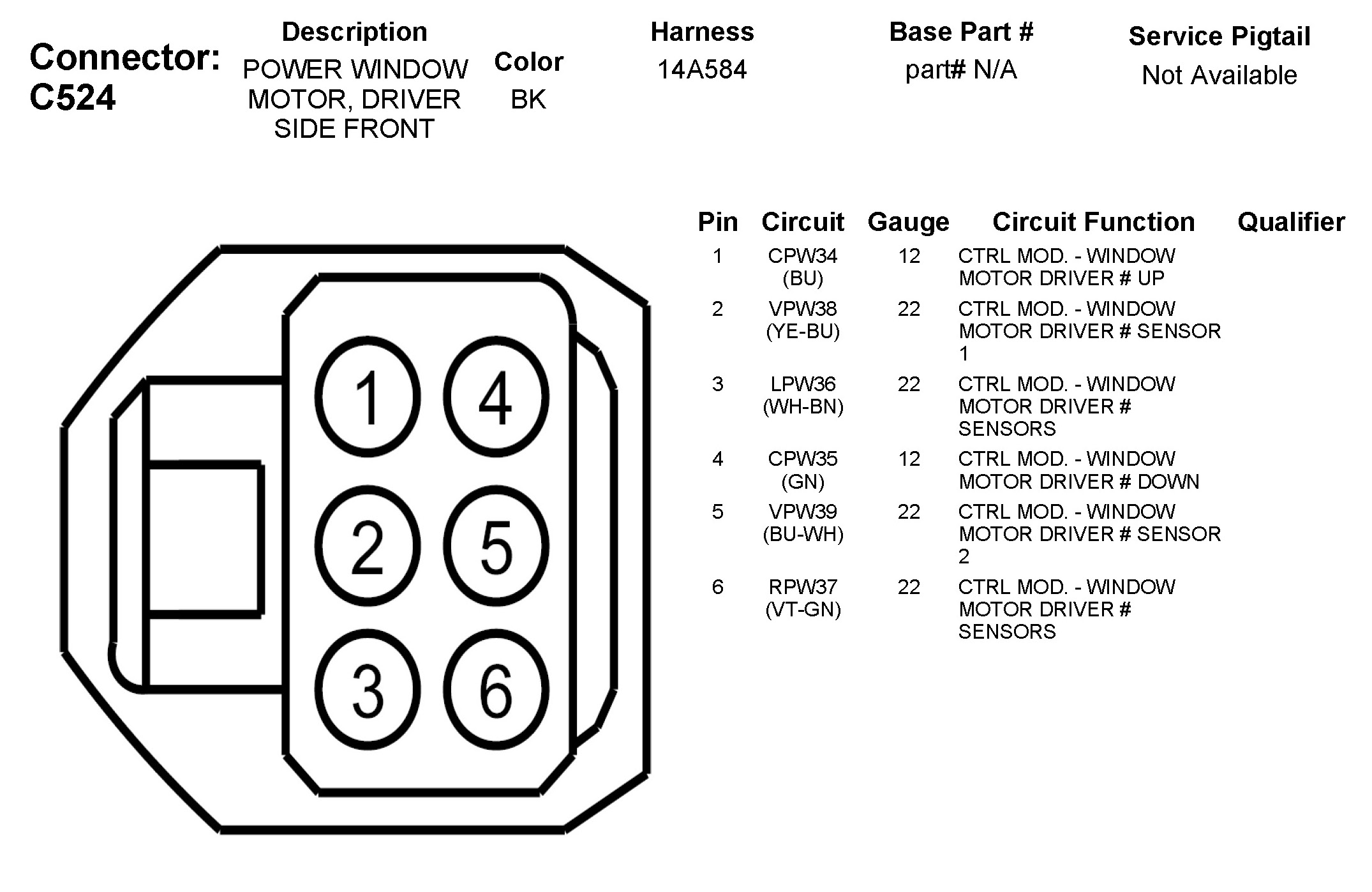

C524 Power Window Motor, Driver Side Front
