Home >> Ford >> 2012 >> Focus ELE-Electric Engine >> Repair and Diagnosis >> Diagrams >> Connector Views >> Impact Sensor >> C567 Side Impact Sensor, Driver Front Door

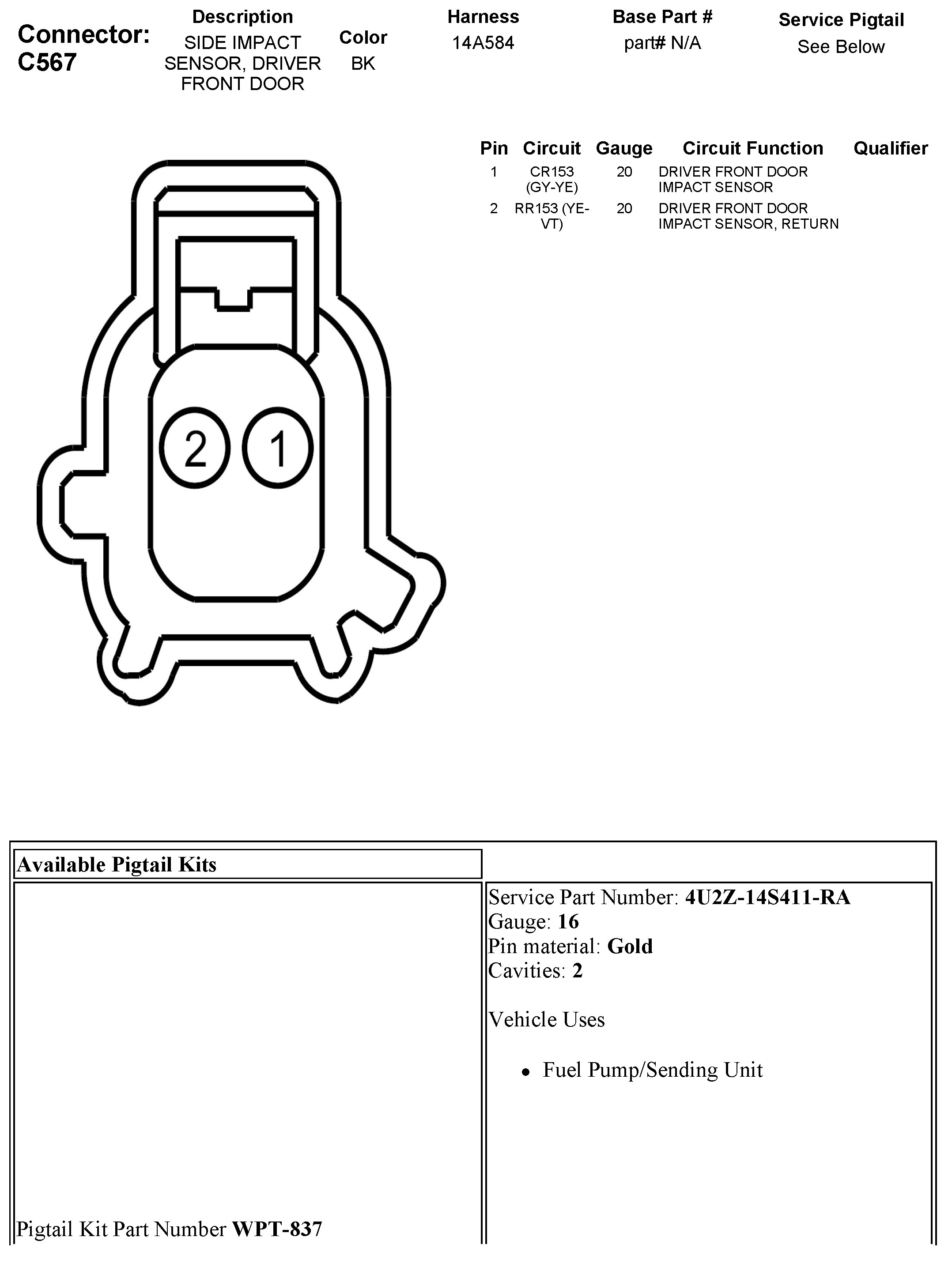

C567 Side Impact Sensor, Driver Front Door
