Home >> Ford >> 2012 >> Focus ELE-Electric Engine >> Repair and Diagnosis >> Diagrams >> Connector Views >> Impact Sensor >> C1466 Impact Severity Sensor, RH Front

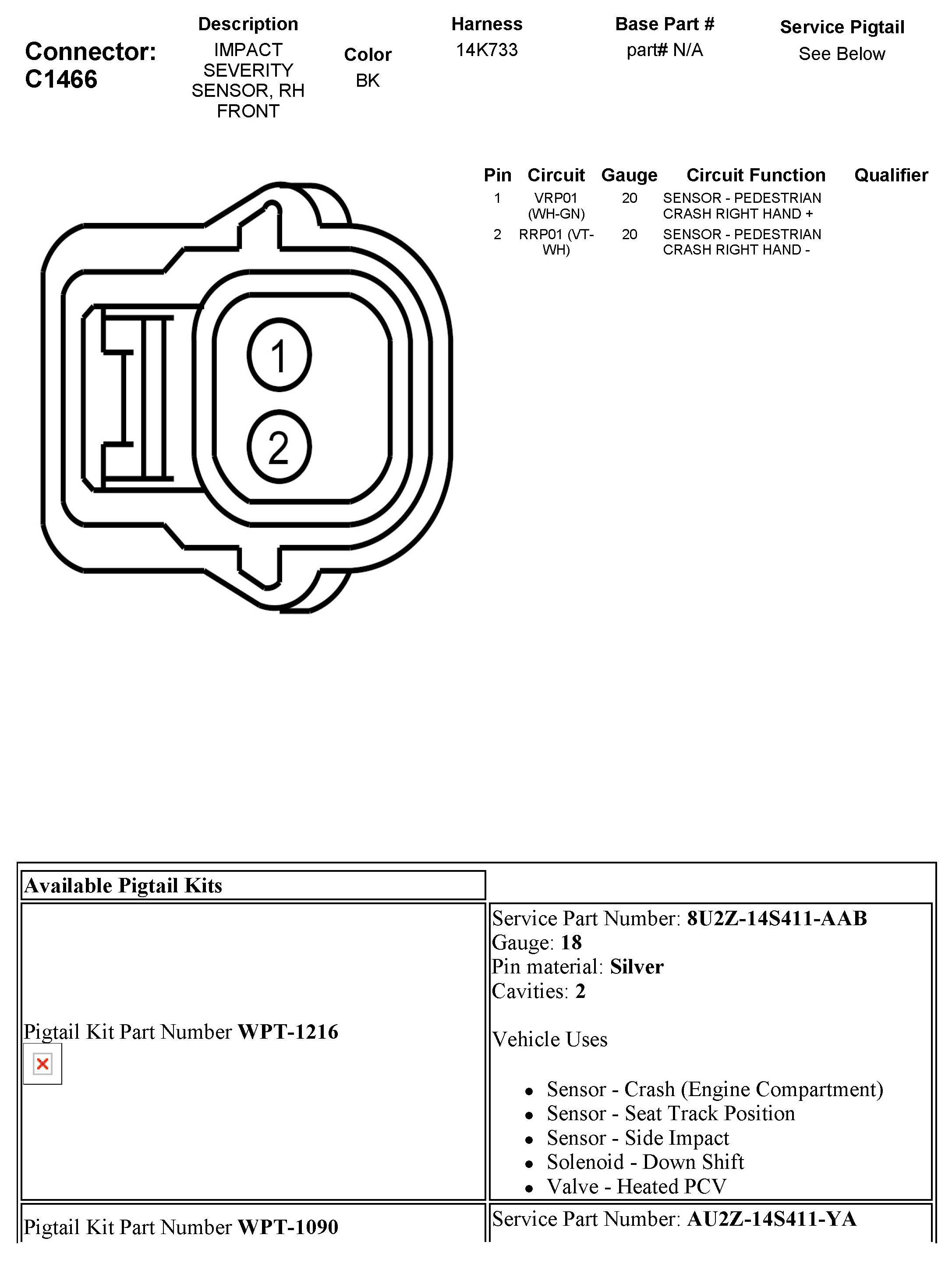

C1466 Impact Severity Sensor, RH Front
