Home >> Ford >> 2012 >> Focus ELE-Electric Engine >> Repair and Diagnosis >> Diagrams >> Connector Views >> Impact Sensor >> C1465 Impact Severity Sensor, LH Front

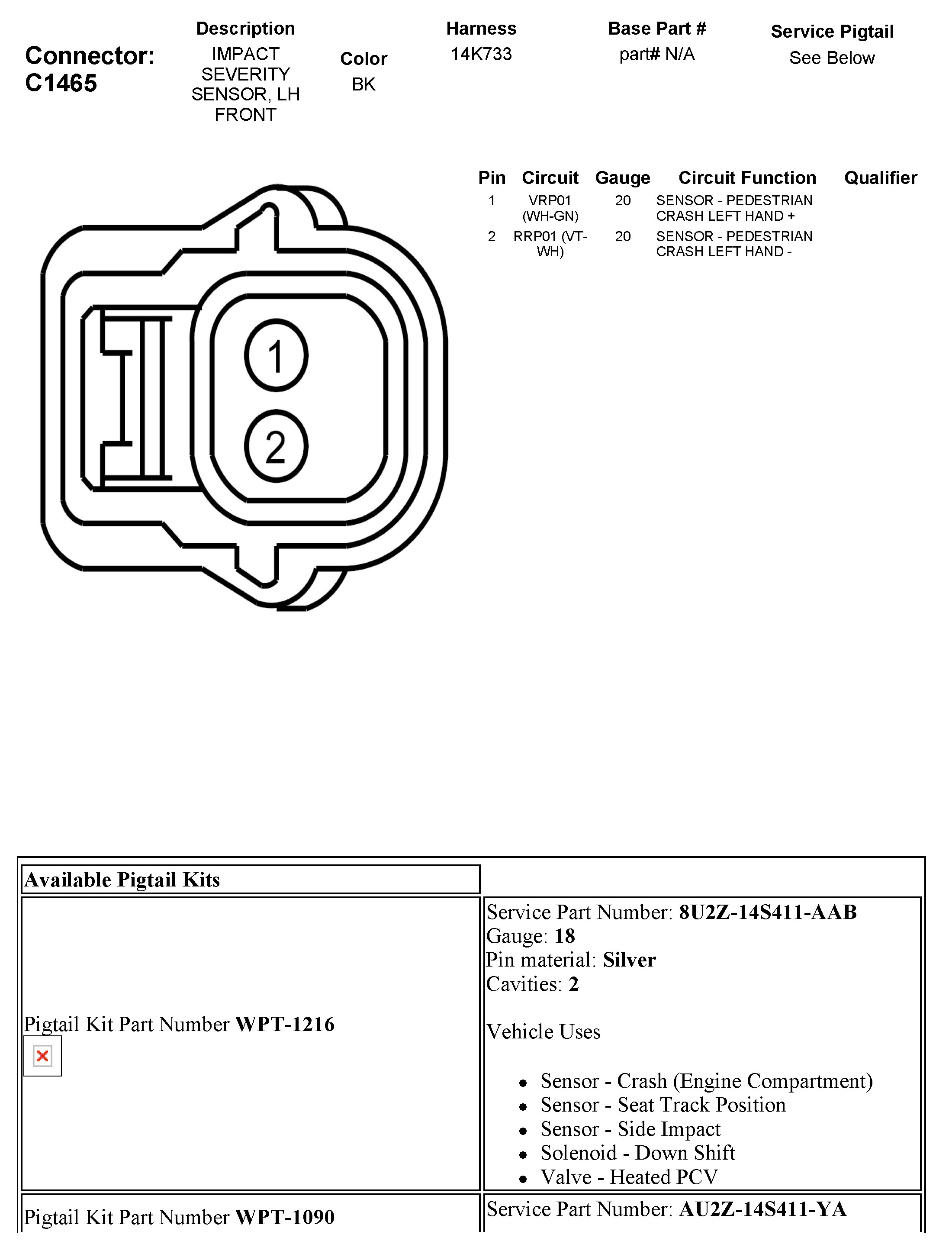

C1465 Impact Severity Sensor, LH Front
