Home >> Ford >> 2012 >> Focus ELE-Electric Engine >> Repair and Diagnosis >> Diagrams >> Connector Views >> Courtesy Lamp >> System Diagram >> C931 Interior/MAP Lamps Assembly, Front

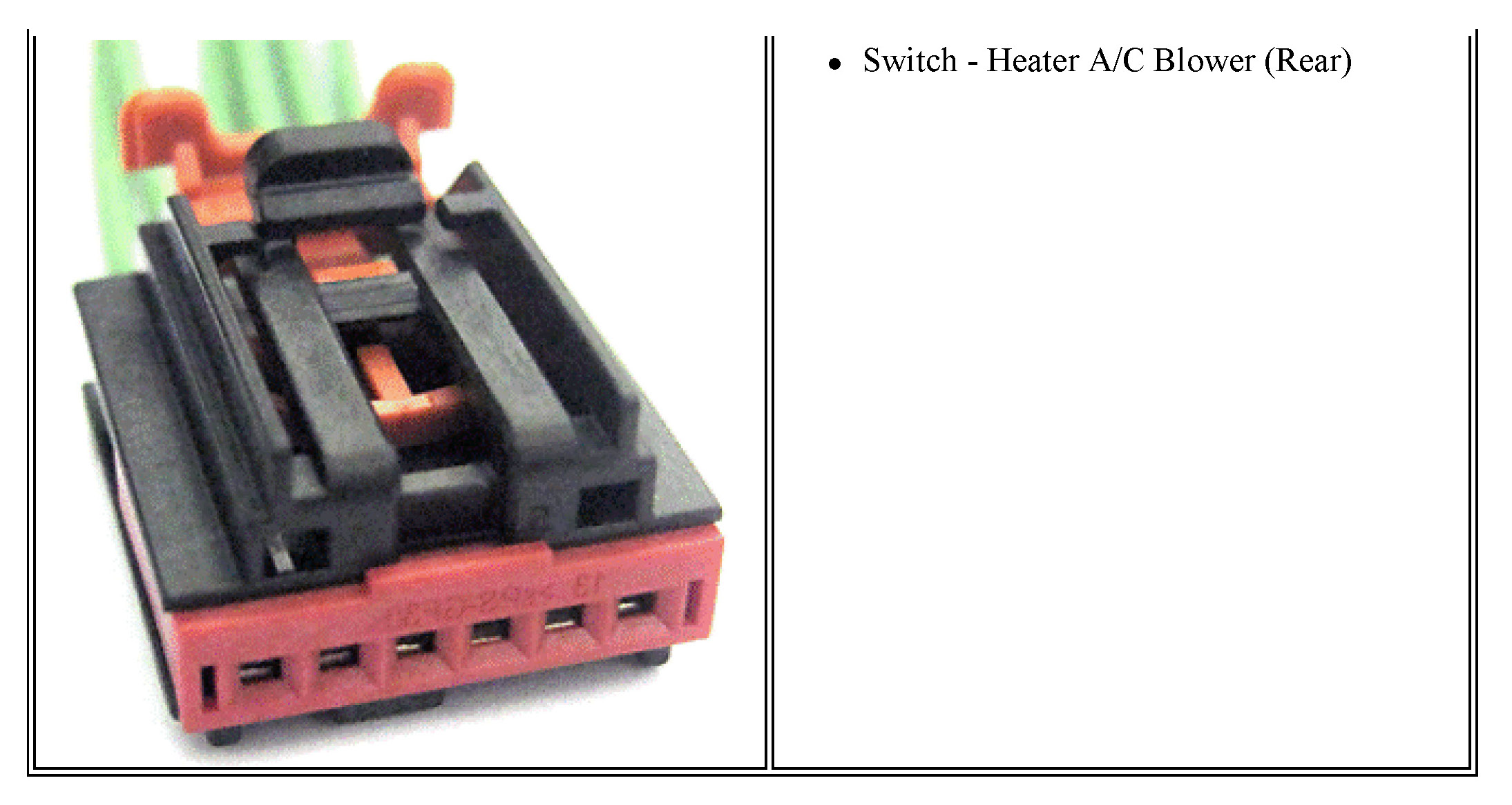

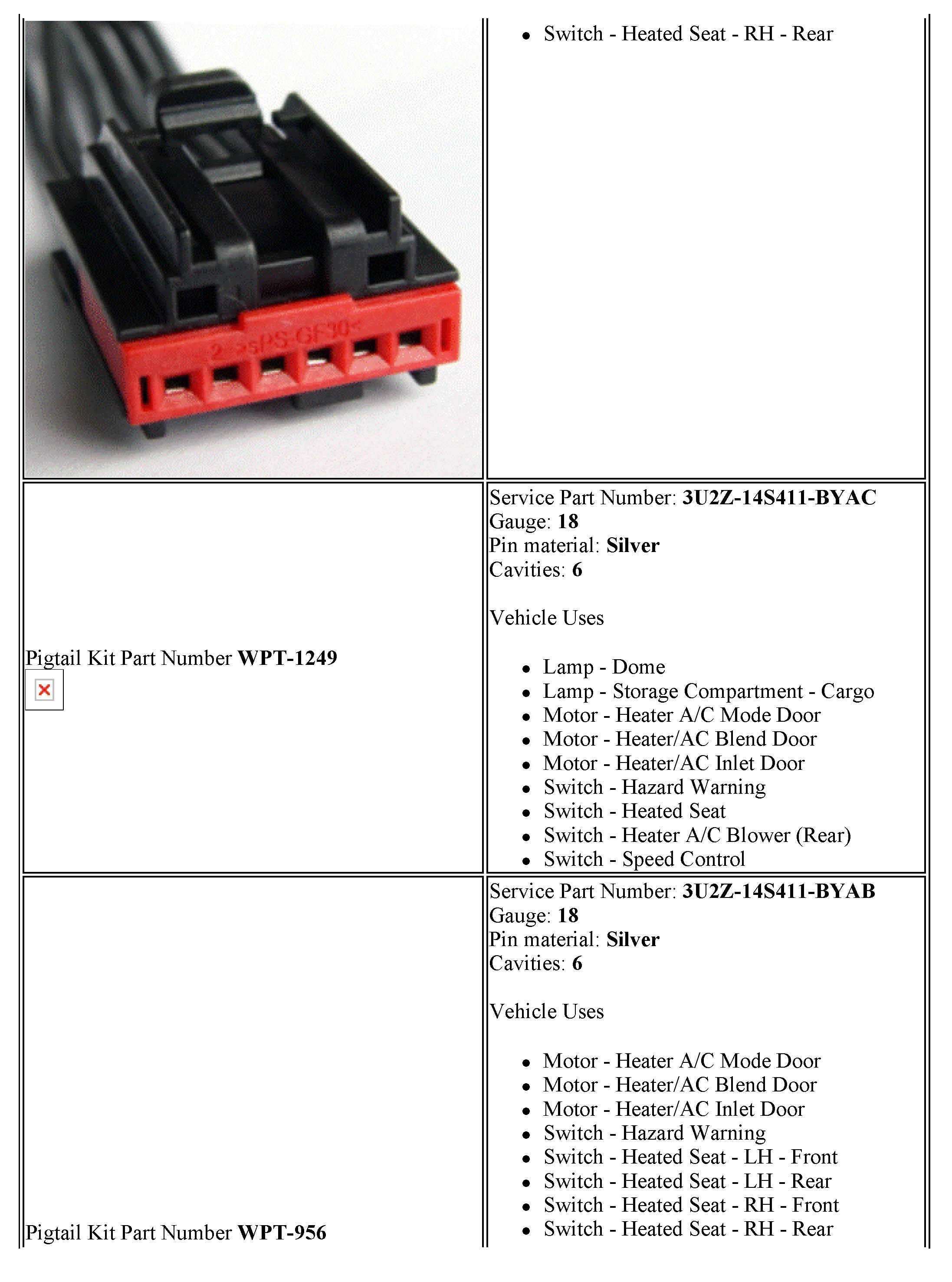

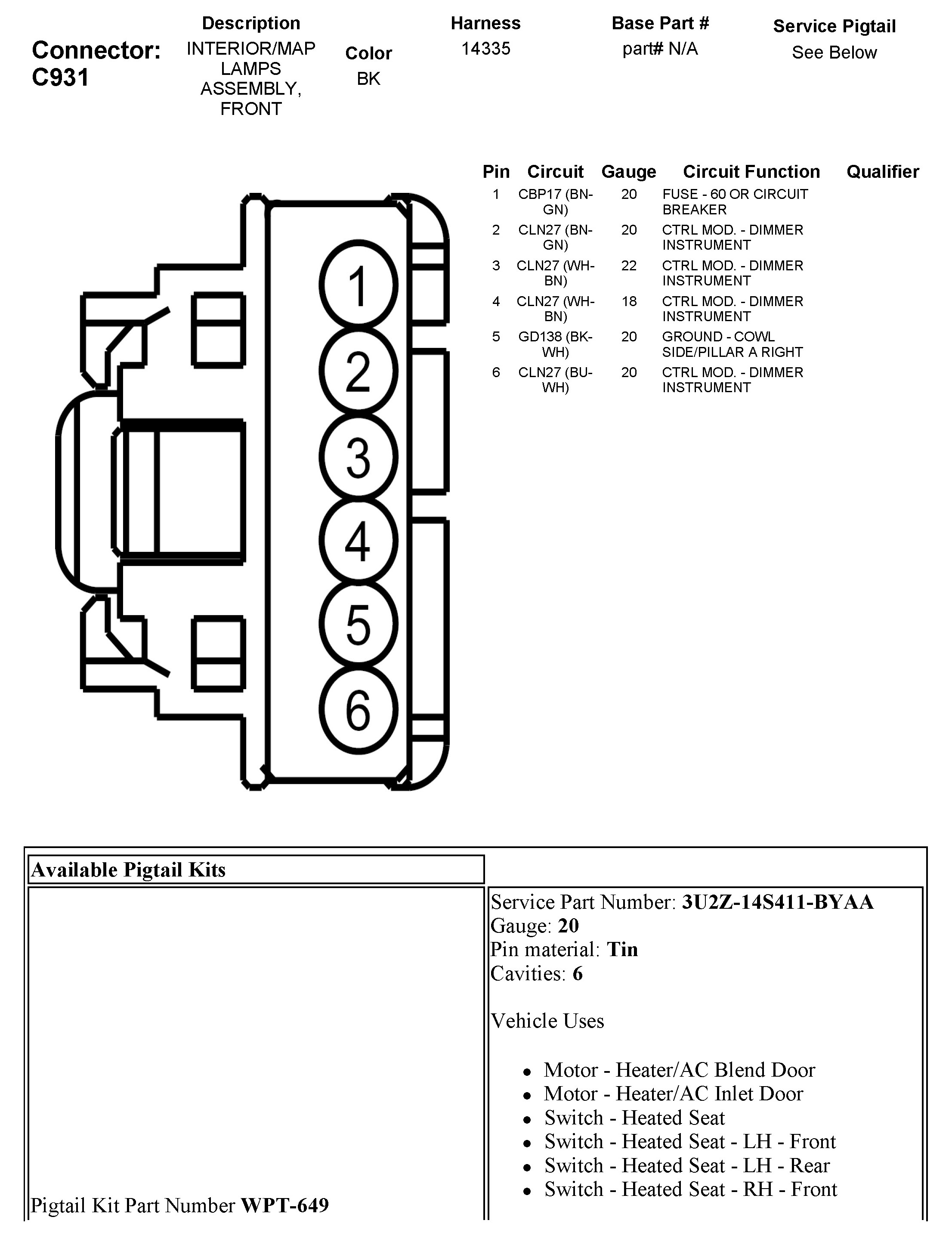

C931 Interior/MAP Lamps Assembly, Front
