Home >> Ford >> 2012 >> Focus ELE-Electric Engine >> Repair and Diagnosis >> Diagrams >> Connector Views >> Charging System >> C1806 Charge Port Light Ring

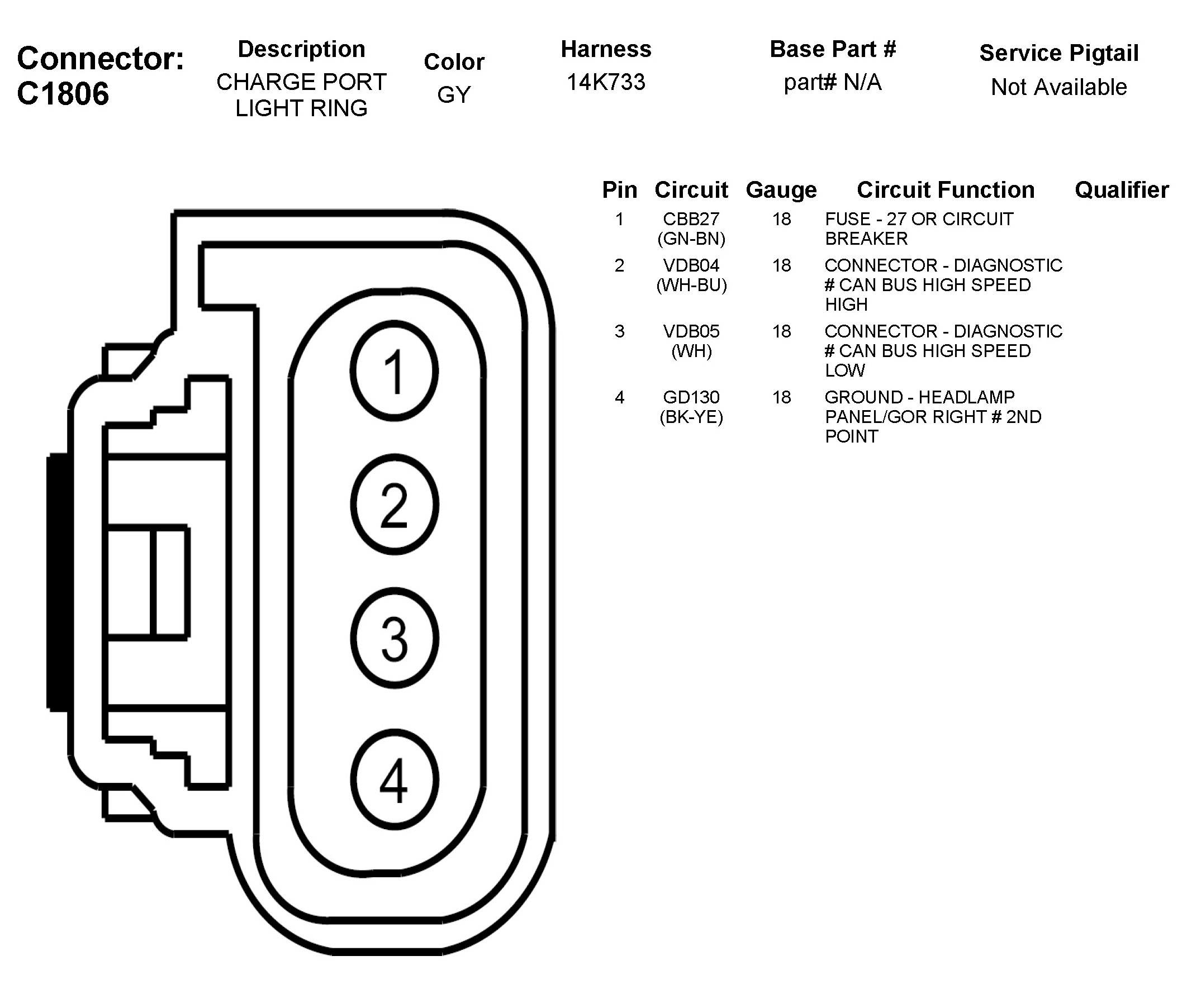

C1806 Charge Port Light Ring
