Ford
>>
2012
>>
Focus ELE-Electric Engine
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

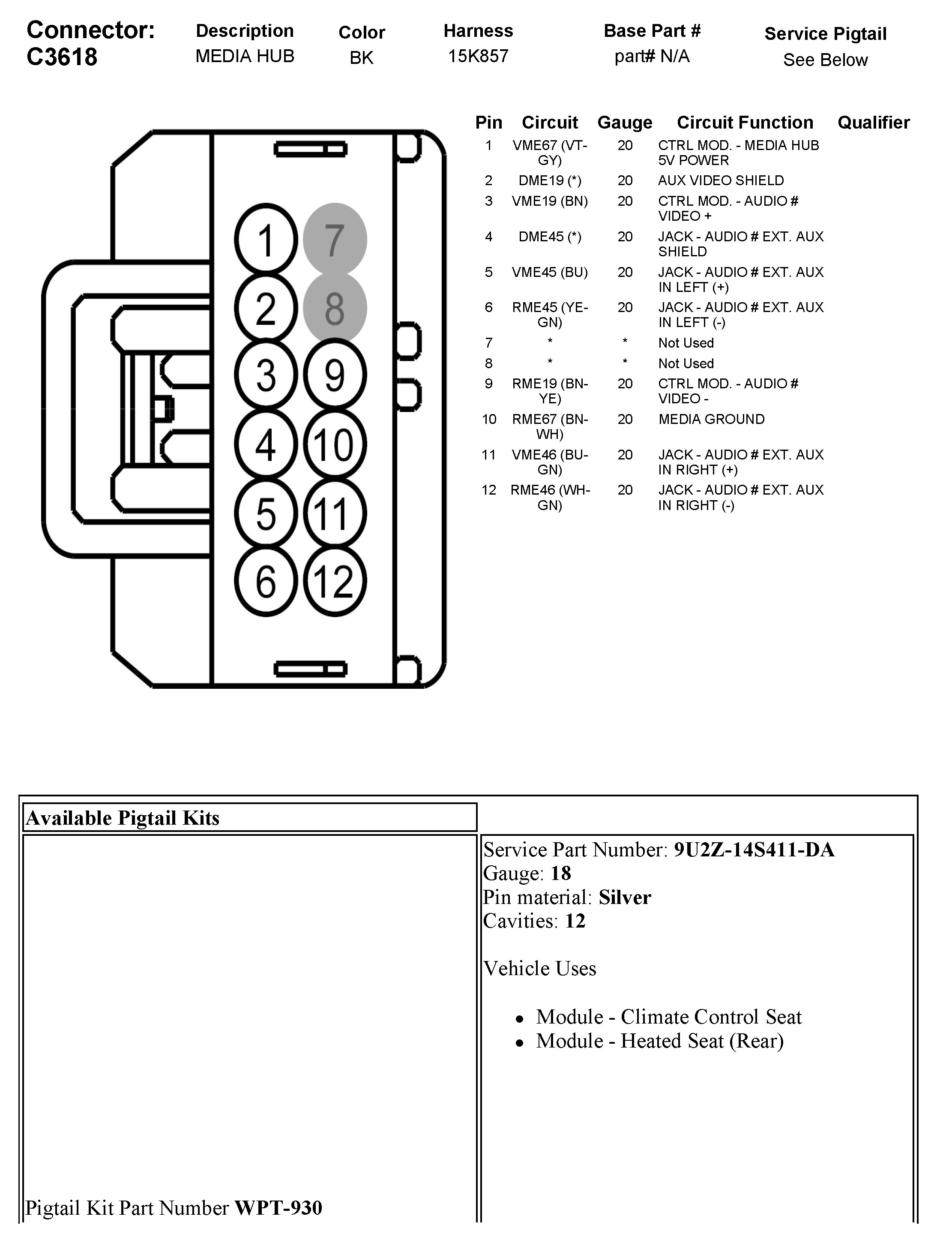

Auxiliary Input / Output Jack, Entertainment System
Auxiliary Input / Output Jack, Entertainment System
