Fog/Driving Lamp: Service and Repair

Fog Lamp









Removal and Installation

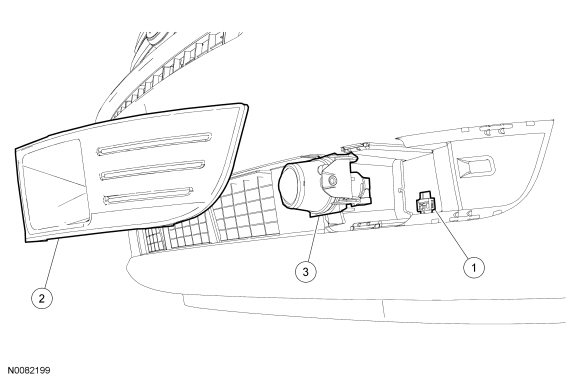

1. With the vehicle in NEUTRAL, position it on a hoist.

2. Remove the front bumper cover lower air deflector.

3. Disconnect the fog lamp electrical connector.

4. Release the 4 tabs and remove the fog lamp bezel.

5. Release the 2 locking tabs and remove the fog lamp.

6. To install, reverse the removal procedure.
