Ambient Air Temperature Sensor

Ambient Air Temperature Sensor









Removal and Installation

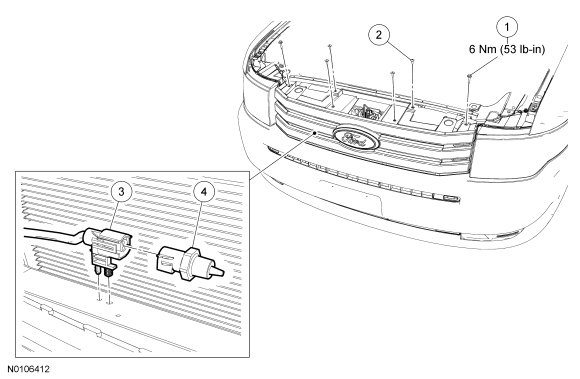

1. Remove the 2 front bumper cover bolts.
- To install, tighten to 6 Nm (53 lb-in).


2. Remove the 4 front bumper cover scrivets.

3. Working through the front bumper cover hood latch opening, detach the ambient temperature sensor pin-type retainer from the bumper beam.

4. Position the ambient air temperature sensor through the radiator grille opening to allow access to the electrical connector.





5. Disconnect the ambient air temperature sensor electrical connector and remove the ambient air temperature sensor.

6. To install, reverse the removal procedure.
