Exterior Moulding / Trim




Exterior Trim - Exploded View

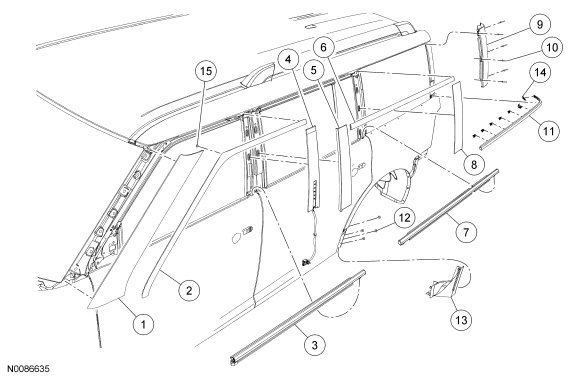

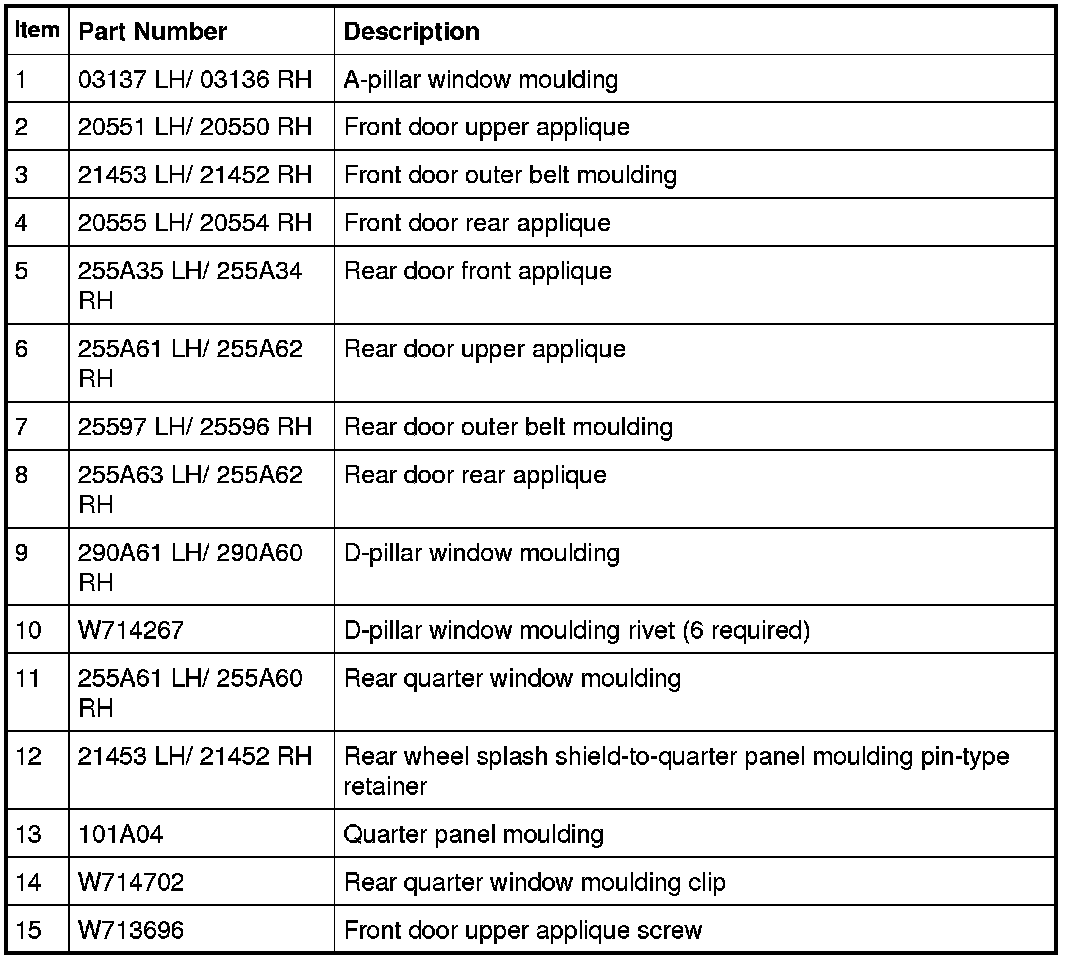

Body Side Mouldings and Appliques

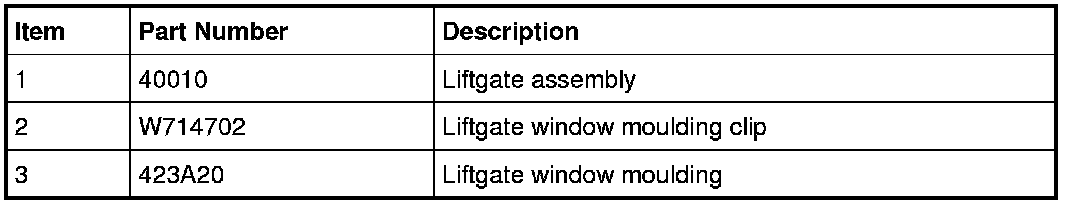

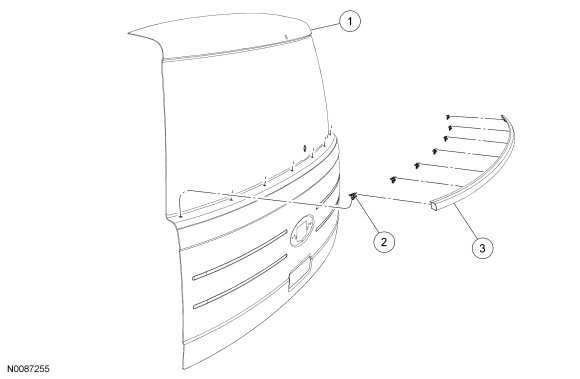

Rear Glass Window Moulding

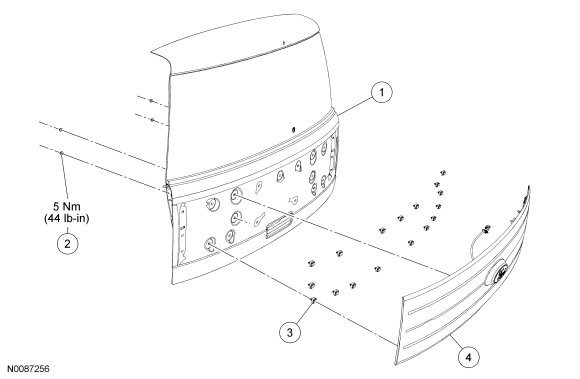

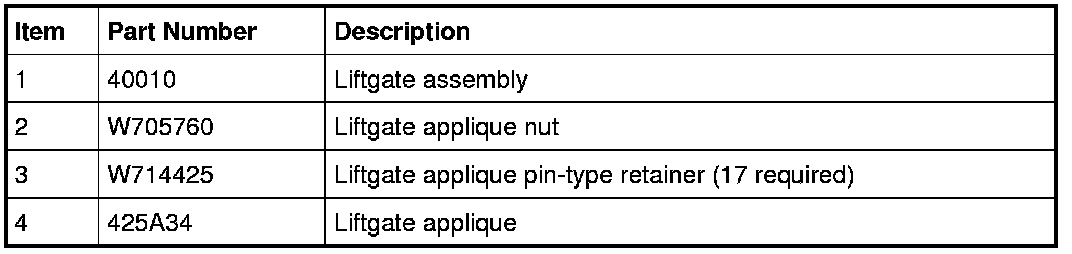

Liftgate Applique
