Trunk / Liftgate Switch
>>

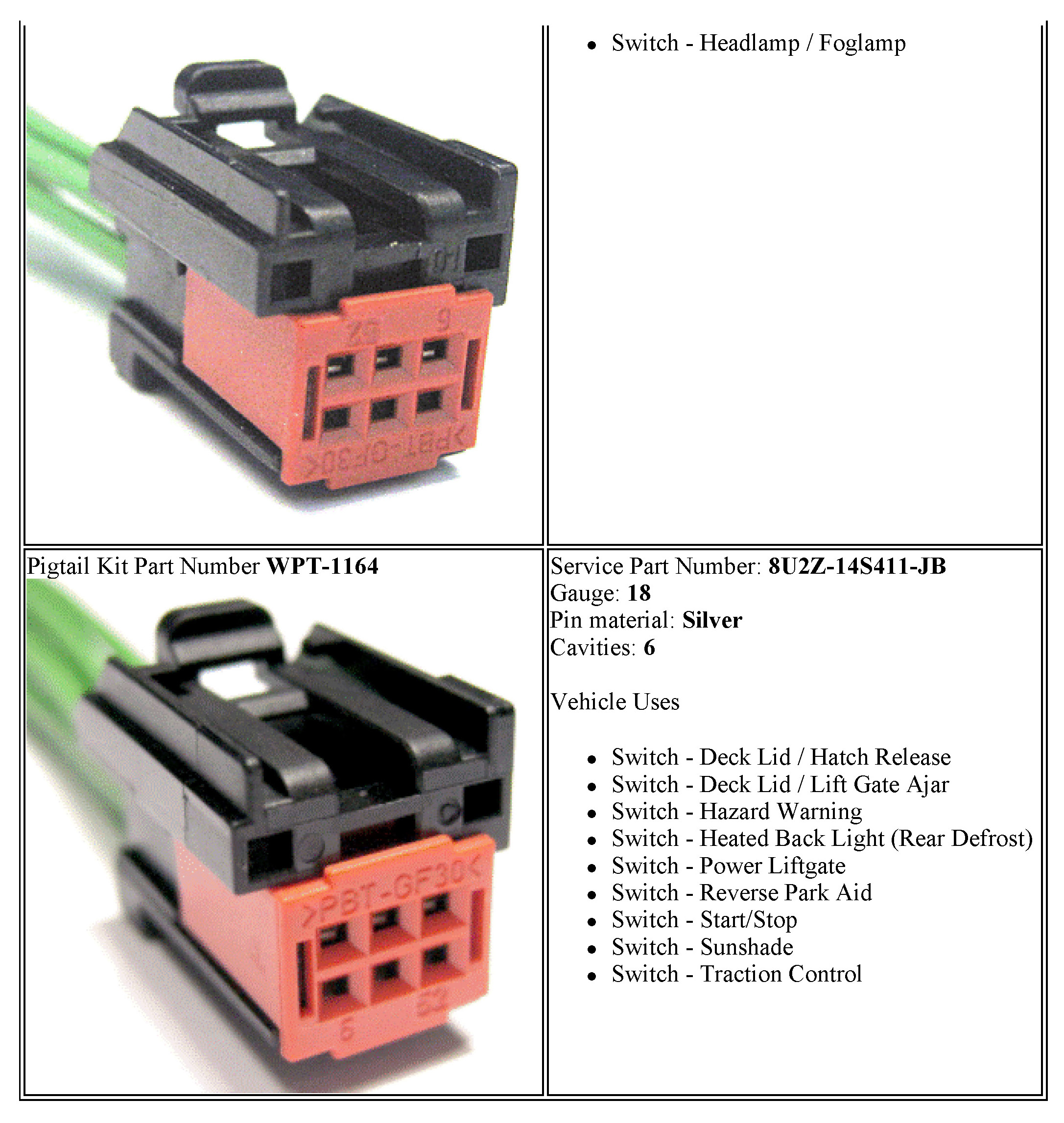

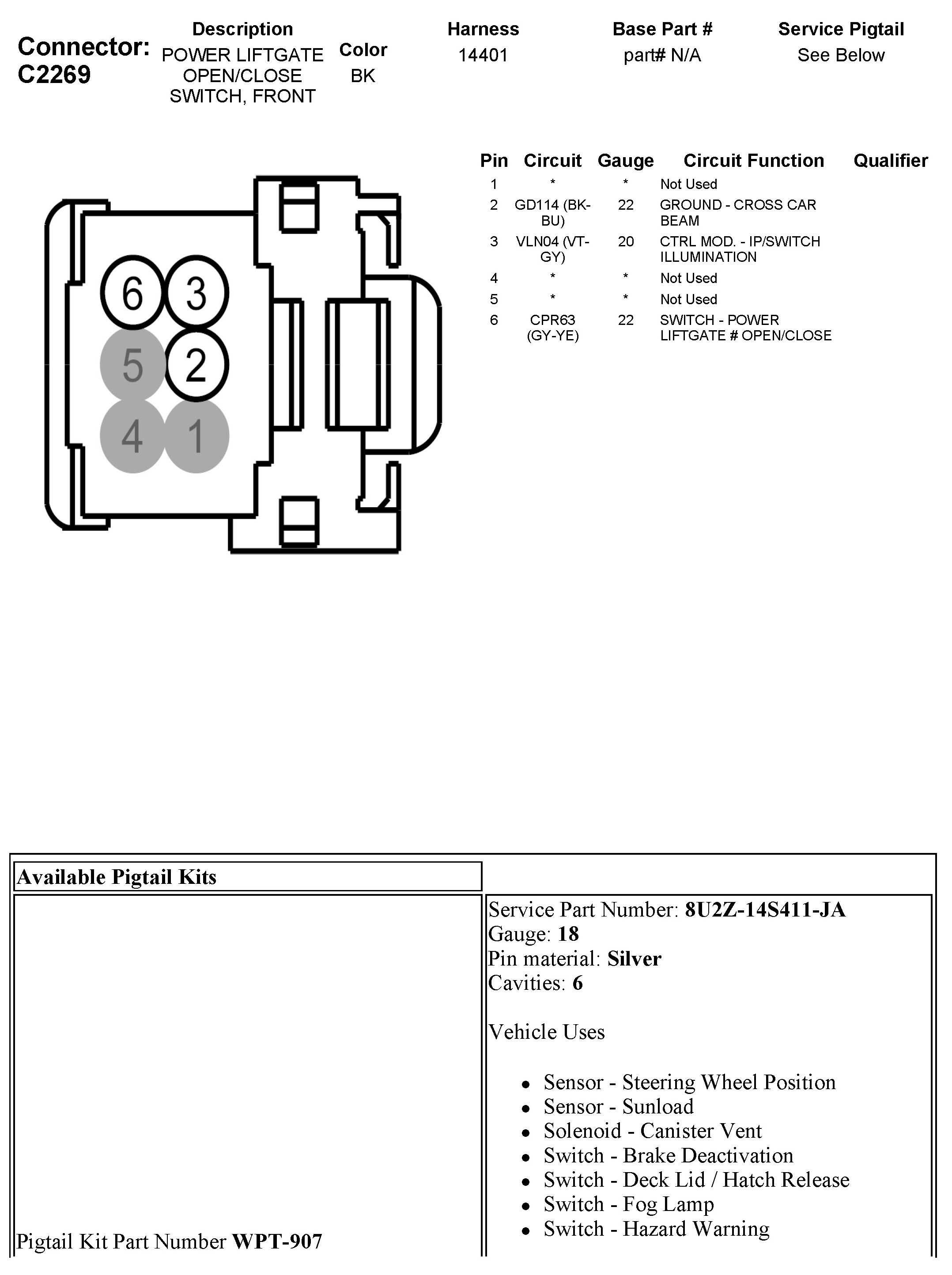

C2269 Power Liftgate Open/Close Switch, Front
C2269 Power Liftgate Open/Close Switch, Front
