Ford
>>
2012
>>
Flex AWD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seat Occupant Sensor
>>

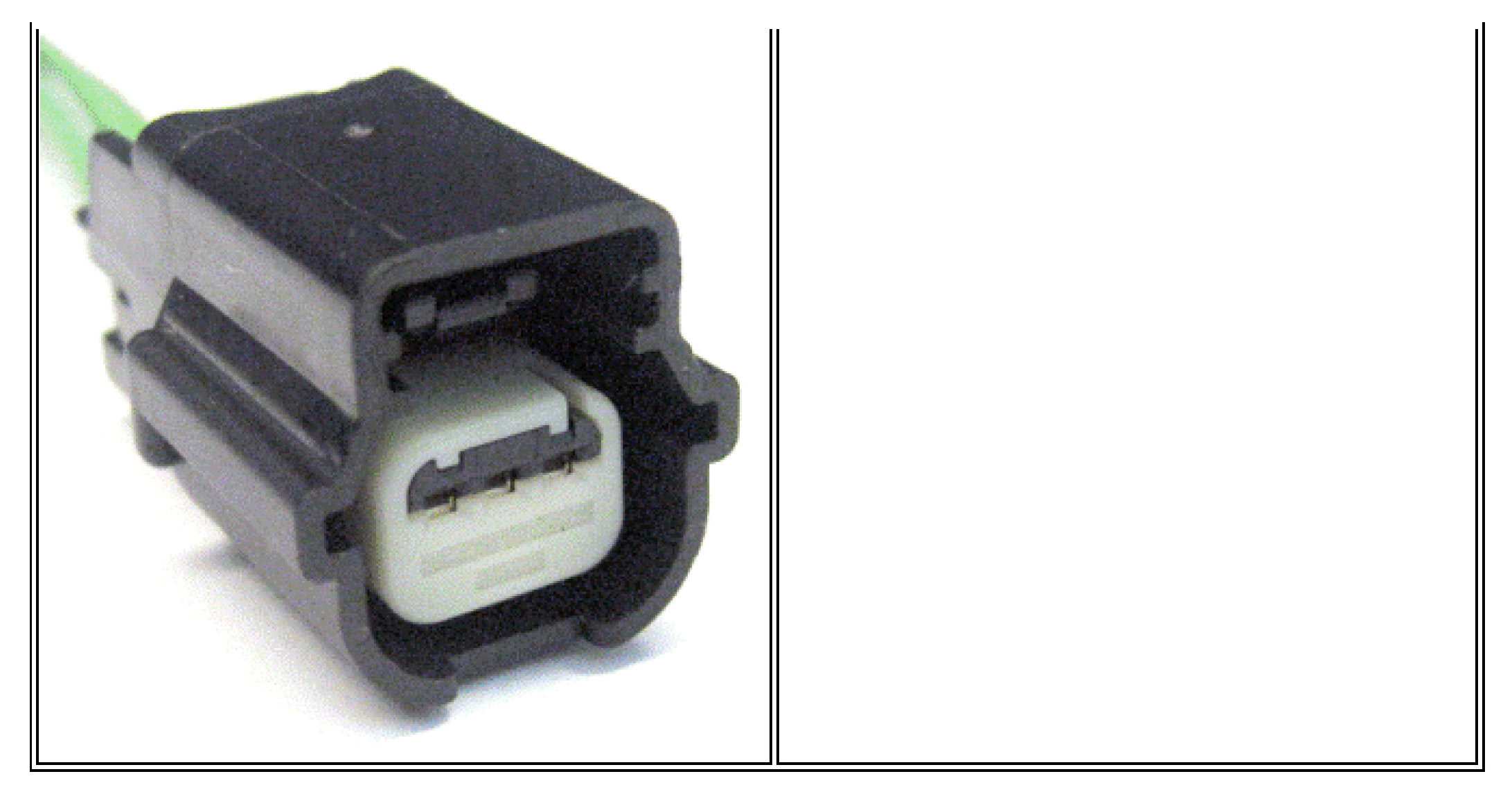

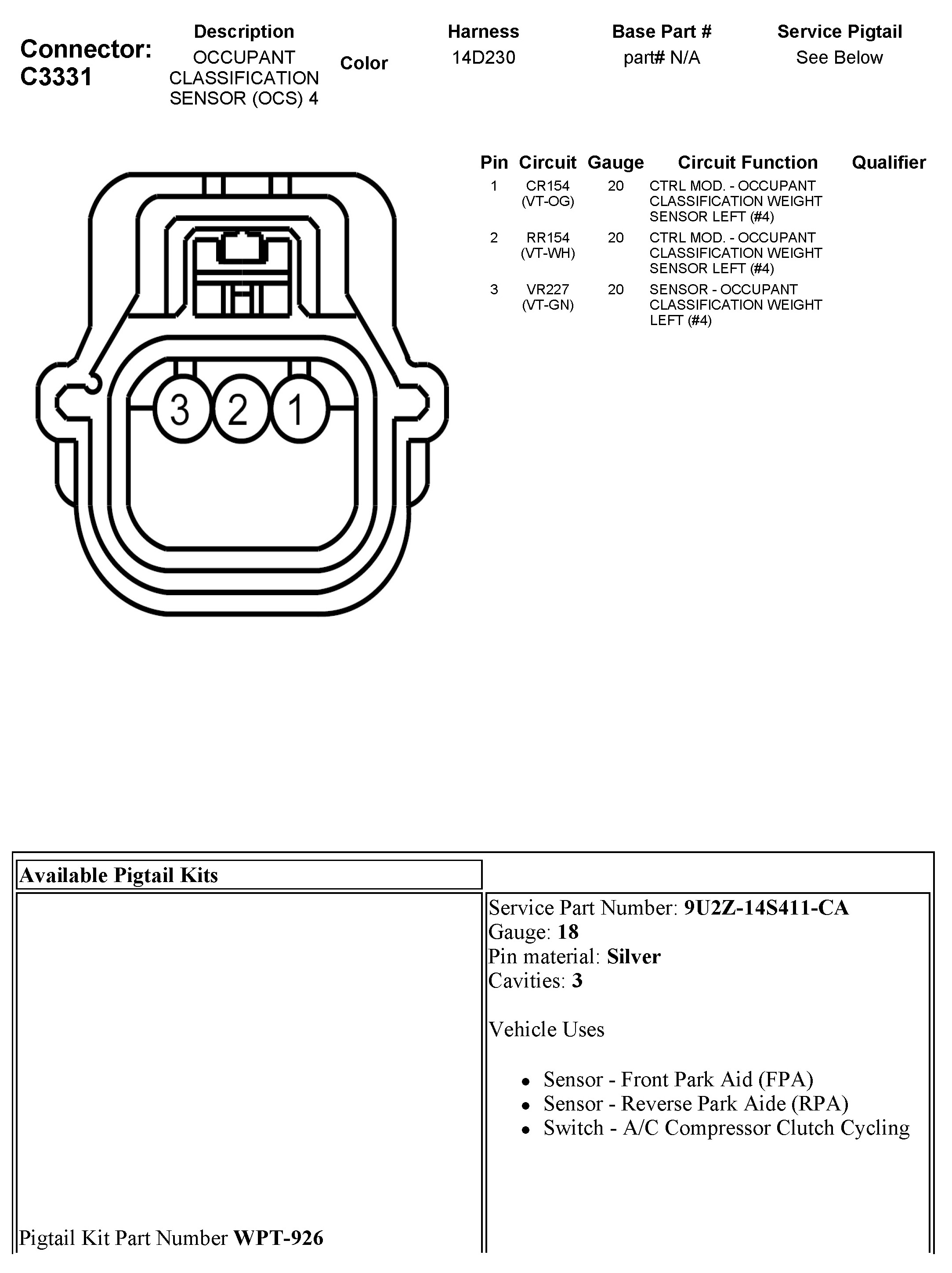

C3331 Occupant Classification Sensor (OCS) 4
C3331 Occupant Classification Sensor (OCS) 4
