Seat - Exploded View, Second Row




Seat - Exploded View, Second Row

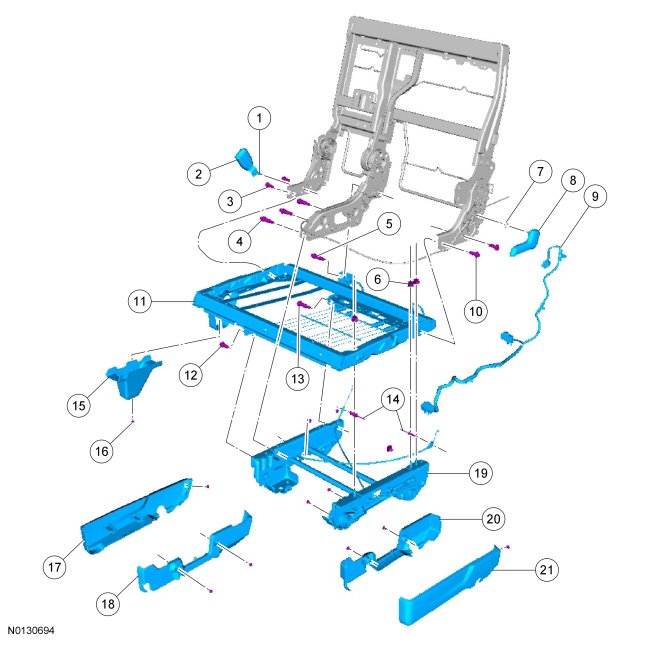

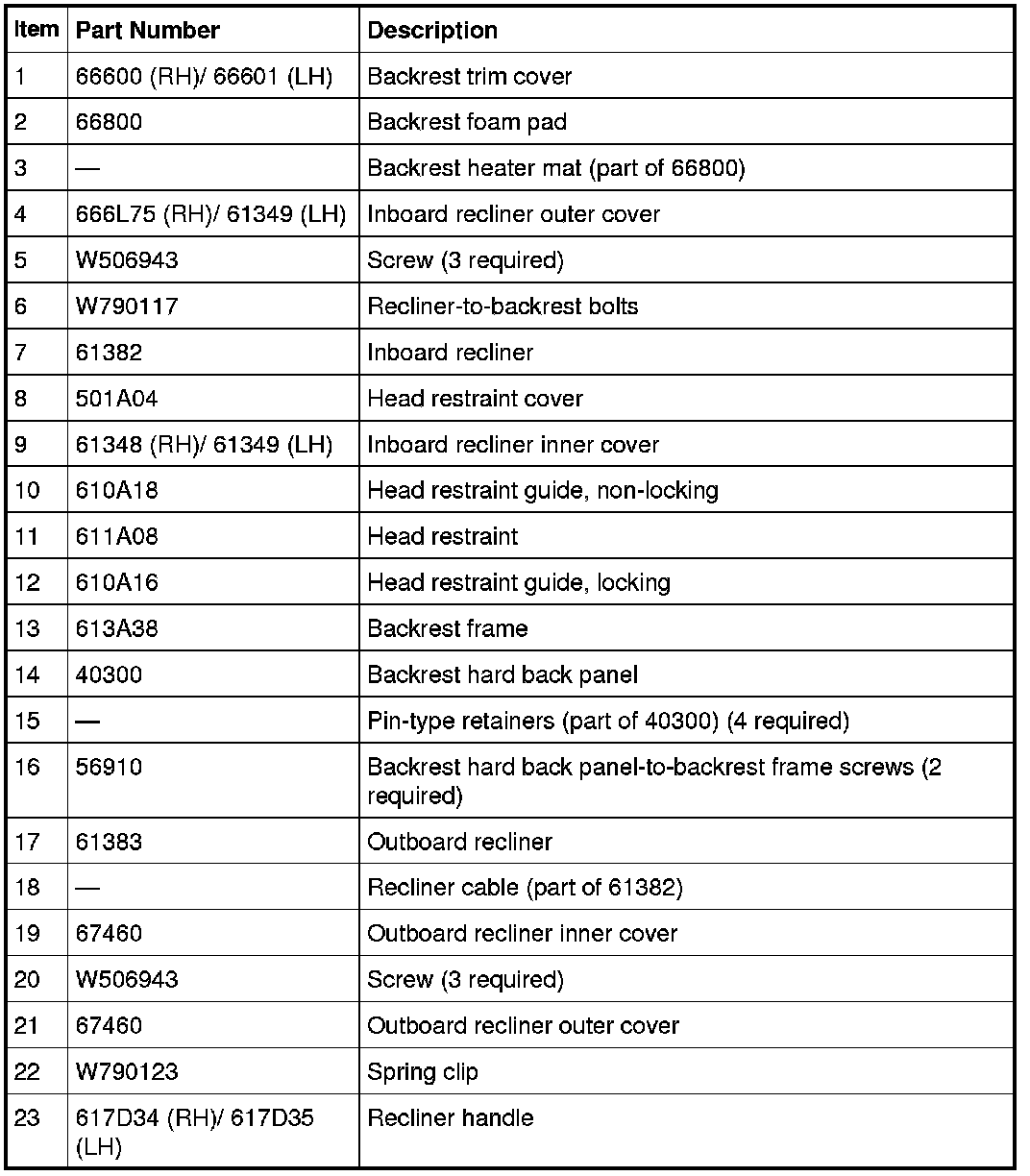

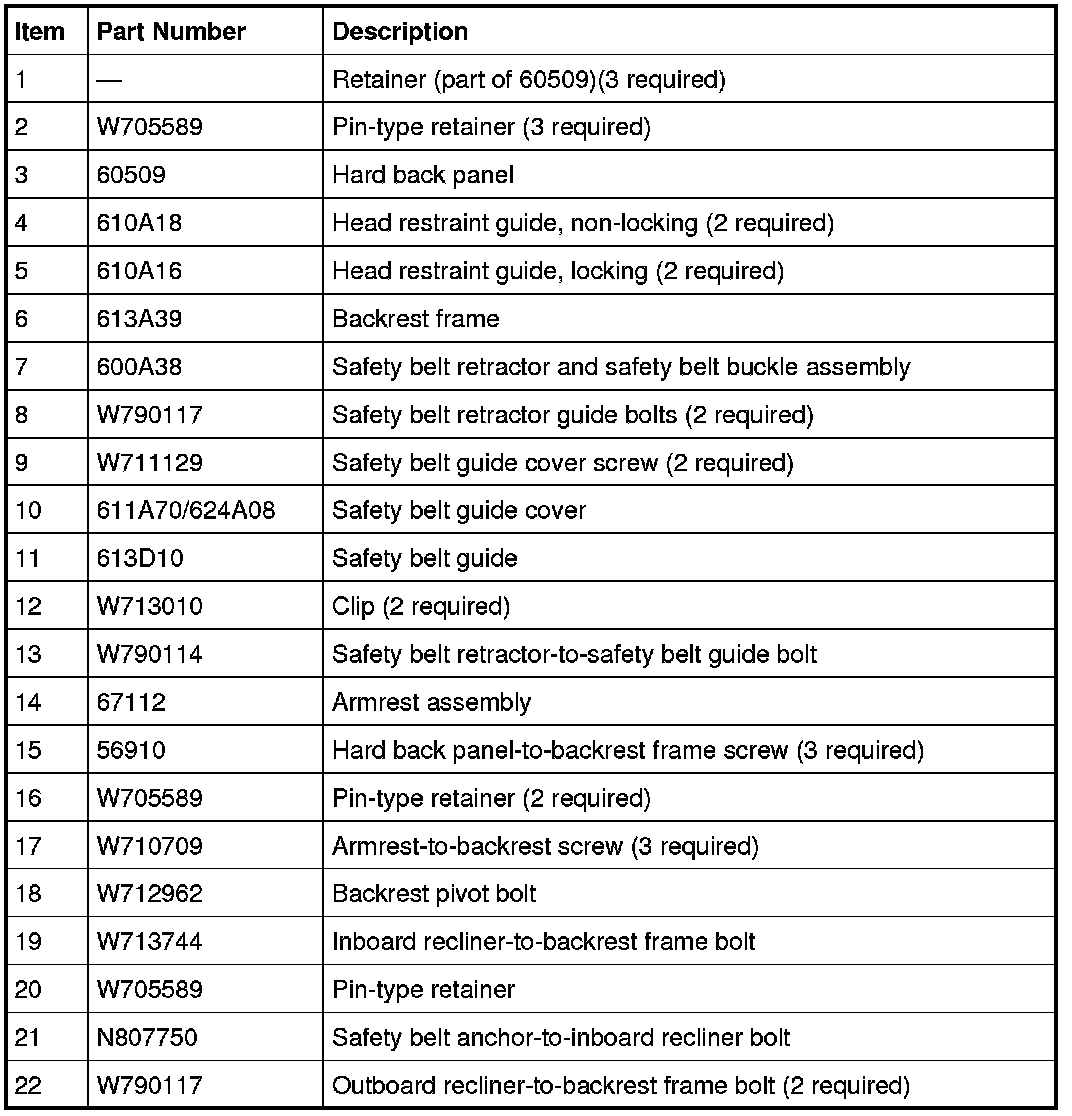

40 Percent Seat Backrest

NOTE: LH shown, RH similar.

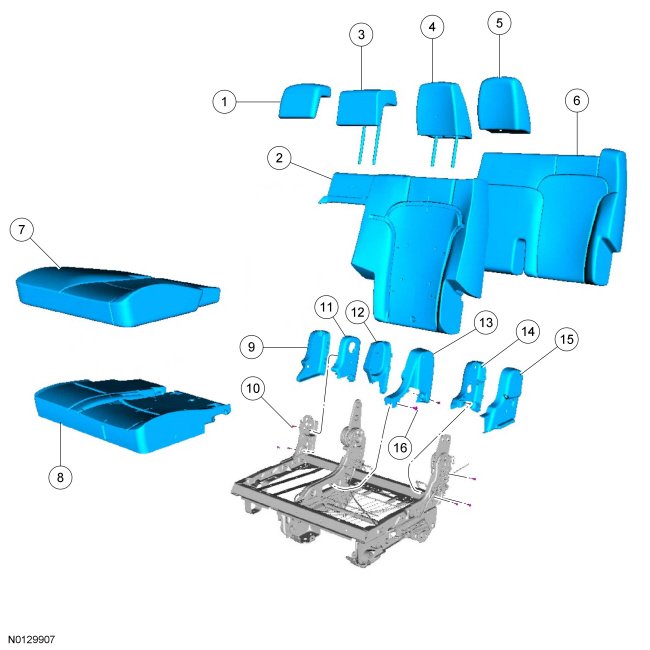

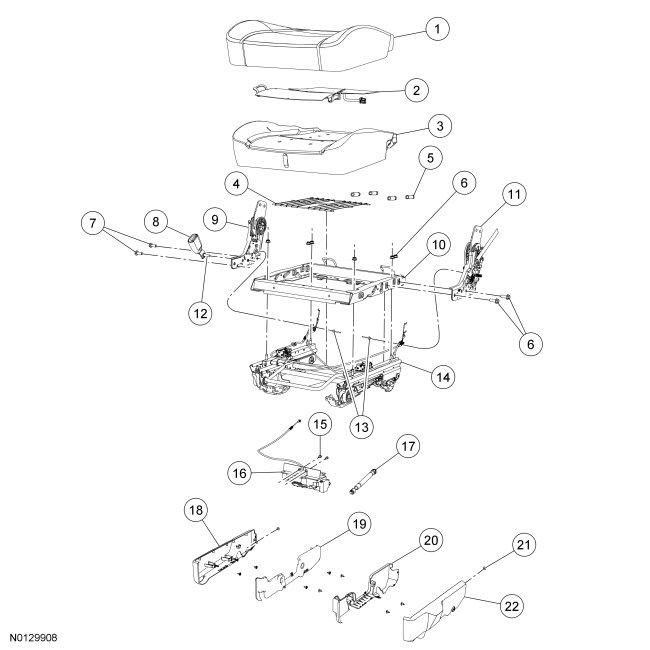

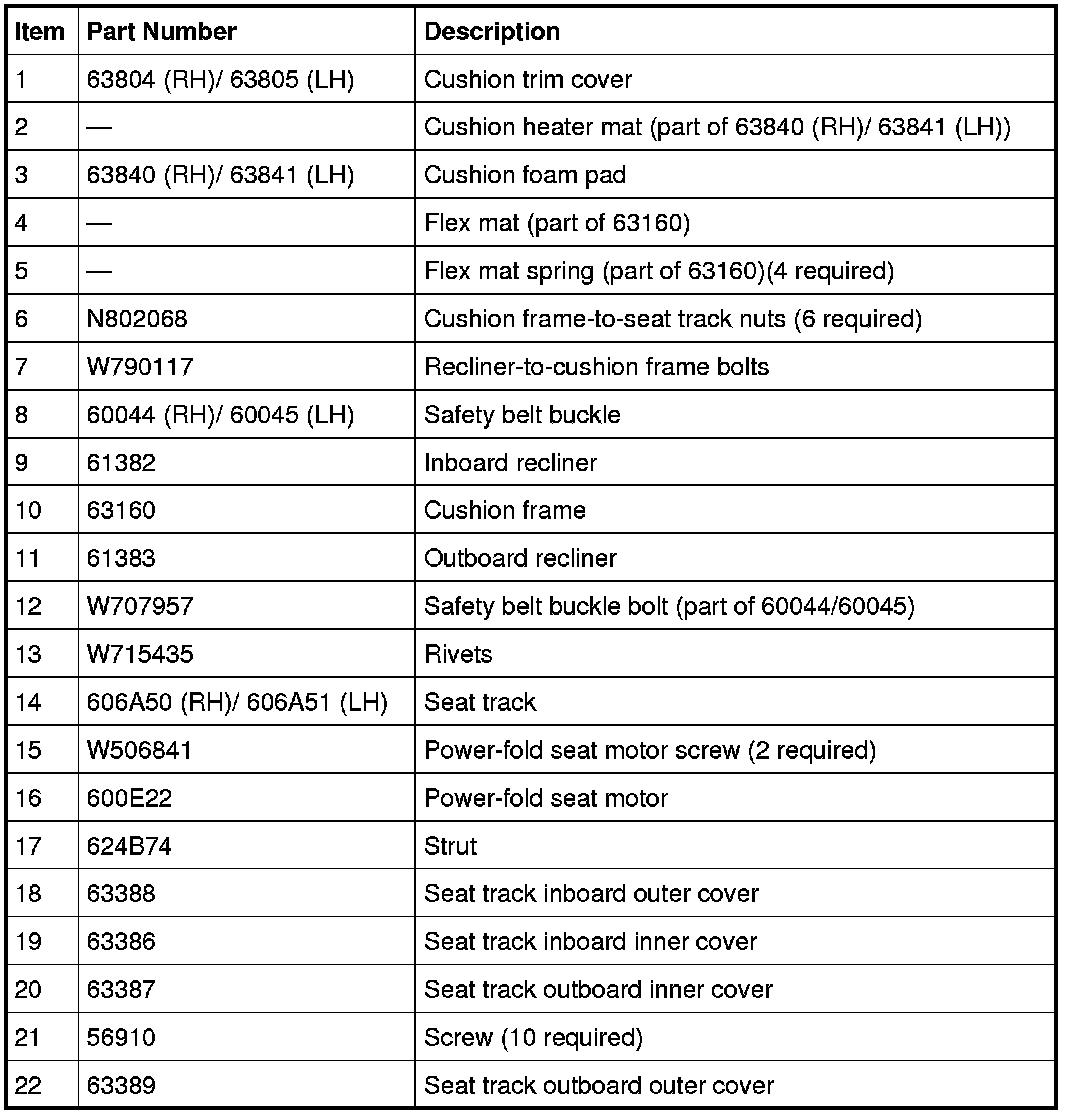

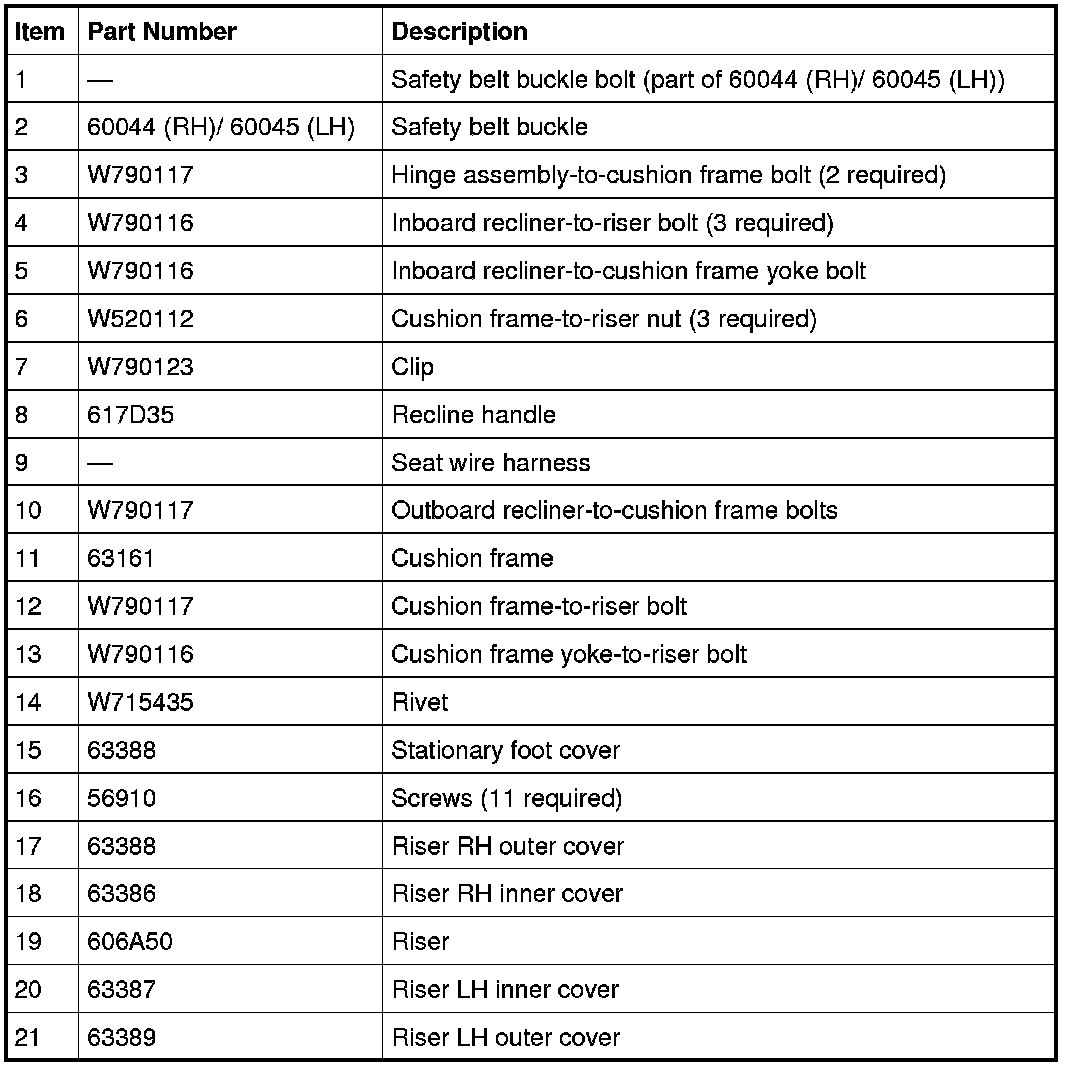

40 Percent Seat Cushion

NOTE: LH shown, RH similar.

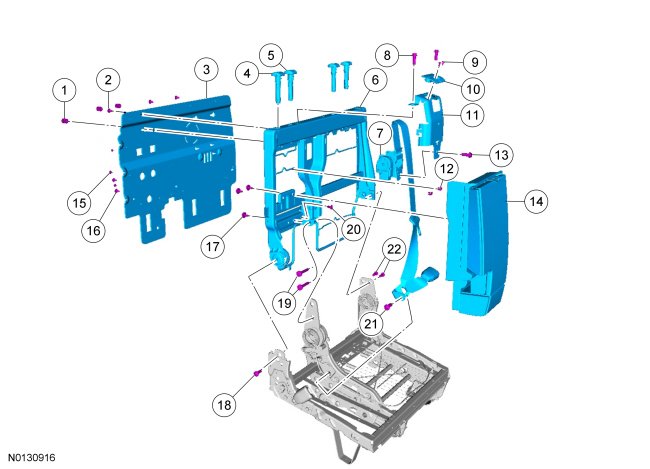

60 Percent Backrest and Attachments

NOTE: With armrest shown, without similar.

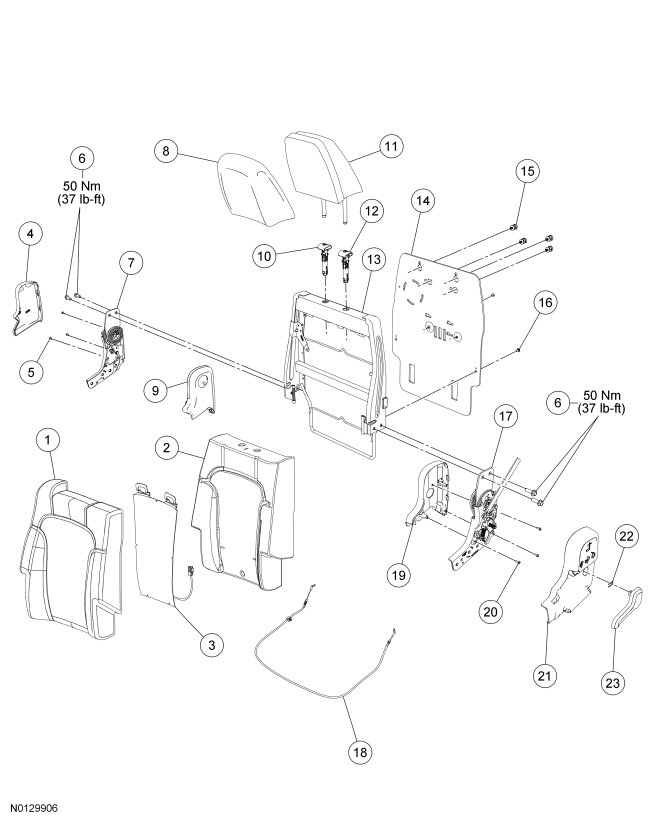

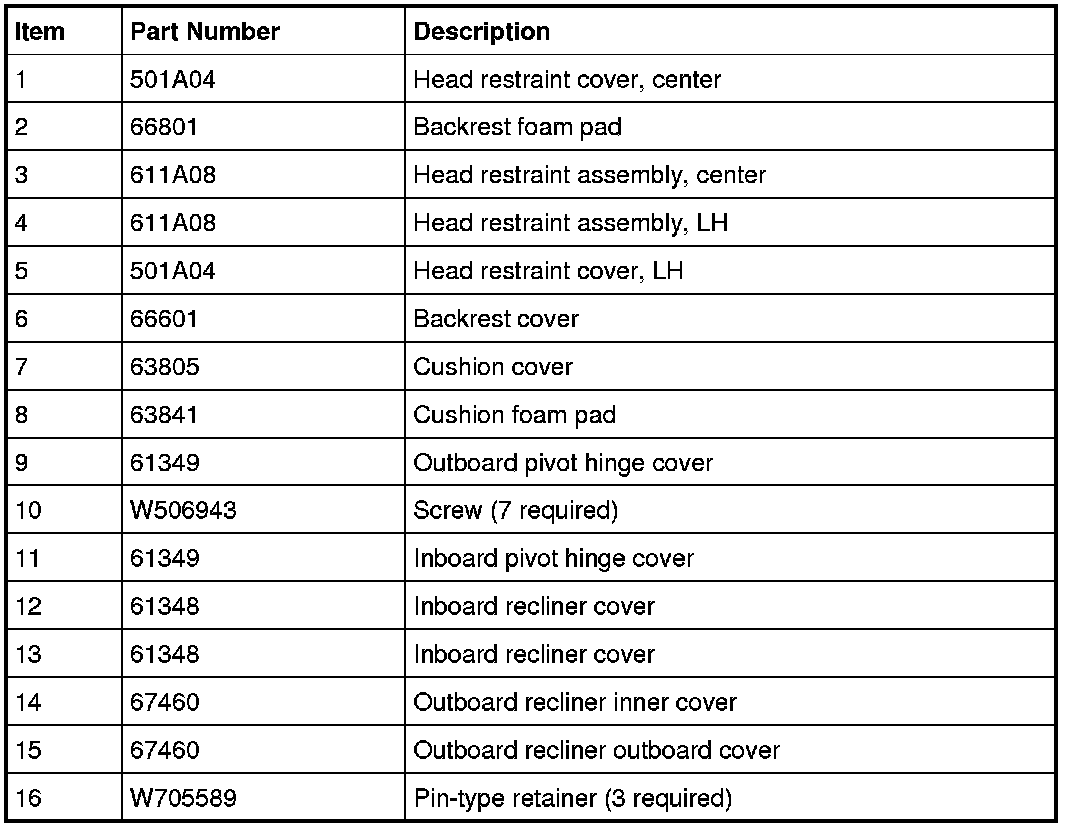

60 Percent Covers, Foams and Trim










60 Percent Cushion and Attachments
