Input Shaft: Service and Repair

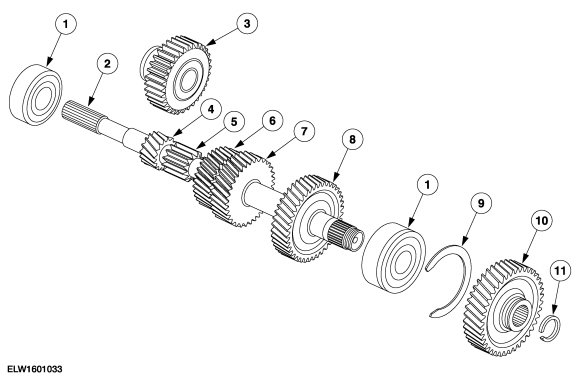

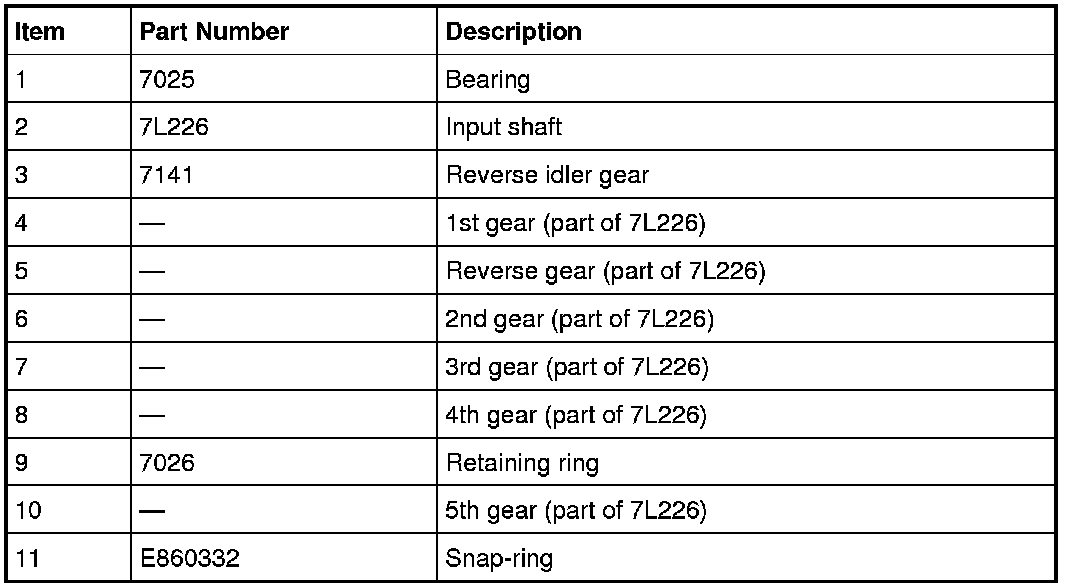

Input Shaft





Input Shaft









Disassembly

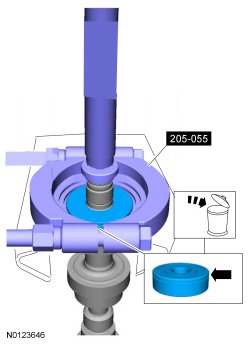

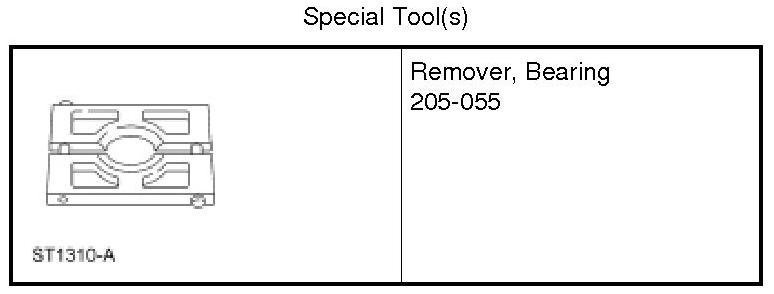

1. Using the special tools, remove and discard the bearing.

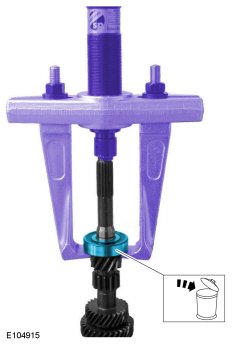

2. Using a suitable tool, remove and discard the bearing.





Assembly

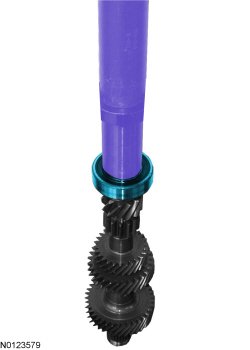

1. Using a suitable tube, install the new bearing.

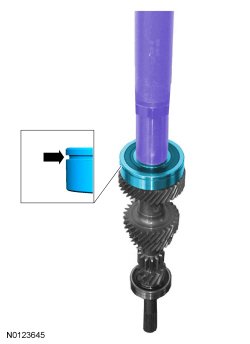

2. Using a suitable tube, install the new bearing.
