Test FD: Brake Pedal Inputs



Brake Pedal Inputs

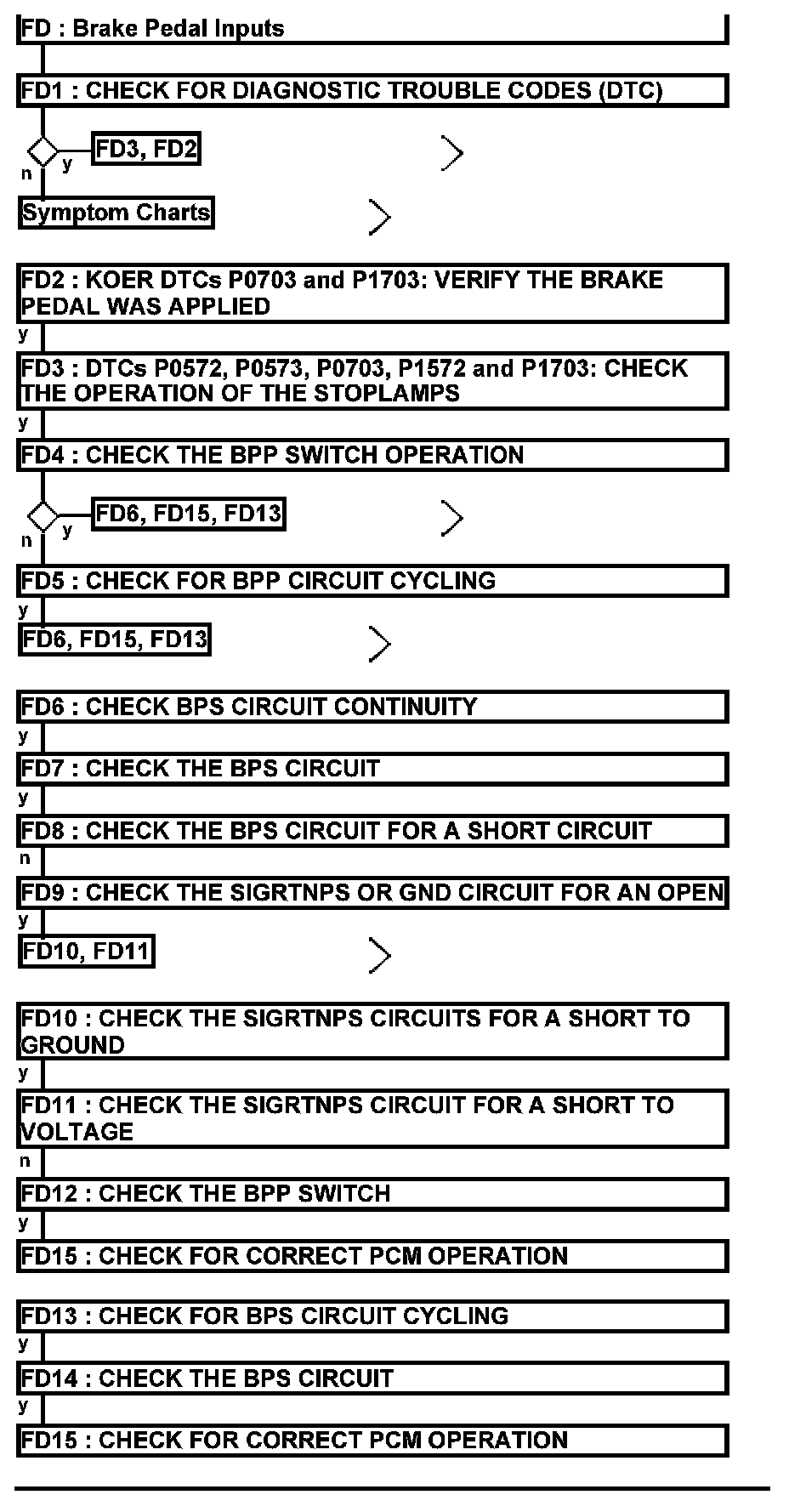

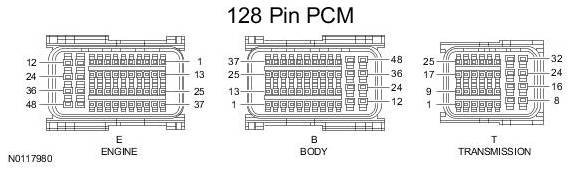

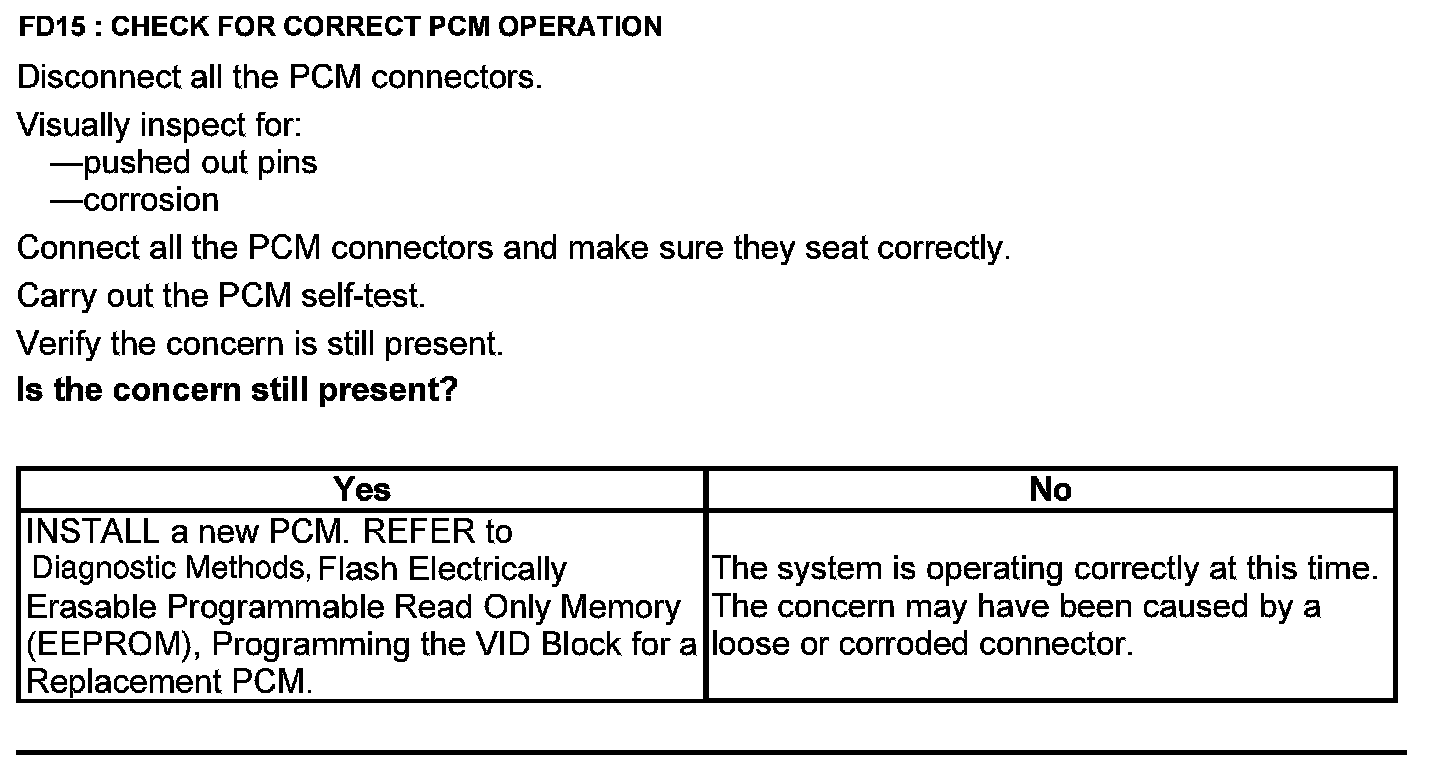

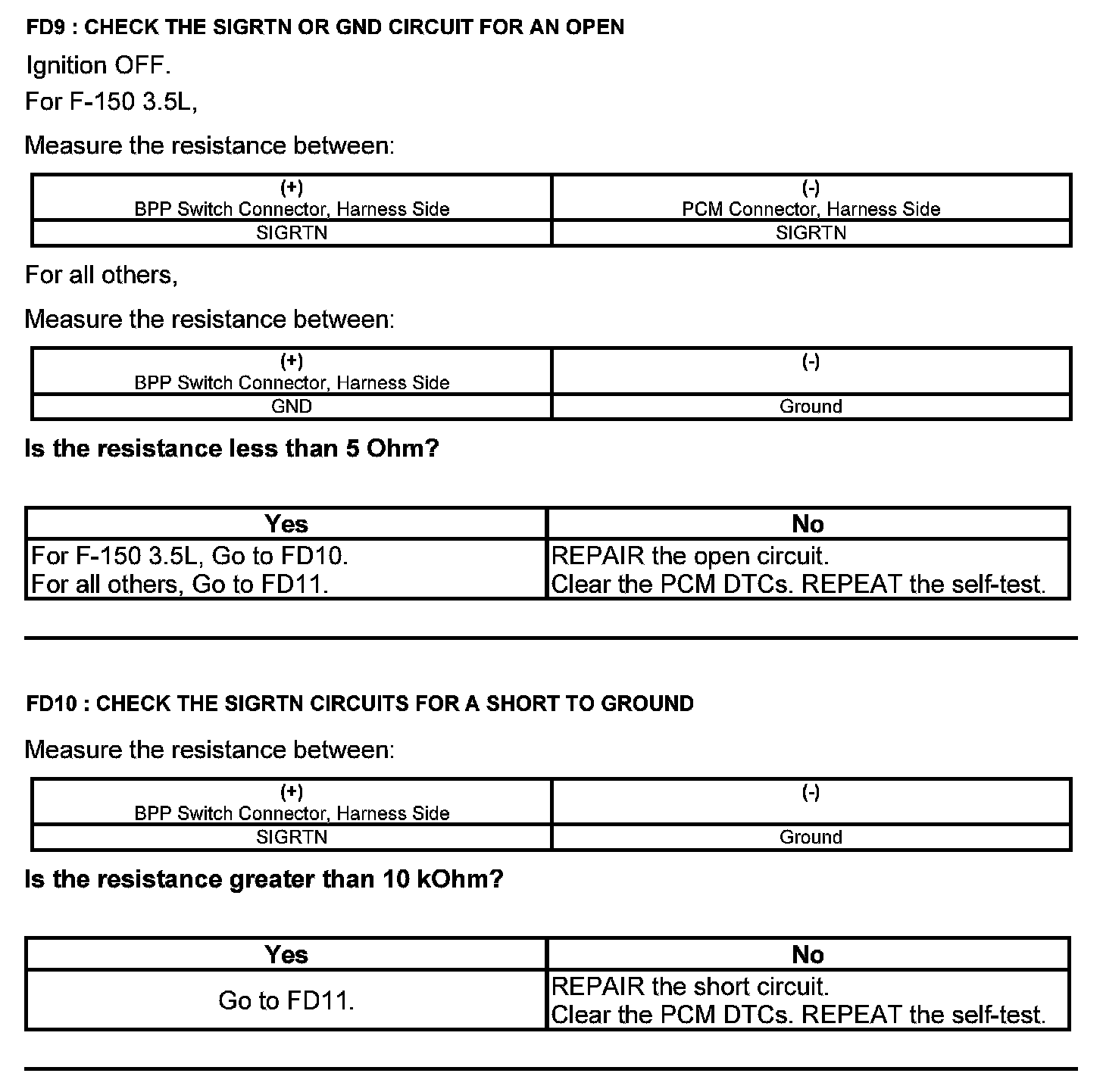

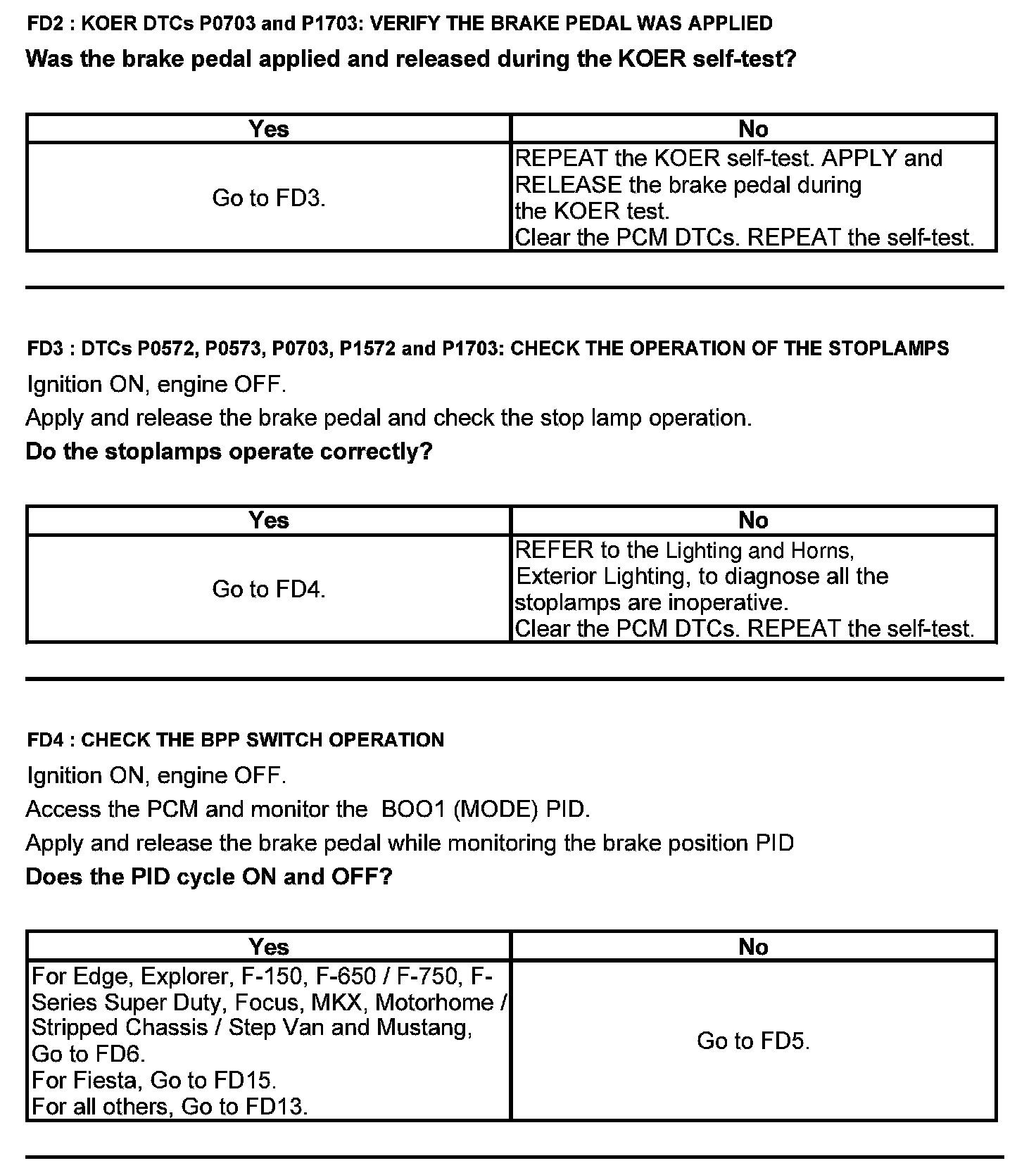

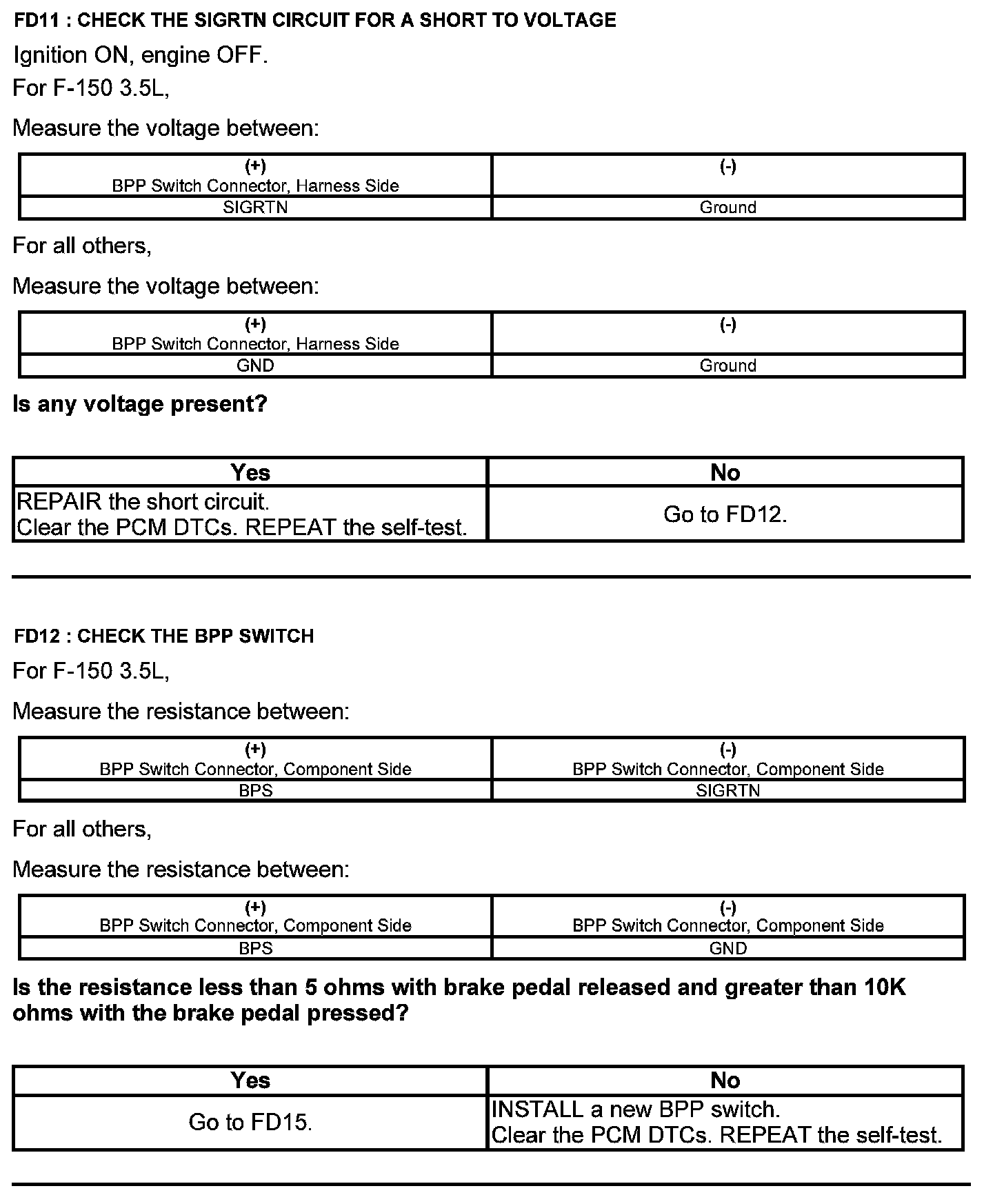

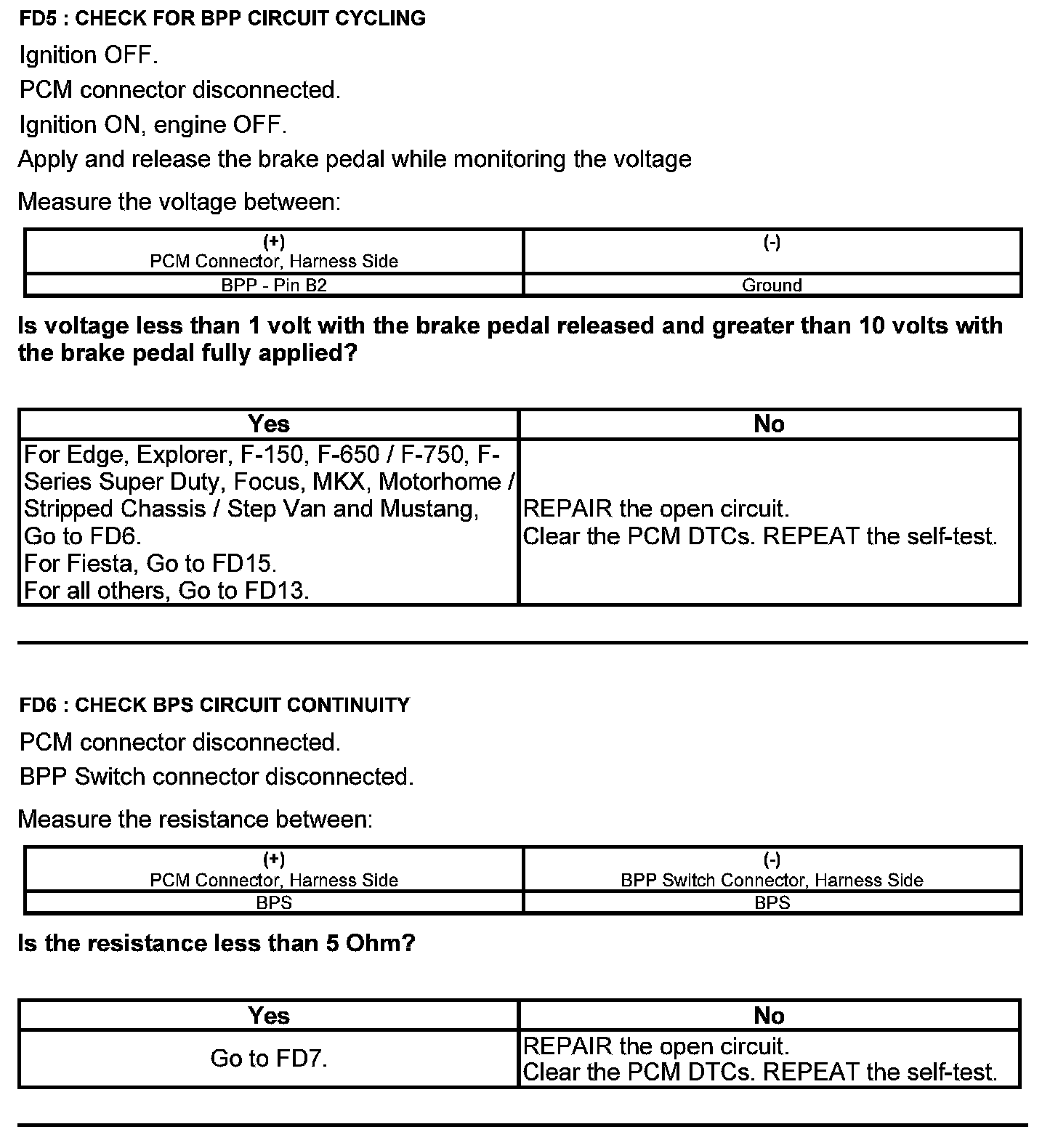

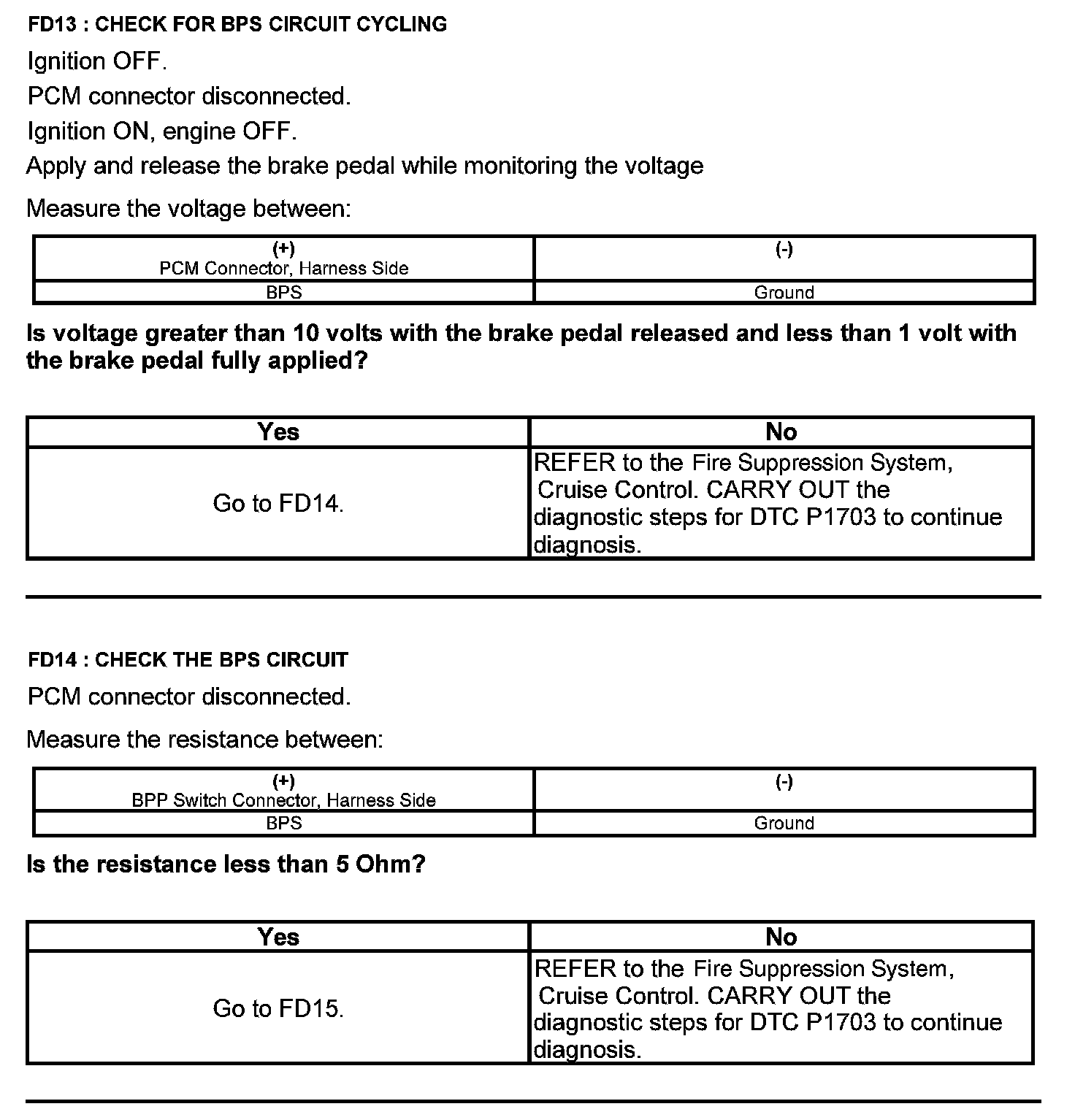

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.
