Home >> Ford >> 2012 >> Fiesta L4-1.6L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Locations >> Passenger Compartment Fuse Panel

Passenger Compartment Fuse Panel

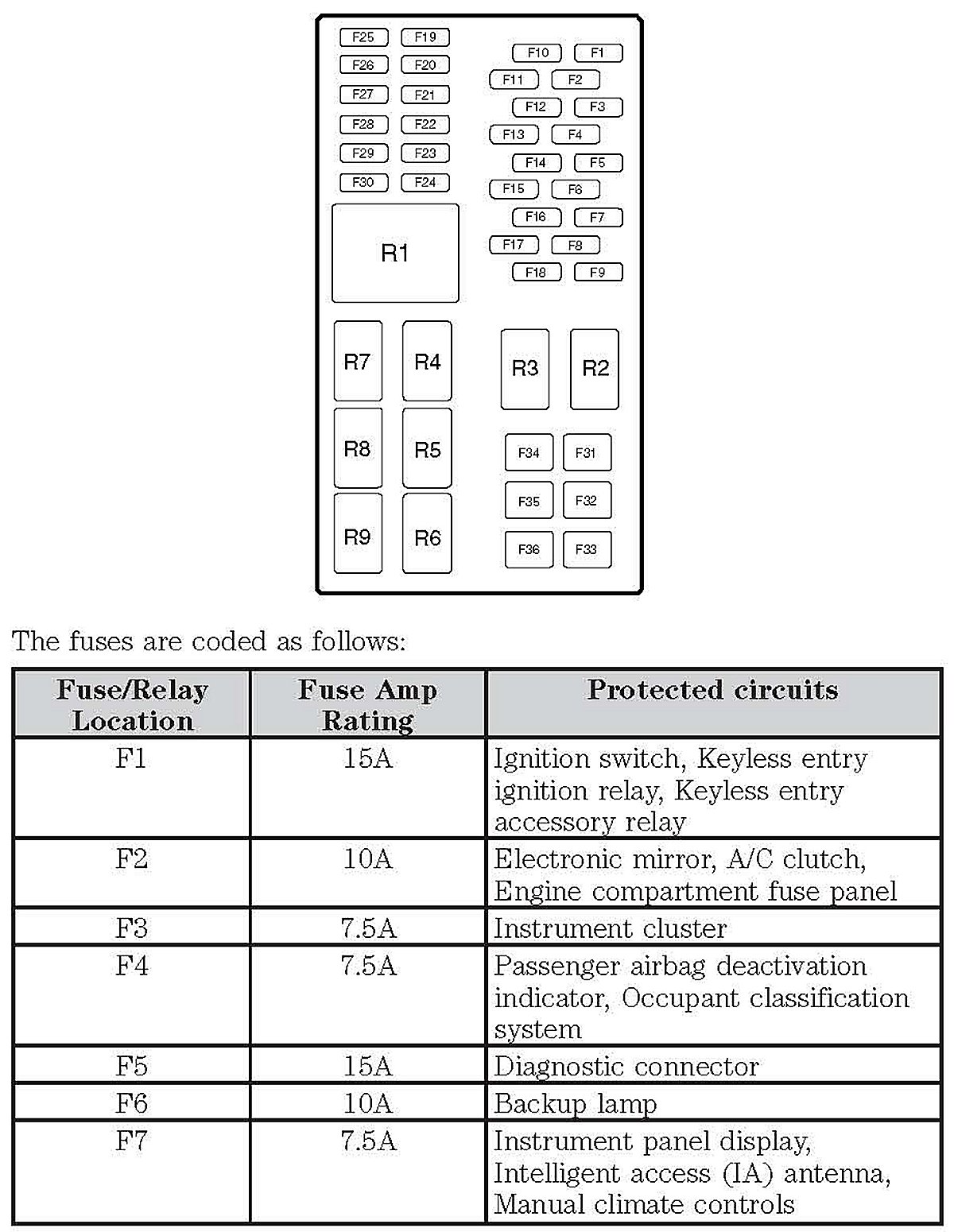

Passenger Compartment Fuse Panel















The fuse panel is located behind the glove box.
