Home >> Ford >> 2012 >> Fiesta L4-1.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Transmission Speed Sensor, A/T >> C143 Input Shaft Speed Sensor 1

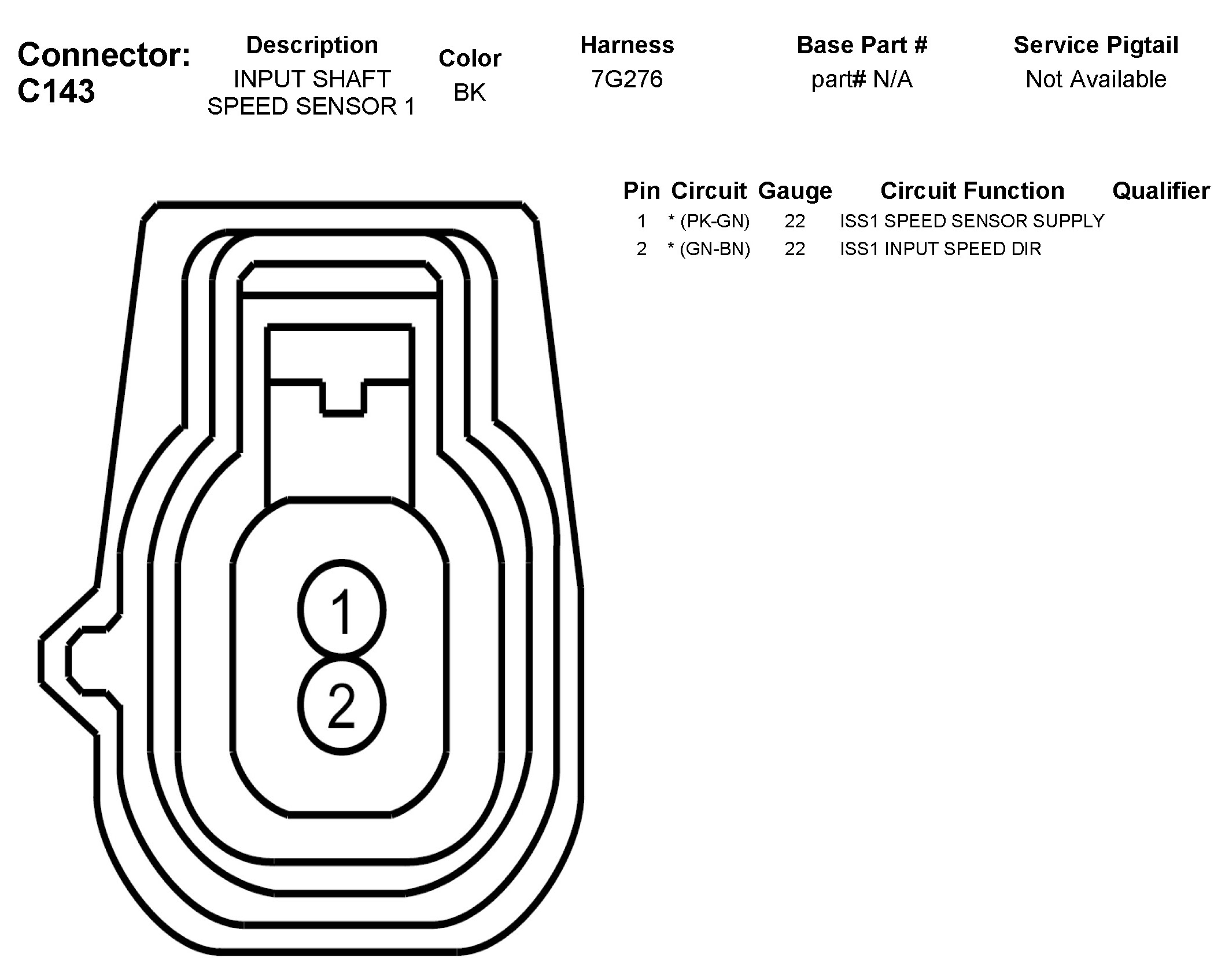

C143 Input Shaft Speed Sensor 1
