Home >> Ford >> 2012 >> Fiesta L4-1.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Tire Pressure Module >> C4321B Tire Pressure Monitor/vehicle Security Module (TPM/VSM)

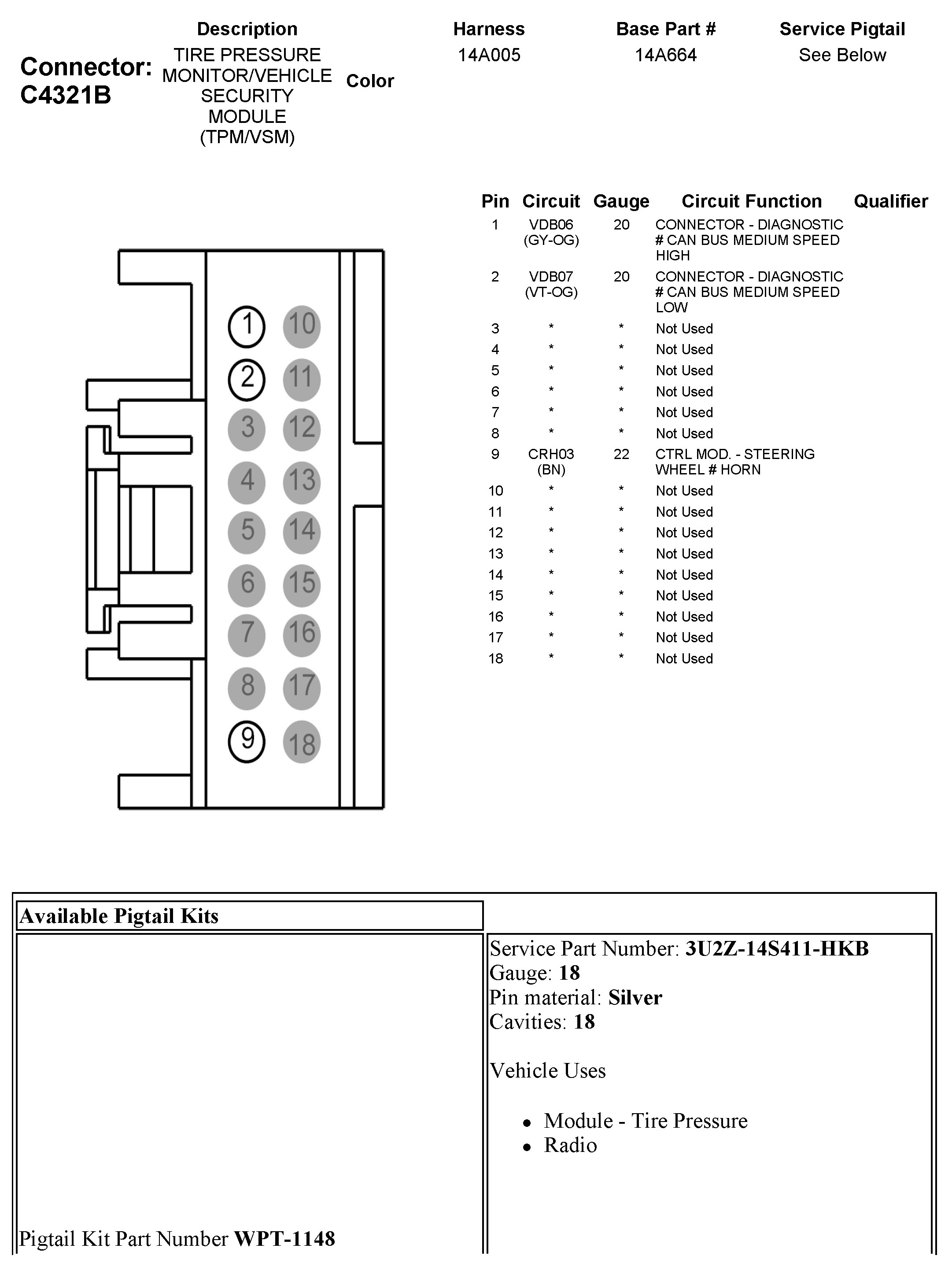

C4321B Tire Pressure Monitor/vehicle Security Module (TPM/VSM)
